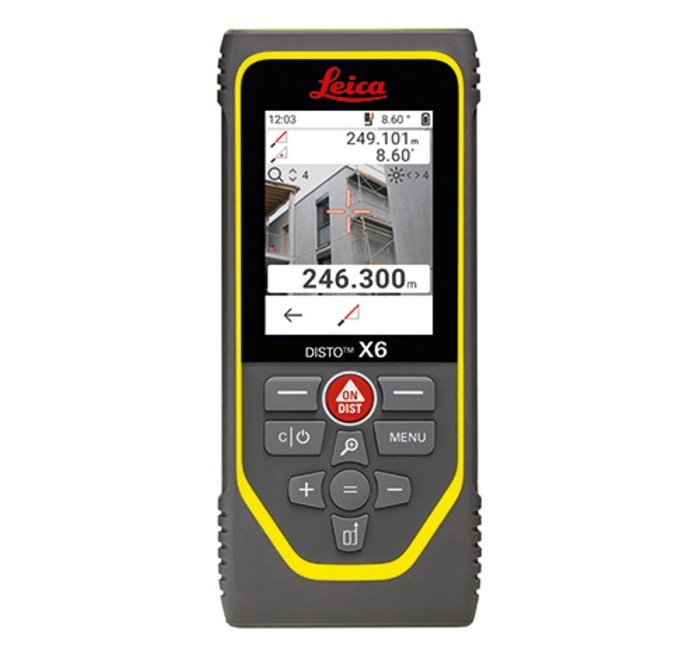

| Leica DISTO X6 : Laser Distance Meter IP65 Dustproof & Waterproof | Bluetooth 5.0 | 820 Foot Range | Tilt Sensor Part Number: LEI 950909 |
| Includes: DISTO X6 Laser Distance Meter, Wrist Strap, USB-C Charging Cable, Calibration Certificate, Carrying Case |
 |
FREE Same-Day Shipping Order by 12 Noon CST • Ships Today |
|
| The Leica DISTO X6 is the laser distance meter built for contractors who work in real conditions — dusty job sites, wet environments, and outdoor measurements where cheaper tools fail. With an IP65 dustproof and waterproof rating, a rugged drop-tested housing, and an 820-foot laser range, the X6 is built to survive the same job sites it measures. Point it at any surface, pull the trigger, and get an accurate reading in under a second. Bluetooth connectivity sends measurements directly to your phone, tablet, or software with no manual data entry. If you're tired of losing measurements, re-measuring, or fighting with a fragile device, the DISTO X6 is the answer. |
- IP65 Rated: fully dustproof and waterproof — protected against direct water jets and total dust ingress
- 820-foot laser range in favorable conditions (500 feet in standard outdoor conditions) — ±1/16 inch accuracy
- Bluetooth 5.0: send measurements wirelessly to phone, tablet, Leica DISTO Plan app, or third-party software
- Built-in tilt sensor: measures angle of inclination and calculates indirect distances automatically
- 4x zoom camera with crosshair targeting for precise point-and-shoot at distance
- Min/Max tracking: lock to the closest or farthest point while sweeping — essential for diagonal measurements
- Area and volume calculations built in — no math needed on site
- Stake-out function: enter a target distance, walk until the device signals you've reached it
- Smart Horizontal Mode: calculates true horizontal distance regardless of tilt angle
- End-piece flip: toggle between measuring from front edge or back edge of the unit
- USB-C charging: rechargeable battery, no AA batteries to buy
- Drop tested: survives 6.6-foot drops — built to handle job site reality
|

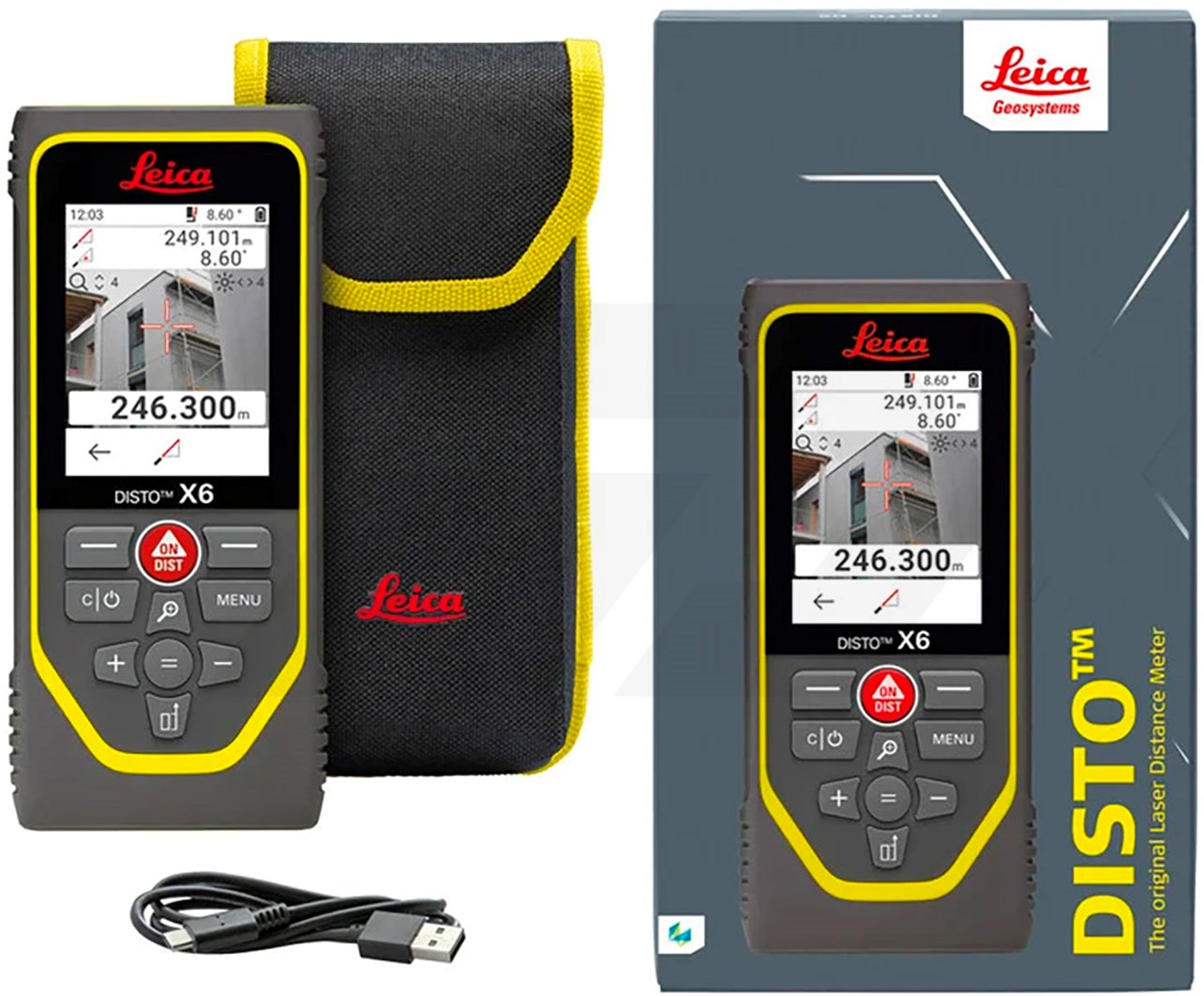

| Leica DISTO X6 (LEI 950909) Kit INCLUDES |
 |
- Leica DISTO X6 Laser Distance Meter
- Wrist Strap
- USB-C Charging Cable
- Calibration Certificate
- Carrying Case / Holster
|
|
|
| |
|

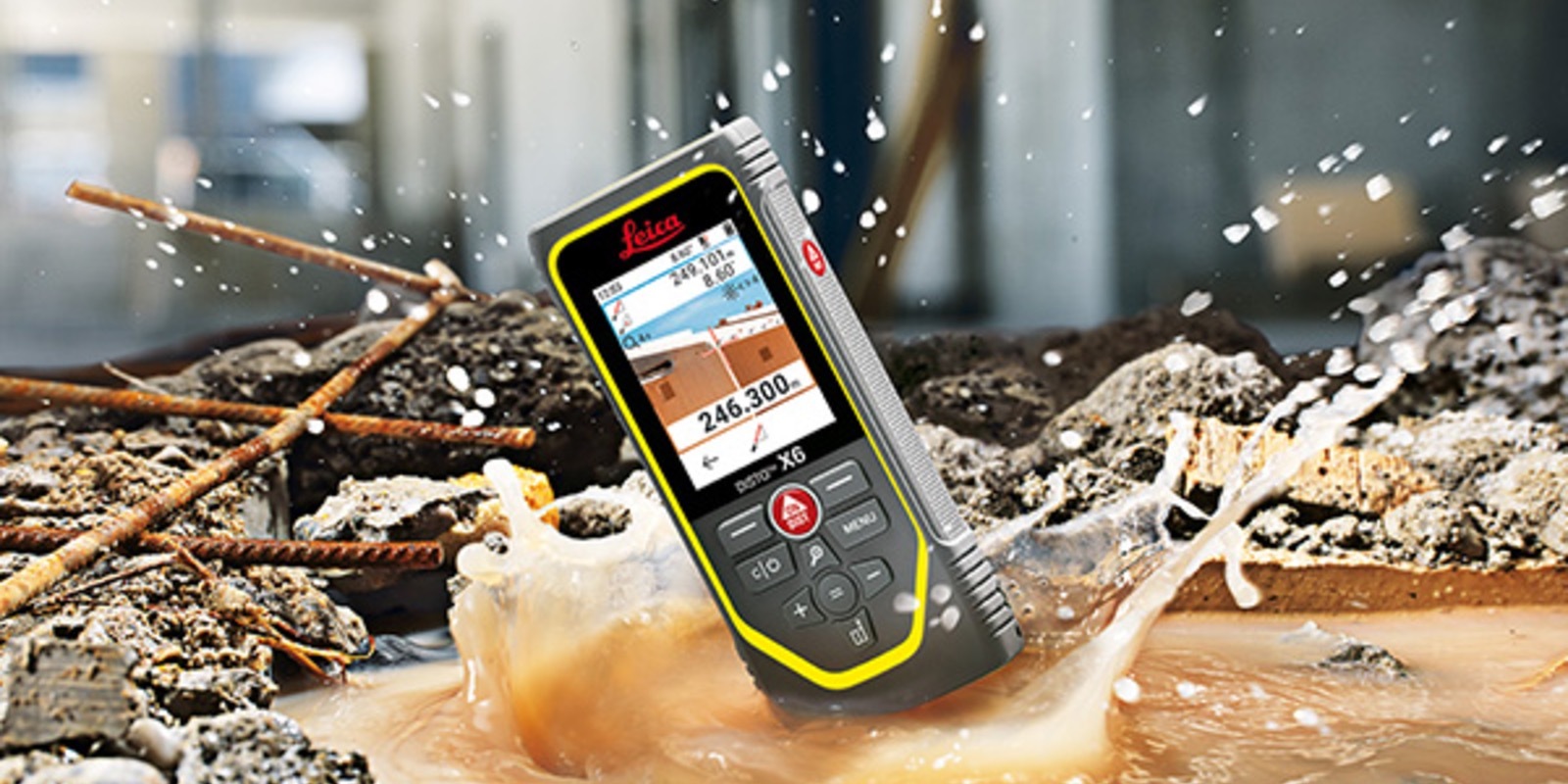

BUILT FOR JOB SITES, NOT SHOWROOMS. The DISTO X6 carries an IP65 rating — the same standard used for equipment deployed in harsh industrial environments. That means complete protection against dust ingress and protection against sustained water jets from any direction. Drop it in a puddle, work through a concrete dust storm, or measure in the rain — the X6 keeps working. Drop-tested to survive a 6-foot fall. When you're on the fourth floor of a framed building or working next to a concrete saw, that matters.

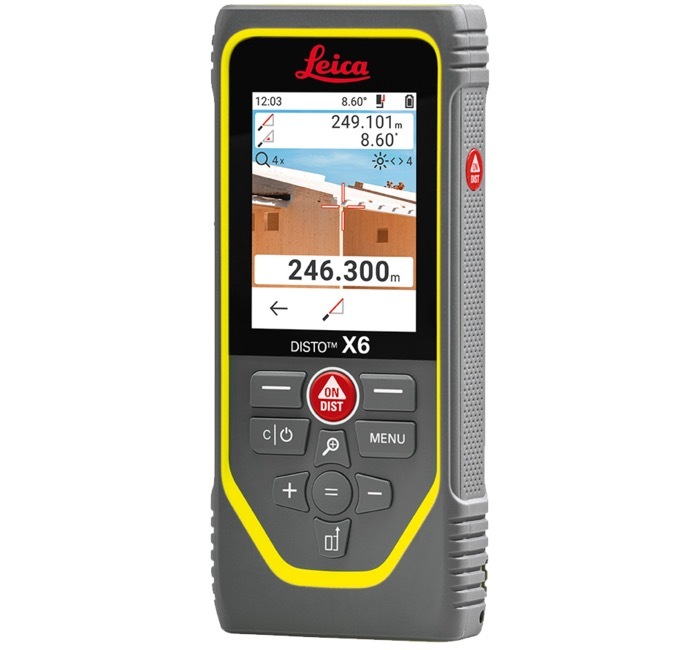

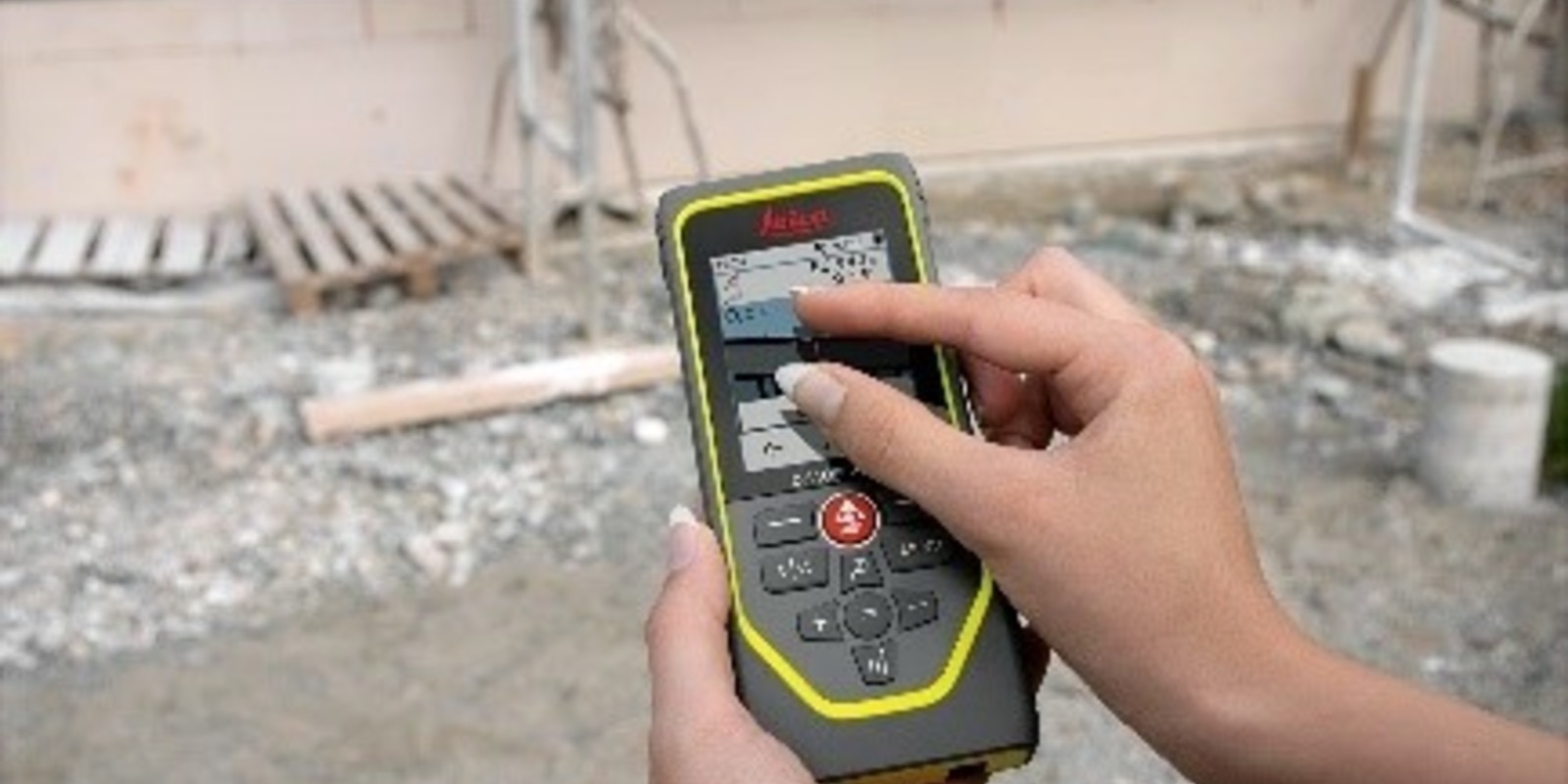

SHOOT EXACTLY WHERE YOU MEAN TO. At distances beyond 30 feet, a laser dot is hard to place accurately on a distant wall. The DISTO X6 has a built-in 4x zoom camera with a crosshair display — you point the camera at your target, zoom in, and shoot exactly where you mean to. That kind of precision at range is the difference between a measurement you trust and one you second-guess. Results display instantly on the backlit color screen.

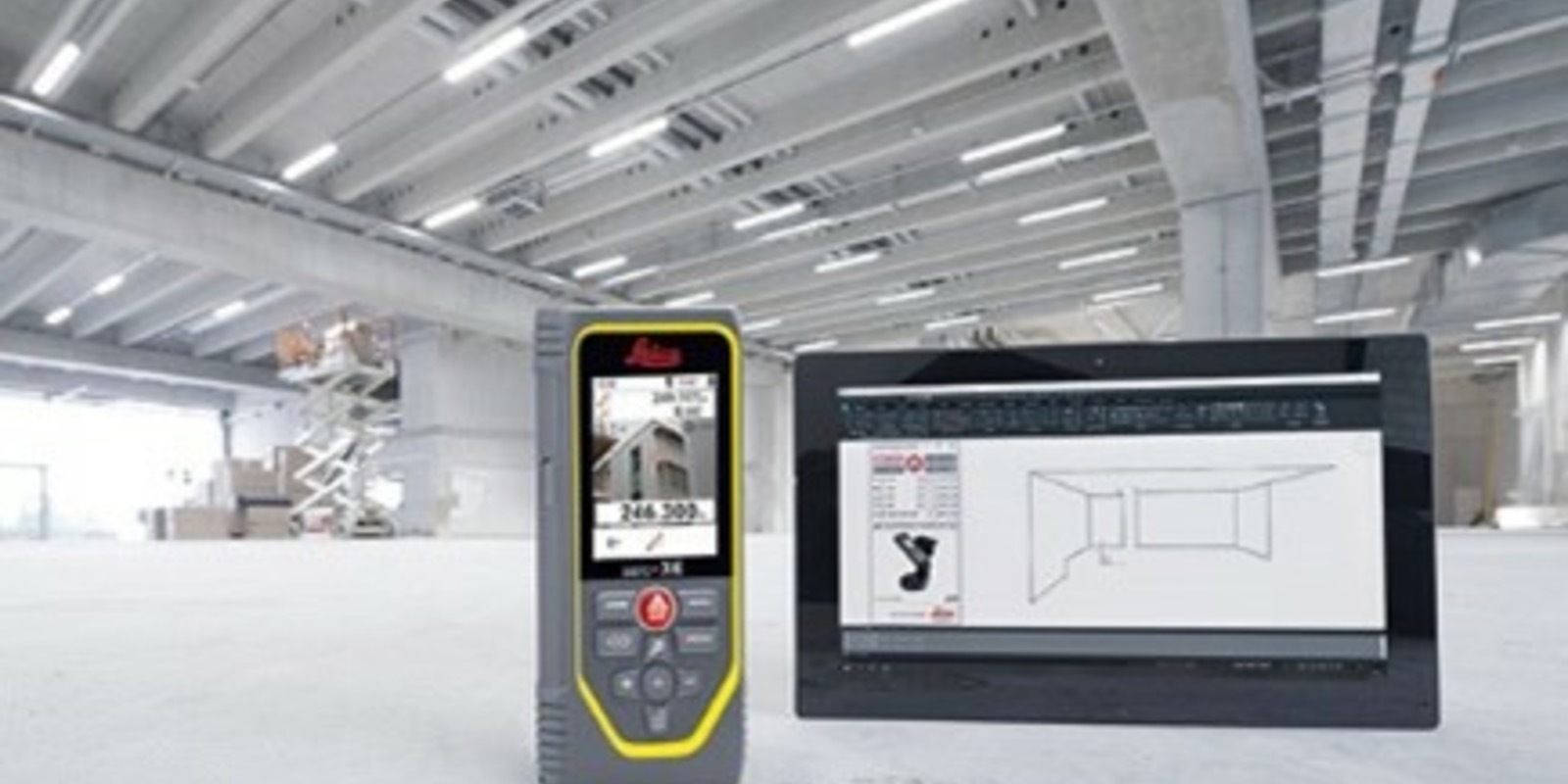

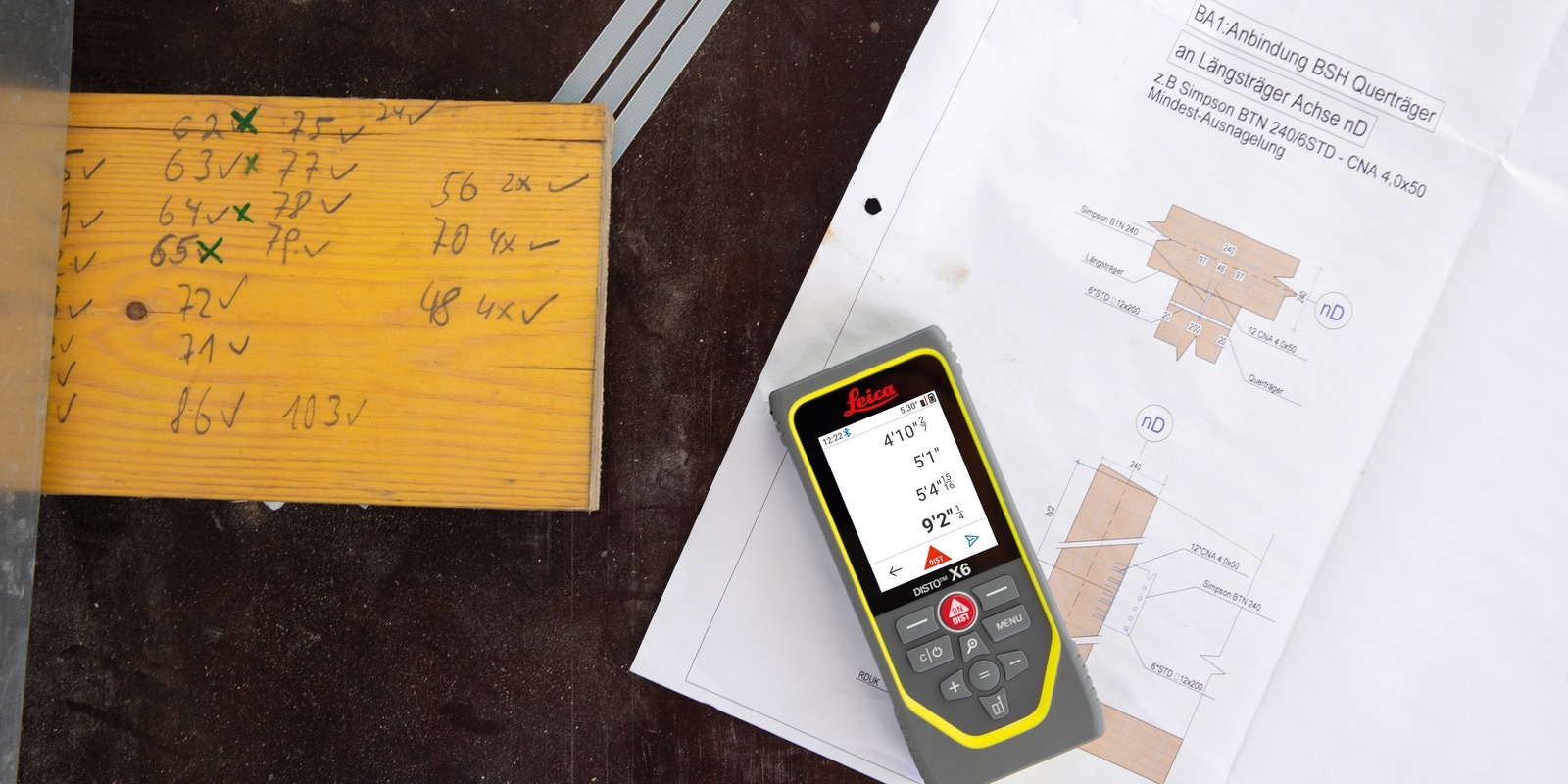

FROM THE DEVICE TO YOUR BLUEPRINTS IN SECONDS. Bluetooth Smart means your DISTO X6 connects directly to the free Leica DISTO Plan app (iOS and Android) and compatible third-party software. Measurements transfer automatically — no manual transcription, no transposition errors. On a commercial site where you're logging hundreds of measurements per day, that time and accuracy advantage compounds fast. You can also trigger measurements from the app, send results to email or cloud storage, or export directly to floor plan tools.
EVERY MEASUREMENT YOUR JOB REQUIRES. The X6 isn't just a point-to-point distance tool. The built-in tilt sensor calculates true horizontal distances regardless of the angle you're shooting from. The min/max function sweeps and locks to the shortest or longest distance automatically — critical for finding true diagonal room dimensions. Area and volume calculations are built in. The stake-out function lets you walk to a precise distance without a second person holding a tape. One tool. Every measurement.
SMART HORIZONTAL MODE. On a pitched ceiling, an angled wall, or any surface that isn't perfectly plumb, a straight-line distance isn't the same as a horizontal distance. Smart Horizontal Mode uses the tilt sensor to calculate the true horizontal distance automatically — even if you're shooting at an angle. Useful for ceiling heights, pitched roof measurements, and any situation where the horizontal dimension is what you actually need.

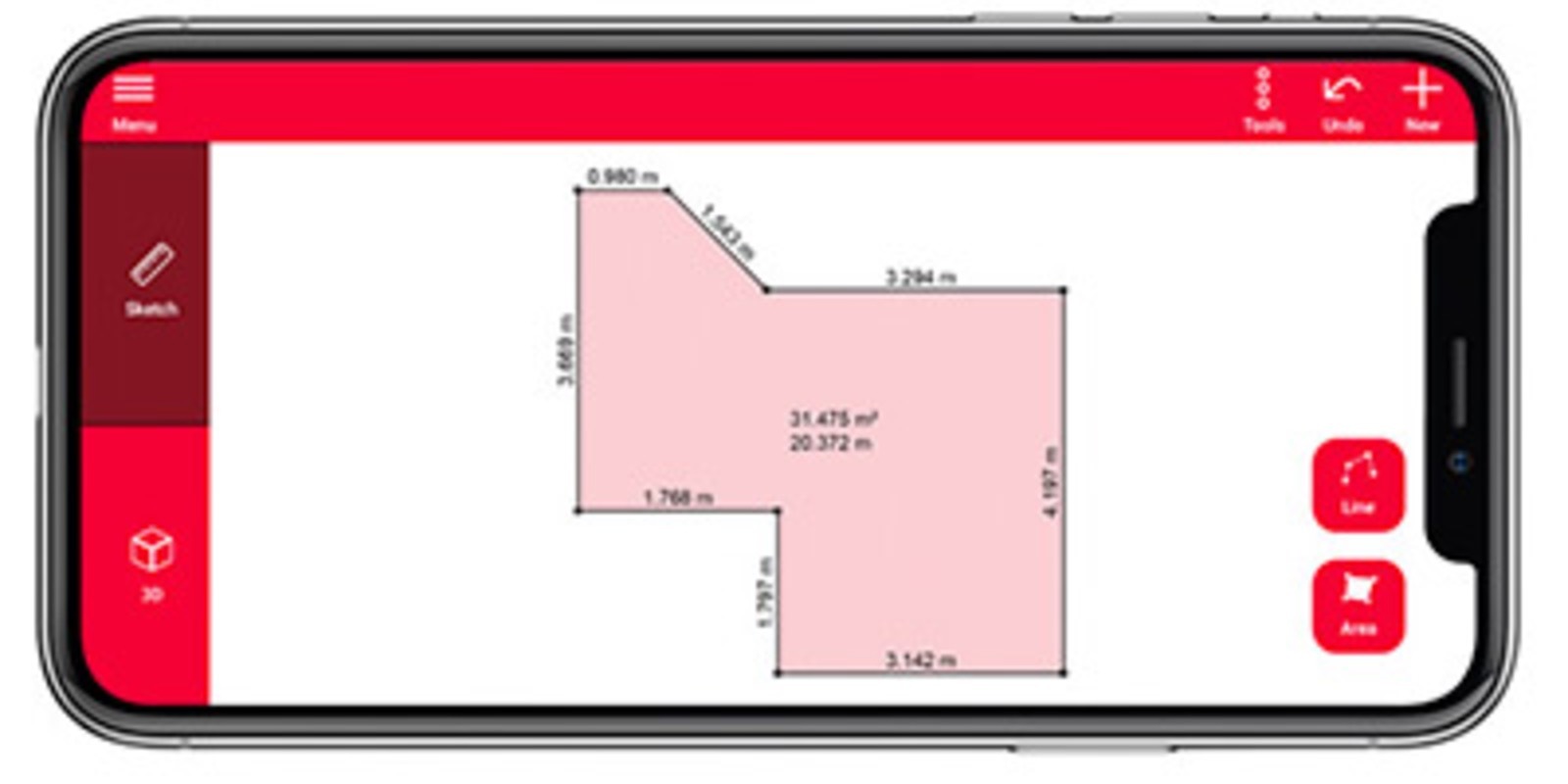

THE LEICA DISTO PLAN APP. Pair the X6 with the free Leica DISTO Plan app and your phone becomes a room-measuring platform. Shoot walls, ceilings, floors — the app builds a to-scale floor plan from your measurements in real time. Export to PDF, DXF, or email. For estimating, bidding, and site documentation, it eliminates the clipboard and the measuring tape entirely.
|
| DISTO X6 — Product Features |
|
IP65 Dustproof & Waterproof — Fully sealed against dust and direct water jets. Built for real job site conditions.
|
6-Foot Drop Tested — Survives the falls that happen on real job sites.
|
|
4x Zoom Camera with Crosshair — Pinpoint your target at distance. Shoot exactly where you mean to, every time.
|
Bluetooth Smart — Send measurements directly to the Leica DISTO Plan app, iOS or Android. No manual entry.
|
|
Built-In Tilt Sensor — Smart Horizontal Mode calculates true horizontal distance regardless of shooting angle.
|
DISTO Plan App — Builds to-scale floor plans from your measurements in real time. Export to PDF, DXF, or email.
|
|
Min / Max Tracking — Sweep to find the closest or farthest point automatically. True diagonal room dimensions in seconds.
|
Stake-Out Function — Enter your target distance and walk until the device signals you've reached it. No second person needed.
|
|
|
|
| |
| Leica DISTO X6 SPECIFICATIONS |
| Part Number |
LEI 950909 |
| Measuring Range |
Up to 820 feet (favorable) | Up to 500 feet (standard outdoor) |
| Accuracy |
±1/16 inch (favorable) | ±1/8 inch (unfavorable) |
| Resolution |
1/32 inch |
| Laser Class |
Class 2 (IEC 60825-1:2014) |
| Laser Wavelength |
635 nm, red visible, <1 mW |
| IP Rating |
IP65 — Fully dustproof, protected against water jets |
| Drop Test |
6.6 feet |
| Camera / Pointfinder |
4x zoom with crosshair — measures at crosshair even if laser dot not visible |
| Tilt Sensor |
Yes — 360° range, ±0.2° tolerance |
| Smart Horizontal Mode |
Yes — up to ±10° transverse tilt |
| Bluetooth |
Bluetooth 5.0 — up to 33 feet range — keyboard mode included |
| App Compatibility |
Leica DISTO Plan — iOS and Android (free) | DISTO Transfer — Windows (free) |
| Measurement Functions |
Distance, Area, Volume, Triangle Area, Min/Max, Stake-out, Smart Horizontal, Height Tracking, Height Profile, Slope, Levelling, Painter, Gesture Control, MIP Width/Area/Diameter, Timer, Reports |
| Memory |
300 reports + 1,000 captured 3D points |
| Display |
2.8" IPS color touchscreen, scratch-proof lens |
| Battery |
Built-in Li-Ion, USB-C charging (3 hours) |
| Battery Life |
Up to 4,000 measurements | Up to 8 hours operation |
| Operating Temperature |
14°F to 131°F |
| Storage Temperature |
-13°F to 158°F |
| Dimensions |
6.1 x 2.68 x 0.98 inches |
| Weight |
8.11 oz with battery |
| Gesture Control |

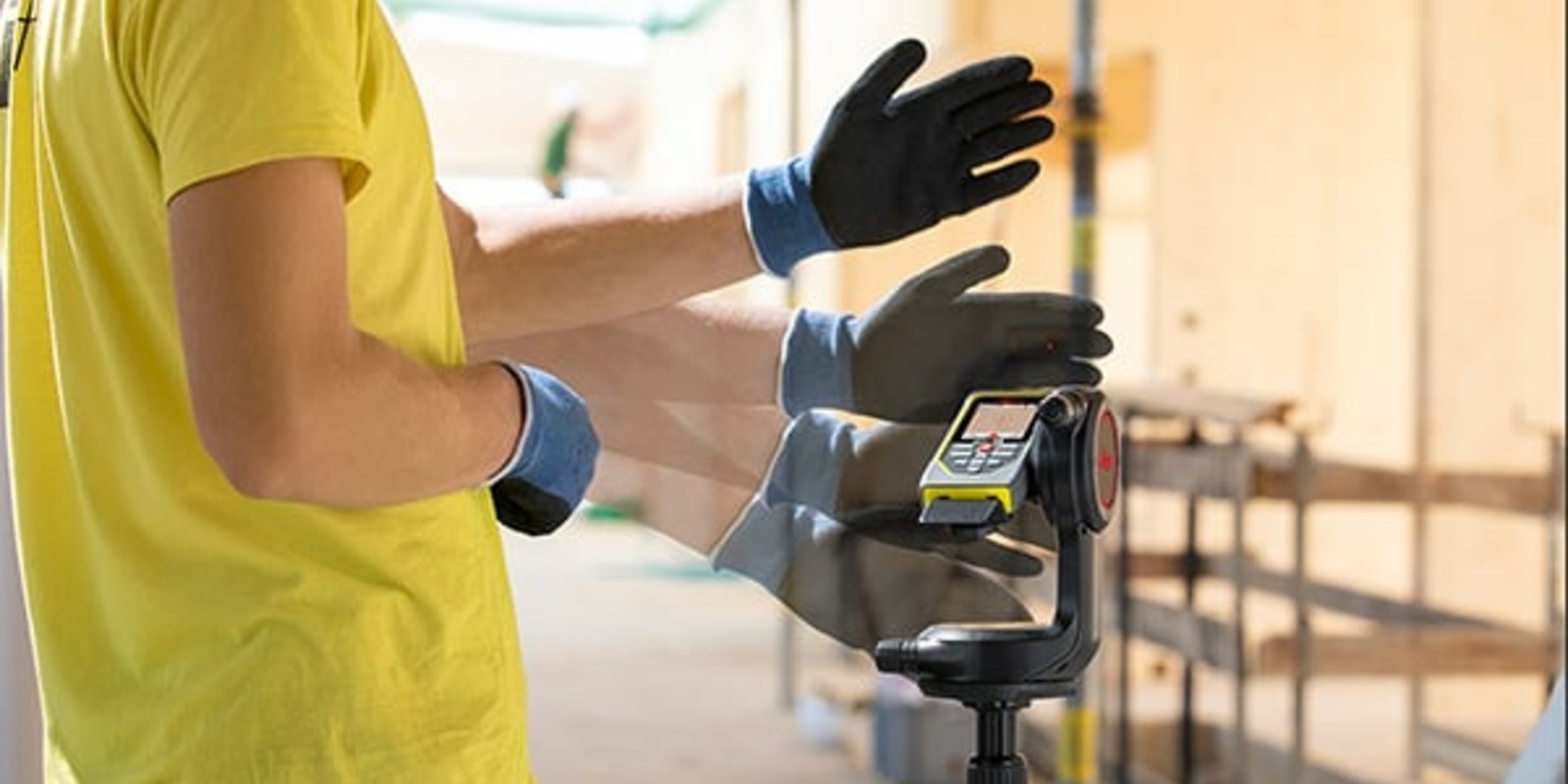

Yes — wipe hand through laser beam within 10 inches to trigger |
| Warranty |
2 years standard | 3 years with registration at disto.com/warranty within 8 weeks |
|
| |
| Leica DISTO X6 — Downloads & Documentation |
|
|
|
| |
| Leica DISTO X6 — Interactive Online User Manual |
|
|
| |
| Contractor Tips : Getting the Most from Your DISTO X6 |
- Use Min/Max for Diagonals. Hold down the measure button and sweep the room — the device automatically locks the shortest and longest distances. Diagonal room measurements that used to take two people with a tape now take seconds.
- Use Smart Horizontal Mode on Pitched Surfaces. If you're shooting a measurement on a slope or angle and need the horizontal distance, activate Smart Horizontal Mode — the tilt sensor does the trigonometry for you automatically.
- Use the Camera at Range. Beyond 50 feet it gets hard to see exactly where your laser dot lands. Switch to the 4x zoom camera view on the screen to confirm your target point before shooting.
- Flip the End Piece for Inside Measurements. The end piece folds out for measuring from a corner or inside a cabinet. Make sure it's in the right position before shooting — inside vs. outside measurements differ by the length of the piece.
- Let Bluetooth Do the Logging. Connect to the DISTO Plan app and measurements log automatically with no manual entry. At the end of a site visit, export your full measurement set to PDF — no transcription errors, no lost notes.
- Keep the Lens Clean. In dusty environments, a light film on the laser lens can reduce range and accuracy. Wipe with a soft cloth before critical measurements — the IP65 seal keeps the inside protected but the lens glass can still collect dust.
|
|
| |
