Topcon RL-200 Dual Grade Laser with LS-80X Receiver (314920712)
Multi-Purpose Horizontal Only Rotating Dual Grade Laser with Rechargeable Batteries
Long-range Applications / 25% MAX Slope
|
| Kit Includes : |
Laser and Case Only / powered by Alkaline Batteries |
|
 |
 |
|
Topcon RL-200 2S-BCA Dual Slope Laser Package
– Precision & Performance for Grading Professionals
|
The Topcon RL-200 2S Model 314910712-BCA is a high-accuracy dual slope rotary laser designed for professional grading, excavation, land surveying, and construction layout applications. Engineered for precision and reliability, this model provides the same outstanding performance as its predecessor (Model 314920722), made in Japan.
Offering dual slope capability, the RL-200 2S allows for independent adjustments on both the X and Y axes, making it ideal for complex grading and drainage projects. It delivers horizontal accuracy of ±7 arc seconds and an extended operating range of up to 3,600 feet with a laser receiver. |
Topcon RL-200 2S Dual Slope Laser Level KEY FEATURES:
- Dual Slope Functionality – Adjusts slope on both X and Y axes
- Beam Masking Mode – Reduces interference on busy sites
- Auto-Leveling & Wide Grade Range – Self-levels within ±5 degrees
- Adjustable Rotation Speeds – 300, 600, or 900 RPM
- Height-of-Instrument Alert – Detects movement for accuracy
- Rugged & Weather-Resistant – IP66-rated housing
- High-Contrast LCD Display – Easy to read in all lighting
- Extended Battery Life – 100 hours on alkaline / 90 hours on NiMH
- Standard Tripod Thread – 5/8-11 universal mount
Built for durability and precision, the Topcon RL-200 2S Model 314910712 is the perfect solution for professionals who demand accuracy and efficiency in dual slope applications.
Configuration Options
The Topcon RL-200 2S Dual Grade Laser offers four packages with varying laser receivers and batteries.
|
| Topcon RL-2002S DUAL SLOPE Laser - BASE KIT OPTIONS |
| Laser Model |
Receiver Model |
Batteries |
Remote |
| 314920712-BCA |
NO-RECEIVER |
Alkaline |
|
| 314920712 |
LS-80X (2-inch) |
Alkaline |
|
| 314920762 |
LS-80X (2-inch) |
Alkaline |
RC400 |
| 314920782 |
LS-100D Deluxe (4") |
Rechargeable |
RC400 |
| |

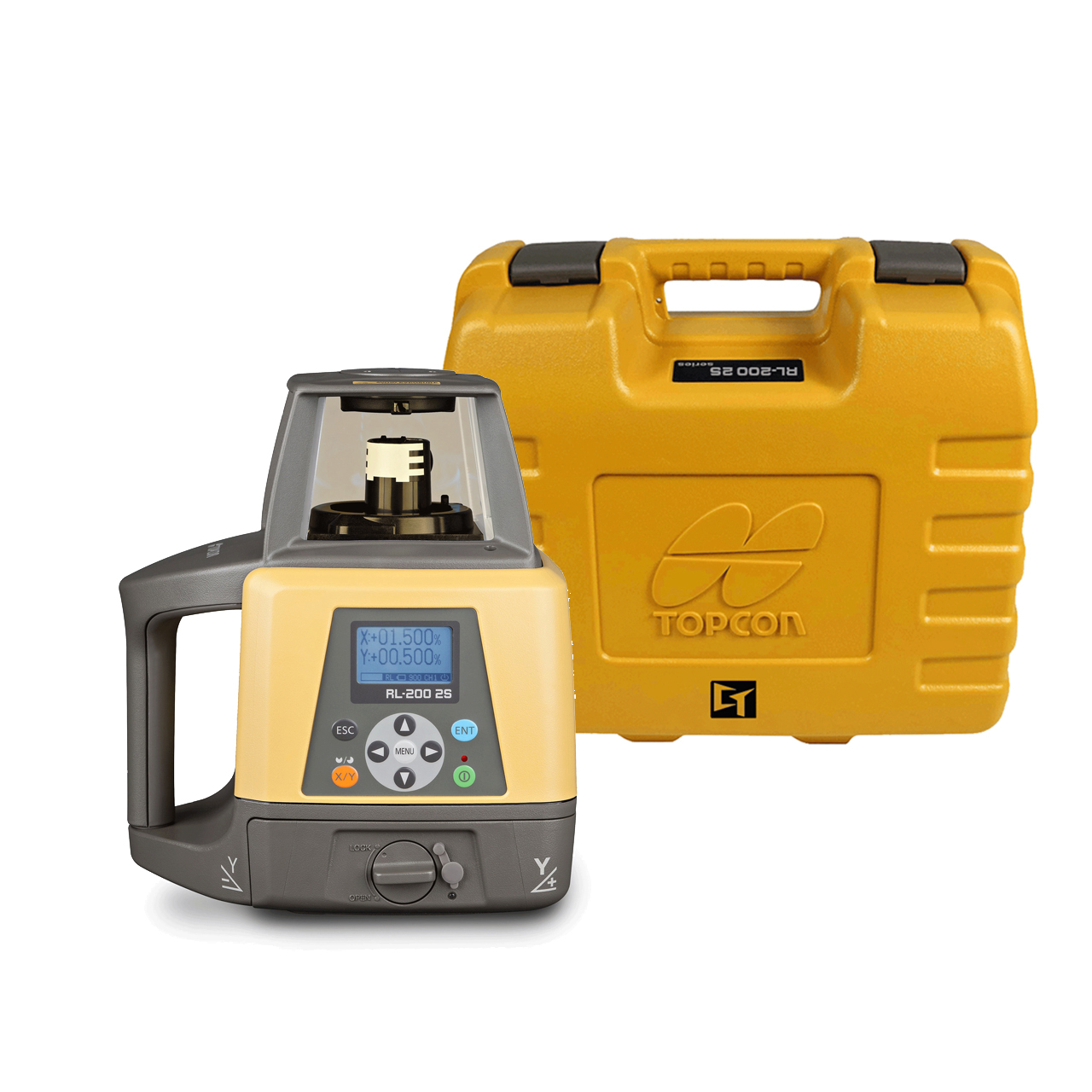

| Topcon RL-200 2S-BCA Dual Grade Laser Package 314920712-BCA INCLUDES |
|
- RL-200 2S Dual Grade Laser Transmitter (314920712)
- Alkaline Batteries - 4 D-Cell Batteries (Not Included)
- Small Protective Carrying Case
- User Manual
- 5-year Manufacturers Warranty
|
|
|
|
|
Topcon RL-200 2S Key FEATURES and BENEFITS
|
|
Rugged, Lightweight and Compact
The Topcon RL-200 Series revolutionary encoding system provides the highest grade repeatability, 7 arc seconds, of any other laser! No one even comes close. Setup after setup, time after time, you’re always right on grade!
The RL-200 2S has dual slope capability from -10% up to +25%.
Verifiable operation? It couldn’t be clearer…
The Topcon RL-200 features a large, high-contrast, graphical display that clearly shows all functions at a glance.
- Accuracy ±7 Arc second
- Wide Grade Range (up to 25% slope Dual Axis) without Slope Blocks
- Auto Leveling ±5 degrees
- Increased Range - Up to 3,600 feet diameter
- Rotation Speed 300, 600, or 900 RPM
- Height-of-Instrument (h.i.) Notification Alert
- Beam Feature Masking Mode
- Extra-Long Battery Life Up-To 100 Hours
- Environmental Protection Rating IP66 dust-proof and water resistance
- Graphical Display Clear and High Contrast
- Connection Fitting 5/8-11 inch tripod thread
|
Topcon RL-200 2S Dual Grade Laser APPLICATIONS
|
- Land Surveying
- Civil Engineering & Design
- Construction Survey/Layout
- Site Work
- Foundation and Exterior
|
Topcon RL-200 2S Dual Slope Laser Level SPECIFICATIONS
|
| LASER LEVEL |
| Color |
Red |
| Wavelength |
685 Nm |
| Classification |
Class 3 |
| Direction |
Horizontal Only |
| Visibility |
Visible |
| TOPCON RL-200 2S LASER RANGE |
| Exterior |
Up to 3,600 feet |
| Self-Leveling |
±5 degrees |
| BATTERY / POWERED BY |
| Power Source |
RL-200 2S (314920712) Alkaline
RL-200 2S (314920762) Rechargeable
RL-200 2S (314920782) Rechargeable |
| Battery Life w/ included Alkaline Batteries |
Up to 100 hours |
| Battery Life w/ Rechargeable NiMH Batteries |
5/8 x 11 horizontally and vertically |
| Battery Life Alert |
Yes |
| TOPCON RL-200 2S LASER FEATURES |
| Display |
Back-lit graphical LCD |
| Bump Sensor (H.I. Out of Position Alert) |
Yes |
| Enviornment Protection Class |
IP66 (dust-proof and water jet protection) |
| Tripod Connection (Center Screw Thread) |
5/8-11 Horizontal |
| Adjustable Rotating Speed |
300, 600, and 900 rpm |
| GENERAL LASER |
| Dimensions |
6.9 x 8.6 x 10.0 inches |
| Warranty |
5-year |
| TEMPERATURE |
| Operating |
-4°F to +122°F |
| FUNCTIONS |
| Grade Operation |
Automatic |
| Automatic Leveling |
Yes |
| Beam Operating Modes |
Beam Masking |
| APPLICATIONS |
| Elevations Checking / Setting |
Transferring Points from floor to ceiling |
Machine Control of
Excavators, Graders, Dozers or Similar Equipment |
Yes |
Installation of Interior Fittings
Cabinets, Lighting, Windows, Counter-tops, ect. |
Yes |
Short-Range Leveling for
Decks, Patios and Swimming Pools |
Yes |
| Installation Leveling Interior / Walls |
Yes |
| Installation Leveling Ceiling Grids |
Yes |
Squaring and Layout of
Partitions, Walls and Tile Floors |
Yes |
| Concrete Forms, Footings and Foundations |
Yes |
Checking Elevations for
Sub-Base and Sub-Grade |
Yes |
| Estimating Cut and Fill |
Yes |
| Matching Existing Slope and Grade |
Yes |
| Locating Finished Floor Levels |
Yes |
| GRADE SPECIFICATIONS |
| Type |
Dual |
| Percentage |
-5% to +25% |
| Accuracy |
Horizontal ±7 arc seconds |
|
|
