TOPCON RL-H5A - PS.DB2 Complete Package 1021200-50-K2
Self-Leveling Rotary Laser Level Package - (uses Alkaline Batteries)
|

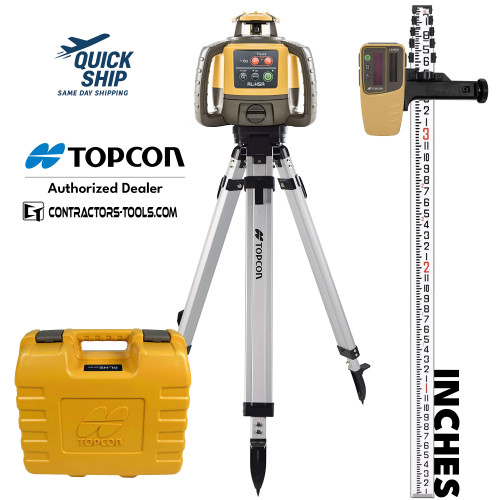

Includes: LS-80X Receiver, Measuring Rod INCHES and Aluminum Tripod
|
| Next Generation Self-Leveling Construction Laser |
 |
| The Topcon RL-H5A auto-leveling laser level combines precision, versatility, and value in one job site tough package. Its super-fast self-leveling motors are accurate to ±10 arc seconds, meaning whether you're checking grade or setting batter boards, you're going to be accurate the first time. Its high-power 2.4mW diode gives you a 2,600' diameter working range (with detector), making it a perfect reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications — from setting piers and decking to wall and even cabinet alignment. All of these features make the Topcon RL-H5A Laser more than twice the laser offered by anyone else. |
Topcon RL-H5A TOP FEATURES
- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating - Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Long Alkaline battery life - 100 hours
- Out-of-Level Notification
|
| Topcon RL-H5A (1021200-50-K2) Laser Kit INCLUDES |
 |
- RL-H5A Horizontal Laser Transmitter 1021200-50 (MADE IN JAPAN)
- LS-80X Long Range Laser Receiver Sensor 1046259-01 (MADE IN GERMANY)
- Receiver Rod Clamp Holder 6 312890112
- uses (4) D-Cell Alkaline Batteries (NOT INCLUDED)
- Aluminum 16-Foot Grade Rod - Measurements in INCHES
- Aluminum Heavy-Duty Tripod
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
|
|
|
MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.
EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
|
|
| |
| Topcon RL-H5A Laser SPECIFICATIONS |
| Accuracy |
1/16-inch @ 100-feet |
| Self-Leveling Range |
± 5 degrees |
| Working Range diameter |
2,600 feet |
| Rotation Speed |
600 RPM |
| Light Source |
Visible Red Laser 635NM |
| Laser Class |
CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating |
IP66 |
| Operation Time |
Alkaline: 100 hours |
| Operational Temp |
-4ºF to 122ºF |
| Size |
7.0 x 7.7 x 8.5 in |
| Maximum Power Output |
2.4mW |
| Tripod Screw Thread |
5/8-11 |
|
| |
| INCLUDED Topcon LS-80X Receiver Sensor OVERVIEW |
 |
|
Topcon LS-80X LONG RANGE LASER SENSOR

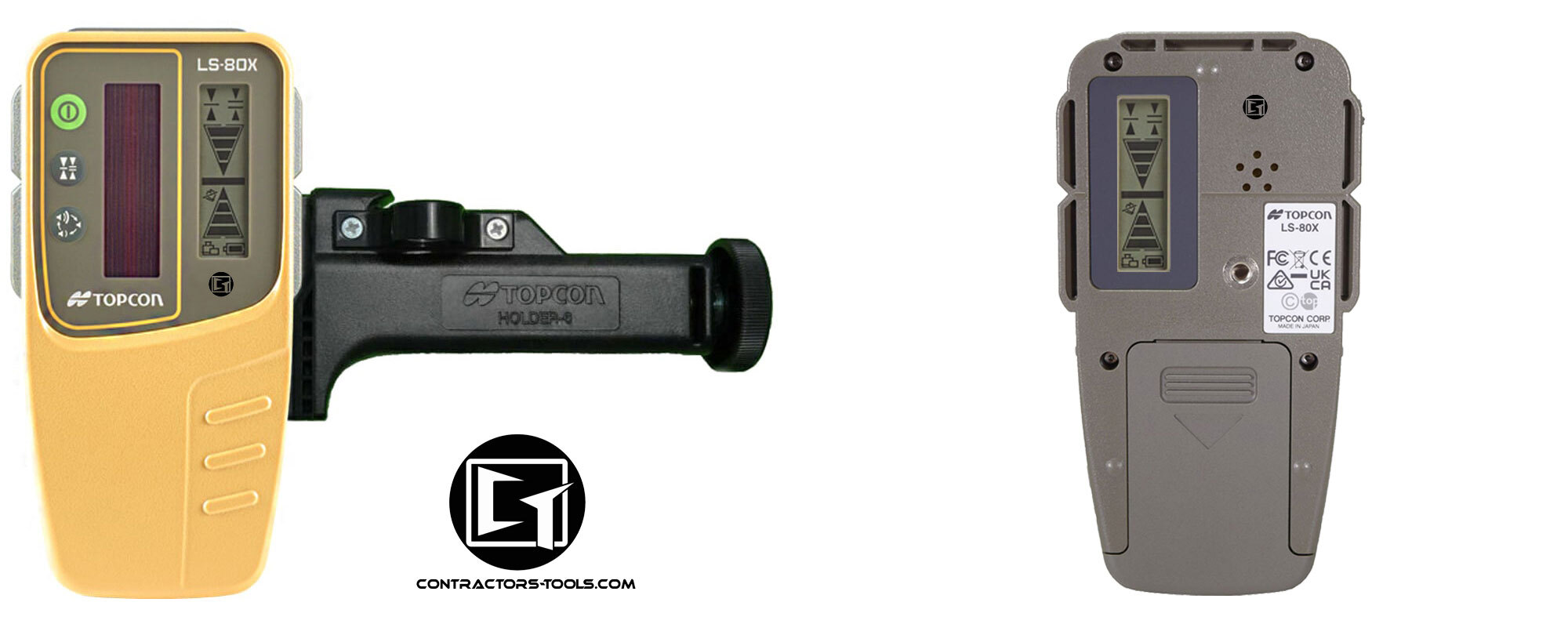

New laser sensor LS-80X offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD's on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.
The Topcon LS-80X Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.

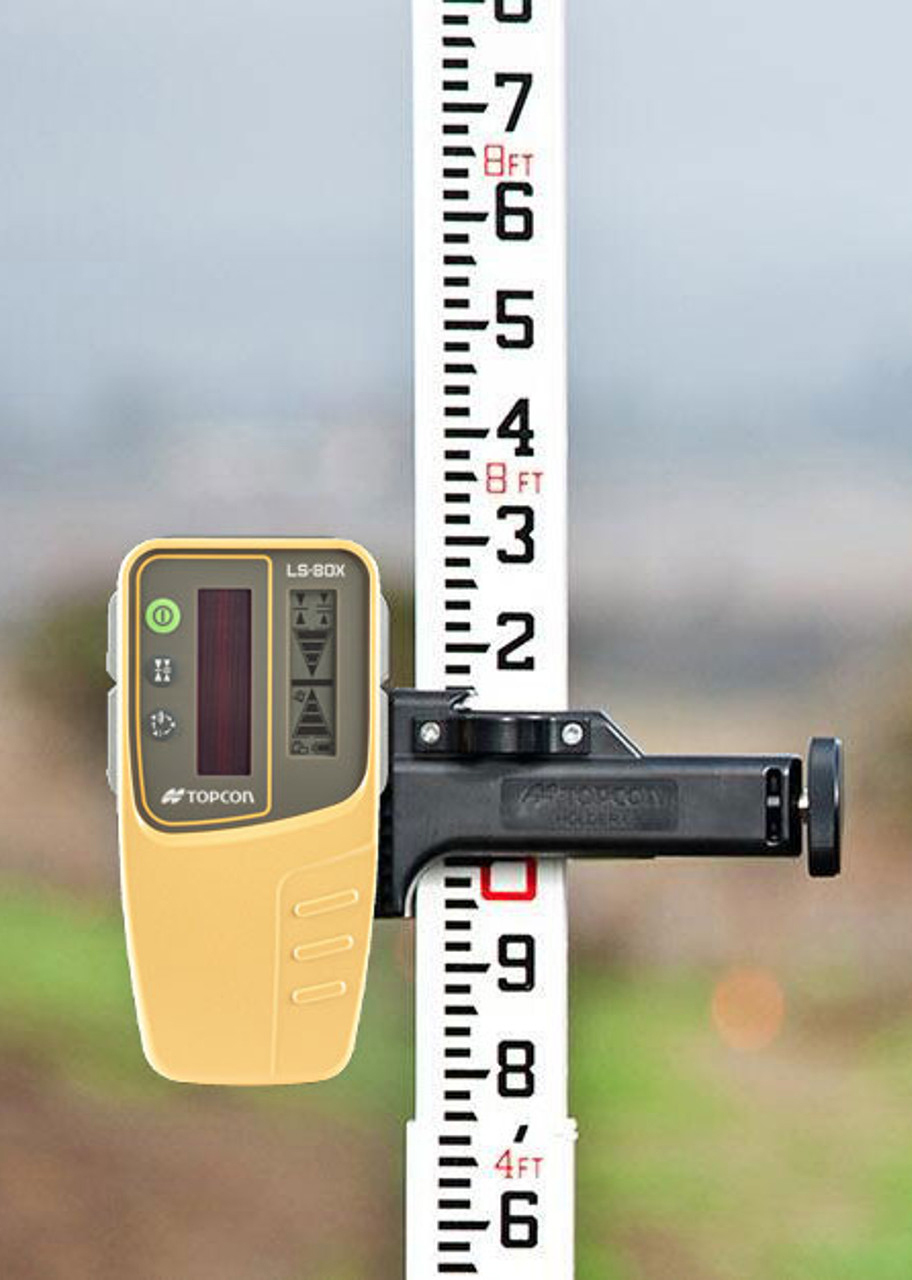

With a rating of IP-66, the Topcon LS-80X Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.
The Topcon LS-80X Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life.
 |
Topcon LS-80X Receiver FEATURES
- Increase range of rotary lasers
- Fine or course sensitivity
- Height alert
- IP-66 rating against dust and water
- Uses AA batteries
- Low battery alert
- 30 minute shut down
- Protective case
- LCD display
- 2-inch capture window
|
|
|
|
| TOPCON LS-80X Laser Receiver SPECIFICATIONS |
Working Range (diameter)
|
2,500 feet with the RL-H5A, RL-HV, and RL-200 Series Lasers
|
Vertical Detecting Range
|
2 inch (actual 1-31/32 inch) aka hair under 2-inches
|
LCD Digital Readout Range
|
None - Only on LS-100D
|
Horizontal Detecting Range
|
±45º |
Strobe Light Suppression
|
No |
Units / Measurements
|
✅ Millimeters (mm)
✅ Centimeters (cm)
✅ Inches (decimal)
✅ Inches (fractional) |
Grade Resolution Settings
|
High precision: ±1.0 mm → ±0.04 inch
Normal precision: ±2.0 mm → ±0.08 inch
|
LCD Grade Indicators
|
9 Channels (9 visual indicators for laser beam alignment.)
|
| LCD Grade Indicators |
Up Arrow Icon ? = Move sensor up – you’re below the laser line.
Down Arrow Icon ? = Move sensor down – you’re above the laser line.
Solid Center Bar ▬ = On grade
– laser is perfectly aligned with the on-grade band.
Out of Beam Icon ❌ (or blinking arrows)
– You’re too far above or below the beam to detect it.
|
| Display |
LCD on each side
|
Buzzer
|
Loud / Low / Off — selectable by the user.
|
Bubble Tube
|
No |
Warning Icons
|
HI Alert, Low Battery (for the RL-H5A, RL-HV, and RL-200 Series)
|
| Battery |
Two AA Batteries
|
| Operation Time |
Up to 45 hours with alkaline batteries |
| Battery Level indicator |
LCD Icon |
| Auto Shut-off |
Approximately 30 minutes |
| Dust/Water Rating |
IP66 |
| Operating Temperature |
-4ºF to 122ºF |
Dimensions ( L x W x H )
|
5.75 in (L) × 2.99 in (W) × 0.98 in (H) |
| Weight |
|
Magnetic Mount
|
No
|
Receiver Sensor Bracket
|
Screw mount
|
|
SitePRO Contractor Grade Aluminum Tripod INCLUDED in this 1021200-50-K2 KIT
|
|
|
SitePro ALQR20 Aluminum Heavy Duty Quick Release Tripod
Built for the demands of the jobsite, the SitePro ALQR20 delivers rugged stability and fast setup in one dependable package. Constructed from heavy-gauge square aluminum, this tripod features double-banded legs for enhanced strength and reduced flex — ideal for high-precision applications in tough conditions.
The quick-release clamps make setup and adjustments fast and secure, while powder-coated black hardware resists wear, corrosion, and jobsite grime. The replaceable steel shoe points anchor confidently into dirt, gravel, or concrete for solid footing.
With a flat head style and standard 5/8-11 thread, the ALQR20 is compatible with most construction lasers and optical instruments. It extends up to 64 inches for versatility in uneven terrain, and collapses down to 40 inches for easy transport and storage.
Key Features:
-
Heavy-duty square aluminum construction with reinforced double-band leg design
-
Quick-release clamps for fast, reliable height adjustments
-
Durable black powder-coated metal hardware resists jobsite wear
-
Replaceable steel shoe points for solid traction in any surface
-
Flat head with 5/8-11 threaded mounting bellhousing
-
Extended height: 64 inches (163 cm)
-
Collapsed height: 40 inches (102 cm)
Ideal for: contractors, surveyors, and construction pros who demand durability, fast setup, and long-term reliability in the field.
|
Note on Included SitePRO ALQR20 Tripod:
This kit includes a contractor-grade tripod built for strength, stability, and long-term durability. Unlike many online kits that cut corners by including low-cost tripods with no available replacement parts, we’ve made sure to pair this high-end laser with a tripod that matches its quality.
We understand that when you're investing in a precision instrument, the last thing you want is to set it on a flimsy tripod that sways in the wind or fails under tough jobsite conditions. That’s why we include a heavy-duty, professional-grade tripod, carefully selected to meet the demands of jobsite use — and fully backed by us.
You won’t find this level of detail or commitment to quality spelled out like this at other distributors — but it’s what sets us apart. We guarantee you’ll appreciate the difference.
|
|
|
Aluminum 16-Foot Grade Rod - Inch Measurements INCLUDED in this KIT
|
|
|
SitePro 11-816-C 16-ft Aluminum Telescoping Leveling Rod (CR) — Feet & Inches Graduations
Engineered for performance and built to last, the SitePro 11-816-C is a professional-grade 16-ft aluminum leveling rod designed for ultra-precise elevation reading and rugged, day-in-day-out use on active jobsites. Whether you're grading, staking, or checking elevations with a rotary laser, this rod keeps your measurements accurate and your crew efficient.
✔️ Lightweight Yet Built Tough
Made from high-strength aluminum alloy, this rod resists bending and denting while staying light enough for long workdays. The sections telescope smoothly and quietly — no rattling or binding like lower-end rods.
✔️ Feet & Inches — Down to the Details
Graduated in Feet, Inches, and fractional sub-divisions, the 11-816-C makes it easy to read precise elevation changes at a glance. It doesn’t stop at whole inches — the detailed fractional markings let you confidently measure changes as small as ¹⁄₈", ¹⁄₁₆", and even ¹⁄₃₂" — perfect for tasks that demand absolute accuracy like pad finishing, form setting, and slab layout.
✔️ Built for All Conditions
Each section is anodized for corrosion resistance and printed with high-visibility, weatherproof ink that won’t fade or scratch, even in rough field conditions.
✔️ Backside Measuring Scale
The reverse side includes a convenient height scale, so you can easily read the rod’s extended height at eye level — no bending, no second guessing.
✔️ Rugged Jobsite-Ready Design
• Five-section telescoping design with impact-resistant joints
• Heavy-duty polycarbonate locking buttons keep each section securely in place
• Fully collapses to just 48 inches — fits easily in a truck, laser case, or storage tube
|
|
| |
