Topcon RL-H5A Self-Leveling Laser PS.RB Kit with LS-80X Receiver, Rechargeable Batteries, Measuring Rod INCHES and Tripod - 1035261-01

Product Description
Videos

TOPCON RL-H5A - PS.DB2 Complete Package 1065261-01
Self-Leveling Rotary Laser Level Package - (RECHARGEABLE Batteries)

Includes: LS-80X Receiver, Measuring Rod INCHES and Aluminum Tripod

Next Generation Self-Leveling Construction Laser

The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A TOP FEATURES

Self-Leveling Horizontal Beam
Long Range Operation 2,600 ft diameter
High Horizontal Accuracy 1/16-inch @ 100-feet
Simple, intuitive manual slope capability
Tough IP66 Rating - Dust and Water Rating
Self-Leveling Range ± 5 degrees
Long Alkaline battery life - 100 hours
Out of Level Notification

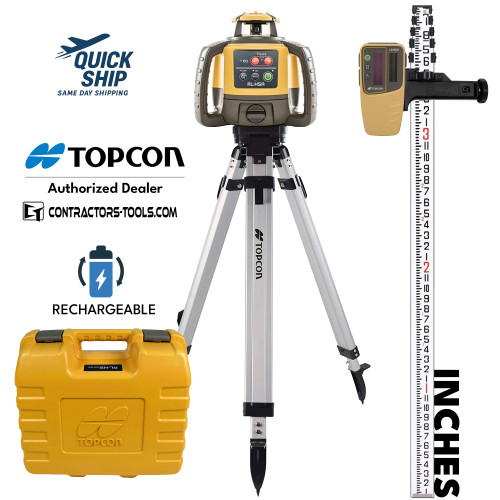

Topcon RL-H5A (1065261-01) Laser Kit INCLUDES

RL-H5A Horizontal Laser 1021200-50 (Made in Japan)
LS-80X Long Range Laser Receiver Sensor 1046259-01
Receiver Rod Clamp Holder 6 312890112
(4) D-Cell NiMH Rechargeable Batteries BT-79Q 1025029-01
Rechargeable Battery Holder 1024993-01
AC Adapter / Charger 1024944-02
Aluminum 13-Foot Grade Rod - Measurements in INCHES
Aluminum Heavy-Duty Tripod
Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee

MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon RL-H5A Laser SPECIFICATIONS
Accuracy	1/16-inch @ 100-feet
Self-Leveling Range	± 5 degrees
Working Range diameter	2,600 feet
Rotation Speed	600 RPM
Light Source	Visible Red Laser 635NM
Laser Class	CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating	IP66
Operation Time	Rechargeable: 60 hours (included) Alkaline: 100 hours (back-up)
Operational Temp	-4ºF to 122ºF
Size	7.0 x 7.7 x 8.5 in
Maximum Power Output	2.4mW
Tripod Screw Thread	5/8-11

INCLUDED Topcon LS-80X Receiver Sensor OVERVIEW

Topcon LS-80X LONG RANGE LASER SENSOR
New laser sensor LS-80X offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD's on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.

The Topcon LS-80X Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.

With a rating of IP-66, the Topcon LS-80X Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.

The Topcon LS-80X Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life.

Topcon LS-80X Receiver FEATURES

Increase range of rotary lasers
Fine or course sensitivity
Height alert
IP-66 rating against dust and water
Uses AA batteries
Low battery alert
30 minute shut down
Protective case
LCD display
2-inch capture window

TOPCON LS-80X Laser Receiver SPECIFICATIONS

Working Range (diameter)	2,500 feet with the RL-H5A, RL-HV, and RL-200 Series Lasers
Vertical Detecting Range	2 inch (actual 1-31/32 inch) aka hair under 2-inches
LCD Digital Readout Range	None - Only on LS-100D
Horizontal Detecting Range	±45º
Strobe Light Suppression	No
Units / Measurements	✅ Millimeters (mm) ✅ Centimeters (cm) ✅ Inches (decimal) ✅ Inches (fractional)
Grade Resolution Settings	High precision: ±1.0 mm → ±0.04 inch Normal precision: ±2.0 mm → ±0.08 inch
LCD Grade Indicators	9 Channels (9 visual indicators for laser beam alignment.)
LCD Grade Indicators	Up Arrow Icon ? = Move sensor up – you’re below the laser line. Down Arrow Icon ? = Move sensor down – you’re above the laser line. Solid Center Bar ▬ = On grade – laser is perfectly aligned with the on-grade band. Out of Beam Icon ❌ (or blinking arrows) – You’re too far above or below the beam to detect it.
Display	LCD on each side
Buzzer	Loud / Low / Off — selectable by the user.
Bubble Tube	No
Warning Icons	HI Alert, Low Battery (for the RL-H5A, RL-HV, and RL-200 Series)
Battery	Two AA Batteries
Operation Time	Up to 45 hours with alkaline batteries
Battery Level indicator	LCD Icon
Auto Shut-off	Approximately 30 minutes
Dust/Water Rating	IP66
Operating Temperature	-4ºF to 122ºF
Dimensions ( L x W x H )	5.75 in (L) × 2.99 in (W) × 0.98 in (H)
Weight
Magnetic Mount	No
Receiver Sensor Bracket	Screw mount

SitePRO Contractor Grade Aluminum Tripod INCLUDED in this 1065261-01 Kit

SitePro ALQR20 Aluminum Heavy Duty Quick Release Tripod

Built for the demands of the jobsite, the SitePro ALQR20 delivers rugged stability and fast setup in one dependable package. Constructed from heavy-gauge square aluminum, this tripod features double-banded legs for enhanced strength and reduced flex — ideal for high-precision applications in tough conditions.

The quick-release clamps make setup and adjustments fast and secure, while powder-coated black hardware resists wear, corrosion, and jobsite grime. The replaceable steel shoe points anchor confidently into dirt, gravel, or concrete for solid footing.

With a flat head style and standard 5/8-11 thread, the ALQR20 is compatible with most construction lasers and optical instruments. It extends up to 64 inches for versatility in uneven terrain, and collapses down to 40 inches for easy transport and storage.

Key Features:

Heavy-duty square aluminum construction with reinforced double-band leg design
Quick-release clamps for fast, reliable height adjustments
Durable black powder-coated metal hardware resists jobsite wear
Replaceable steel shoe points for solid traction in any surface
Flat head with 5/8-11 threaded mounting bellhousing
Extended height: 64 inches (163 cm)
Collapsed height: 40 inches (102 cm)

Ideal for: contractors, surveyors, and construction pros who demand durability, fast setup, and long-term reliability in the field.

Note on Included SitePRO ALQR20 Tripod:
This kit includes a contractor-grade tripod built for strength, stability, and long-term durability. Unlike many online kits that cut corners by including low-cost tripods with no available replacement parts, we’ve made sure to pair this high-end laser with a tripod that matches its quality.

We understand that when you're investing in a precision instrument, the last thing you want is to set it on a flimsy tripod that sways in the wind or fails under tough jobsite conditions. That’s why we include a heavy-duty, professional-grade tripod, carefully selected to meet the demands of jobsite use — and fully backed by us.

You won’t find this level of detail or commitment to quality spelled out like this at other distributors — but it’s what sets us apart. We guarantee you’ll appreciate the difference.

Aluminum 16-foot Grade Rod - INCH Measurements Included in this KIT

SitePro 11-816-C 16-ft Aluminum Telescoping Leveling Rod (CR) — Feet & Inches Graduations

Engineered for performance and built to last, the SitePro 11-816-C is a professional-grade 16-ft aluminum leveling rod designed for ultra-precise elevation reading and rugged, day-in-day-out use on active jobsites. Whether you're grading, staking, or checking elevations with a rotary laser, this rod keeps your measurements accurate and your crew efficient.

✔️ Lightweight Yet Built Tough

Made from high-strength aluminum alloy, this rod resists bending and denting while staying light enough for long workdays. The sections telescope smoothly and quietly — no rattling or binding like lower-end rods.

✔️ Feet & Inches — Down to the Details

Graduated in Feet, Inches, and fractional sub-divisions, the 11-816-C makes it easy to read precise elevation changes at a glance. It doesn’t stop at whole inches — the detailed fractional markings let you confidently measure changes as small as ¹⁄₈", ¹⁄₁₆", and even ¹⁄₃₂" — perfect for tasks that demand absolute accuracy like pad finishing, form setting, and slab layout.

✔️ Built for All Conditions

Each section is anodized for corrosion resistance and printed with high-visibility, weatherproof ink that won’t fade or scratch, even in rough field conditions.

✔️ Backside Measuring Scale

The reverse side includes a convenient height scale, so you can easily read the rod’s extended height at eye level — no bending, no second guessing.

✔️ Rugged Jobsite-Ready Design

• Five-section telescoping design with impact-resistant joints
• Heavy-duty polycarbonate locking buttons keep each section securely in place
• Fully collapses to just 48 inches — fits easily in a truck, laser case, or storage tube

If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721

TOPCON LASER PACKAGE - Kit Component Comparison

Models Current	Laser	Receiver	Powerd by:	Rod	Tripod	COO	NOTES
1021200-16	RL-H5A	LS-100D	(R)			JPN
1021200-16-K1	RL-H5A	LS-100D	(R)	Feet/10ths	HD Tripod	JPN
1021200-16-K2	RL-H5A	LS-100D	(R)	Feet/Inches	HD Tripod	JPN
1021200-17	RL-H5A	LS-100D	(ALK)			JPN
1021200-17-K1	RL-H5A	LS-100D	(ALK)	Feet/10ths	HD Tripod	JPN
1021200-17-K2	RL-H5A	LS-100D	(ALK)	Feet/Inches	HD Tripod	JPN
1021200-49	RL-H5A	LS-80X	(R)			JPN
1021200-49-K1	RL-H5A	LS-80X	(R)	Feet/10ths	HD Tripod	JPN
1021200-49-K2	RL-H5A	LS-80X	(R)	Feet/Inches	HD Tripod	JPN
1021200-50-BCA	RL-H5A	LS-80X	(ALK)				NO CASE
1021200-50-BL	RL-H5A		(ALK)			JPN	LASER ONLY
1021200-50	RL-H5A	LS-80X	(ALK)			JPN
1021200-50-K1	RL-H5A	LS-80X	(ALK)	Feet/10ths	HD Tripod	JPN
1021200-50-K2	RL-H5A	LS-80X	(ALK)	Feet/Inches	HD Tripod	JPN
1035258-01	RL-H5A	LS-80X	(ALK)	Feet/10ths		JPN	AKA 1021200-50-K1
1035259-01	RL-H5A	LS-80X	(ALK)	Feet/Inches		JPN	AKA 12021200-50-K2
1035260-01	RL-H5A	LS-80X	(R)	Feet/10ths		JPN	AKA 1021200-49-K1
1035261-01	RL-H5A	LS-80X	(R)	Feet/Inches		JPN	AKA 1021200-49-K2
Models Obsolete -DISCONTINUED - Direct Substitution - Last Collumn
Models	Laser	Receiver	Powerd by:	Rod	Tripod	COO	NOTES
1021200-06	RL-H5A	LS-80L	(R)			CHN	DR 1021200-49
1021200-06-K1	RL-H5A	LS-80L	(R)	Feet/10ths	HD Tripod	CHN	DR 1021200-49-K1
1021200-06-K2	RL-H5A	LS-80L	(R)	Feet/Inchs	HD Tripod	CHN	DR 1021200-49-K2
1021200-07	RL-H5A	LS-80L	(ALK)			CHN	DR 1021200-50
1021200-08	RL-H5A	LS-100D	(R)			CHN	DR 1021200-16
1021200-14	RL-H5A	LS-80L	(R)			CHN	DR 1021200-49
1021200-15	RL-H5A	LS-80L	(ALK)			CHN	DR 1021200-50
1021200-15-K1	RL-H5A	LS-80L	(ALK)	Feet/10ths	HD Tripod	CHN	DR 1021200-50-K1
1021200-15-K2	RL-H5A	LS-80L	(ALK)	Feet/Inchs	HD Tripod	CHN	DR 1021200-50-K2
313980752	RL-H4C	LS-80L	(ALK)			CHN	DR 1021200-50
313980782-1	RL-H4C	LS-80L	(ALK)	Feet/10ths	HD Tripod	CHN	DR 1021200-50-K1
313980752-2	RL-H4C	LS-80L	(ALK)	Feet/Inchs	HD Tripod	CHN	DR 1021200-50-K2
313980772	RL-H4C	LS-100D	(R)			CHN	DR 1021200-16
							DR = Direct Replacement
			(R) / (ALK)	Rechargeable / Alkaline		CHN / JPN	Made in China / Japan


Topcon RL-H5A Laser Series COMPARISON
New Series	RL-H5A RB	RL-H5A DB	RL-H5A DB2	RL-H5A DB2	RL-H5A RB	RL-H5B DB
LASER - TOP COMPONENT OVERVIEW
New Model	1021200-49	1021200-50	1021200-50-K1	1021200-50-K2	1021200-16	1021200-73
Discontinued Model	1021200-06 1021200-14	1021200-07	1021200-07-K1	1021200-07-K2	1021200-08	1021200-31 1021200-33
Receiver	LS-80X	LS-80X	LS-80X	LS-80X	LS-100D	LS-80X
Batteries	Rechargeable	Dry / Alkaline	Dry / Alkaline	Dry / Alkaline	Rechargeable	Dry / Alkaline
Remote Control	NO	NO	NO	NO	NO	NO
Measuring Rod 15'	NO	NO	YES - 10ths	YES - Inches	NO	NO
Aluminum Tripod	NO	NO	YES	YES	NO	NO
LASER SPECIFICATIONS
Source	635nm Class 2	635nm Class 2	635nm Class 2	635nm Class 2	635 nm Class 2	635 nm Class 2
Range (Diameter)	2,600-feet	2,600-feet	2,600-feet	2,600-feet	2,600-feet	1,300-feet
Accuracy @ 100 feet	1/16-inch	1/16-inch	1/16-inch	1/16-inch	1/16-inch	1/8-inch
Rotation Speed	600 RPM	600 RPM	600 RPM	600 RPM	600 RPM	600 RPM
Slope	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	NO
Manual Slope Range	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Self-Leveling	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Rechargeable Battery	60 hours				60 hours
Dry/Alkaline Battery	100 hours	100 hours	100 hours	100 hours	100 hours	100 hours
Battery Run Charge	NO				NO
Enviornment	IP66	IP66	IP66	IP66	IP66	IP66
Warranty	5 YEARS	5 YEARS	5 YEARS	5 YEARS	5 YEARS	5 YEARS
DISCONTINUED VERSION - OLD LASER INFORMATION
Old Series	New	RL-H5A DB	RL-H5A DB	RL-H5A DB	RL-4HC RB	RL-H5B
Old Model	New	1021200-07	1035258-01	1035259-01	313980772	1021200-31

* Under normal circumstances we stock this item and are able to ship orders placed before 12 NOON Central Standard Time. We also attempt to ship all orders that are placed before 5 P.M. Certain circumstances outside of our control can sometimes affect this standard that we set.

Laser Orientation:

Horizontal

Application:

Exterior

Laser Color:

Red

Laser Range (diameter):

2,600 feet

Laser Accuracy:

1/16-inch

Grade Type / Range:

Manual Grade

Plumb Point:

Battery Type:

Rechargeable

Receiver:

LS-80L (2-inch Capture Height)

Remote Control:

Tripod:

Heavy Duty Standard

Measuring Rod:

15' Inches
