Spectra Precision LL300N-BCC Laser and Case Only

Product Description
Videos

Spectra Precision LL300N-BCC Laser Level Bare Package
with NiMH Rechargeable Batteries, Charger and Carrying Case

This Spectra LL300N-BCC is a NEW LASER - we only sell new lasers!

No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!

Spectra Precision LL300N-BCC Laser OVERVIEW

The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.

The Spectra LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.

The Spectra LL300N's fully automatic self-leveling capability provides fast, accurate setup. INCLUDED Rechargeable Ni-Cad Rechargeable battery pack also allows for alkaline batteries - keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope.

Spectra Precision LL300N-BCC

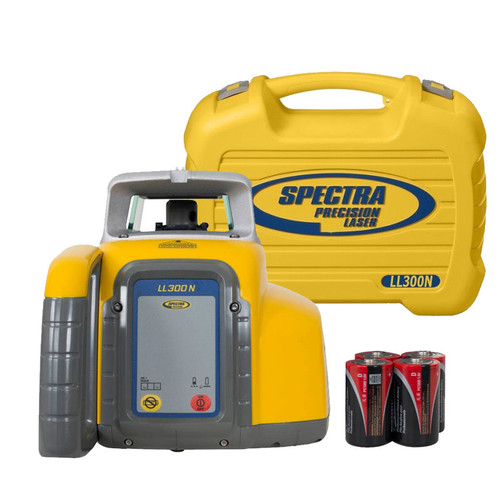

You get the below components when you order an LL300N

• LL300N Auto Self-Leveling Laser Level
• Small Carrying Case

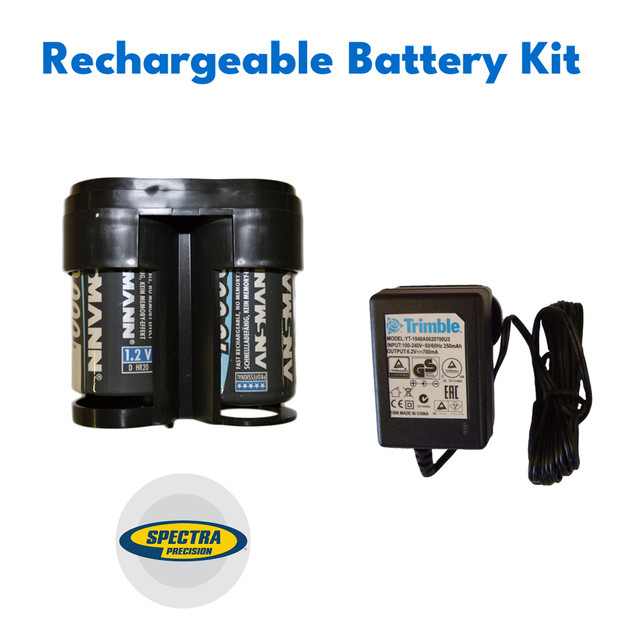

• NiMH Rechargeable Batteries - 5 Ah

Spectra Precision LL300N-BCA Laser APPLICATIONS

• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks

Spectra Precision LL300N-BCA Laser KEY FEATURES

• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty

Spectra Precision LL300N Laser Kit Comparison Chart


	HL450 RECEIVER	Measuring Rod - 15'	2161 TRIPOD	Rechargeable Batteries	SYSTEM CASE	SMALL CASE
LL300N-BCA
LL300N-BCC
LL300N
LL300N-1		GR151 10ths
LL300N-2		GR152 inches
LL300N-3		GR153 metric
LL300N-4
LL300N-8	HR320
ALL above packages include the LL300N laser transmitter and case

*OPTIONAL RC601 Infrared Remote Control*
	OPTIONAL RC601 Remote Control allows easy grade matching using the remote control from the rod position

SPECTRA LL300N Laser SPECIFICATIONS

Laser Source

635 – 670 nm visible, Class 3A/3R

Laser Accuracy

3/32 inch per 100 foot

15 arc seconds

Operating Receiver Range (Diameter)

with HL450 Receiver 1,650 foot

Self-Leveling Range

±5º

Compensation Method

Electronic Self Leveling

Power Source

4 “D” Rechargeable or Alkaline Batteries

Battery Life

Rechargeable: 45 hours
Alkaline: 90 hours

Battery Status LED

Flashing Red LED

Battery Recharging Time

Less than 10 hours

Rotation Speed

600 rpm

Out of Level (HI)-Warning

Rotor stops, red out-of-level LED blinks

Out of Level Warning at Receiver

Programmable at dealer
(CR600 receiver only)

Machine Control Compatible

Yes

Protective Rotor Cage (removable)

Yes

Drop Height on Concrete

3 feet

Single Axis Manual Slope Mode

Yes with optional RC601 remote
(w/self-leveling mode on the second axis)

External Remote Control (Range)

160 feet

Tripod Mount (Horizontal & Vertical)

5/8"–11

Operating Temperature

–4 ºF to 122 ºF

Storage Temperature

–4 ºF to 158 ºF

Waterproof

Yes, IP54

Size (inch)

9.6 length × 6.5 width × 7.3 height

Weight (pounds)

Warranty

5-Years

LL100N vs LL300N Laser COMPARISON

SPECTRA LASER COMPARISON CHART	LL100N	LL300N
Operating Range (Diameter)	1,000 ft	1,650 ft
ACCURACY (@ 100-feet)	1/8-inch	3/32-inch
Laser Receiver	HR320	HL450
Battery Life (Alkaline)	80 hours	90 hours
Weight	3.3 lbs	6 lbs
WARRANTY with "Knock Over" Drop Specification	3 ft	5 ft
Horizontal Electronic self-leveling	yes	yes
Vertical Capability (Manual mode only)	yes	yes
Water Resistant / 'Rain Proof'	yes	yes
Metal sunshade & patented lighthouse to seal & protect the rotor	no	yes
Manual 'Slope' mode with Cross-Axis Self Leveling (with RC601 remote)	no	yes
NiMH Rechargeable battery option (vs Alkaline only on LL100)	no	yes
"Laserometer" Receiver (TWICE the PhotoCell length + Numeric Readout)	no	yes
5 YEAR 'No Cost' WARRANTY (LL100 has only 1 year 'No Cost' + 2 Years Limited)	3-Year limited	5-Year no cost

GRADE LASER COMPARISON CHART

Horizontal Only Laser Levels

Horizontal and Vertical

Accuracy

1/8-inch @ 100-ft
20 arc seconds

3/32-inch @ 100-ft
15 arc seconds

1/16-inch @ 100-ft
10 arc seconds

Operating
Diameter

1,150 feet

1,650 feet

2,600 feet

1,650 feet

1,150 feet

2,600 feet

Self-
Leveling
Range

±5 degrees electronic servo self-leveling

±11 minutes

±5 degrees electronic servo self-leveling

Power Source

2 x D-Cell
Alkaline

4 x D-Cell Alkaline Standard
Rechargeable NiMH Optional

2 x D-Cell
Alkaline

Rechargeable NiMH Standard
Alkaline Back-Up

Battery Life

80-hours Alkaline

90 hours Alkaline
45 hours NiMH

60 hours Alkaline
47 hours NiMH

175 hours Alkaline
100 hours NiMH

50-hours Alkaline

60 hours Alkaline
45 hours NiMH

Water Resistance

Yes IP54

Yes IP66

Yes IP54

Yes IP66

Warranty

3-Year
Instant Exchange

5-Year

3-Year
Instant Exchange

5-Year

Receiver Options

(2.5") HR320

(2.5") HR320
(4") HL450

(5") HL760

(5") HL700

(2") HL150U
(2.5") HR320

(2") HL150U
(5") HL760

Works with Remote

Size (inches)
L x W x H

8.5 x 6.7 x 6

10.7 x 7.7 x 7.9

10.8 x 7.5 x 7.5

8.5 x 6.7 x 6

10.7 x 7.7 x 7.9

Weight lbs.

3.3

6.8

3.3

6.8


Spectra Precision LL300N Laser Level DOWNLOADS
LL300N Datasheet page 1	LL300N Datasheet page 2

LL300N User Guide

Laser Orientation:

Horizontal

Application:

Exterior

Laser Color:

Red

Laser Range (diameter):

1,650 feet

Laser Accuracy:

3/32-inch

Grade Type / Range:

Manual Grade with Remote

Plumb Point:

Battery Type:

Rechargeable with Alkaline Backup

Remote Control:

Optional
