Spectra Precision LL300N-1 Laser Package
with HL450 Laser Receiver, GR151 Tenths Grade Rod & Aluminum Tripod
SKU: SPECTRA PRECISION LL300N-1 • Complete Kit — Rod & Tripod Included — we only sell new lasers!
|
|
|
No Cost 5-Year Warranty — if the laser unit fails in the first FIVE years, send it back and get it repaired for free!
|
Spectra Precision
Authorized Dealer • Contractors-Tools.com
|
FREE Same-Day Shipping
Order by 12 Noon CST • Ships Today
|
|
|
| Spectra Precision LL300N-1 Laser OVERVIEW |

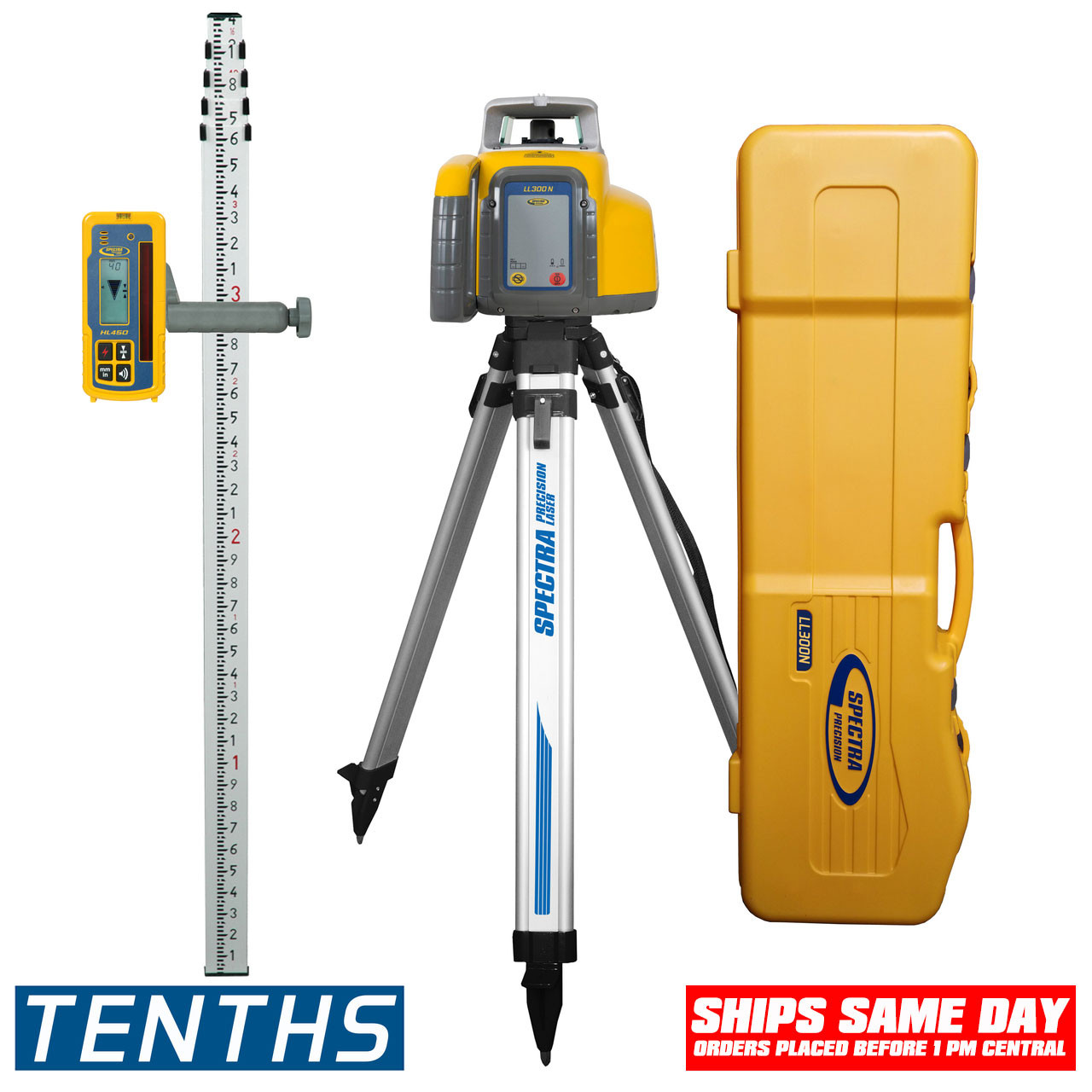

The Spectra Precision LL300N-1 is your complete, ready-to-work rotary laser package — everything you need right out of the box. This kit pairs the LL300N laser with the HL450 Laserometer receiver, a GR151 15-foot tenths grade rod, and a heavy-duty aluminum tripod.
The LL300N delivers 3/32-inch accuracy at 100 feet across a 1,650-foot diameter operating range, making it your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small- and medium-sized jobs, and for excavations, digging footings and septic tanks.
The Spectra LL300N features a rugged design with “hard hat” rotor protection that provides superior drop and weather protection — built to withstand severe drops of up to 3 feet directly onto concrete, or up to 5 feet when pushed over on a tripod. Means less downtime and cost due to damage caused by accidental drop or tip-over, and lower repair costs over the life of the product.
The LL300N’s fully automatic self-leveling capability provides fast, accurate setup. Standard D-Cell alkaline batteries are included and keep the unit running with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope using the optional RC601 Remote Control (sold separately).
One of the standout features of the LL300N-1 kit is the included Spectra “All in One” System Carrying Case — a large, purpose-built hard case with dedicated compartments for every component in the kit. The laser, HL450 receiver, grade rod sections, and tripod legs each have their own protected spot, so everything stays organized, secure, and ready to grab when the job calls. No scrambling for missing pieces, no loose accessories rattling around in the truck — just open the case, pull your gear, and get to work. When you’re done, everything packs back in cleanly and your equipment is protected for the ride to the next job.
|
|
|
|
| Spectra Precision LL300N-1 Laser INCLUDES |
|
Spectra Precision LL300N-1 INCLUDES
You get the below components when you order an LL300N-1
- LL300N Auto Self-Leveling Laser Level
- HL450 Laser Receiver (Laserometer) with C45 Receiver Clamp
- GR151 Aluminum 15-foot Grade Rod with Measurements in TENTHS
- Q104025 Aluminum Tripod
- “All in One” System Carrying Case
- (4) D-Cell Alkaline Batteries
Want remote grade capability or rechargeable batteries? See the kit comparison chart below — we have complete packages with everything you need.
|
|
|
|
|
HL450 Laser Receiver / Laserometer DETAILS — Included with the LL300N-1
|
Spectra Precision
HL450 Laser Receiver
with C45 Rod Clamp
INCLUDED RECEIVER
|
The HL450 — Spectra's Standard Rod-Mounted Laser Receiver
When you're working on grade — setting forms, checking elevations, or grading a pad — you need a receiver that picks up the beam fast and tells you where you stand. The Spectra HL450 is a field-proven, no-nonsense rod-mounted receiver built for everyday construction use. It gives you a precise digital readout of exactly how far above or below grade you are — no guesswork, no moving the clamp to find on-grade, just a number on screen and you're moving.
|
|
|
|
|
Capture Height |
On-Grade Accuracy |
Drop Resistant |
Waterproof Rating |
What the HL450 Delivers on the Job:
- Digital readout display — exact distance above or below grade shown on screen, no need to move the clamp to find on-grade
- 4-inch capture height — double the industry standard, picks up the beam fast and keeps you in it
- Fraction & decimal display modes — switch between ft/in fractions or tenths to match how you work
- Works in direct sunlight — bright LED indicators visible in any lighting condition
- Audible + visual grade indicators — know your position with or without looking at the display
|
- 5-foot drop rating — survives real job site abuse, direct drop onto concrete
- Anti-strobe sensor — blocks construction strobe lights from triggering false readings, so you always lock onto the real laser signal
- IP67 fully waterproof — dust-proof and waterproof rated; rain won't slow down job completion
- Includes C45 rod clamp — mounts directly to your grade rod, ready to work out of the box
- Compatible with all Spectra rotating lasers — LL300N, LL400, GL series, and more
|
|
|
Ideal Applications
|
Site Grading
& Excavation
|
Drainage
& Pipe Laying
|
Farm & Land
Leveling
|
Foundation
& Footing Work
|
Elevation Checks
& Surveying
|
|
|
| Spectra Precision LL300N-1 Laser SPECIFICATIONS |
| Laser Source | 635–670 nm visible, Class 3A/3R |
| Laser Accuracy | 3/32 inch per 100 feet | 15 arc seconds |
| Operating Range (Diameter) | 1,650 feet with HL450 Receiver |
| Self-Leveling Range | ±5° |
| Compensation Method | Electronic Self-Leveling |
| Power Source | 4 “D” Rechargeable or Alkaline Batteries |
| Battery Life | Rechargeable: 45 hours | Alkaline: 90 hours |
| Battery Status LED | Flashing Red LED |
| Battery Recharging Time | Less than 10 hours |
| Rotation Speed | 600 RPM |
| Out of Level (HI) Warning | Rotor stops, red out-of-level LED blinks |
| Machine Control Compatible | Yes |
| Protective Rotor Cage | Yes (removable) |
| Drop Height on Concrete | 3 feet |
| Single Axis Manual Slope Mode | Yes with optional RC601 Remote Control (self-leveling on second axis) |
| External Remote Control Range | 160 feet |
| Tripod Mount | 5/8”–11 |
| Operating Temperature | –4°F to 122°F (–20°C to 50°C) |
| Storage Temperature | –4°F to 158°F |
| Waterproof Rating | Yes, IP54 |
| Dimensions (L × W × H) | 9.6” × 6.5” × 7.3” |
| Weight | 6 lbs |
| Warranty | 5-Year No-Cost |
|
|
