Spectra Precision LL300N-CR72 Laser Level Package
with CR700 Multi-Use Laser Receiver, Measuring Rod INCHES and Tripod |
15 foot Grade Rod (GR152) that displays measurement in INCHES
Complete Laser System Package - we only sell new lasers!
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!
|
|
| Spectra Precision LL300N-CR72 Laser OVERVIEW |
The Spectra Precision Laser LL300N package is your complete medium-range, high-accuracy solution. Ideal for basic slope work such as driveways and ramps, checking or leveling elevations, concrete forms, footings and foundations for small -and- medium sized jobs, and for excavations, digging footings and septic tanks.
The Spectra LL300N features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3-feet directly onto concrete, or up to 5 feet when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop or tip-over and lower repair costs over the life of the product.
The Spectra LL300N's fully automatic self-leveling capability provides fast, accurate setup. Rechargeable Ni-Cad battery pack or alkaline batteries keeps the unit working with no downtime due to power loss. Single cross-axis manual slope mode with cross-axis self-leveling allows grade matching for basic slope work, while maintaining accuracy in the cross-slope. |
|
|

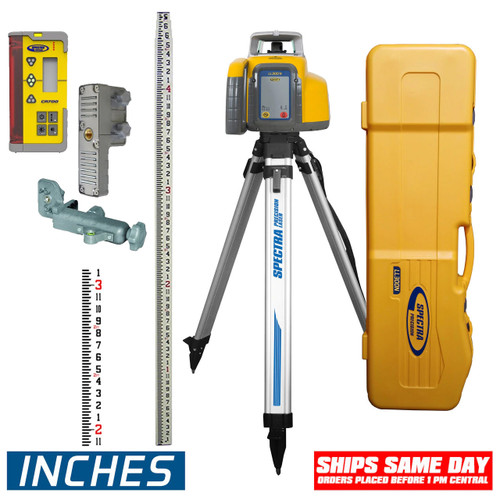

| Spectra Precision LL300N-CR72 Laser INCLUDES |
|
You get the below components when you order an LL300N-CR72
|
• LL300S Auto Self-Leveling Laser Level
• CR700 Multi-Use Laser Receiver - with Magnetic Mount and Rod Clamp
• C70 Rod Mounted Receiver Clamp
• C71 Magnetic Machine Mount
• GR152 Aluminum 15-foot Grade Rod with Measurements in INCHES
• Q104025 Aluminum Tripod
• "All in One" System Carrying Case
• (4) D-Cell Alkaline Batteries
|
|
| CR700 Multi-Use Laser Receiver / DETAILS - Included with the LL300N-CR72 Package |
|
The CR700 has the same “light bar” technology that is included in HL receivers and delivers extremely accurate and consistent results. Super bright directional LEDs are ideal for entry-level machine grade display that provide instant grade information to the operator and eliminates the need for a rod man in the trench.
Spectra Precision CR700 combination receiver - a step ahead in receiver technology
The CR700 includes a clamp to attach to a Grade Rod. It has the same "LIGHT BAR" technology that is included in the HL-Receivers and will deliver extremely accurate and consistent results.The CR700 can also be attached to Machinery with the included new Magnetic Mount, which is 25% stronger than the CR600 Magnet Mount resulting in stable machine mounting and a reduction in errors. With the Super Bright Directional LED's, the CR700 is ideal for entry-level machine grade display, specifically on mini-excavators and backhoes.
For any application, the industry-leading 10-foot drop Guarantee and 3-Year Warranty confirm that the CR700 is the most reliable and robust receiver available.
The World's Best Laser Receivers
Spectra Precision digital readout receivers are simply the best laser receivers - without peers in accuracy, performance , reliability and warranty. The patented "LIGHT BAR" Technology provides more accurate and more consistent readings than traditional methods. This unique technology has fewer electronic components resulting in the most rugged and reliable laser receiver available.
|
 |
CR700 Combination Laser Receiver Unique Functions:
- LARGE 5-INCH RECEPTION HEIGHT - More Data / Information from the Laser
- Bright LED Arrow Displays - Turn your head when you first turn on the CR700 because the new Red/Green/Blue LED arrows are super bright and visible in all conditions.
- Magnet Mount for Machine Mounting - the NEW C71 Magnetic Mount is 25% Stronger. It will not slip on the machine no matter how rough the work is.
- Light Bar Technology - Patented Laser Reception Technology delivers the most accurate, consistant and reliable performance
- Laser Radio - the CR700 is radio-compatible with the GL412N, GL422N, GL612N, GL622N and HV302 series lasers. This enables the use of time saving functions such as Grade Match, Fingerprinting, PlaneLok and Axis Alignment.
- IP67 - Dustproof, Waterproof, Weatherproof
- 10-foot Drop Guarantee - almost destruction proof, extremely robust, eliminates downtime
- Digital Readout - Pair the CR700 receiver with an HL760 receiver to be used as a remote display - useful for machine operators and site supervisors.
- Fingerprint On/Off - a menu function allows the CR700 to enable or disable Fingerprinting
- Backlight - to view the laser receiver in the dark.
- Vertical Drift Alarm - When using lasers in vertical mode, after setting up your line, let the laser receiver warn you if the laser has been disturbed.
- 3-Year Warranty - competitors are not even close on laser receivers.
CR700 Machine Display Laser Receiver Applications
- Machine Display Receiver attached to...
- Backhoe, Skid Steer or Mini-Excavator for Grading or Excavating
- Grade Rod Mounted Receiver for Elevation Control.
- Vertical Alignment
- Digging footings
- Basement excavation
- Checking sub-base materials
- Setting and Checking elevations
- Leveling and Aligning forms
- Screeding concrete
|
Spectra CR700 Machine or Rod Mounted Laser Receiver SPECIFICATIONS
|
Working Radius
(Laser Dependent)
|
3-foot to 1,500 foot
|
Laser Detection Height
|
5-inches |
Numeric Readout Height
|
4-inches
|
Internal Radio
|
Full 2-way communication, operation and security lock with paired device.
|
Radio Working Radius
|
600 feet - depending on orientation, conditions and paired device.
|
Reception Angle
|
200° minimum (laser and distance dependent)
|
Accuracy
|
Ultra-Fine: 0.02-inch : 1/32 inch
|
| |
Super-fine: 0.05-inch : 1/16 inch
|
| |
Fine: 0.10-inch : 1/8 inch |
| |
Medium: 0.20-inch : 1/4 inch |
| |
Course: 0.50-inch : 1/2 inch |
| |
Machine: 1.00-inch : 1 inch |
| |
Machine-Mount Mode |
| |
Fine: 3/8-inch |
| |
Coarse: 1-inch |
Strobe
|
Anti-strobe sensor |
Detectable Spectrum
|
610 nm ... 780 nm
|
Beeper Volumes
|
Loud = 110 dBA
Medium = 95 dBA
Low = 65 dBA
|
LED Grade Indicators
|
Green : On-Grade
Red : Hi
Blue : Low
|
Brightness
|
Off, Bright, Super Bright
|
Power Supply
|
3 x 1.5 Volt "AA" Batteries
|
Battery Life
|
60+ hours, 16+ continuous backlight
|
Automatic Shut-Off
|
30 minutes
|
Environmental
|
Waterproof, Dustproof to IP67
|
Weight without Clamp
|
16.6 ounces
|
Dimensions w/o Clamp
|
3.9 x 7.8 x 1.5 inches |
| Operating Temperature |
-4°F to 140°F |
| Storage Temperature |
-40°F to 158°F |
| Regulatory |
CE EMC / RoHS Compliant |
|
| |
|
| Spectra Precision LL300N Laser APPLICATIONS |
• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks |
| Spectra Precision LL300N Laser KEY FEATURES |
• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty
|
| Spectra Precision LL300N-CR72 Laser Kit Comparison Chart |
|
|
| |
| SPECTRA LL300N Laser SPECIFICATIONS |
| Laser Source |
635 – 670 nm visible, Class 3A/3R |
| Laser Accuracy |
3/32 inch per 100 foot |
| |
15 arc seconds |
| Operating Receiver Range (Diameter) |
with HL450 Receiver 1,650 foot |
| Self-Leveling Range |
±5º
|
| Compensation Method |
Electronic Self Leveling |
| Power Source |
4 “D” Rechargeable or Alkaline Batteries |
| Battery Life |
Rechargeable: 45 hours
Alkaline: 90 hours |
| Battery Status LED |
Flashing Red LED |
| Battery Recharging Time |
Less than 10 hours |
| Rotation Speed |
600 rpm |
| Out of Level (HI)-Warning |
Rotor stops, red out-of-level LED blinks |
| Out of Level Warning at Receiver |
Programmable at dealer
(CR600 receiver only) |
| Machine Control Compatible |
Yes |
| Protective Rotor Cage (removable) |
Yes |
| Drop Height on Concrete |
3 feet |
| Single Axis Manual Slope Mode |
Yes with optional RC601 remote
(w/self-leveling mode on the second axis)
|
| External Remote Control (Range) |
160 feet |
| Tripod Mount (Horizontal & Vertical) |
5/8"–11 |
| Operating Temperature |
–4 ºF to 122 ºF |
| Storage Temperature |
–4 ºF to 158 ºF |
| Waterproof |
Yes, IP54 |
| Size (inch) |
9.6 length × 6.5 width × 7.3 height |
| Weight (pounds) |
6 |
| Warranty |
5-Years |
