Product Description

In Stock — Ships Today

Leica DISTO X6 P2P Package

★★★★★

🚚 Free Same-Day Shipping🛡 3-Year Warranty📞 877-866-5721

The Leica DISTO X6 P2P Package transforms your jobsite workflow. When docked in the included DST 360-X tripod adapter, the X6 becomes a Point-to-Point measurement station capable of capturing tie distances between any two points from up to 250 meters away—no line-of-sight required. Results export directly to 2D or 3D DXF files, ready for any CAD software.

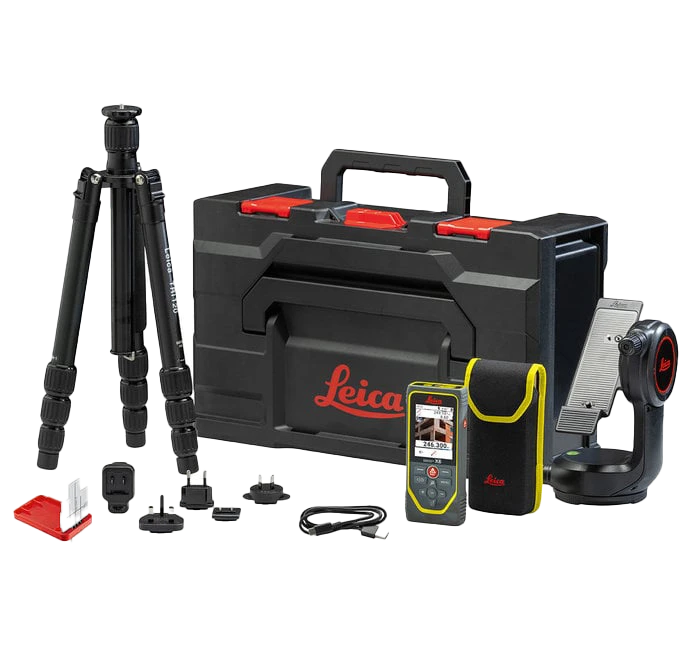

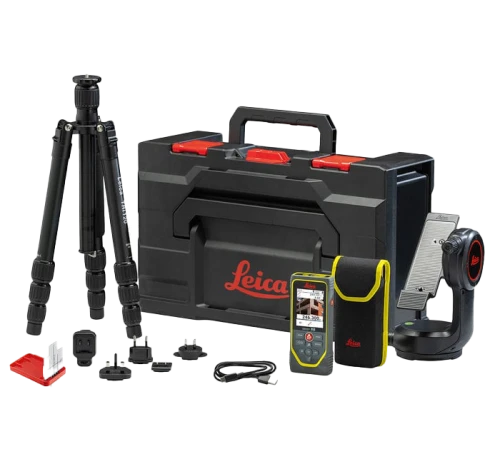

What's in the Box

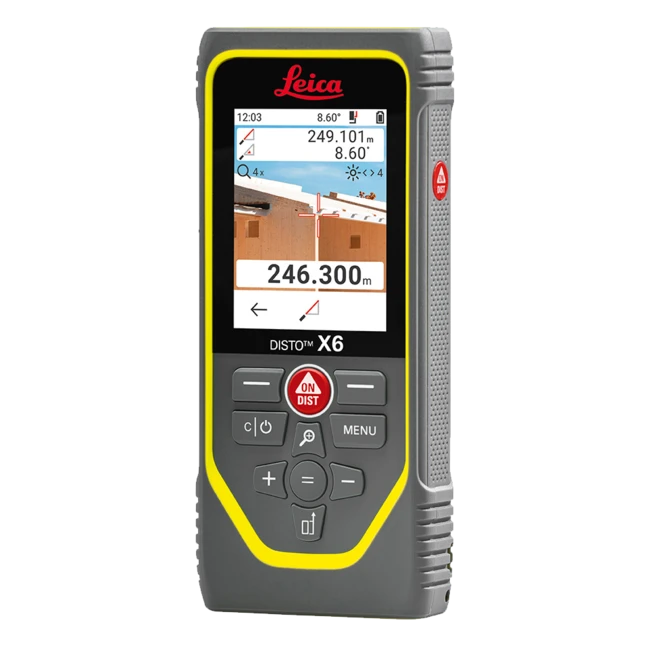

Leica DISTO X6 Laser Distance Meter

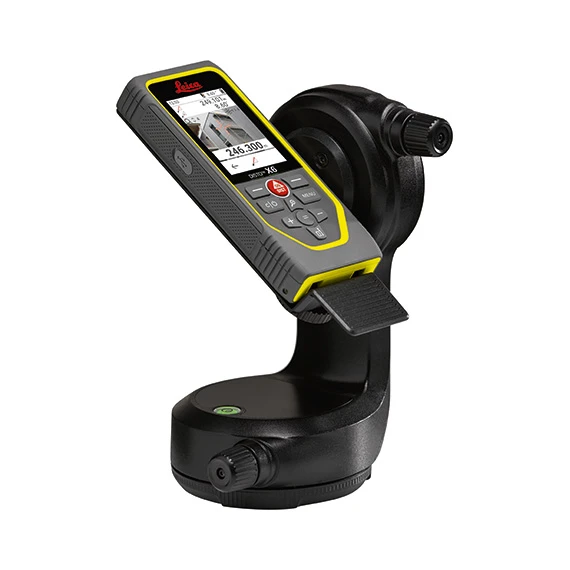

Leica DST 360-X Tripod Adapter
Leica TRI 120 Tripod
Leica GZM 3 Target Plate
metaBOX Carrying Case
Li-Ion Charger + USB Cable
Hand Loop & Pouch
Calibration Certificate Silver

Why the DISTO X6 P2P Package?

Five features that set it apart from every other laser distance meter on the market.

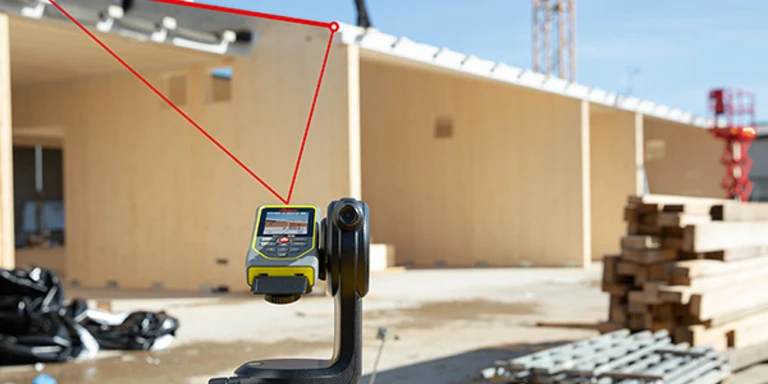

Measure Between Two Points Up to 250m Away

No other laser distance meter captures P2P tie distances from a safe location—even in inaccessible areas.

Learn more →

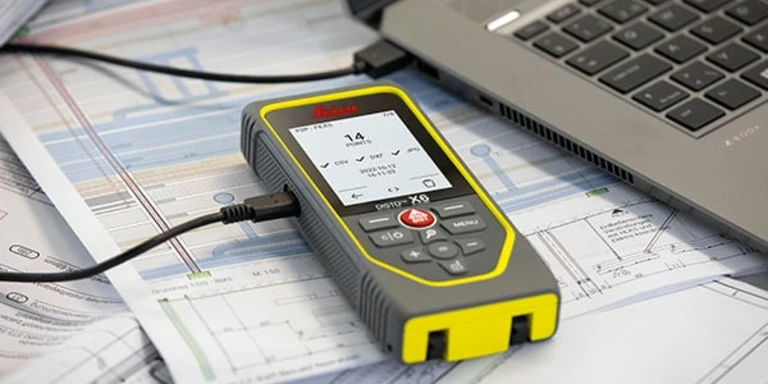

Export 2D or 3D DXF Files to CAD Direct from the Jobsite

Build DXF files onsite and drop straight into your CAD software.

CAD workflow →

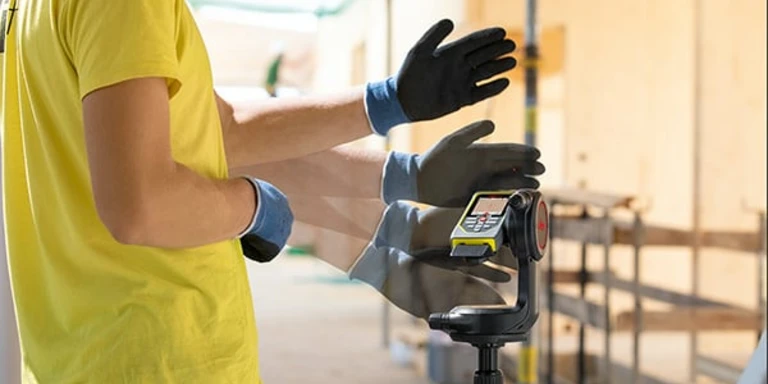

Wave to Shoot—Hands-Free Measurement Trigger

Place crosshairs on target, wave to trigger. No wobble at long range.

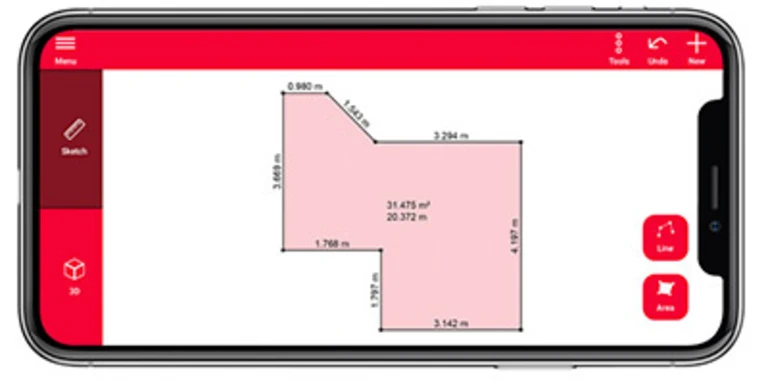

19+ Compatible Apps via Bluetooth—iOS, Android & Windows

DISTO Plan, AutoCAD Mobile, Xactimate—certified apps for every trade.

All apps →

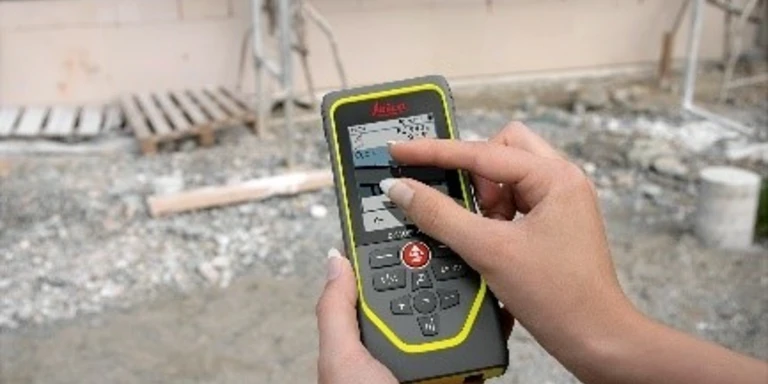

2.8″ Hardened Touchscreen with 4× Pointfinder Zoom

Scratch-resistant. Pinch to zoom. Swipe to navigate. Tap to shoot.

Technical Specifications

Accuracy (favourable)	1.0 mm / 1/16"
Accuracy (unfavourable)	2.0 mm / 1/8"
Range (favourable)	0.05–250 m / 0.16–820 ft
Range (unfavourable)	0.05–150 m / 0.16–500 ft
Smallest Unit Displayed	0.1 mm / 1/32"
P2P Tolerance	±5 mm/5 m \| ±10 mm/10 m
Laser	Class 2, 635 nm, <1 mW
Digital Pointfinder	4× Zoom
Tilt Measuring Range	360°
DST 360-X Horizontal	360°
DST 360-X Vertical	-64° to >90°
Bluetooth	v5.0, up to 10 m
Battery (Li-Ion 2,000 mAh)	Up to 4,000 measurements / 8 hrs
Memory	300 reports, 1,000 3D points
Dimensions (incl. adapter)	208 × 190 × 150 mm
Weight	1,580 g
IP Rating	IP65 — Dustproof & waterproof
Operating Temperature	-10°C to 55°C
Storage Temperature	-25°C to 70°C
