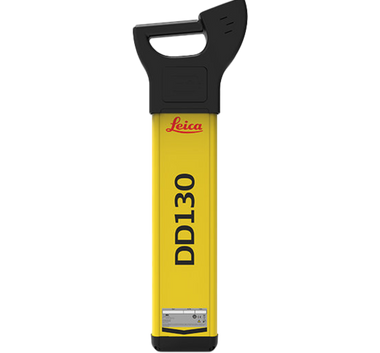

The Complete DD130 Kit — Ready to Locate Anything

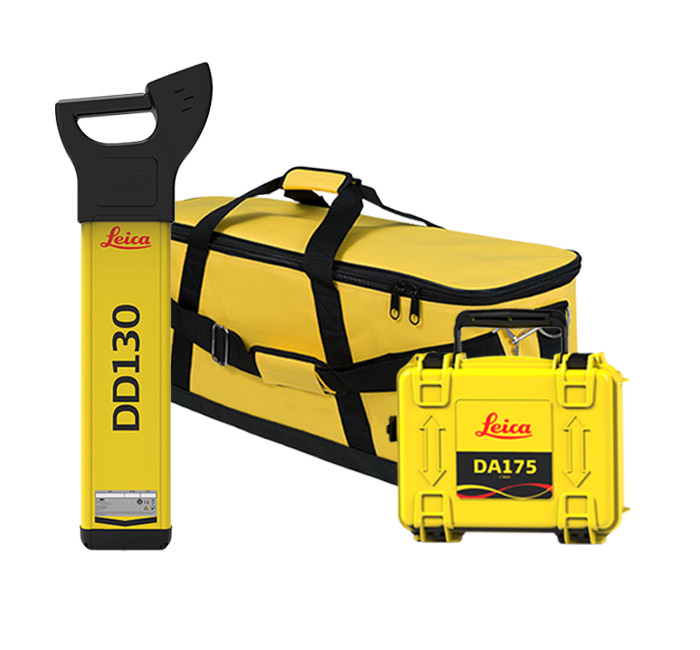

The DD130 Depth Package combines the DD130 locator with the DA175 1-Watt Signal Transmitter and a system carry bag in one ready-to-go kit. Everything you need for professional utility locating, active tracing, and deep drainage work is included from day one.
The DA175 transmitter unlocks the DD130's full capability: active tracing at 512Hz and 640Hz for long-distance cable runs, depth estimation on buried lines, and tracing de-energized utilities that the locator alone can't passively detect. Combined with the DD130's 33ft sonde depth range, this package is purpose-built for deep drain, sewer, and complex multi-utility environments.
The included system carry bag keeps the locator and transmitter organized and protected on the job site — everything packed, protected, and ready when you arrive.
Active field use — tracing buried utilities before excavation
Precise depth and route detection of buried services
Built for professional performance on demanding job sites
Key Features
Complete Active-Tracing Kit
DD130 locator + DA175 1-Watt Signal Transmitter + System Carry Bag. Everything needed for full-capability utility locating, ready to deploy.
6 Detection Modes
Auto, Power, Radio, 8kHz, 33kHz, plus the DD130-exclusive 512Hz and 640Hz for tracing long cable runs across complex utility networks.
Extended Sonde Depth — 33ft
Sonde depth detection up to 9.99m (33ft) — three times deeper than the DD120. Ideal for deep drain tracing, sewer inspection, and duct location.
Current Measurement (mA)
Displays milliamp current flowing through the located service in real time — confirming signal strength and cable identification on the spot.
DA175 1-Watt Transmitter
Active signal injection for tracing dead/de-energized cables, depth estimation, and route tracing. Supports all 4 active frequencies including 512Hz and 640Hz.
System Carry Bag Included
Protective carry bag fits the DD130 locator and DA175 transmitter. Keep everything organized and protected between job sites.
What's In The Box
Both configurations include the same DD130 locator — the difference is the accessories.
← Scroll to compare all options →
| Included Item | Depth Package Art. 6014157 |
Device Only Art. 872941 |
|---|---|---|
| DD130 Utility Locator | ✓ | ✓ |
| Batteries (6× AA) | ✓ | ✓ |
| User Manual | ✓ | ✓ |
| 1-Year Warranty | ✓ | ✓ |
| DA175 Signal Transmitter 1W active tracing & depth estimation |
✓ | — |
| System Carry Bag Fits DD130 + DA175 transmitter |
✓ | — |
| Price | Add to Cart |
Also available: Device Only (Art. 872941)
Technical Specifications
| Power Detection | 60Hz mains frequency |
| Radio Frequencies | 15kHz – 60kHz |
| Active Transmitter Modes | 8kHz, 33kHz, 512Hz, 640Hz |
| Auto Mode | Power, Radio, 33kHz |
| Line Depth Range | 0.3m – 3m (1ft – 10ft) |
| Sonde Depth Range | 0.3m – 9.99m (1ft – 33ft) |
| Depth Accuracy | ±10% (to undistorted signal) |
| Current Measurement | Yes (mA display) |
| Audio Output | 85 dBA at 30cm |
| Environmental Rating | IP54 |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Battery | 6× LR6 (AA) Alkaline |
| Battery Life | 15 hours continuous at 20°C |
| Weight (with batteries) | 2.7 kg / 5.95 lbs |
| Dimensions (H×W×D) | 760 × 250 × 85 mm |
| DA175 Transmitter | 1-Watt output, Art. 949370 (included) |
| Compatible Transmitter | DA175 Signal Transmitter (Art. 949370) |
| Certifications | CE, FCC |
| Warranty | 1 Year |
| Article Number (Depth Pkg) | 6014157 |
| Article Number (Locator) | 872941 |
Compare DD Series Models
| Feature | DD130 ← You Are Here | DD120 | DD300 CONNECT |
|---|---|---|---|
| Detection Modes | + 512Hz, 640Hz | Auto, Power, Radio, 8kHz, 33kHz | + 83kHz, 131kHz |
| Max Line Depth | 10ft (3m) | 10ft (3m) | 10ft (3m) |
| Max Sonde Depth | 10ft (3m) | 33ft (9.99m) | 23ft (7m) |
| Depth Accuracy | ±10% | ±10% | ±5% |
| Current Measurement | — | ✓ | ✓ |
| Long-Distance Frequencies | — | 512Hz, 640Hz | ✓ |
| GPS / Data Logging | — | — | ✓ |
| Bluetooth | — | — | ✓ |
| Li-Ion Battery Option | — | — | Optional |
| Warranty | 1 Year | 1 Year | 3 Years |
