Point-to-Point (P2P) Laser Measurement Technology
Point-to-Point (P2P)
Laser Measurement Technology
The DISTO X6 with DST 360-X adapter lets you measure any point from any angle—no reflector, no second person, no scaffolding. Up to 250 meters of professional-grade accuracy in conditions other instruments cannot handle.
Buy the X6 P2P Package All P2P Topics
What Is P2P Measurement?

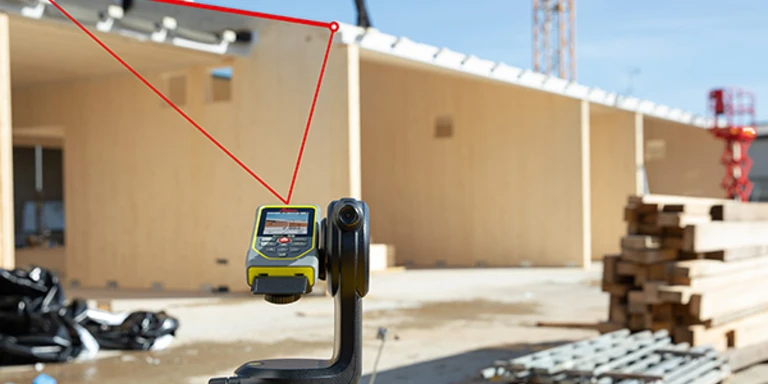

Point-to-Point (P2P) is a laser measurement method that calculates the straight-line distance between two arbitrary points in 3D space—neither of which you need to physically touch. Traditional laser distance meters measure from a single reference point to a surface in a direct line of sight. P2P goes further: by combining multiple angle and distance measurements using the DISTO X6 and DST 360-X tiltable adapter, the instrument computes the exact 3D vector between two defined target points.
The result is precise measurement data for spans, clearances, offsets, and coordinates that would otherwise require a total station, a second technician, or dangerous physical access—now delivered by one professional with a single handheld instrument.
How P2P Works
P2P measurements require the DISTO X6 mounted on the DST 360-X adapter. The workflow is fast and straightforward:
Mount the X6 on the DST 360-X Adapter
Secure the DISTO X6 to the DST 360-X tiltable tripod adapter. The DST 360-X allows the laser to pivot to any angle—up, down, sideways, or any combination—while recording the precise tilt and rotation values at all times.
Aim at the First Target Point
Point the laser at the first point you want to measure. The X6 records the distance along with the exact tilt and horizontal rotation angle from the DST 360-X—establishing the 3D position of Point A in space.
Aim at the Second Target Point
Without moving the tripod, pivot the DST 360-X to aim at the second point and take another measurement. The X6 now has the 3D position of Point B using the same fixed reference origin.
Read the P2P Result
The DISTO X6 calculates and displays the straight-line distance between Point A and Point B instantly. No trigonometry, no manual calculation. Results stream directly to the DISTO Plan app via Bluetooth for immediate DXF export and CAD use.
Where Professionals Use P2P
P2P technology was designed for any situation where physical access is impossible, impractical, or dangerous:
Roofing & Exterior
Measure ridgeline spans, overhang depths, and gutter widths from ground level. Capture full roof geometry for takeoffs and proposals without climbing.
Bridge & Structural
Document clearances, span lengths, and structural offsets across bridge decks, beams, and columns without lane closures or scaffolding.
Construction & As-Builts
Capture floor-to-ceiling heights, column spacings, and beam positions across open spaces. Document existing conditions faster than tape.
Interior Finishing
Measure vaulted ceilings, skylight dimensions, and wall offsets for cabinetry, trim, and millwork without ladders or a second person.
Public Safety & Forensics
Document scenes accurately—measuring between critical points without disturbing evidence. Integrates with Evidence Recorder for court-ready reports.
Real Estate & Appraisal
Capture room dimensions, ceiling heights, and window measurements faster and with greater accuracy for appraisals, listings, and insurance documentation.
DISTO X6 P2P Technical Specs
| Specification | DISTO X6 Value |
|---|---|
| Measuring Range | 0.05 m – 250 m (0.16 ft – 820 ft) |
| Typical Accuracy | ±1.0 mm (±0.04 in) |
| P2P Capability | ✓ Full 3D Point-to-Point (requires DST 360-X) |
| Angle Measurement | ±360° tilt (with DST 360-X adapter) |
| Angle Accuracy | ±0.2° |
| CAD Export | ✓ DXF (2D & 3D) via DISTO Plan app |
| Bluetooth | Bluetooth 4.0 Smart (Low Energy) |
| IP Protection | IP65 (dust-tight, water jet resistant) |
| Drop Protection | 2 m (IK04) |
| Operating Temperature | −10°C to +50°C (14°F to 122°F) |
| Laser Class | Class 2 — 635 nm visible red |
| Battery Life | Up to 5,000 measurements (2 × AAA) |
Experience P2P For Yourself
The Leica DISTO X6 P2P Package includes the DISTO X6 laser distometer and DST 360-X tiltable adapter—the complete system for Point-to-Point measurement straight out of the box.
Buy the Leica DISTO X6 P2P Package
