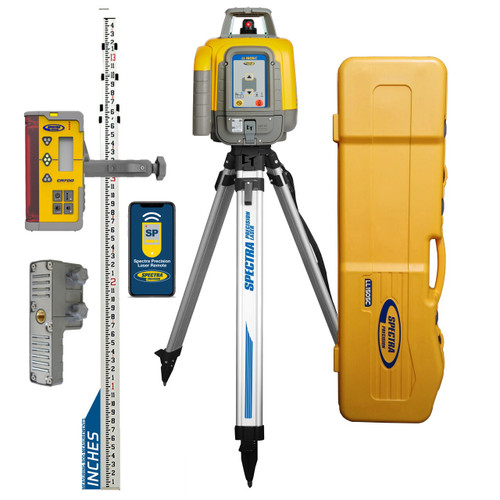

Spectra Precision LL1505C-26 Laser level Package with CR700 Multi-Use Receiver, Rod INCHES, Tripod and Large SYSTEM Case

The CR700 has the same “light bar” technology that is included in HL receivers and delivers extremely accurate and consistent results. Super bright directional LEDs are ideal for entry-level machine grade display that provide instant grade information to the operator and eliminates the need for a rod man in the trench.

Spectra Precision CR700 combination receiver - a step ahead in receiver technology

The CR700 includes a clamp to attach to a Grade Rod.  It has the same "LIGHT BAR" technology that is included in the HL-Receivers and will deliver extremely accurate and consistent results.The CR700 can also be attached to Machinery with the included new Magnetic Mount, which is 25% stronger than the CR600 Magnet Mount resulting in stable machine mounting and a reduction in errors.  With the Super Bright Directional LED's, the CR700 is ideal for entry-level machine grade display, specifically on mini-excavators and backhoes.

For any application, the industry-leading 10-foot drop Guarantee and 3-Year Warranty confirm that the CR700 is the most reliable and robust receiver available.

The World's Best Laser Receivers
Spectra Precision digital readout receivers are simply the best laser receivers - without peers in accuracy, performance , reliability and warranty.  The patented "LIGHT BAR" Technology provides more accurate and more consistent readings than traditional methods.  This unique technology has fewer electronic components resulting in the most rugged and reliable laser receiver available.

• LARGE 5-INCH RECEPTION HEIGHT - More Data / Information from the Laser

• Bright LED Arrow Displays - Turn your head when you first turn on the CR700 because the new Red/Green/Blue LED arrows are super bright and visible in all conditions.

• Magnet Mount for Machine Mounting - the NEW C71 Magnetic Mount is 25% Stronger. It will not slip on the machine no matter how rough the work is.

• Light Bar Technology - Patented Laser Reception Technology delivers the most accurate, consistant and reliable performance
• Laser Radio - the CR700 is radio-compatible with the GL412N, GL422N, GL612N, GL622N and HV302 series lasers. This enables the use of time saving functions such as Grade Match, Fingerprinting, PlaneLok and Axis Alignment.

• IP67 - Dustproof, Waterproof, Weatherproof

• 10-foot Drop Guarantee - almost destruction proof, extremely robust, eliminates downtime

• Digital Readout - Pair the CR700 receiver with an HL760 receiver to be used as a remote display - useful for machine operators and site supervisors.

• Fingerprint On/Off - a menu function allows the CR700 to enable or disable Fingerprinting

• Backlight - to view the laser receiver in the dark.

• Vertical Drift Alarm - When using lasers in vertical mode, after setting up your line, let the laser receiver warn you if the laser has been disturbed.

• 3-Year Warranty - competitors are not even close on laser receivers.


CR700 Machine Display Laser Receiver Applications

• Machine Display Receiver attached to...
• Backhoe, Skid Steer or Mini-Excavator for Grading or Excavating
• Grade Rod Mounted Receiver for Elevation Control.
• Vertical Alignment
• Digging footings
• Basement excavation
• Checking sub-base materials
• Setting and Checking elevations
• Leveling and Aligning forms
• Screeding concrete

• Grade Match: Wireless communication between the HL760 receiver and the transmitters provide automatic Grade Match which connects different elevations and will actually calculate and display grade values between two points when using the GL412N and GL422N, HV1305C and LL1505C Lasers
• PlaneLok: For applications that require maximum stability and accuracy is available on the horizontal Y-axis and in both vertical planes. PlaneLok automatically locks the beam on the DRO receiver and keeps it on-grade, reducing typical environmental factors that may induce an error.
  PlaneLok for vertical alignments provides quick, accurate set-up and easy control.

• Also provides the ability to quickly set up a vertical plumb or slope reference.

RC1402 allows you to access and adjust these features
remotely on the LL1505C Series Spectra Laser

• Adjustment of Slope Manually.
• Mask Mode Settings
• About LS
• Runtime
• Radio Channel Settings
• HI Alert Sensitivity Settings (HI = Height of Instrument)
• View HI Status
• Callibration Settings
• Language Settings
• View Battery Status

Manual Grade Match: (1)Set up the laser at the first elevation point and align it to the second desired slope/elevation hub using the sighting guides on top of the sunshade.  (2) Check the laser beam elevation close to the laser.  (3)To activate the Y-axis single slope mode, press the manual mode button twice.  The red and green LED flash simultaneously (once a second).  (4)Set the grade rod with the receiver attached to it on the second desired slope/elevation hub. NOTE: DO NOT CHANGE THE RECEIVER POSITION ON THE ROD.   (5)Using the remote control press the up and down arrow buttons until you get an on-grade reading on the receiver.  (6)You now can check elevations along the direction of the slope. NOTE: When in Slope Mode the cross axis / X-axis will self level to maintain a consistent elevation of the sloped reference plane.

Mask Mode: allows you to electronically turn off the laser beam (electronic shutters) in up to 3 lighthouse windows to prevent interference with other receivers on on the jobsite.

HI Alert: Electronically monitors the height of the instrument.  If the height changes the laser will stop and you will be notified via tone and visibly on both the laser and the remote control.

Language Options: EN, DE, IT, FR, ES, PT, NL, DA, NO, SV, FL, PL, TR and CZ
