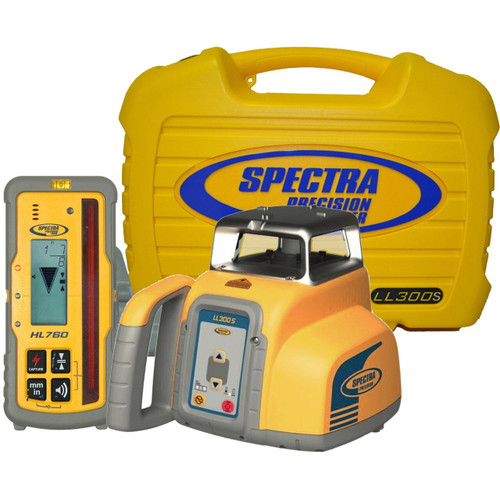

SPECTRA LL300S-7 laser package with DELUXE HL760 Receiver
with Alkaline Batteries
Medium-range, highly accurate leveling solution |
The Spectra Precision® LL300S-7 is a ruggedized, fully automatic self-leveling Laser Level for all general concrete and site preparation applications. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. A standout feature of this LL300S-7 package is the Deluxe HL760 Receiver. This rugged Receiver is best in class and features a Large 5-Inch reception height. With this Larger reception height you get more data back from the laser allowing better accuracy and faster readings.
|
|
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!
|
|
The Spectra Precision® LL300S-7 Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet onto concrete and tripod tip-over up to 5 feet, resulting in reduced downtime and lower repair costs.
The LL300S-7 is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. You can purchase the optional, RC402N long range (330 foot) radio remote control makes slope matching a single person operation plus you can use it for line control if the laser is in the vertical position.
|
| |
| Spectra Precision LL300S-7 Exterior Laser Package INCLUDES |
 |
- (1) LL300S RED Beam Laser Level
- (1) HL760 Deluxe Receiver
- LARGE 5-inch Reception Height
- (1) Rod Clamp C70
- (4) D-Cell Alkaline Batteries
- Small Laser Carrying Case
- Multi language CD, Quick user guide and Safety Instructions
- 5-Year Warranty
|
|
| |
| Spectra Precision LL300S-7 Laser APPLICATIONS |
- General elevation control
- Checking and setting elevations for small to medium job sites
- Leveling forms and footers
- Estimating cut and fills
- Excavations
- Basic slopes for driveways and ramps
|
| Spectra Precision LL300S-7 Laser KEY FEATURES |
- Automatic self-leveling
- Accuracy 1/16 inch @ 100 ft
- Working range of 2,600 ft diameter
- Simple keypad for easy grade matching
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range Radio remote control (optional)
- LL300S-27 Complete kit available and fits in one case with tripod and grade rod
- Extremely durable and portable
- 5 Year warranty
|
| Spectra Precision LL300N-7 Laser BENEFITS |
- Complete leveling crew in a case Model LL300S-27 includes carrying case securely holds all components, tripod and grade rod
- Easy to transport, easy to carry, easy to store
- Energy-efficient design offers long battery life
- Highly durable construction enables the LL300S to survive a drop up to 3 feet onto concrete
- Radio remote control offers access to all laser function from every jobsite place
|
| |
| Spectra Precision LL300S Red Beam Laser SPECIFICATIONS |
Laser Source
|
red diode 650nm, Class 2, <3,4mW
|
Laser Accuracy
|
±1/16-inch at 100-feet
|
| Operating Range |
2,600 foot diameter
|
(optional) Remote Control
Operating Range
|
330 foot
|
Compensation Method
|
Electronic Self-Leveling
|
Drop Height onto Concrete Performance
|
3 foot
|
Single Axis Manual Slope
|
Yes (with self-leveling mode on the second axis)
|
Out of level Warning
|
Rotor stops, red out-of-level HI/MAN-LED flashes
|
Power Source
|
4 x D-Cell Alkaline Batteries
|
Battery Life
|
Alkaline - 60 hours
|
Battery Status LED
|
Flashing red LED
|
Rotation Speed
|
600 RPM
|
| Storage Temperature |
-4°F to 158°F |
| Operating Temperature |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP66 |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Weight |
5.9 lbs |
Size
|
10.7 L x 7.7 W x 7.9 H inch
|
| Warranty |
5 Years |
|
| |
| Spectra HL760 Digital Readout Receiver - INCLUDED in LL300S-7 Package |
Highly versatile receiver for basic and advanced leveling and aligning applications
|
 |
HL760 Laserometer Laser Receiver KEY FEATURES:
- LARGE 5-INCH RECEPTION HEIGHT
- Digital readout of elevation
- Exact distance from on-grade displayed
- Anti-strobe sensor to prevent false reading from jobsite strobe lights
- Withstands a drop of up to 10-foot
- Fingerprint function - detects only the laser beam of the paired transmitter
User Benefits:
- No need to go “on-grade” to measure
- Saves considerable time
- Reduces rework by allowing remote monitoring
- Increases reliability, accuracy and durability
|
| Spectra Precision HL760 Digital Readout Receiver SPECIFICATIONS |
| Digital readout units |
mm, cm, feet, inches, fractional inch
|
| Reception height |
5-inches |
| Six On-grade sensitivities |
Ultra fine ~1/32 inch |
| |
Super fine ~1.16 inch
|
| |
Fine ~1/8 inch |
| |
Medium ~1/4 inch |
| |
Coarse ~1/2 inch |
| |
Calibration Mode ~1/64 inch |
| Battery Life (2 AA) |
60+ Hours continuous operation |
| Auto shut-0ff |
20 minutes / 24 hours |
| Operating Temp |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP67 |
| Weight |
13.1 oz |
| Warranty |
3 Years "No Excuses" |
|
|
|
|
|
| |
| SPECTRA LL300N VS LL300S : FEATURES |
LL300N |
LL300S |
| Operating Range (Diameter) |
1,650 ft |
2,600 ft |
| ACCURACY |
3/32"@100' |
1/16"@100' |
| Battery Life (Alkaline) |
70 hours |
60 hours |
| Weight |
6 lbs |
6 lbs |
| WARRANTY with "Knock Over" Drop Specification |
5 ft |
3 ft |
| Horizontal Electronic self-leveling |
* |
* |
| Vertical Capability (Manual mode only) |
* |
* |
| Water Resistant / 'Rain Proof' |
* |
* |
| Metal sunshade & patented lighthouse to seal & protect the rotor |
** |
** |
Manual 'Slope' mode with Cross-Axis Self Leveling
(with RC601 remote) |
** |
** |
NiMH Rechargeable battery option
(vs Alkaline only on LL100) |
** |
** |
"Laserometer" Receiver
(TWICE the PhotoCell length + Numeric Readout) |
** |
** |
5 YEAR 'No Cost' WARRANTY
(LL100 has only 1 year 'No Cost' + 2 Years Limited) |
** |
** |
|
| |
| OPTIONAL RC402N Remote Control for LL300S |
| This Spectra RC402N Remote control allows for the user to control manual slope with one person from distances up to 330-feet. Without this remote control two people are need to adjust manual slope. Access and adjust the below features using the remote control. The remote control mirrors the basic functionality of the LL300S keypad. |
 |
RC402N allows you to access and adjust these features
remotely on the LL300S Series Spectra Laser
- Adjustment of Slope Manually.
- Mask Mode Settings
- About LS
- Runtime
- Radio Channel Settings
- HI Alert Sensitivity Settings (HI = Height of Instrument)
- View HI Status
- Callibration Settings
- Language Settings
- View Battery Status
|
|
Manual Grade Match: (1)Set up the laser at the first elevation point and align it to the second desired slope/elevation hub using the sighting guides on top of the sunshade. (2) Check the laser beam elevation close to the laser. (3)To activate the Y-axis single slope mode, press the manual mode button twice. The red and green LED flash simultaneously (once a second). (4)Set the grade rod with the receiver attached to it on the second desired slope/elevation hub. NOTE: DO NOT CHANGE THE RECEIVER POSITION ON THE ROD. (5)Using the remote control press the up and down arrow buttons until you get an on-grade reading on the receiver. (6)You now can check elevations along the direction of the slope. NOTE: When in Slope Mode the cross axis / X-axis will self level to maintain a consistent elevation of the sloped reference plane.
Mask Mode: allows you to electronically turn off the laser beam (electronic shutters) in up to 3 lighthouse windows to prevent interference with other receivers on on the jobsite.
HI Alert: Electronically monitors the height of the instrument. If the height changes the laser will stop and you will be notified via tone and visibly on both the laser and the remote control.
Language Options: EN, DE, IT, FR, ES, PT, NL, DA, NO, SV, FL, PL, TR and CZ
|
|
