SPECTRA LL300S-8 Red Beam Laser Package
includes HL320 Laser Receiver
Medium-range, highly accurate leveling solution |
The Spectra Precision® LL300S-8 is a ruggedized, fully automatic self-leveling Laser Level for all general concrete and site preparation applications. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. This Laser is powered by Alkaline Batteries
|
|
|
|
|
|
The Spectra Precision® LL300S-8 Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet onto concrete and tripod tip-over up to 5 feet, resulting in reduced downtime and lower repair costs.
The LL300S-8 is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. You can purchase the optional, RC402N long range (330 foot) radio remote control makes slope matching a single person operation.
|
| |

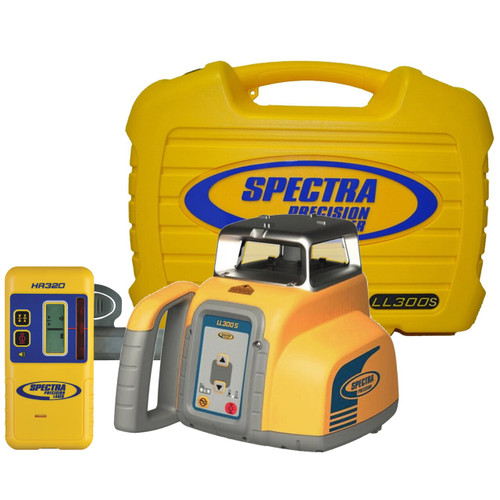

| Spectra Precision LL300S-8 Exterior Laser Kit INCLUDES |
 |
- LL300S Laser Level
- HR320 Standard Receiver
- Rod Clamp C59
- Alkaline Batteries / ((Not included))
- Rechargeable Batteries and Charger OPTIONAL
- Small Laser Carrying Case
- Multi language CD, Quick user guide and Safety Instructions
- 5-Year Warranty
|
| View additional LL300S PACKAGE OPTIONS Below ⮟ |
|
| |
| Spectra Precision LL300S-8 Laser APPLICATIONS |
- General elevation control
- Checking and setting elevations for small to medium job sites
- Leveling forms and footers
- Estimating cut and fills
- Excavations
- Basic slopes for driveways and ramps
|
| Spectra Precision LL300S-8 Laser KEY FEATURES |
- Automatic self-leveling
- Accuracy 1/16 inch @ 100 ft
- Working range of 2,600 ft diameter
- Simple keypad for easy grade matching
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range Radio remote control (optional)
- Extremely durable and portable
- 5 Year warranty
|
| Spectra Precision LL300N-8 Laser BENEFITS |
- Manual Slope Laser in a case Model LL300S-8 includes carrying case securely holds Laser and Laser Receiver
- Easy to transport, easy to carry, easy to store
- Energy-efficient design offers long battery life
- Highly durable construction enables the LL300S to survive a drop up to 3 feet onto concrete
- Optional Radio remote control offers access to all laser function from every jobsite place
|
| |
| Spectra Precision LL300S Red Beam Laser SPECIFICATIONS |
Laser Source
|
red diode 650nm, Class 2, <3,4mW
|
Laser Accuracy
|
±1/16-inch at 100-feet
|
| Operating Range |
2,600 foot diameter
|
(optional) Remote Control
Operating Range
|
330 foot
|
Compensation Method
|
Electronic Self-Leveling
|
Drop Height onto Concrete Performance
|
3 foot
|
Single Axis Manual Slope
|
Yes (with self-leveling mode on the second axis)
|
Out of level Warning
|
Rotor stops, red out-of-level HI/MAN-LED flashes
|
Power Source
|
4 x D-Cell Alkaline Batteries
|
Battery Life
|
Alkaline - 60 hours
|
Battery Status LED
|
Flashing red LED
|
Rotation Speed
|
600 RPM
|
| Storage Temperature |
-4°F to 158°F |
| Operating Temperature |
-4°F to 122°F |
| Dust and Waterproof |
Yes - IP66 |
| Tripod Attachments |
5/8 x 11 horizontally and vertically |
| Weight |
5.9 lbs |
Size
|
10.7 L x 7.7 W x 7.9 H inch
|
| Warranty |
5 Years |
|
| |
Spectra Precision HR320 Laser Receiver INCLUDED with LL300S Package
|
|
Attaining accuracy and precision on the job is easy using this Precision Laser Receiver (HR320) from Spectra. With its large, easy-to-read LCD on the front and rear, it's idea for exterior tasks. The snap-in rod clamp allows for fast switching from rod-mounted to handheld applications. Its rugged waterproof housings help it withstand 5-ft. drops and protect it from moisture and dust. Plus, it also has a 100-db loud speaker that can be heard on noisy job sites.
Spectra HR320 Laser Receiver Features and Benefits:
- HR320 has a 2-inch Laser Reception Height
- Large, easy-to-read LCD on front and rear makes it ideal for exterior applications
- Snap-in rod clamp allows fast switching from rod-mounted to handheld applications
- Rugged waterproof housings withstands 5-ft. drops and protect the unit from moisture and dust
- 2 on-grade sensitivities (fine and medium) let you get to grade faster in a variety of applications
- 100-db loud speaker can be easily heard on noisy job sites
|
HR320 Laser Receiver Applications
Setting and checking jobsite elevation and depth for:
• Checking and setting elevations for smaller jobsites
• Leveling forms and footers
• Estimating cuts and fills
• Ideal for decks, terraces, pools, and septic systems |
|
|
| |
|
| |
| |
|
|
|
| |
| SPECTRA LL300N VS LL300S : FEATURES |
LL300N |
LL300S |
| Operating Range (Diameter) |
1,650 ft |
2,600 ft |
| ACCURACY |
3/32"@100' |
1/16"@100' |
| Battery Life (Alkaline) |
70 hours |
60 hours |
| Weight |
6 lbs |
6 lbs |
| WARRANTY with "Knock Over" Drop Specification |
5 ft |
3 ft |
| Horizontal Electronic self-leveling |
* |
* |
| Vertical Capability (Manual mode only) |
* |
* |
| Water Resistant / 'Rain Proof' |
* |
* |
| Metal sunshade & patented lighthouse to seal & protect the rotor |
** |
** |
Manual 'Slope' mode with Cross-Axis Self Leveling
(with RC601 remote) |
** |
** |
NiMH Rechargeable battery option
(vs Alkaline only on LL100) |
** |
** |
"Laserometer" Receiver
(TWICE the PhotoCell length + Numeric Readout) |
** |
** |
5 YEAR 'No Cost' WARRANTY
(LL100 has only 1 year 'No Cost' + 2 Years Limited) |
** |
** |
|
| |
