Spectra Precision LL300S-81 PRO Laser Level Package
with HR320 Laser Receiver, Measuring Rod TENTHS, HD Tripod, Rechargeable Batteries and Small Case |
15 foot Grade Rod (GR151) that displays measurement in TENTHS
Complete Laser System Package with small carrying case - we only sell new lasers!
Medium-range, highly accurate leveling solution
The Spectra Precision® LL300S-81 PRO is a ruggedized, fully automatic self-leveling Laser Level for all general concrete and site preparation applications. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. This Laser is powered by Rechargeable Batteries
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!
|
|
| Spectra Precision LL300S-81 PRO Laser OVERVIEW |
|
The Spectra Precision® LL300S-81 PRO Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet onto concrete and tripod tip-over up to 5 feet, resulting in reduced downtime and lower repair costs.
The LL300S-81 PRO is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. You can purchase the optional, RC402N long range (330 foot) radio remote control makes slope matching a single person operation.
|
|
|
| Spectra Precision LL300S-81 PRO Laser INCLUDES |
|

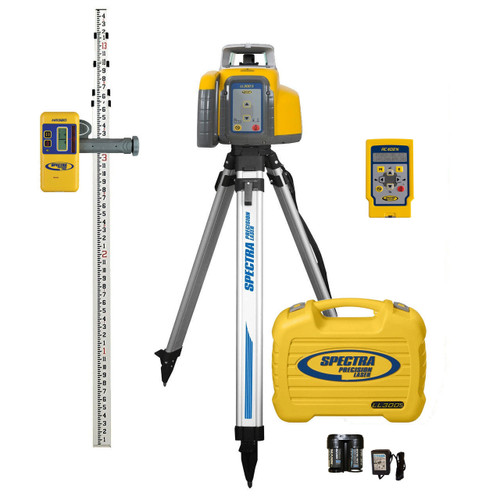

Spectra Precision LL300S-81 PRO INCLUDES
You get the below components when you order an LL300S-81
|
• LL300S Auto Self-Leveling Laser Level / Manual Slope Capable
• HR320 Laser Receiver
• C59 Receiver Clamp
• Remote Control RC402N (one person manual slope)
• Rechargeable Batteries 10Ah
• Battery Charger / Charging Cable
• 16-foot Aluminum Grade Rod with Measurements in TENTHS
• Aluminum Tripod
• "small" Carrying Case (Holds Laser and Receiver ONLY) 5289-0025
• (4) D-Cell Alkaline Batteries
|
|
| HR320 Laser Receiver / DETAILS - Included with the LL300S-81 PRO Package |
The Spectra HR320 Laser Receiver is a Highly versatile receiver for basic and advanced leveling and aligning
Attaining accuracy and precision on the job is easy using this Precision Laser Receiver (HR320) from Spectra. With its large, easy-to-read LCD on the front and rear, it's idea for exterior tasks. The snap-in rod clamp allows for fast switching from rod-mounted to handheld applications. Its rugged waterproof housings help it withstand 5-ft. drops and protect it from moisture and dust. Plus, it also has a 100-db loud speaker that can be heard on noisy job sites.
Spectra HR320 Laserometer Features and Benefits:
- HR320 has a 2-inch Laser Reception Height
- Large, easy-to-read LCD on front and rear makes it ideal for exterior applications
- Snap-in rod clamp allows fast switching from rod-mounted to handheld applications
- Rugged waterproof housings withstands 5-ft. drops and protect the unit from moisture and dust
- 2 on-grade sensitivities (fine and medium) let you get to grade faster in a variety of applications
- 100-db loud speaker can be easily heard on noisy job sites
|
HR320 Laser Receiver Applications
Setting and checking jobsite elevation and depth for:
• Checking and setting elevations for smaller jobsites
• Leveling forms and footers
• Estimating cuts and fills
• Ideal for decks, terraces, pools, and septic systems |
| Spectra Precision LL300S-81 PRO Laser APPLICATIONS |
• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks |
| Spectra Precision LL300S-81 PRO Laser KEY FEATURES |
• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty
|
| Spectra Precision LL300S-81 Laser Kit Comparison Chart |
|
|
| ALL above packages include the LL300N laser transmitter and case |
| |
| INCLUDED RC402N Infrared Remote Control |
|
The Spectra RC402N remote control mirrors the basic functionality of the laser keypad and offers additional features using the M and E buttons. This RC402N Remote allows you to control the laser features and functions up to 330-feet away from the laser. Allowing for one person operation in many jobsite applications.. The displays are also backlit for ease of viewing when lighting conditions deteriorate. The ability to make grade changes and start automatic alignments remotely can significantly reduce setup time and speed operation.
Spectra RC402N Remote Specifications
- Up to 330-foot range
- Makes setting manual slope a single person operation
- Illuminated LCD screen
- 130-hour battery life continuous use.
- 1 year normal use battery life.
- IP66 dustproof and water resistant
- Compatible with the Spectra LL300S, LL300HV, HV302, LL400HV, GL412N and GL422N self leveling laser
|
| |
| |
|
| SPECTRA LL300N VS LL300S : FEATURES |
LL300N |
LL300S |
| Operating Range (Diameter) |
1,650 ft |
2,600 ft |
| ACCURACY |
3/32"@100' |
1/16"@100' |
| Battery Life (Alkaline) |
70 hours |
60 hours |
| Weight |
6 lbs |
6 lbs |
| WARRANTY with "Knock Over" Drop Specification |
5 ft |
3 ft |
| Horizontal Electronic self-leveling |
* |
* |
| Vertical Capability (Manual mode only) |
* |
* |
| Water Resistant / 'Rain Proof' |
* |
* |
| Metal sunshade & patented lighthouse to seal & protect the rotor |
** |
** |
Manual 'Slope' mode with Cross-Axis Self Leveling
(with RC601 remote) |
** |
** |
NiMH Rechargeable battery option
(vs Alkaline only on LL100) |
** |
** |
"Laserometer" Receiver
(TWICE the PhotoCell length + Numeric Readout) |
** |
** |
5 YEAR 'No Cost' WARRANTY
(LL100 has only 1 year 'No Cost' + 2 Years Limited) |
** |
** |
|
| |
