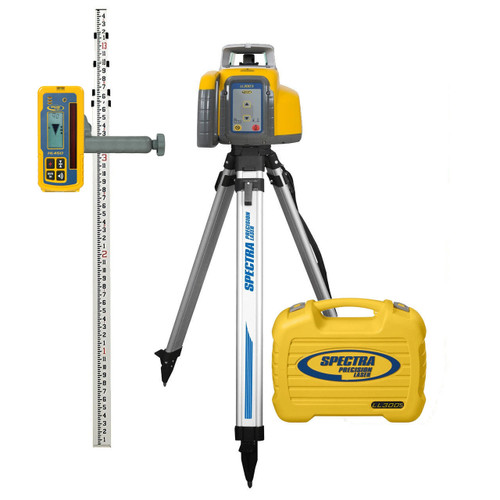

Spectra Precision LL300S-X2 Laser Level Package
with HL450 Laserometer Laser Receiver, Measuring Rod INCHES, HD Tripod and Small Case |
15 foot Grade Rod (GR152) that displays measurement in INCHES
Complete Laser System Package with small carrying case - we only sell new lasers!
Medium-range, highly accurate leveling solution
The Spectra Precision® LL300S-X2 is a ruggedized, fully automatic self-leveling Laser Level for all general concrete and site preparation applications. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. This Laser is powered by Alkaline Batteries
|
|
|
|
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
If Laser Unit fails in the first FIVE years - send it back and get it repaired for free!
|
|
|
|
| Spectra Precision LL300S-X2 Laser OVERVIEW |
|
|
|
The Spectra Precision® LL300S-X2 Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet onto concrete and tripod tip-over up to 5 feet, resulting in reduced downtime and lower repair costs.
The LL300S-X2 is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self leveled. You can purchase the optional, RC402N long range (330 foot) radio remote control makes slope matching a single person operation.
|
|
|
|
|
|
|
| Spectra Precision LL300S-X2 Laser INCLUDES |
|
|
|
Spectra Precision LL300S-X2 INCLUDES
You get the below components when you order an LL300S-X2
|
• LL300S Auto Self-Leveling Laser Level / Manual Slope Capable
• HR450 Deluxe Laserometer Laser Receiver
• C45 Receiver Clamp
• 16-foot Aluminum Grade Rod with Measurements in INCHES
• Heavy-Duty Aluminum Tripod
• "small" Carrying Case (Holds Laser and Receiver ONLY) 5289-0025
• (4) D-Cell Alkaline Batteries
|
|
|
|
| HL450 Laserometer Laser Receiver / DETAILS - Included with the LL300S-X2 Package |
|
|
Highly versatile laser receiver for basic and advanced leveling and aligning applications
The Spectra Precision® HL450 Laserometer is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.
The HL450 features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.
|
The HL450 has a 4-inch reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.
The Laserometer is designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 5 feet onto concrete.
|
Spectra HL450 Laserometer Features and Benefits:
- Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to "on-grade".
- Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.
- Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.
- Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
HL450 Laser Receiver Applications:
Setting and checking jobsite elevation and depth for:
- Cut and fills
- General grading
- Foundations, forms, and footings
- Excavations
|
|
|
| Spectra Precision LL300S-X2 Laser APPLICATIONS |
|
|
• Checking/setting elevations, concrete forms, footings, and foundations for small- and medium-sized jobs
• Basic slope work such as driveways and ramps
• Excavations, digging footings and septic tanks |
|
|
| Spectra Precision LL300S-X2 Laser KEY FEATURES |
|
|
• Fully Automatic self-leveling provides fast and accurate set-up
• Accuracy 3/32-inch at 100 foot
• Working range of 1,650 foot diameter
• Simple one-button operation for quick start up
• Height of Instrument Alert : unit stops rotating when jarred to avoid erroneous readings
• Single axis manual slope mode with 'cross-axis' self-leveling allowing grade matching for basic slope work, while maintaining accuracy in the cross-axis using the (optional) RC601 Remote Control
• Easy grade matching using the (optional) RC601 remote control from the rod position
• Extremely durable and portable
• 5-Year warranty
|
|
|
| Spectra Precision LL300S-X2 Laser Kit Comparison Chart |
|
|
|
| ALL above packages include the LL300S laser transmitter and case |
| |
| OPTIONAL RC402N Infrared Remote Control |
|
The Spectra RC402N remote control mirrors the basic functionality of the laser keypad and offers additional features using the M and E buttons. This RC402N Remote allows you to control the laser features and functions up to 330-feet away from the laser. Allowing for one person operation in many jobsite applications.. The displays are also backlit for ease of viewing when lighting conditions deteriorate. The ability to make grade changes and start automatic alignments remotely can significantly reduce setup time and speed operation.
Spectra RC402N Remote Specifications
- Up to 330-foot range
- Makes setting manual slope a single person operation
- Illuminated LCD screen
- 130-hour battery life continuous use.
- 1 year normal use battery life.
- IP66 dustproof and water resistant
- Compatible with the Spectra LL300S, LL300HV, HV302, LL400HV, GL412N and GL422N self leveling laser
|
| |
| |
|
|
|
| SPECTRA LL300N VS LL300S : FEATURES |
LL300N |
LL300S |
| Operating Range (Diameter) |
1,650 ft |
2,600 ft |
| ACCURACY |
3/32"@100' |
1/16"@100' |
| Battery Life (Alkaline) |
70 hours |
60 hours |
| Weight |
6 lbs |
6 lbs |
| WARRANTY with "Knock Over" Drop Specification |
5 ft |
3 ft |
| Horizontal Electronic self-leveling |
* |
* |
| Vertical Capability (Manual mode only) |
* |
* |
| Water Resistant / 'Rain Proof' |
* |
* |
| Metal sunshade & patented lighthouse to seal & protect the rotor |
** |
** |
Manual 'Slope' mode with Cross-Axis Self Leveling
(with RC601 remote) |
** |
** |
NiMH Rechargeable battery option
(vs Alkaline only on LL100) |
** |
** |
"Laserometer" Receiver
(TWICE the PhotoCell length + Numeric Readout) |
** |
** |
5 YEAR 'No Cost' WARRANTY
(LL100 has only 1 year 'No Cost' + 2 Years Limited) |
** |
** |
| |
