Spectra Precision CR700

One Receiver.
Machine or Rod.

The combination laser receiver that mounts to the machine and the grade rod.

A magnetic clamp puts it on a backhoe, skid steer or mini excavator so the operator reads grade from the seat. A rod clamp puts it on a grade rod for checks and benchmarks. Both clamps are in the box — switching takes seconds.

Full Specifications How Pairing Works

5 in.

Laser detection height

200°

Reception angle

IP67

Waterproof & dustproof

660 ft

Radio working radius

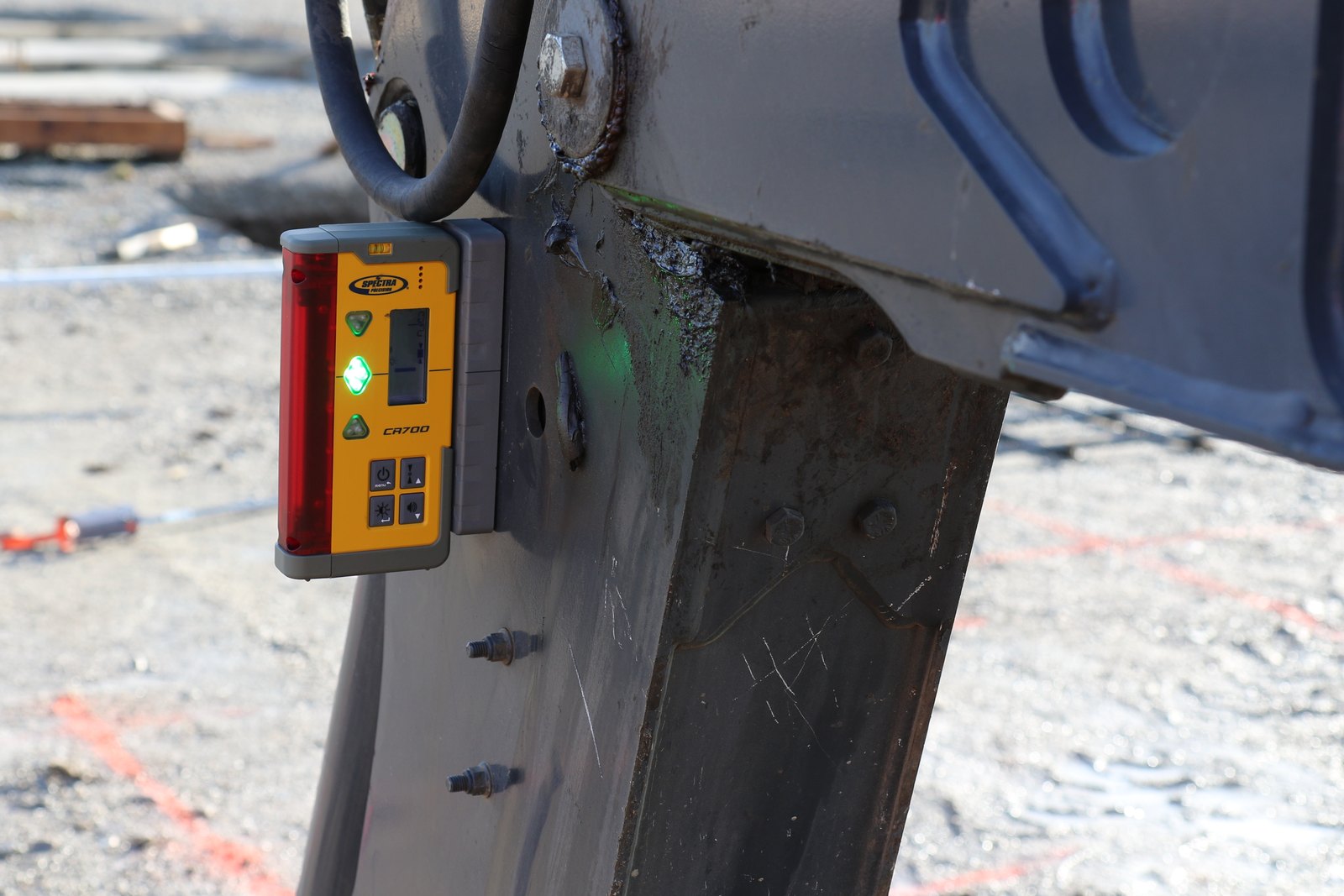

Spectra CR700 laser receiver magnet-mounted to an excavator arm with the green on-grade LED lit — C71 magnetic machine mount, included

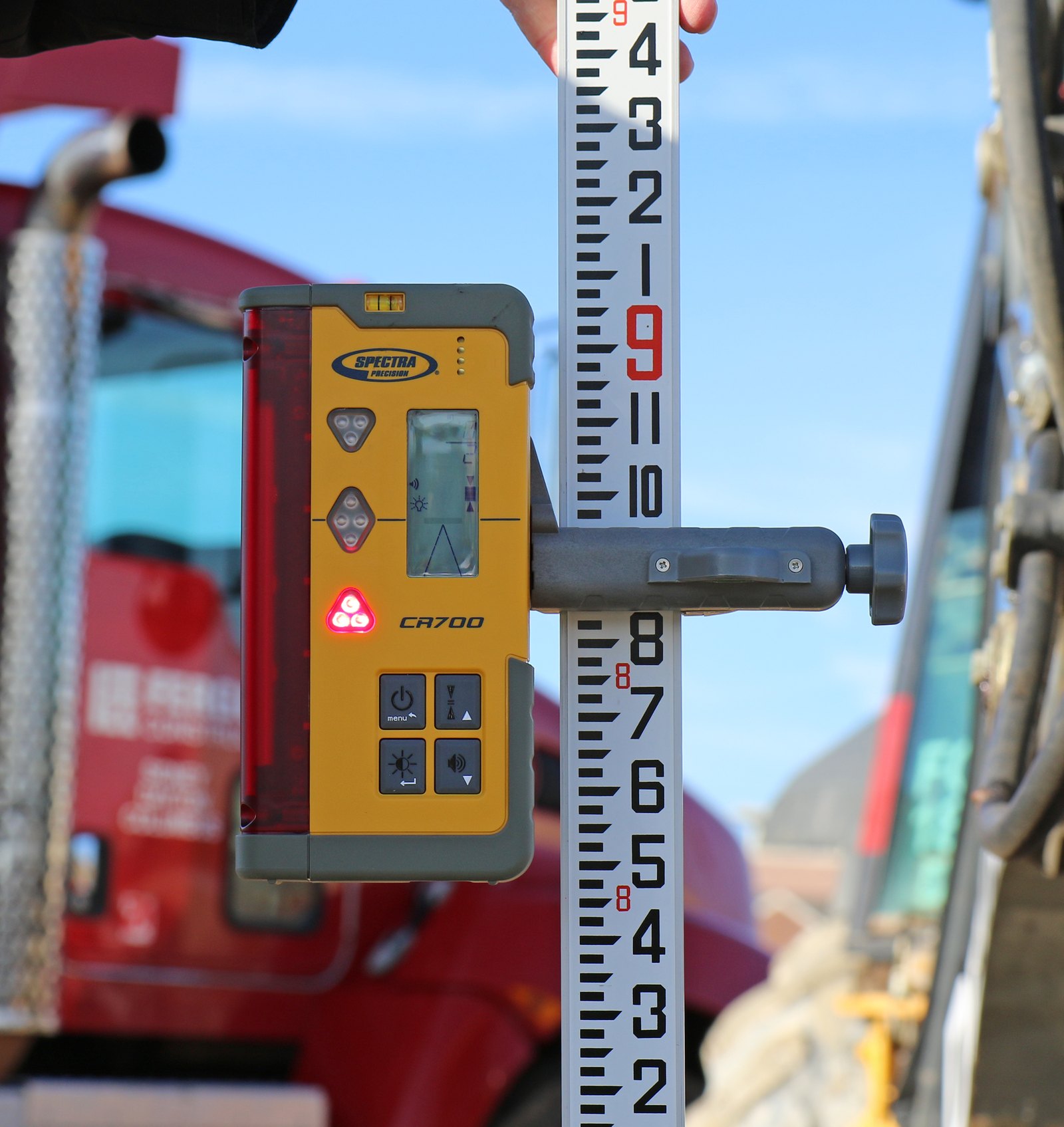

Spectra CR700 laser receiver clamped to a grade rod with the C70 clamp, showing a reading on the LCD — C70 rod clamp — grade checking

What’s in the Box

Everything to mount it,
both ways, on day one.

Spectra ships the CR700 with both mounts. There is no “machine version” and “rod version” to choose between, and nothing else to buy before it earns its keep.

CR700 Combination Receiver

The receiver itself: 5 in. (127 mm) laser detection height with a 4 in. (102 mm) numeric readout in the middle of it, LED grade arrows on both sides, and the LCD.

The unit

C71 Magnetic Machine Mount

Powerful magnets built to hold on a working machine without slipping. Clips on in seconds and moves between machines just as fast.

Machine mounting

C70 Grade Rod Clamp

The rod bracket, included. Adjusts for square or round grade rods, so the same receiver works as a standard handheld rod receiver.

Rod mounting

3 × AA Batteries & User Guide

Alkaline AA cells — no proprietary pack, no charger, no downtime. 60+ hours of run time, or 16 hours with the backlight on continuously.

Ready to work

Key Features

Built around one idea:
read grade where you are.

The CR700 uses the same patented Light Bar technology as Spectra’s HL receivers, with a two-way radio and six accuracy settings on top of it.

Light Bar Technology

Accuracy that does not change with the laser’s beam diameter, so a reading at 20 ft and a reading at 400 ft agree. Fewer electronic components than a conventional receiver, which is a large part of why it survives the job site.

Patented

Magnetic Machine Mounting

The C71 clamp holds the receiver on a backhoe, skid steer or mini excavator with magnets strong enough not to slip, and it comes off and onto the next machine in seconds.

C71 included

Full Two-Way Radio

Pair it to a Spectra grade laser and you get Grade Match, PlaneLok, Axis Alignment and Fingerprinting. Pair it to a second receiver and one becomes a remote display. The link is locked to the paired device.

Up to 660 ft

Six Accuracy Settings

Ultra Fine 0.5 mm, Super Fine 1 mm, Fine 2 mm, Medium 5 mm, Coarse 10 mm and Machine 25 mm. Fine grade checking and rough machine work from the same unit — one button changes it.

0.5 mm to 25 mm

Digital Readout of Elevation

The middle 4 in. (102 mm) shows the exact distance off grade as a number — in millimetres, centimetres, decimal inches, fractional inches or feet. No sliding the receiver to on-grade just to take a reading.

5 units of measure

Rugged and Waterproof

IP67 against water and dust, warranted against a 3 m (10 ft) drop onto concrete, and rated from −20 °C to +60 °C. Backed by a three-year warranty.

10 ft drop rated

Three Ways to Mount It

Machine, rod, or vertical.

The same receiver, three jobs. This is what “combination receiver” actually means.

Machine mounted

Clip the CR700 into the C71 magnet clamp and put it on the dipper stick. Set the deadband to 5, 10 or 25 mm, plumb the stick with the bucket on a benchmark, and adjust to green. While digging, bring the stick to plumb and lower to depth to read height from grade. Backhoes, skid steers, mini excavators, footers, drainage ditches and farm tile.

Grade from the seat

Grade rod mounted

Drop it into the C70 clamp and onto any grade rod — square or round, the jaw adjusts. Set deadband and volume, put the rod on a benchmark and adjust to on-grade. From there the LED arrows show high and low while the LCD gives you the exact distance off grade.

Standard rod receiver

Vertical / alignment

With the laser in vertical mode the CR700 handles alignment work, and the drift alarm warns you if the laser gets bumped after the line is set. It sits straight on a floor slab, or on the optional 105516 vertical adapter for a batter board or a 5/8×11 or 1/4 in. tripod.

Drift alarm

Specifications

Built
Field-Tough

The CR700 is not a lab instrument. IP67 against water and dust, a 3 m (10 ft) drop warranty onto concrete, an anti-strobe sensor so beacons and strobes do not trip it, and 60+ hours on three AA cells.

5 in. (127 mm) detection height
4 in. (102 mm) numeric readout
IP67 waterproof and dustproof
3 m (10 ft) drop rated
Three-year warranty

View the User Guide

CR700 Specifications
Working radius	1 m – 460 m (3 ft – 1500 ft), laser dependent
Laser detection height	127.0 mm (5 in.)
Numeric readout height	102.0 mm (4 in.)
Internal radio	Full 2-way communication, operation and security lock with paired device
Radio working radius	Up to 200 m (660 ft) — depends on orientation, conditions and paired device
Accuracy (deadbands)	Ultra Fine 0.5 mm (1/32 in.) · Super Fine 1.0 mm (1/16 in.) · Fine 2.0 mm (1/8 in.) · Medium 5.0 mm (1/4 in.) · Coarse 10.0 mm (1/2 in.) · Machine 25.0 mm (1 in.)
Reception angle	200° minimum (laser and distance dependent)
Strobe rejection	Anti-strobe sensor
Detectable spectrum	610 nm – 780 nm
Beeper volumes	Loud 110 dBA · Medium 95 dBA · Low 65 dBA
LED grade indicators	Blue high, red low, green on grade
Brightness	Off, Bright, Super-Bright
Power supply	3 × 1.5 V AA batteries
Battery life	60+ hours; 16 hours continuous backlight
Automatic shut off	30 minutes
Environmental	Waterproof, dustproof to IP67
Drop rating	Warranted to withstand a 3 m (10 ft) drop
Weight without clamp	471 g (16.6 oz.)
Dimensions without clamp	98 × 200 × 37 mm (3.9 × 7.8 × 1.5 in.)
Operating temperature	−20 °C to +60 °C (−4 °F to +140 °F)
Storage temperature	−40 °C to +70 °C (−40 °F to +158 °F)
Regulatory	CE EMC / RoHS compliant
Warranty	Three years

Settings

Every control you need,
on three buttons.

Deadband, brightness and volume are one press each. Everything else lives in a short menu, and the CR700 remembers your settings after power off.

View the LCD short menu 8 settings

Menu	What it does
LGHT	LCD backlight on or off.
RDIO	LS pairs with a laser · HL pairs with another receiver as a remote display · OF turns the radio off.
PAIR	Pairs with the selected device, laser or receiver.
UNIT	Millimetres, centimetres, decimal inches, fractional inches or feet.
SENS	Medium is the default. HI increases distance; LO improves strobe-light rejection.
FRC.R	Fractional reduction. On, 4/8 in. reads as 1/2 in. Off, the denominator stays fixed — useful for checking fine surface flatness.
DRFT	Vertical-mode drift alarm: beeps if the laser is disturbed after the line is set.
FPRT	Fingerprint. On, the CR700 reacts only to the paired laser and rejects all others.

One operating note straight from the user guide: do not power the CR700 up while it is sitting in a laser beam. It is ready once CAL clears from the LCD.

Pairing

Two receivers, one reading,
660 feet apart.

The CR700’s radio does more than talk to the laser. Pair two CR700s — or a CR700 and an HL760 — and one catches the beam while the other shows you the number where you actually are.

Set both to receiver mode

On each unit: menu → RDIO → RDIO HL. That is the setting Spectra labels “connect with another receiver for remote display.”

Pair them to each other

Scroll to PAIR and press enter on both units, then power the receiver off.

First on is the laser receiver

The first unit powered on reads the beam. The second shows RMT.D okay — press enter and it becomes the remote display.

Why crews do it

The receiver that sees the laser and the person who needs the number are rarely in the same place. Pairing puts the reading where the decision gets made.

One person does a two-person job
Read grade from the cab, not the trench
Machine and rod covered at the same time
Works CR700-to-CR700 or CR700-to-HL760

► On a mini excavator or backhoe

The unit magnet-mounted to the dipper stick is down in the hole, caked in dirt, or simply behind the operator. The paired unit in the cab shows the same cut or fill number in plain sight — so nobody climbs down to read a receiver, and nobody stands in the trench holding a rod.

► Fingerprinting keeps the pair honest

With FPRT ON the receiver locks to your paired laser and rejects strikes from every other laser on site, and the radio link itself carries a security lock to the paired device. On a job with three crews running three lasers, that is the difference between a reading and a guess.

See It Work

The CR700 on a live job site.

Spectra Precision’s own walkthrough of the receiver, and a closer look at the features.

CR700 on a live job site — the full walkthrough

Getting a good grade with the CR700

Super bright LEDs, in daylight

Downloads

Spec sheet and user guide.

Both branded with our name and number, so if you find the PDF again in six months you know who stocks it.

▼ CR700 Datasheet (PDF) ▼ CR700 User Guide (PDF)

Questions

Frequently asked questions

Does the CR700 come with both the magnetic mount and the rod clamp?

Yes. The box holds the CR700 receiver, the C71 magnetic machine mount, the C70 grade rod clamp, 3 x AA alkaline batteries and the user guide. Both mounts are included, so the same receiver goes on a machine or on a grade rod with nothing else to buy.

Can I pair two CR700s together?

Yes. Set both to RDIO HL, pair them, then power off. The first receiver powered back on reads the laser and the second displays RMT.D okay and becomes the remote display, up to 200 m (660 ft) away. A CR700 pairs with an HL760 exactly the same way, so one can sit on the machine while the other rides in the cab or in your hand.

What lasers does the CR700 work with?

It works with all rotating lasers in the 610 to 780 nm range. The radio functions — Grade Match, PlaneLok, Axis Alignment and Fingerprinting — need a Spectra Precision grade laser or the HV302, because those functions run over the two-way radio link.

How accurate is it?

There are six deadband settings: Ultra Fine 0.5 mm, Super Fine 1.0 mm, Fine 2.0 mm, Medium 5.0 mm, Coarse 10.0 mm and Machine 25.0 mm. Fine settings are for grade checking off a rod; Spectra recommends 5, 10 or 25 mm when the receiver is machine mounted.

What batteries does it take, and how long do they last?

Three 1.5 V AA alkaline cells, included. Expect 60+ hours of run time, or about 16 hours with the backlight running continuously. The receiver shuts itself off after 30 minutes of inactivity.

Will it survive being dropped?

It is warranted to withstand a 3 m (10 ft) drop onto concrete, and it is sealed to IP67 against water and dust. The whole unit carries a three-year warranty.

Can it be used for vertical or alignment work?

Yes. With the laser in vertical mode, turn the drift alarm on and the CR700 warns you if the laser is disturbed after your line is set. It can sit directly on a floor slab, and the optional vertical adapter (PN 105516, sold separately) mounts it to a batter board or onto a 5/8 x 11 or 1/4 in. tripod thread.

How is the CR700 different from an HL760?

Both have the same 5 in. detection height and 4 in. numeric readout, and both carry the two-way radio. The CR700 is the one that ships with a magnetic clamp for mounting on a machine, and it runs on 3 x AA cells; the HL760 is a rod and hand receiver and runs on 2 x AA. If the receiver is going on a backhoe, skid steer or mini excavator, the CR700 is the one.

Kits With a CR700

35 laser kits ship
with this receiver.

If you need the laser as well as the receiver, buying them together as a kit is almost always cheaper than separately — and every kit below includes this exact CR700, with both clamps.

Laser family	What it is	Kits	Price
Spectra LL300N self-leveling	The standard self-leveling site laser. Spectra Precision LL300N-CR71 Laser Package with CR700 Receiver, TENTHS-Rod and Tripod	4	from $1,395
Spectra LL1505C self-leveling	Self-leveling with manual slope. Spectra Precision LL1505C-14A Laser level Package with Deluxe CR700 Multi-Use Receiver - Alkaline Batteries	7	from $1,395
Spectra HV1305C horizontal / vertical	Interior and exterior, horizontal and vertical. Spectra Precision HV1305C-14-NR Horiz/Vert - Interior/Exterior RED Beam Laser Package with CR700 Multi-Use Receiver, Small Case and Rechargeable Batteries	8	from $1,582
Spectra GL412N single grade	Single grade, −10% to +15%. The workhorse dirt laser. Spectra Precision GL412N-14 Single Grade Laser w/ CR700 Receiver	5	from $2,526
Spectra GL622N dual grade	Dual grade with the wide ±25% grade range. Spectra Precision GL622N-14 Dual Grade Laser with CR700 Receiver	1	from $3,230
Spectra GL1425C dual grade, Bluetooth	Dual grade with Bluetooth. Grade range −10% to +15%. Spectra Precision GL1425C-14 Dual Grade Laser Bluetooth w/ CR700 Multi-Use Deluxe Receiver	7	from $2,916
Spectra UL633N universal lasers	Horizontal, vertical and dual slope, ±25% grade range. Spectra Precision UL633N-14 Universal Laser with CR700 Multi-Use Receiver w/ SF601 Spot Finder	3	from $4,195

Not sure which laser you need? Call 1-877-866-5721 and we will match the laser to the work you actually do.

Which Receiver

CR700 vs the HL receivers.

The CR700 is the only one of these that magnet-mounts to a machine. Everything else in the family is a rod and hand receiver. If the receiver is going on a backhoe, skid steer or mini excavator, this is the one.

Receiver	Spectra CR700	HL760	HL760U	HL700	HL450
Mounts to a machine	Yes — C71 magnet, included	No	No	No	No
Mounts to a grade rod	Yes — C70, included	Yes	Yes	Yes	Yes
Laser detection height	5 in. (127 mm)	5 in. (127 mm)	5 in. (127 mm)	5 in. (127 mm)	4 in. (10.2 cm)
Numeric readout	4 in. (102 mm)	4 in. (102 mm)	4 in. (102 mm)	Yes	Yes
Working radius	1500 ft (460 m)	1500 ft (460 m)	1500 ft (460 m)	1500 ft (460 m)	650 ft (200 m)
Two-way radio	Yes	Yes	Yes	No	No
Green beam lasers	No	No	Yes	No	No
Drop rating	10 ft (3 m)	10 ft (3 m)	10 ft (3 m)	10 ft (3 m)	5 ft (1.5 m)
Batteries	3 x AA	2 x AA	2 x AA	2 x AA	2 x AA
Warranty	3 years	3 years	3 years	3 years	3 years

Comparison data for the HL450, HL700 and HL760 is from Spectra Precision’s own receivers datasheet (PN 022507-471 Rev B); CR700 data from its datasheet (PN 022507-556 Rev B).

Parts & Accessories

Spares and mounts.

Both clamps come in the box. These are the spares, the upgrades and the part everybody eventually loses.

Spectra C71 magnetic mount for the CR700 $150
The machine mount that ships in the box, as a spare or a second one so the receiver moves between machines faster.
Spectra C70 rod clamp $53
The grade rod clamp that ships in the box. Also fits the HL700, HL750, HL750U, HL760 and HL760U.
LaserLine B-CR700 DE rod bracket $95
A heavier-duty aftermarket rod bracket for the CR700.
CR700 battery door assembly (1278-1500S) $30
The part everybody loses. Keep a spare in the case.

Not sure it is the right receiver?

Talk to somebody who runs this gear, not a call centre.

1-877-866-5721

Contractors-Tools.com

Authorized Spectra Precision Dealer · Family owned & operated · Free shipping · Same-day shipping available

Experience the value of Great Customer Service!

kit_details:

Multi-Use Receiver FEATURES: || - 5 Inch Large Reception Height || - Digital Read-Out || - 200+ degree radius || - Use with Magnet and Attach as a Machine Receiver to a small piece of equipment or Attach Rod Clamp as a regular rod mounted receiver

In-Stock:

FREE SHIPPING

5
Spectra CR700

Posted by Billy Jones on 6th Aug 2026

Great receiver for basic dirt work. Exactly what I was looking for.
5
It has a very strong magnet

Posted by Robert Taylor on 10th May 2025

It works as designed
5
Spectra cr70

Posted by Gilly Weaver on 18th Apr 2025

Awesome piece of technology user friendly …. Kevin at Contractor-tools is top shelf great person with knowledge about the product’s he is selling !!!!
5
Spectra Precision CR700 - I would buy this product again.

Posted by Curt Rees on 2nd Apr 2022

Has made my job a lot easier. It gives me the ability to work alone when I have nobody to help.
5
CR700

Posted by Unknown on 15th Jul 2021

I am using the CR700 on a bulldozer to level a sports field & it works very well.
5
Great receiver and LOVE the magnetic mount

Posted by Kevin R. on 30th Nov 2020

This is the perfect receiver for working off a backhoe with the magnetic mount. Buy a DM-20 bolt-on mount and you can be even more versatile and work off your loader or blade on either side of your equipment. In conjunction with compatible receivers, you can use the second receiver as a remote display. Really great buy for the price.
5
CR700

Posted by E Kramer on 28th May 2020

Great value to get those jobs done without breaking the bank. Most jobs don't need a huge receiver anyway. Unit has advanced features too boot. CONTRACTORS-TOOLS.COM was by far the best value with super fast shipping. Will be back!
5
Cr700 machine receiver

Posted by William Tu ker on 21st Apr 2019

Works well. Strong magnet for machine mounting . Accurate

Categories

Brands

Navigate

Spectra Precision CR700 Machine or Rod Mountable Laser Receiver

Brand : Spectra Precision Laser

One Receiver.
Machine or Rod.

Everything to mount it,
both ways, on day one.

Built around one idea:
read grade where you are.

Machine, rod, or vertical.

Built
Field-Tough

Every control you need,
on three buttons.

Two receivers, one reading,
660 feet apart.

Why crews do it

The CR700 on a live job site.

Spec sheet and user guide.

Frequently asked questions

35 laser kits ship
with this receiver.

CR700 vs the HL receivers.

Spares and mounts.

Not sure it is the right receiver?

Spectra Precision CR700 Combo Receiver — Best Way to Get a Good Grade

Toolaholic uses the CR700 and GL412N on the jobsite

Spectra CR700 Combo Receiver: One-Person Grade Checking | Overview

Spectra CR700

It has a very strong magnet

Spectra cr70

Spectra Precision CR700 - I would buy this product again.

CR700

Great receiver and LOVE the magnetic mount

CR700

Cr700 machine receiver

SUPPORT - Got Questions?

Secure payment

Free shipping

Amazing selection

Categories

Brands

Navigate

Spectra Precision CR700 Machine or Rod Mountable Laser Receiver

Brand : Spectra Precision Laser

Write a Review

Spectra Precision Laser

Spectra Precision CR700 Machine or Rod Mountable Laser Receiver

Spectra Precision CR700 Combo Receiver — Best Way to Get a Good Grade

Toolaholic uses the CR700 and GL412N on the jobsite

Spectra CR700 Combo Receiver: One-Person Grade Checking | Overview

Related Products
