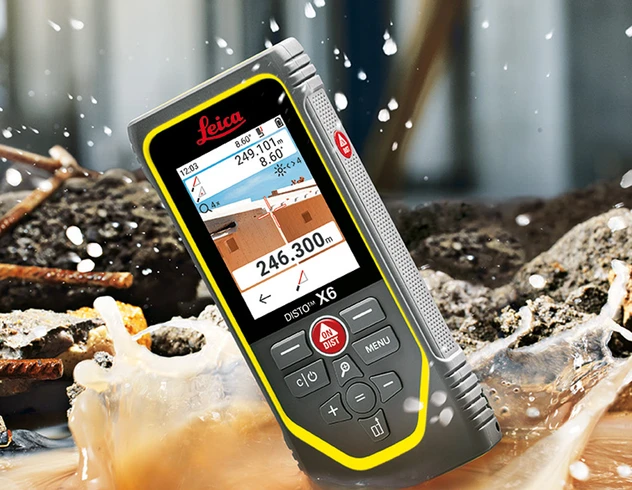

Leica DISTO X6 P2P Package
SKU: Leica-DISTO-X6-P2P | MFR Art. No.: 6013376
The Leica DISTO X6 P2P Package transforms your jobsite workflow. When docked in the included DST 360-X tripod adapter, the X6 becomes a Point-to-Point measurement station capable of capturing tie distances between any two points from up to 250 meters away — no line-of-sight required. Results export directly to 2D or 3D DXF files, ready for any CAD software.
What's in the Box
- Leica DISTO X6 Laser Distance Meter
- Leica DST 360-X Tripod Adapter
- Leica TRI 120 Tripod
- Leica GZM 3 Target Plate
- metaBOX Carrying Case
- Li-Ion Charger + USB Cable
- Hand Loop & Pouch
- Calibration Certificate Silver
- 3-Year Warranty Card
Why the DISTO X6 P2P Package?
Five features that set it apart from every other laser distance meter on the market.
Measure Between Two Points Up to 250m Away
No other laser distance meter captures P2P tie distances from a safe location — even in inaccessible areas.
Learn more about P2P Technology →
Export 2D or 3D DXF Files to CAD — Direct from the Jobsite
Take human error out of the equation. Build DXF files onsite and drop them straight into your CAD software.
Learn more about the P2P CAD workflow →
Wave to Shoot — Hands-Free Measurement Trigger
Place the crosshairs on target, then wave to trigger. No wobble. No missed shots at long range.
20+ Compatible Apps via Bluetooth — iOS, Android & Windows
From DISTO Plan to AutoCAD Mobile to Xactimate — certified specialist apps for every trade.
View all compatible apps →
2.8-Inch Hardened Touchscreen with 4× Pointfinder Zoom
Bright, scratch-resistant display. Pinch to zoom. Swipe to navigate. Tap to shoot.
Technical Specifications
| Accuracy (favourable conditions) | 1.0 mm / 1/16" |
| Accuracy (unfavourable conditions) | 2.0 mm / 1/8" |
| Range (favourable) | 0.05 – 250 m / 0.16 – 820 ft |
| Range (unfavourable) | 0.05 – 150 m / 0.16 – 500 ft |
| Smallest Unit Displayed | 0.1 mm / 1/32" |
| P2P Tolerance | ± 5 mm / 5 m | ± 10 mm / 10 m |
| Laser | Class 2, 635 nm, <1 mW |
| Digital Pointfinder | 4× Zoom |
| Tilt Measuring Range | 360° |
| DST 360-X Horizontal Range | 360° |
| DST 360-X Vertical Range | -64° to >90° |
| Bluetooth | v5.0, up to 10 m range |
| Battery (Li-Ion 2,000 mAh) | Up to 4,000 measurements / 8 hrs |
| Memory | 300 reports, 1,000 3D points |
| Dimensions (H × D × W) | 208 × 190 × 150 mm (incl. adapter) |
| Weight | 1,580 g |
| IP Rating | IP65 — Dustproof & waterproof |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -25°C to 70°C |
