SitePro 27-LR430HDV Horizontal Rotary Laser Package with two 90° vertical rotating laser planes

The LR430HDV is a 3D rotary laser featuring three 360° planes leveling system - one horizontal and two 90° vertical rotating laser planes.  The individual rotary heads exceeds the performance of any line laser and projects there perfectly visible 360° laser lines.  Most jobs can be done without re-positioning the laser - horizontal, vertical and 90°. With this feature you can also stake out 90° angles.

SitePro LR430HDV Rotary Laser FEATURES:

• The LR 430HDV is a 3-dimensional rotary laser featuring three 360° plane leveling system- horizontal and two 90° vertical rotating laser planes.
• Accuracy 1/16-in at 100 feet electronic self-leveling
• 2,950 feet diameter working range with detector
• Extremely high rotation speed of up to 2,000 rpm
• Electronic self-leveling
• Three integrated rotary head with built-in 635nm diodes
• Compact, ergonomic design with single button operation
• Multiple scan angles, beam positioning, and variable rotation speeds
• Single axis ±4° slope

SitePro LR430HDV Laser APPLICATIONS:

• Leveling, checking elevations, concrete forms, footings, foundations
• Estimating cut and fill
• Installation of decks, pools, drop ceilings, floors
• Excavating, digging footings, septic systems

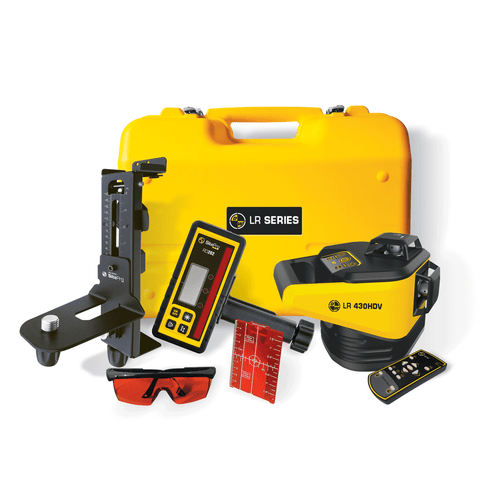

WHAT’S INCLUDED with SitePro LR430HDV:

• Rotary Laser LR430HDV - Red Horizontal Beam and two 90° Vertical Laser Plains
• Laser Detector/Receiver 27-RD202 (4.9-inch Large Capture Window)
• Detector Rod Clamp
• Remote Control
• Glasses
• Magnetic Target
• Rechargeable Batteries and Charger Kit
• 4-‘C’ alkaline batteries
• Protective Carrying Case
• User Guide
• 2-Year Laser Warranty

SitePro 27-RD202 Laser Detector included with LR430HDV
Laser Detector with Large 4.9-inch Capture Window The RD202 laser detector features a large capture window for quick locating of the rotary laser beam in bright light or over long distances.
	Large 4.9-inch capture height allows quick detection Fine and coarce on-grade sensitivity settings for easy grade detection Frond and Rear LCD displays allows easy, fast visual detection Rugged housing with gasket seal - IP55 Strong built-in magnets on side and top Automatic Shut-off preserves battery life Simultaneous elevation LED indicators on front for fast, easy visual

SitePro LR430HDV Laser TECHNICAL SPECIFICATIONS

	KS ROTARY	LR SERIES ROTARY LASERS
	KS 100H	LR 410H	LR 430HDV	LR 420HV-G	LR 422GR
Leveling Accuracy inch	±3/16	±1/16	±1/16	±3/32	±1/16
Leveling Type	Electronic ±4°	Electronic ±4°	Electronic ±4°	Electronic ±4°	Electronic ±4°
Working Range (diameter)
without Detector			130 foot	65 foot	130 foot
with Detector	1,000 foot	2,950 foot	2,950 foot	1,350 foot	2,950 foot
Functions
Slope	---	Single Axis ±7.0%	Single Axis ±7.0%	Single Axis ±7.0%	Dual Axis ±10.0%
Scanning	---	Preset - 0°, 10°,45°, 90°	Preset - 0°, 10°,45°, 90°	Preset - 0°, 10°,45°, 90°	Preset - 0°, 10°,45°, 90°
Height/Alert	YES	YES	YES	YES	YES
Rotation Speed(s)	600 RPM	400, 800, 2000 RPM	400, 800, 2000 RPM	400, 800, 2000 RPM	400, 800, 2000 RPM
Power Supply	4-C Alkaline	4-C Alkaline	4-C Alkaline & Battery Pack	4-C Alkaline & Battery Pack	4-C Alkaline
Environment	IP54 Water/Dust Resistant	IP55 Water/Dust Resistant	IP55 Water/Dust Resistant	IP55 Water/Dust Resistant	IP55 Water/Dust Resistant
Ideal Application		Exterior leveling, checking elevations, concrete forms, footings, and foundations. Estimating cut and fill. Manual slope.  Installation of decks, pools, drop ceilings, floors. Excavating, digging footings, septic systems.	Interior and Exterior, light to medium commercial, residential construction. Checking elevations, concrete forms, footings, foundations. Square and align walls, partitions, and corners. Installation of ceilings and floors.		Exterior, light to medium commercial, residential construction. Leveling, checking elevations, concrete forms, footings, foundations. Dual Grade work, driveways, ramps. Leveling and aligning walls.
