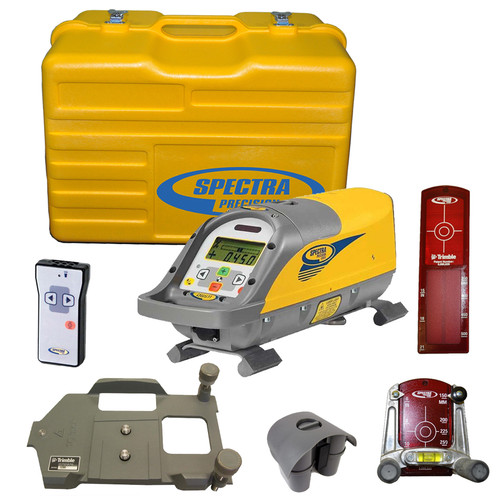

Spectra DG511-3 Pipe Laser w/Large Pipe invert
with RC501 Remote, 1230 Large Pipe Invert and 1238 8" Invert Plate
Toughest Lasers You Will Find in a Pipe
 |
||||||||||
|
The Spectra Precision DG511 Pipe Laser is built for tough long lasting performance and reliability for use in tough pipe laying conditions. Simple and easy to use, the DG511 combines great performance with simplicity of use. Built for the toughest jobsites. The DG511 is fully waterproof and can be washed down after working in the muddiest trenches. Setting grade is simple. The grade can be entered directly onto the laser or via the infra-red remote control. Once the grade is set it can also be locked avoiding errors by someone accidentally changing the grade. The DG511 has a bright beam that can be easily spotted in the pipe and enhanced with the patented target that bends the beam upwards making it easy to see when looking down at the pipe reducing the need to bend down to see the beam when in the trench or standing above the trench. Multiple attachments are available allowing the DG511 to be mounted in pipes of any size from 150mm (6 inch) upwards. A blower is also available to evenly circulate air through the pipe to avoid refraction of the beam inside the pipe. |
||||||||||
|
Spectra Precision DG511-3 Pipe Laser INCLUDES |
||||||||||
|
||||||||||
|
Spectra DG511-3 FEATURES and BENEFITS |
||||||||||
|
||||||||||
| Spectra DG511 and DG711 Pipe Laser Comparison Chart | ||||||||||
| PERFORMANCE SPECIFICATIONS | ||||||||||
 |
 |
|||||||||
| DG711 | DG511 | |||||||||
| Grade Range | -15% to +40% | |||||||||
| Self-Leveling Range | Complete grade range No rough leveling required |
|||||||||
| Line Range | 20° | |||||||||
| Line Center | Yes | |||||||||
| Grade Zero and Quick Grade | Yes | |||||||||
| Line Set/Check | Yes | |||||||||
| Line Alert | Yes | |||||||||
| Temperature Compensation | Yes | |||||||||
| Grade Compensation | Yes | |||||||||
| Maintenance Interval Notification | Selectable Intervals 3, 6, 12, 18 or 24 months |
|||||||||
| Warranty Period | 5 Year Warranty NO COST | |||||||||
| LASER SPECIFICATIONS | ||||||||||
| Laser output | 4.5-5 mW (maximum allowable) | |||||||||
| Laser Classification |
3A / 3R | |||||||||
| GENERAL SPECIFICATIONS | ||
| Weight | 3.6 kg (8 lbs.) | |
| Length | 37.5 cm (14.75 inches) | |
| Diameter | 14 cm (5.5 inches) | |
| Housing Material |
Armored Die Casting | Hard Annodized Almuinum |
| Battery type / life |
NiMH / 60 Hours with Daily Setup @ 20° (68°F) | |
| Battery pack | Sealed (NiMH), O-Ring Sealed Removable (Alkaline) | |
| Operating voltage |
6-16V DC | |
| Operating temp. | -20° to 60° C (-4° to 140° F) | |
| Storage temp. | -30° to 60° C (-23° to 140° F) | |
| Waterproof | Continuous Submersion at 3 m (10 foot) | |
| WIRELESS REMOTE SPECIFICATIONS | ||
| Functionality |
7 Button
|
3 Button
|
| Through the Pipe Range |
225 m (750 ft) | |
| Front / Over the Top Range |
150 m (500 ft) | |
| Rear Range | 10 m (30 ft) | |
| Battery Life Normal Operation |
3 Years / 36 Months | 2 Years / 24 Months |
| Spectra DG511 and DG711 Pipe Laser COMPARISION CHART | ||
| Model # | Accessories | Power |
| DG511 | Standard Package | NiMH Recharge |
| DG511-2 | 1233 Sighting scope Mounting Block 1161 Heavy Duty Tripod |
NiMH Recharge |
| DG511-3 | 1230 Metal plate with Adjustable legs (inches) |
NiMH Recharge |
| DG511-5 | 1230 Metal plate 1239 Vertical pole (inches) |
NiMH Recharge |
| DG511-6 | 1237 Metal plate 1239 Vertical pole (metric) |
NiMH Recharge |
| DG511-7 | Standard Package | Alkaline |
| DG511-9 | External power cable |
Alkaline |
| DG511-13 | 1233 sighting scope |
NiMH Recharge |
| DG711 | Standard Package | NiMH Recharge |
| DG711-2 | 1233 Sighting scope Mounting Block 1161 Heavy Duty Tripod |
NiMH Recharge |
| DG711-3 | 1230 Metal plate with Adjustable legs (inches) |
NiMH Recharge |
| DG711-5 | 1230 Metal plate 1239 Vertical pole (inches) |
NiMH Recharge |
| DG711-6 | 1237 Metal plate 1239 Vertical pole (metric) |
NiMH Recharge |
| DG711-7 | Standard Package | Alkaline |
