Spectra Precision HL760 Laser Receiver (Radio) with Rod Bracket

Spectra Precision HL760 Laser Receiver with Clamp Bracket

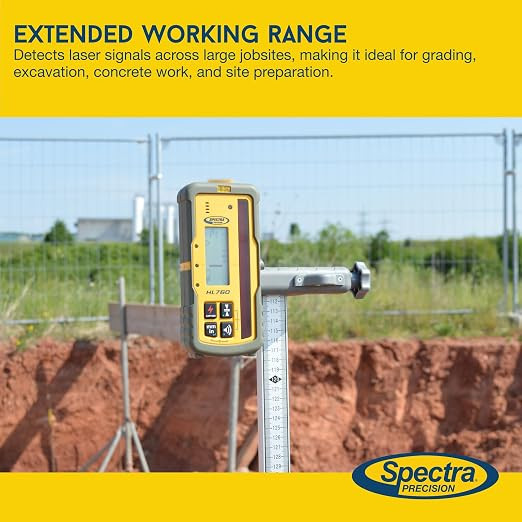

The Spectra Precision HL760 is a high-performance laser receiver designed for tough jobsites and precision-grade work. It features a large 5-inch reception height, front and rear LCD displays, and a digital readout of elevation, letting contractors instantly see how far off grade they are — without guessing.

This model builds on the popular HL750 with the added benefit of Grade Match and PlaneLok functions, which are available when used with Spectra lasers like the HV1305C, GL412N, and GL422N, GL622N, GL1425C, UL633N, LL300N, LL300S and HV302

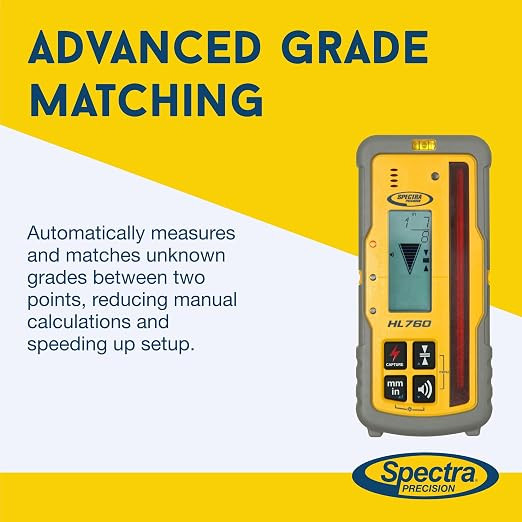

Grade Match automatically tilts the laser plane to match the fall between two elevations — no math or string lines needed.

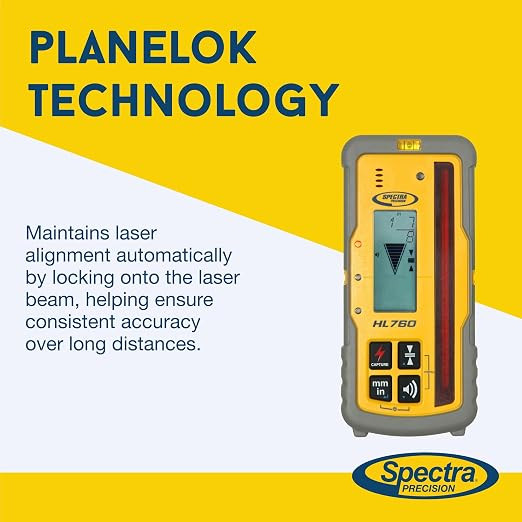

PlaneLok locks the laser beam to the receiver to eliminate drift and keep your benchmark tight over time.

✅ Works With These Spectra Lasers

LL300N, LL300S, LL1505C, HV1305C, GL1425C, LL300S, LL400HV, HV302, GL412N, GL422N, GL622N, UL633N
Also compatible with most red beam rotary lasers from Topcon, Leica, CST/Berger, Johnson, and more.

Spectra Precision HL760 Laserometer Laser Receiver INCLUDES

HL760 Laser Receiver

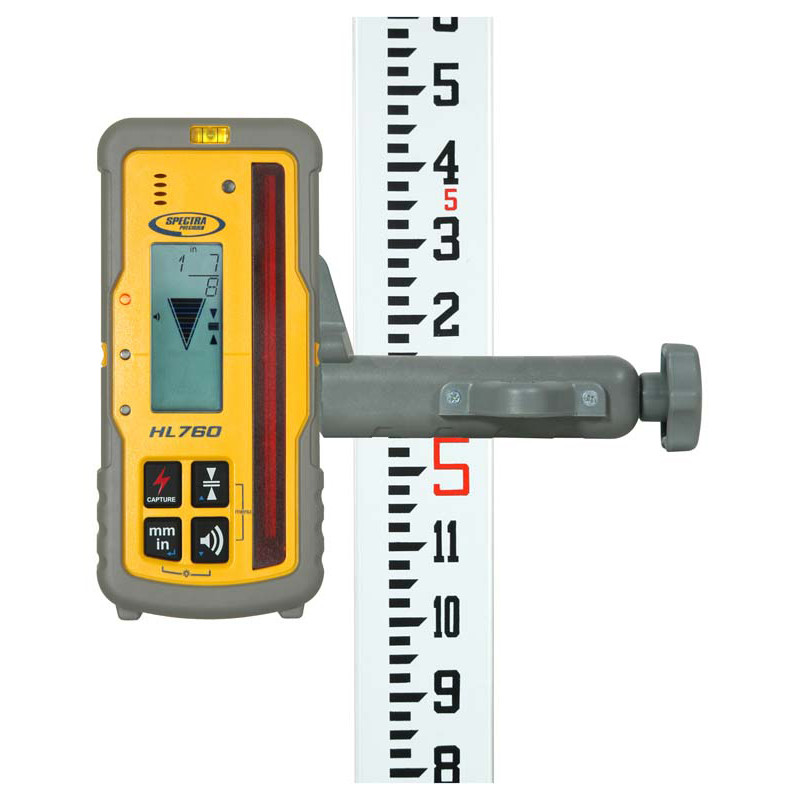

C70 Rod Clamp for Receiver
(2)x AA-Batteries
Operating Manual

Key Features of the Spectra HL760 Laser Receiver:

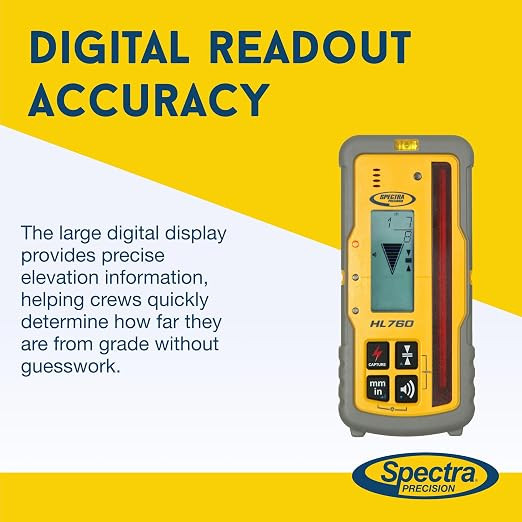

• Digital readout of elevation shows exact distance from on-grade
• 5-inch reception height for faster beam acquisition
• Fingerprint functionality filters out other lasers; responds only to paired transmitter (LL300S, LL400HV, HV302, GL412N, GL422N)
• Anti-strobe sensor prevents false readings from jobsite strobe lights
• Grade Match and PlaneLok functions when used with compatible Spectra lasers
• Front and rear LCDs for visibility from both sides of the rod
• Wireless pairing option for remote display and monitoring
• IP67 rated – waterproof, dustproof, and drop-tested to 10 feet (3 meters)
• No need to go physically on-grade to take measurements
• Reduces rework by enabling remote monitoring and improving accuracy
• 60-hour runtime on two AA alkaline batteries
• Six selectable accuracy settings
• Displays units in mm, cm, feet, inches, or fractional inches
• Automatic shutoff after 30 minutes of inactivity
• Built for reliability, accuracy, and durability in tough jobsite conditions

SPECTRA PRECISION HL Series Receivers Unique Technology
UNIQUE TECHNOLOGY
Our patented “Light Bar” technology has the following advantages: Longer reception length More granularity on the reception length Simplified design with more durable components rather than many fragile soldered components As a result, it delivers: Performance not affected by the beam diameter Consistent accuracy over the whole operating range. Other forms of laser detection do not provide the consistency of the accuracy over distance meaning they are adding more error to the readout Unbeatable robustness enabling you to work in harshest conditions

Spectra Precision HL760 Laser Receiver APPLICATIONS
Setting and checking jobsite elevation and depth for: Cut and fills General grading Foundations, forms, and footings Excavations

SPECTRA LASER RECEIVER COMPARISON CHART

HL760 QUICK COMPARISION for Spectra Precision Laser Receivers
	LCD's	Beam Compatability	Reception Height	Digital Readout	Drop Rating	Warranty
HR320	Dual	RED	2-inch	arrows	5-feet	3 Year LTD 2 Years Free
HL450	Dual	RED	4-inch	arrows & distance	5-feet	3 Year LTD 2 Years Free
HL700	Dual	RED	5-inch	arrows & distance	10-feet	3-Year No Excuse
HL750	Dual	RED	5-inch	arrows & distance	10-feet	3-Year No Excuse
HL760	Dual	RED	5-inch	arrows & distance	10-feet	3-Year No Excuse
HL760U	Dual	RED GREEN	5-inch	arrows & distance	10-feet	3-Year No Excuse
CR600	Dual	RED	5-inch	arrows & distance	10-feet	3 Year LTD 2 Years Free

HL760 DETAIL COMPARISON for Spectra Precision Laser Receivers
	HR320	HL450	HL700	HL750	HL760	HL760U	CR600
Laserometer w/numeric display	No	Yes	Yes	Yes	Yes	Yes	No
Digital Readout	No	Yes	Yes	Yes	Yes	Yes	No
Metric/English unit of measure	No	Yes	Yes	Yes	Yes	Yes	No
Front/Back Readout	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Machine Mountable	No	No	No	No	No	No	Yes
Self Calibrates	No	Yes	Yes	Yes	Yes	Yes	No
Strobe Rejection	No	No	Yes	Yes	Yes	Yes	No
Advanced Menu	No	No	Yes	Yes	Yes	Yes	No
Rod Level Vial	No	No	Yes	Yes	Yes	Yes	Yes
Water Resistance	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Beam Color	RED	RED	RED	RED	RED	RED GREEN	RED
*Reception Height*	2-inch	4-inch	5-inch	5-inch	5-inch	5-inch	5-inch
Levels of Accuracy	2	2	5	5	5	5	5
Drop Rating	5-feet	5-feet	10-feet	10-feet	10-feet	10-feet	10-feet
Exchange Warranty	3 Year LTD 2 Years Free	3 Year LTD 2 Years Free	3 Years Free	3 Years Free	3 Years Free	3 Years Free	3 Years Free
On Grade Positions	1	1	2	2	2	2	1
Volume Settings	3	3	3	3	3	3	3
Packaged with	LL100N LL100N-1 LL100N-2 LL100N-3 LL300N-8 HV101GC-1 HV101GC-2 HV101GC-3 HV302GC-2	LL300N LL300N-1 LL300N-2 LL300N-3 LL300N-4 LL300S LL300S-1 LL300S-2 LL300S-3 LL300S-4 HV302	LL500 LL500-1 LL500-2 LL500-3 LL500-4 CTO-GL710 CTO-GL720	GL612 GL612-1 GL622 GL622-2 UL633 UL633-1 UL633-14 UL633-24	LL300S-7 LL300S-17 LL300S-27 LL300S-37 LL300S-47 LL400HV LL400HV-1 LL400HV-2 LL400HV-4 HV302-7 GL412N GL422N	Optional for Green or Red Beam Lasers	LL400HV-10 LL500-10 LL500-11 LL500-14 GL412N-14 GL422N-14 GL612-14 GL622-14 CTO-GL710-10 CTO-GL720-10 CTO-GL722 CTO-GL722-IR

Spectra Precision Laser Receiver DOWNLOADS
Spectra Precision Laser Receiver BROCHURE

HL700 User Guide
