Spectra Precision Laser LL100N-3 OVERVIEW
The Spectra Precision LL100N-3 is a leveling crew in a case for the small contractor. A complete system is contained in a single hard-shelled, portable carrying case containing the laser, receiver, clamp, tripod, and grade rod for easy transportation, storage, and use. Automatic, self-leveling ensures fast, accurate setups. Easy, one-button operation requires minimal training.
The Spectra LL100N-3 Laser is capable of handling a wide variety of elevation control applications. Versatility is added with single-axis manual slope capability for setting out driveways, ramps, and residential drainage lines. It is rugged enough for the toughest jobsite and designed to survive a 3 foot drop onto concrete.
The LL100N-3 is backed by a 1-year instant 100% over the counter replacement warranty. Limited second and third year instant, over the counter, exchange warranty for 1/2 the retail price. This is where Spectra Precision Laser is a leader with the best warranty available for a laser in this construction category.
|
| Spectra Precision Laser LL100N-3 : NEW LASER IMPROVEMENTS |
| The new and improved version LL100N-3 Laser has a improved insert made of brass. This bras insert eliminates conserns about damaging the old style plastic threads and engages easer with the tripod. |
| The second change that Spectra Precision made to the LL100N-3 is they simplified the operation of the tool by making the keypad very user friendly. They new one button keypad makes the operation of the laser super easy and eliminates any confusion. |
| If the single axis manual slope is still required, it can still be done with the optional RC601 remote control. |
The working range of the LL100N-3 has been increased to 1150 feet. This new improved working range allows use on larger projects. The user should keep in mind the accurace when working at the limits of the suggested range of use.
|
| Spectra Precision LL100N-3 Laser FEATURES and BENEFITS |
- Automatic self-leveling increases productivity with fast setups and minimal training
- One person can control elevation up to 1000' diameter.
- Durable construction can withstand tough jobsite conditions
- Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
- HR320 receiver offers 2 accuracies and has grade displays front and rear
- Exclusive 1-year instant "over the counter" 100% exchange policy eliminates downtime
- Limited 2nd and 3rd year instant over the counter exchange warranty for 1/2 retail price.
|
| Spectra Precision LL100N-3 Laser APPLICATIONS |
- General elevation control
- Checking and setting elevations for smaller jobsites
- Leveling forms and footers
- Estimating cuts and fills
- Ideal for decks, terraces, pools, and septic systems
- Basic slopes for driveways, ramps, and residential drainage
|

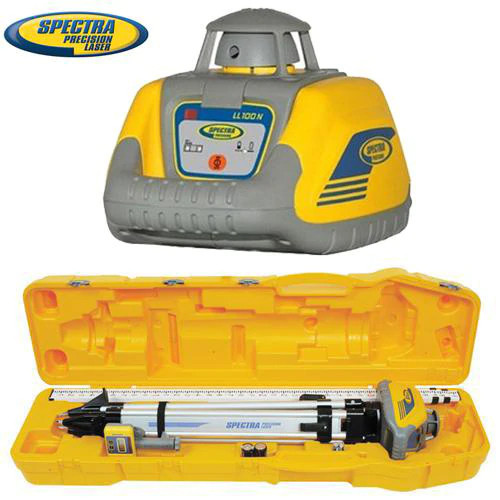

| Spectra Precision LL100N-3 Laser Kit INCLUDES |
|
Laser : Spectra LL100N Automatic Self-Leveling
Receiver : HR320 with grade displays on front and rear.
Receiver Clamp : C59 Clamp for Receiver
Rod : 5 Meter length with Measurements in METRIC - model GR153
Tripod : Aluminum Adjustable Height - model Q104025
Carrying Case: All the above contents fit securely inside protective case.
Batteries : 2 x D-Cell Batteries
Operating Manual
|
| LL100N |
LL100N-1 |
LL100N-2 |
LL100N-3 |
|
|
|
|
|
| LASER : LL100N |
LASER : LL100N |
LASER : LL100N |
LASER : LL100N |
| RECEIVER : HR320 |
RECEIVER : HR320 |
RECEIVER : HR320 |
RECEIVER : HR320 |
| Rod Clamp - yes |
Rod Clamp - yes |
Rod Clamp - yes |
Rod Clamp - yes |
| ROD : no |
ROD : 15' (10ths) |
ROD : 15' (inches) |
ROD : (metric)
|
| TRIPOD : no |
TRIPOD : Yes |
TRIPOD : Yes |
TRIPOD : Yes |
| CASE : SMALL |
CASE : SYSTEM |
CASE : SYSTEM |
CASE : SYSTEM |
