Before you order — does your receiver have the radio?
The RD20 only works with a wireless-capable receiver: the
LR30W, LR50W or LR60W. It will not pair with an LR20, LR30, LR50 or LR60.
The two look identical from the front, which is why this
catches people out. The check takes two seconds:
Look at the back of the receiver
A wireless model carries a radio compliance label on the back, and the case is
marked. No label, no radio.
Already had an RD20 before?
If you are replacing one you lost or broke, you are fine — your receiver is a
wireless model. Order away.
If it turns out you have a non-wireless receiver, buying the wireless
model is the better move. Fitting a radio to an existing receiver means sending it
back to the factory, waiting without it, and paying enough that it does not make sense next
to the price of the right receiver.
Not sure? Call 1-877-866-5721
before you order and we will work it out with you in a minute. We would rather spend
that minute than have you wait on a delivery you cannot use.
The part operators notice first
You do not have to look at it.
The RD20 beeps grade the same way a receiver on a grade rod does —
one tone for high, one for on grade, one for low. The operator keeps their
eyes on the boom, the bucket and where the machine is going, and follows grade by ear.
That is the whole argument for putting the display in the cab. Watching a
receiver out on the mast means looking away from the work. Listening to it means you
never do.
105 dBHigh — carries over a running machine
95 dBMedium
65 dBLow — quiet cab
OffLights only, if you prefer
The tones match the elevation LEDs, so you can use both or either. Volume is
remembered after a power cycle.
|

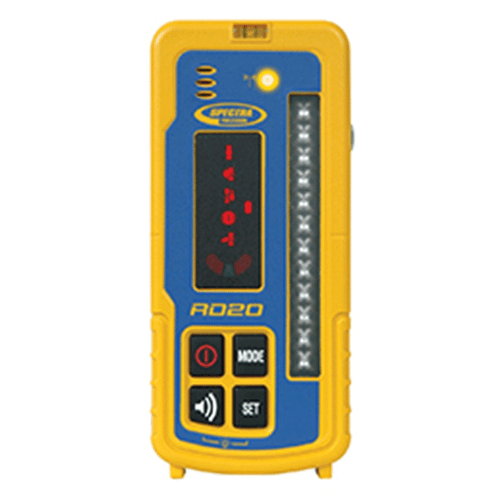

Spectra Precision® RD20 Wireless Remote Display...
Puts grade information in the cab
The Spectra Precision® RD20 Wireless Remote Display provides grade information in the cab of the machine for easy operator viewing. The RD20 works with LR receivers equipped with wireless capability: LR30W, LR50W and LR60W. Additionally, most receiver adjustments can now be set in the cab. With bright, multi-colored grade LEDs and audible signals in the cab, the operator is free to focus on the work at hand and the terrain. Multiple mounting options allow optimum placement of the remote.
|
| |
|
|
|
|
|
|
Spectra RD20 Remote Display INCLUDES
|
- RD20 Cabin Display
- 010983 Car Lighter Adapter Power Cable: ATI010561
- Quick Mounting System
|
|
Spectra RD20 Remote Display FEATURES and BENEFITS
|
- Large, bright, Red, Green and Blue elevation LEDs for High, On-grade and Low – colors are easy to distinguish for quick glance elevation location
- Built in speaker provides distinct audible tones for High, On-grade and Low – recognize your grade without diverting your attention from the terrain
- In-cab control setting capability for accuracy and LED brightness – change settings for various conditions without leaving the cab
- Additional setting control capability – including plumb indication, blade tilt, laser offset, blade slope match – depending on receiver
- Dual power options – internal battery and machine power – increase up time and productivity
- State of the art radio – prevents interference even when multiple machines are working in the same area
- Multiple mounting systems include bolt-on, adhesive, swivel and suction cup – allows mounting in most convenient location
|
| Spectra RD20 Remote Display FEATURES and BENEFITS |
- Excavation
- General leveling and precision grading
- Utilities installation
- Sports fields
- Farm fields
- Trenching
|
| |
kit_details:
Kit Contains: || - RD20 In-Cab Wireless Display || - Large, bright, Red, Green and Blue elevation LEDs || - High, On-grade and Low – colors for quick glance elevation location || - Audible Tones Alert Grade Height
