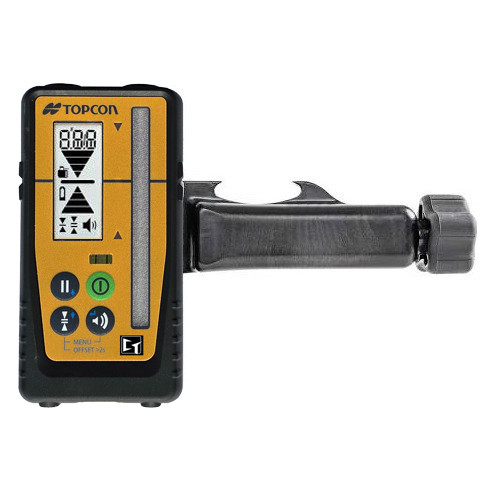

Topcon LS-110D (KIT) Digital Laser Receiver & Sensor Holder 110
Part # 1091205-01 |
Receiver: 1026030-01 | Holder: 1019505-01
The Topcon LS-110D Deluxe Digital Laser Receiver is engineered for contractors
who demand fast beam acquisition, clear real-time grade feedback, and all-day battery life on the
toughest job sites. With its large 4-inch capture window and dual front-and-back LCD displays, the
LS-110D delivers unmatched situational awareness without ever having to walk back to the rod.
This KIT (1091205-01) includes the receiver plus the screw-style
Sensor Holder 110 rod bracket — everything you need, ready to work.
Why the LS-110D Wins on the Job Site
🎯
4″ Capture Window
Large window grabs the beam faster & holds grade longer
📱
Dual LCD Displays
Front & back screens — read grade from either side
📏
Digital Grade Readout
Exact offset from grade — no more guessing
🔋
45-Hour Battery Life
One AA battery. All day, every day. Auto-shutoff at 30 min.
🛡
IP67 Rubber Armor
Dust-proof, waterproof, built for the field
📡
2,625 ft Working Range
Works with Topcon RL-H5A, RL-HV, RL-SV2S, RL-200 Series
What's In The Box
📦

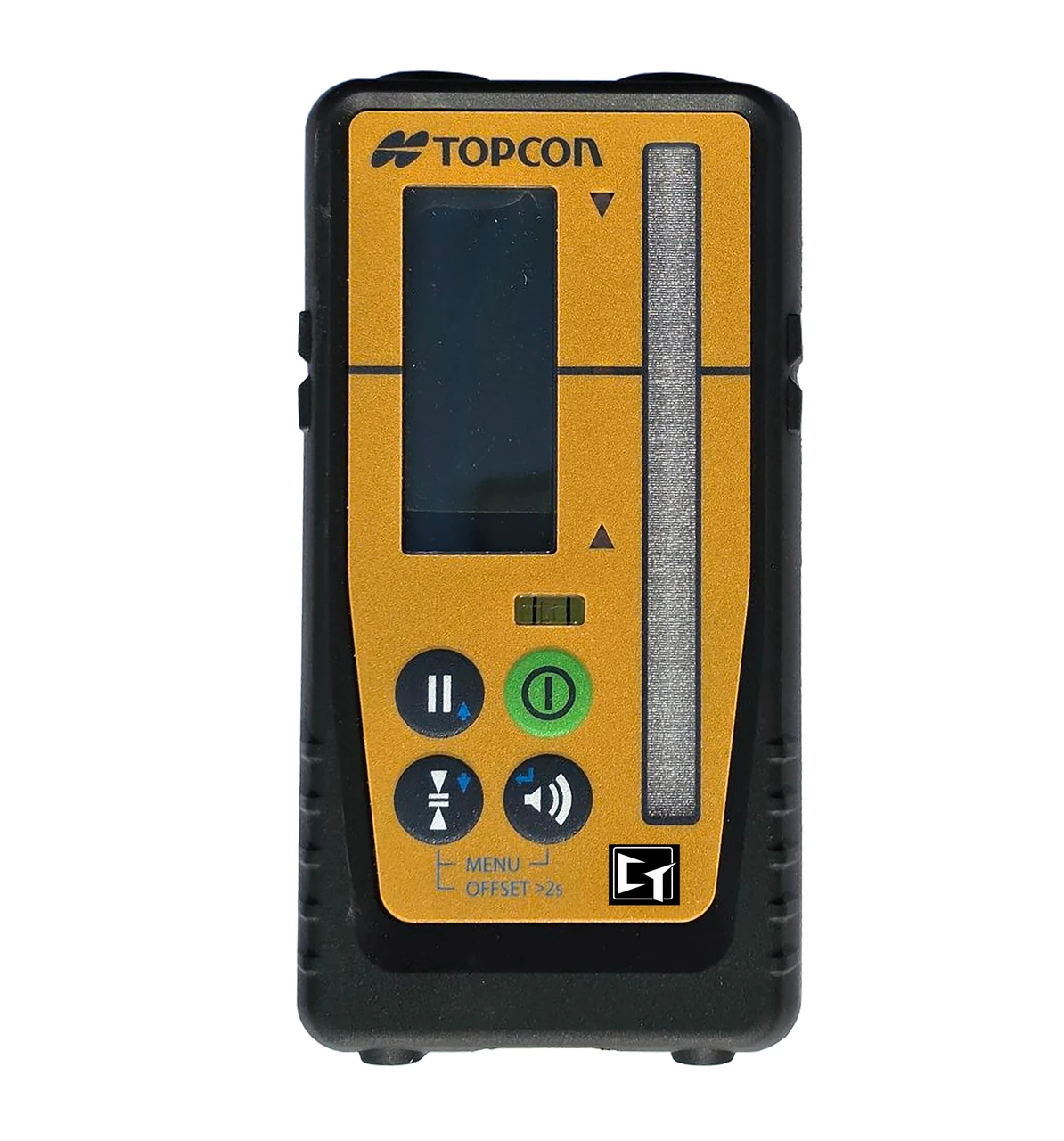

LS-110D Deluxe Laser Receiver
Model: 1026030-01
- 4″ dual-window receiver with front & back LCD
- 9-channel digital grade display (3-color LED)
- Magnetic top mount for vertical steel
- Strobe light suppression & HI Alert
🔧

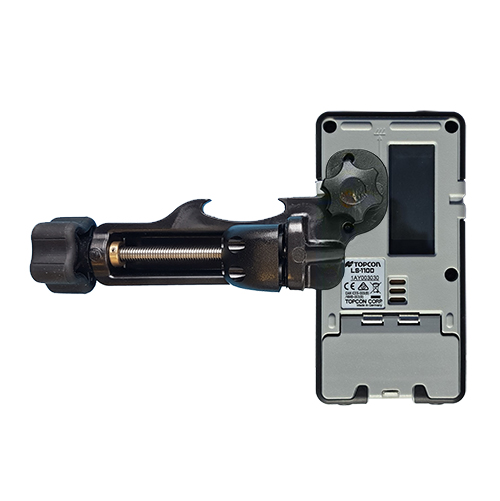

Sensor Holder 110 Rod Bracket
Model: 1019505-01
- Screw-style clamp for a rock-solid mount
- Compatible with standard survey rods
- Angled for optimal display visibility
- Corrosion-resistant hardware
🔋
1x AA Battery
Pre-installed and ready to go
- Up to 45 hours of continuous runtime
- Low battery warning icon
- Auto-shutoff after 30 min idle
Key Features
Grade Display
9-channel, 3-color LED with digital numeric readout — see exactly how far off grade you are in inches or mm
HOLD Function
Freeze the grade reading on-screen while you move the rod — no need to keep the beam active
Magnetic Mount
Magnetic top attaches instantly to vertical steel beams, columns, or pipe — no bracket needed
Strobe Suppression
Built-in filter eliminates interference from strobe lights and other optical noise on busy job sites
HI Alert
Warns when the laser head instrument height (HI) changes — catches setup errors before they cost you rework
Extreme Range
2,625 ft diameter working range — from tight interior slabs to wide-open site grading
All-Weather Housing
IP67 waterproof, rubber-armored body handles rain, mud, drops, and temps from -20°C to 50°C
Laser Compatibility
Works with Topcon RL-H5A, RL-HV Series, RL-SV2S, RL-200 Series, and RL-H4C (discontinued)
⚡ Why the LS-110D Over the LS-100D?
If you're comparing the two, here's what you're getting for the upgrade:
Bigger Capture Window
LS-110D: 4″ window vs the LS-100D's compact window. More surface area means faster beam acquisition — especially on windy or uneven terrain.
Dual-Sided LCD
Both units have displays, but the 110D's larger body means larger, easier-to-read screens from further away.
Grade Crew Applications
LS-110D is the go-to for grade crews, paving, and earthwork where a fast, large target receiver is priority. The 100D is better for tight formwork or finish work.
Technical Specifications
| Specification |
Value |
| Model |
LS-110D (Deluxe) |
| Part Number (Kit) |
1091205-01 |
| Receiver Part Number |
1026030-01 |
| Holder Part Number |
1019505-01 (Sensor Holder 110) |
| Laser Capture Height |
4 inches (101.6 mm) |
| Working Range |
2,625 ft diameter (800 m) |
| Accuracy |
±0.02″, ±0.05″, ±0.10″, ±0.20″, ±0.50″ (±0.5mm to ±12.7mm) |
| Display |
Dual LCD (front & back) + 9-channel 3-color LED + HOLD button |
| Battery |
1x AA alkaline, up to 45 hours; auto-shutoff at 30 min |
| Water / Dust Rating |
IP67 (dust-proof, waterproof) |
| Operating Temperature |
-20°C to +50°C (-4°F to +122°F) |
| Dimensions (Receiver) |
5.275 x 2.716 x 0.985 inches |
| Weight (with battery) |
0.42 lbs (190 g) |
| Housing |
Rubber-armored, impact-resistant |
| Special Features |
Magnetic top mount, strobe suppression, HI Alert, low battery icon |
| Compatible Lasers |
Topcon RL-H5A, RL-HV Series, RL-SV2S, RL-200 Series, RL-H4C (disc.) |
Authorized Topcon Dealer |
Free FedEx Express 2nd Day Air |
Questions? Call us — we know this gear inside and out.
