TOPCON RL-H5A - PS.DB Complete Package 1035258-01
Self-Leveling Rotary Laser Level Package uses Alkaline Batteries |
Includes: LS-80X Receiver and Rod Clamp, Measuring Rod 10ths and Aluminum Tripod
|
| Next Generaton Self-Leveling Construction Laser |
 |
|
The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.
|
Topcon RL-H5A TOP FEATURES
- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating - Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Long Alkaline battery life - 100 hours
- Out of Level Notification
|

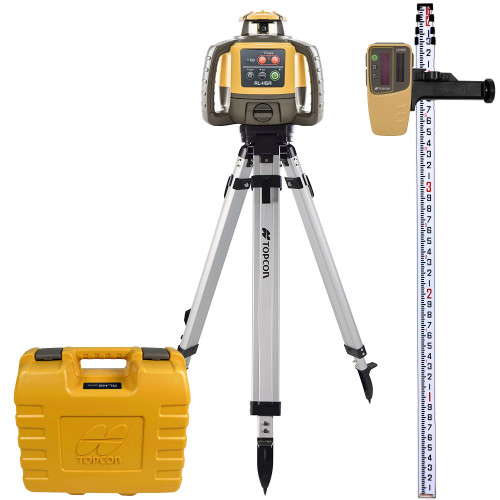

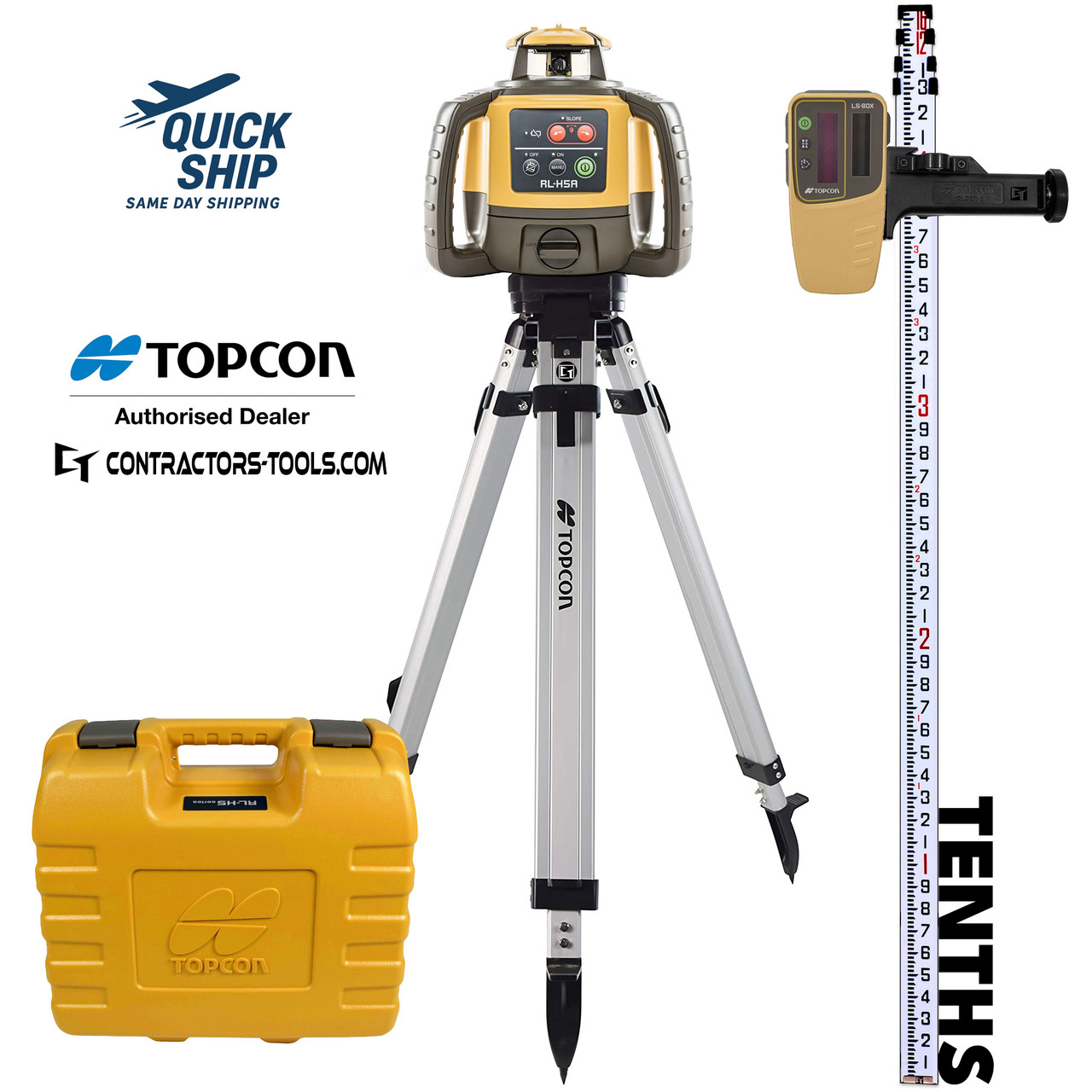

| Topcon RL-H5A (1035258-01) Laser Kit INCLUDES |
 |
- RL-H5A Horizontal Laser 1021200-50 (Made in Japan)
- LS-80X Long Range Laser Receiver Sensor 1046259-01
- Receiver Rod Clamp Holder 6 312890112
- Aluminum 16-Foot Grade Rod - Measurements in TENTHS
- Aluminum Heavy-Duty Tripod
- uses (4) D-Cell Alkaline Batteries (Not Included)
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
|
|
|
MULTI-PURPOSE LASER
Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.
EASY TO USE
With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION
Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
|
|
5-YEAR GUARANTEE
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
|
|
|
| |
| Topcon RL-H5A Laser SPECIFICATIONS |
| Accuracy |
1/16-inch @ 100-feet |
| Self-Leveling Range |
± 5 degrees |
| Working Range diameter |
2,600 feet |
| Rotation Speed |
600 RPM |
| Light Source |
Visible Red Laser 635NM |
| Laser Class |
CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating |
IP66 |
| Operation Time |
Alkaline: 100 hours |
| Operational Temp |
-4ºF to 122ºF |
| Size |
7.0 x 7.7 x 8.5 in |
| Maximum Power Output |
2.4mW |
| Tripod Screw Thread |
5/8-11 |
|
| |
INCLUDED Topcon LS-80L Receiver Sensor OVERVIEW
|
Topcon LS-80X LONG RANGE LASER SENSOR
New laser sensor LS-80L offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD's on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.
The Topcon LS-80X Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.
With a rating of IP-66, the Topcon LS-80X Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.
The Topcon LS-80X Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life. |
 |
Topcon LS-80X Receiver FEATURES
- Increase range of rotary lasers
- Fine or course sensitivity
- Height alert
- IP-66 rating against dust and water
- Uses AA batteries
- Low battery alert
- 30 minute shut down
- Protective case
- LCD display
- 2-inch capture window
|
|
|
|
TOPCON LS-80X Laser Receiver SPECIFICATIONS
|
Working Range (diameter)
|
2,500 feet with the RL-H5A, RL-HV, and RL-200 Series Lasers
|
val Detecting Range
|
2 inch (actual 1-31/32 inch) aka hair under 2-inches
|
LCD Digital Readout Range
|
None - Only on LS-100D
|
Horizontal Detecting Range
|
±45º |
Strobe Light Suppression
|
No |
Units / Measurements
|
✅ Millimeters (mm)
✅ Centimeters (cm)
✅ Inches (decimal)
✅ Inches (fractional) |
Grade Resolution Settings
|
High precision: ±1.0 mm → ±0.04 inch
Normal precision: ±2.0 mm → ±0.08 inch
|
LCD Grade Indicators
|
9 Channels (9 visual indicators for laser beam alignment.)
|
| LCD Grade Indicators |
Up Arrow Icon ? = Move sensor up – you’re below the laser line.
Down Arrow Icon ? = Move sensor down – you’re above the laser line.
Solid Center Bar ▬ = On grade
– laser is perfectly aligned with the on-grade band.
Out of Beam Icon ❌ (or blinking arrows)
– You’re too far above or below the beam to detect it.
|
| Display |
LCD on each side
|
Buzzer
|
Loud / Low / Off — selectable by the user.
|
Bubble Tube
|
No |
Warning Icons
|
HI Alert, Low Battery (for the RL-H5A, RL-HV, and RL-200 Series)
|
| Battery |
Two AA Batteries
|
| Operation Time |
Up to 45 hours with alkaline batteries |
| Battery Level indicator |
LCD Icon |
| Auto Shut-off |
Approximately 30 minutes |
| Dust/Water Rating |
IP66 |
| Operating Temperature |
-4ºF to 122ºF |
Dimensions ( L x W x H )
|
5.75 in (L) × 2.99 in (W) × 0.98 in (H) |
| Weight |
|
Magnetic Mount
|
No
|
Receiver Sensor Bracket
|
Screw mount
|
If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721
|
| |
|
| Topcon RL-H5A Laser Series COMPARISON |
| New Series |
RL-H5A RB |
RL-H5A DB |
RL-H5A DB2 |
RL-H5A DB2 |
RL-H5A RB |
RL-H5B DB |
LASER - TOP COMPONENT OVERVIEW
|
| New Model |
1021200-49 |
1021200-50 |
1021200-50-K1 |
1021200-50-K2 |
1021200-16 |
1021200-73 |
| Discontinued Model |
1021200-06
1021200-14 |
1021200-07 |
1021200-07-K1 |
1021200-07-K2 |
1021200-08 |
1021200-31
1021200-33 |
| Receiver |
LS-80L |
LS-80X |
LS-80X |
LS-80X |
LS-100D |
LS-80L |
| Batteries |
Rechargeable |
Dry / Alkaline |
Dry / Alkaline |
Dry / Alkaline |
Rechargeable |
Dry / Alkaline |
| Remote Control |
NO |
NO |
NO |
NO |
NO |
NO |
| Measuring Rod 15' |
NO |
NO |
YES - 10ths |
YES - Inches |
NO |
NO |
| Aluminum Tripod |
NO |
NO |
YES |
YES |
NO |
NO |
| LASER SPECIFICATIONS |
| Source |
635nm Class 2 |
635nm Class 2 |
635nm Class 2 |
635nm Class 2 |
635 nm Class 2 |
635 nm Class 2 |
| Range (Diameter) |
2,600-feet |
2,600-feet |
2,600-feet |
2,600-feet |
2,600-feet |
1,300-feet |
Accuracy @ 100 feet
|
1/16-inch
|
1/16-inch |
1/16-inch |
1/16-inch |
1/16-inch |
1/8-inch |
| Rotation Speed |
600 RPM |
600 RPM |
600 RPM |
600 RPM |
600 RPM |
600 RPM |
| Slope |
Manual 1 Axis |
Manual 1 Axis |
Manual 1 Axis |
Manual 1 Axis |
Manual 1 Axis |
NO |
| Manual Slope Range |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
|
| Self-Leveling |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
± 5 degrees |
| Rechargeable Battery |
60 hours |
|
|
|
60 hours |
|
| Dry/Alkaline Battery |
100 hours |
100 hours |
100 hours |
100 hours |
100 hours |
100 hours |
| Battery Run Charge |
NO |
|
|
|
NO |
|
| Enviornment |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
IP66 |
| Warranty |
5 YEARS |
5 YEARS |
5 YEARS |
5 YEARS |
5 YEARS |
5 YEARS |
| DISCONTINUED VERSION - OLD LASER INFORMATION |
| Old Series |
New |
RL-H5A DB
|
RL-H5A DB |
RL-H5A DB |
RL-4HC RB |
RL-H5B |
| Old Model |
New |
1021200-07 |
1035258-01 |
1035259-01 |
313980772 |
1021200-31 |
| |
