Rated IP66 for dust and water. It operates from -20 to +50 degC (-4 to 122 degF) and is stored from -30 to 60 degC. Weight is about 2.6 kg (5.7 lb) with alkaline batteries, 2.8 kg with the BT-79Q. The tripod thread is the standard 5/8 x 11 used on surveying instruments.

Topcon RL-HV2S Laser Kit with LS-110D 1090052-01-K1

Q: What is the RL-HV2S, and what makes it dual slope?

A self-levelling rotating laser that can hold a grade on two axes at once - X and Y. Each axis takes a grade of up to +/-15%, so you can pitch a parking lot to drain in two directions, or a pad with a crossfall, without moving the laser. The single slope RL-HV1S does X only.

Q: What grade range can I set on each axis?

+/-15% on the X axis and +/-15% on the Y axis, set from the front panel (no number keypad, so it takes a lot of button pushes) or from the Laser Manager app, where you type the X and Y grade on your phone's number pad and press Set. The app itself shows the allowed range as -15.000 to +15.000%. Flat work is just 0.000% on both.

Q: How accurate is it, and how far will it reach?

Topcon rates the RL-HV at +/-10 arc seconds on both the horizontal and vertical axes. Working range is approximately 2 to 800 m in diameter (6.5 to 2,625 ft) at 600 rpm, as measured by Topcon with the LS-80X level sensor. That range is the laser's; it is the figure to plan the job around.

Q: How fast does it rotate, and which speed should I use?

Two speeds, 300 and 600 rpm, selectable from the laser or the Laser Manager app. 600 rpm is the speed the 800 m range is quoted at and the one to use when a receiver is on a machine or you are watching a display. 300 rpm is there when you want it.

Q: How far out of level can I set it up?

It self-levels automatically within +/-5 deg on both axes - horizontal and vertical. If it is set up beyond that, it will not level.

TOPCON RL-HV2S — DB | SKU: 1090052-01-K1

Self-Leveling Dual Grade Rotary Laser Level — Rechargeable Batteries Package

High-Accuracy, High-Value Construction Laser • Made in Japan

Topcon RL-HV series lasers

Grade, layout and plumb. One laser does it all.

A self-leveling dual slope laser with the LS-110D digital receiver, set up by people who sell these every week.

Authorized Dealer

1/16" at 100 ftSelf-leveling accuracy you can check in the field.

Dual slope, X and YSet grade from the panel or the Laser Manager app.

2,600 ft working diameterOne setup covers the whole site.

Laser Manager appChange slope, speed and masking from your phone.

Horizontal and verticalLay it on its side for layout and plumb lines.

IP66, 5-year warrantyBuilt for rain, dust and the jobsite.

Call 1-877-866-5721

We’ll match the kit to your job.

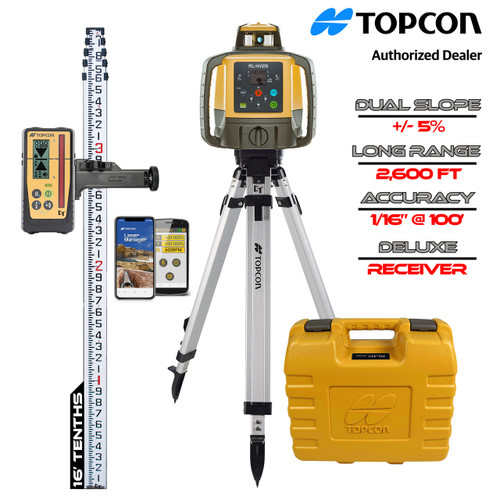

▣ Kit Includes — 10 Items

RL-HV2S Laser LS-110D Receiver Rod Clamp 1011990-01 BT-79Q Rechargeable Batteries Charger AD-15ED2 Battery Holder DB-74C 15-ft Grade Rod TENTHS 11-815T Heavy-Duty Tripod ALQR20 Hard Shell Carrying Case 5-Year Warranty

▣ Topcon RL-HV2S (1090052-01-K1) — Full Kit Contents

RL-HV2S Long Range Dual Grade Laser (Rechargeable Batteries)
LS-110D DELUXE Long Range Laser Receiver Sensor 1011989-01
Receiver Rod Clamp Holder 100 (1011990-01)
BT-79Q NiMH Rechargeable Batteries (4 x D-Cell Alkaline batteries can be used as back-up)
Battery Charger AD-15ED2 / 1012845-02
Rechargeable Battery Holder (313680402) DB-74C
15-Foot Grade Rod TENTHS — 11-815T
Heavy-Duty Aluminum Tripod — ALQR20
Rugged Hard Shell Carrying Case
★ 5-Year Warranty Guarantee

Note: Rechargeable batteries can be removed and replaced with Standard 4-D Cell Alkaline Batteries.

Our price$2,195.00Topcon RL-HV2S RB 1090052-01-K1, sold and supported by Contractors-Tools.com

Lowest Price Guarantee from Contractors-Tools.com

▣ Choose Your RL-HV2S Kit — Compare All Options

	1090052-01 Laser Only	1090052-01-K1 Tenths Kit	1090052-01-K2 Inches Kit
Kit Name	RL-HV2S — Laser + Receiver Only	RL-HV2S K1 — With Tenths Rod & Tripod	RL-HV2S K2 — With Inches Rod & Tripod
Price	$2,050.00	$2,195.00	$2,195.00
Includes	Laser + Receiver + Batteries + Case	+ 15-ft Tenths Rod (11-815T) + Tripod	+ 15-ft Inches Rod (11-815C) + Tripod
Link	View This Kit	View This Kit	View This Kit

TOPCON RL-HV2S — Key Features

H / V

Dual Slope, Long-Range Precision

Self-leveling technology automatically adjusts for horizontal, single, or dual slopes up to ±5% on X or Y axes. Covers a 2,600-ft diameter — perfect for the biggest job sites.

⌘

Bluetooth Laser Manager App

Adjust slopes and check calibration wirelessly via your smartphone. Compatible with iOS and Android — no extra remote needed. Full control from panel or mobile app.

⇅

Vertical Alignment Made Easy

Turn the RL-HV2S on its side, use the built-in mounts, or attach to the included tripod for fast, accurate vertical leveling, layout, and alignment work.

⚡

Long Battery Life

65 hours with included NiMH rechargeable batteries. 120 hours with alkaline batteries (sold separately). Alkaline batteries can be used as a convenient backup.

⚙

Contractor-Friendly Controls

Height of Instrument Alert notifies you of any movement. Electronic shutters let you customize beam output. Simple, intuitive controls via front panel or mobile app.

☂

IP66 All-Weather Rating

Rugged, lightweight, and compact. IP66-rated dust and water protection means this laser is jobsite tough — able to withstand sudden showers and even torrential rainfall.

★ RL-HV2S Top Features at a Glance

✓ Self-Leveling — Single or Dual Slope

✓ Horizontal, Multi-Slope & VERTICAL Applications

✓ Rugged, Lightweight & Compact Design

✓ Long Range Operation — 2,600 ft diameter

✓ High Horizontal Accuracy — 1/16-inch @ 100-feet

✓ Dual Slope, Single Slope or Flat Work modes

✓ Tough IP66 Dust & Water Rating

✓ Horizontal Self-Leveling Range ±5 degrees

✓ Long-Life Rechargeable Battery — 65 hrs / 120 hrs Alkaline

✓ Out-of-Level Notification Alert

✓ Laser Manager App (iOS & Android)

Why Choose the Topcon RL-HV2S?

Built for durability and performance, the RL-HV2S combines Topcon’s legacy of quality with modern innovation. Its robust design and intuitive features make it a must-have for contractors who demand reliability and efficiency. From small layouts to sprawling construction sites, this laser delivers every time.

Ready to experience precision like never before? The Topcon RL-HV2S (1090052-01-K1) is your all-in-one solution for leveling, grading, and alignment. Pair it with the included deluxe receiver, grade rod, and tripod, and take your projects to the next level.

Performance & Application Highlights

▶

MULTI-USE APPLICATIONS

Designed for a variety of tasks — horizontal, sloping, and vertical laser applications. Slopes up to ±5% can be used in either the X or Y axis. Turn it on its side and use it for layout and alignment jobs.

⚡

HIGH POWERED

With an operating range of over 2,600 feet diameter, the RL-HV2S has the power to cover even the biggest projects with ease.

⎓

LONG BATTERY LIFE

Contractors who want a laser with a long battery life will love the RL-HV2S. Operating time of 60 hours with included Rechargeable NiMH batteries and 120 hours on Alkaline batteries — this laser will still be working long after others have quit. Alkaline batteries can be used as a back-up for the Rechargeable batteries.

☂

ALL WEATHER DEPENDABILITY

With the IP66 rating, the TOPCON RL-HV2S is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

★

5-YEAR GUARANTEE

The TOPCON RL-HV2S Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon RL-HV2S Laser — Specifications
Accuracy	1/16-inch @ 100-feet
Self-Leveling Range	± 5 degrees
Working Range Diameter	2,600 feet
Rotation Speed	300, 600 RPM
Light Source	Visible Red Laser 635NM
Laser Class	CDRH(FDA) I — IEC Class 1
Dust / Water Rating	IP66
Operation Time	Rechargeable: 60 hours \| Alkaline: 100 hours
Operational Temperature	-4°F to 122°F
Size	7.0 x 7.7 x 8.5 in
Maximum Power Output	2.4mW
Tripod Screw Thread	5/8-11

Topcon RL-HV2S Laser Series — Model Comparison
Series	RL-HV2S RB	RL-HV2S DB
Model	1090052-01	1051612-21
Laser	RL-HV2S	RL-HV2S
Receiver	LS-110D	LS-80X
Batteries	Rechargeable	Alkaline
★ All laser prices are discounted in shopping cart

Current Topcon RL-HV2S models

1090052-01RL-HV2S with LS-110D digital receiver, rechargeable batteries$2,050.00 1051612-21RL-HV2S with LS-80X receiver, alkaline (d-cell) batteries$1,785.00

INCLUDED: Topcon LS-110D Receiver Sensor — Overview

Topcon LS-110D LASER SENSOR RECEIVER

Versatile and designed for maximum user convenience, the LS-110D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade. By pressing the Hold button, the display is locked so the user can conveniently read the results. For added versatility, three colored LED’s and a strong magnet mount are embedded for vertical operation, ideal for steel erection or operator grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI Alert) or when the laser battery is low.

Topcon LS-110D Laser Receiver Feature Overview

Topcon LS-110D Laser Receiver — Specifications
Working Range (diameter)	2,620 ft (800 m) with RL-HV, RL-200, RL-H5A
Vertical Detecting Range	3.5 inch
LCD Digital Readout Range	2.7 inch
Horizontal Detecting Range	±45°
Strobe Light Suppression	Yes
Units / Measurements	mm / cm / inch / fractional inch
Grade Resolution Settings	±0.02 inch \| ±0.05 inch \| ±0.10 inch \| ±0.20 inch \| ±0.50 inch
LCD Grade Indicators	9 Channels
LED Grade Indicators	Orange, Green, Red (On/Off selectable)
Display	LCD on each side
Buzzer	Loud / Low / Off selectable
Bubble Tube	Yes
Warning Icons	HI Alert, Low Battery (for the RL-4HC, RL-SV2S, RL-HV2S and RL-200 Series)
Battery	One AA/LR6 dry-cell battery
Operation Time	Up to 45 hours with alkaline batteries
Battery Level Indicator	LCD Icon
Auto Shut-off	Approximately 30 minutes
Dust / Water Rating	IP67
Operating Temperature	-4°F to 122°F
Storage Temperature	-22°F to 140°F
Detection Spectrum	620 nm to 800 nm
Readout Accuracy Range	3 ft to 164 ft (1 m to 50 m) from the laser
Index Mark	1.6 inch (41 mm) below the top of the receiver
Dimensions	5.3 x 2.7 x 1.0 inch (135 x 69 x 25 mm)
Weight	0.42 lb (190 g), without the holder
Magnetic Mount	Two Round Magnets on Top
Receiver Sensor Bracket	Screw mount

▣ SitePRO ALQR20 Heavy-Duty Aluminum Tripod — INCLUDED IN THIS KIT

SitePro ALQR20 Aluminum Heavy Duty Quick Release Tripod

Built for the demands of the jobsite, the SitePro ALQR20 delivers rugged stability and fast setup in one dependable package. Constructed from heavy-gauge square aluminum, this tripod features double-banded legs for enhanced strength and reduced flex — ideal for high-precision applications in tough conditions.

The quick-release clamps make setup and adjustments fast and secure, while powder-coated black hardware resists wear, corrosion, and jobsite grime. The replaceable steel shoe points anchor confidently into dirt, gravel, or concrete for solid footing.

With a flat head style and standard 5/8-11 thread, the ALQR20 is compatible with most construction lasers and optical instruments. Extends up to 64 inches and collapses down to 40 inches for easy transport.

Key Features:

Heavy-duty square aluminum construction with reinforced double-band leg design
Quick-release clamps for fast, reliable height adjustments
Durable black powder-coated metal hardware resists jobsite wear
Replaceable steel shoe points for solid traction in any surface
Flat head with 5/8-11 threaded mounting bellhousing
Extended height: 64 inches (163 cm)
Collapsed height: 40 inches (102 cm)

Note on Included Tripod: Unlike kits that cut corners with flimsy tripods, we pair this precision laser with a contractor-grade tripod that matches its quality. When you invest in a precision instrument, you deserve a stable platform — and that’s exactly what we deliver.

▣ SitePro 15-ft Grade Rod TENTHS — 11-815T — INCLUDED IN THIS KIT

SitePro 11-815T 15-ft Aluminum Telescoping Leveling Rod (CR) — Feet & Tenths Graduations

Engineered for performance and built to last, the SitePro 11-815T is a professional-grade 15-ft aluminum leveling rod that delivers pinpoint accuracy, ultra-clear visibility, and rugged reliability for serious layout work. Whether you're grading, staking, or checking elevations with a laser, this rod is your jobsite measuring stick — built for the long haul.

✓ Lightweight Yet Built Tough

Constructed from high-strength aluminum alloy, this rod resists flexing and denting while remaining light enough for all-day field use. Sections glide smoothly and extend quietly — no rattling, no hassle.

✓ Feet & Tenths — Precision in Every Mark

Graduated in Feet and Tenths, the 11-815T delivers fast, field-friendly reading that's perfect for civil, site, and construction work. It doesn't just read in whole numbers — it breaks down to hundredths of a foot, giving you the precision to measure changes in grade as small as 1/100 ft (0.01 ft). Perfect when you're fine-tuning pad elevations, setting slopes, or verifying trench depth.

✓ Weather-Resistant and Easy to Read

Each telescoping section is anodized for corrosion resistance and printed with high-contrast, weather-resistant inks that stay readable in sunlight, dirt, and rain.

✓ Backside Scale for Quick Eye-Level Reads

In addition to front-facing measurements, the rod includes a backside measuring scale, making it easy to determine the exact rod height when viewed at eye level — no need to bend down or guess.

✓ Built for Jobsite Abuse

• Five-section telescoping design with impact-resistant joints
• Heavy-duty polycarbonate locking buttons hold tight and won't slip under weight
• Fully collapses to 48 inches for compact transport and storage in the field

Graduation Note: Graduated in Feet & Tenths — the standard for contractors who work in decimal feet.

Have questions about this product?

☎ Call us at 1.877.866.5721

Questions We Actually Get

Topcon RL-HV2S — Straight Answers

Every figure below comes from Topcon's own RL-HV instruction manual, which we host on this page. If your question is not here, call 1-877-866-5721 and ask somebody who sets these up on a jobsite.

What is the RL-HV2S, and what makes it dual slope?

A self-levelling rotating laser that can hold a grade on two axes at once - X and Y. Each axis takes a grade of up to ±15%, so you can pitch a parking lot to drain in two directions, or a pad with a crossfall, without moving the laser. The single slope RL-HV1S does X only.

What grade range can I set on each axis?

±15% on the X axis and ±15% on the Y axis, set from the front panel (no number keypad, so it takes a lot of button pushes) or from the Laser Manager app, where you type the X and Y grade on your phone's number pad and press Set. The app itself shows the allowed range as -15.000 to +15.000%. Flat work is just 0.000% on both.

How much slope can I really get - is it 5% or 15%?

Two different numbers, and the difference matters on a steep job. The laser will accept a grade of up to ±15% on an axis, but it can only deliver what its self-levelling range allows. Set up normally on a level tripod, you get ±5% without tilting the legs. (Topcon's manual puts the level-head limit at approximately ±8%; in the field, ±5% is the number to plan on.) Past it the laser shows rAnGE OVEr. To go steeper, Topcon's answer is to tilt the laser toward the direction of the slope - in practice, setting the tripod legs so the head leans uphill - which keeps the grade inside the levelling range. Two things to know before you do it: you lose Height Alert on that setup, so the laser will not warn you if it gets bumped, and you should re-check the beam against a known point more often. If your job is steeper than 5%, call us and we will talk it through.

How accurate is it, and how far will it reach?

Topcon rates the RL-HV at ±10 arc seconds on both the horizontal and vertical axes. Working range is approximately 2 to 800 m in diameter (6½ to 2,625 ft) at 600 rpm, as measured by Topcon with the LS-80X level sensor. That range is the laser's; it is the figure to plan the job around.

How fast does it rotate, and which speed should I use?

Two speeds, 300 and 600 rpm, selectable from the laser or the Laser Manager app. 600 rpm is the speed the 800 m range is quoted at and the one to use when a receiver is on a machine or you are watching a display. 300 rpm is there when you want it.

How far out of level can I set it up?

It self-levels automatically within ±5° on both axes - horizontal and vertical. If it is set up beyond that, it will not level.

Can I use it vertically for alignment and plumb work?

Yes. Turn it on its side and it self-levels in the vertical plane, also within ±5°. In vertical rotation, Line Control moves the beam left or right on the X axis, ±5°, so you can walk it onto a reference point without moving the tripod.

What is Matching Mode?

Matching Mode, also called Manual Slope, lets you match the laser to a grade that already exists - a slab, a road, a pipe run. You set the receiver on the existing surface, then use the arrow buttons to lean the beam until it lands on the receiver, so the laser matches what is actually there instead of you calculating a percentage. The manual slope range is ±5° when the laser is on a level surface. It can also be run from the Laser Manager app.

What is Masking?

Masking switches the beam off in the directions you do not need - toward traffic, toward a neighbouring site, toward people - so the laser only turns where the work is. You set it from the menu with the arrow buttons.

What does Height Alert do?

If the laser is knocked or its height changes sharply, Height Alert stops self-levelling and tells you instead of carrying on working off a displaced instrument. It becomes active 10 minutes after levelling and can be switched on or off in the menu. It does not operate while you are setting dual-axis grade in Matching Mode or Manual Mode.

Can I control it from my phone?

Yes. The Laser Manager app for iOS and Android connects over Bluetooth 5.0 and lets you control the laser from your phone - setting slope from the app takes far fewer button pushes. The laser's control panel has no number keypad, so you step to your grade with the arrow buttons; in the app you type the X and Y grade on your phone's number pad and press Set. The app also runs Matching Mode, manual line control, masking and rotation speed, and switches Manual Mode, Sleep Mode and the Safety Lock. Bluetooth range is 100 m horizontal and 20 m with the laser on its side, in good conditions. Topcon's Laser Manager quick guide is on this page to download.

How long do the batteries last?

On four D-cell alkalines, 120 hours. On the rechargeable BT-79Q NiMH pack, 65 hours, with about 13 hours to charge fully. Charge it between 10 and 40°C. The pack is interchangeable with alkalines, so a flat pack is not a lost day.

How tough is it?

Rated IP66 for dust and water. It operates from -20 to +50°C (-4 to 122°F) and is stored from -30 to 60°C. Weight is about 2.6 kg (5.7 lb) with alkaline batteries, 2.8 kg with the BT-79Q. The tripod thread is the standard 5/8 x 11 used on surveying instruments.

What laser class is it?

Class 1, 635 nm, to IEC 60825-1 Ed. 3.0, as stated in Topcon's specification. It is still a laser: do not stare into the aperture and do not point it at anyone.

Where can I get the manual?

Right on this page. We host Topcon's RL-HV instruction manual (with our contact sheet added on the front and back), the check-and-adjustment guide and the Laser Manager quick guide as free PDF downloads. Topcon's own pages are untouched.

Who am I buying from?

Contractors-Tools.com, an authorized Topcon distributor. We stand behind what we sell. Tell us the work - flat pad, single slope, dual slope - and we will check the laser, the receiver and the accessories together before you order. Call 1-877-866-5721.

Source: Topcon RL-HV rotating laser instruction manual (section 11 Specifications and operating sections) and the Topcon Laser Manager quick guide.

Downloads — Topcon RL-HV Manuals

Topcon's own documents, free to download. Authorized Topcon distributor — Contractors-Tools.com.

RL-HV Instruction ManualSetup, grade setting, Matching Mode, masking, specifications · 59 pagesDownload PDF →Topcon LS-110D Receiver Instruction ManualThe receiver in this kit: display, 5 precision modes, buzzer, zero-point offset, menu settings and specifications · 4 pagesDownload PDF → RL-HV Check & AdjustmentsVerify and correct the laser in the field · 9 pagesDownload PDF → Laser Manager App Quick GuidePair your phone over Bluetooth and control the laser · 11 pagesDownload PDF →Laser Manager for RL-HV: Screen GuideEvery Laser Manager app screen for the RL-HV1S and RL-HV2S, and how to move between them · Topcon quick guideDownload PDF →
