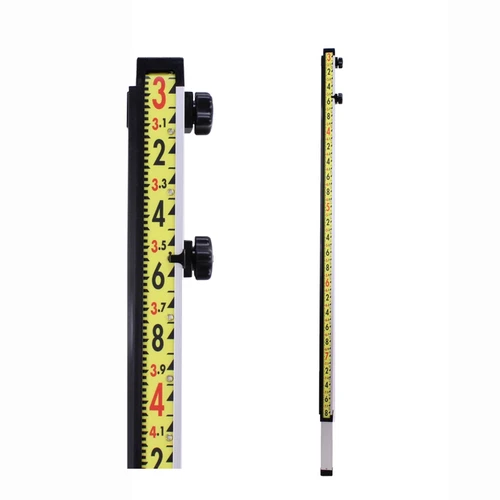

The LaserLine GR1000T is a 10-foot direct reading grade rod graduated in Feet, Tenths & Hundredths. Built on a high-strength clear anodized aluminum frame with a heavy duty matte-textured tape face, it’s engineered for serious construction and surveying applications where accuracy and durability matter. Set your benchmark elevation into the rod once—then read true elevation directly off the tape. No math. No errors.
A Direct Reading (Lenker style) grade rod has a moveable tape face that lets you dial in the actual benchmark elevation—or any reference elevation—directly into the rod. From that point forward, your laser detector reads the true elevation above sea level on every shot. No adding. No subtracting. Since no math is involved, grade shots are significantly faster than conventional rods, and the chance of arithmetic error drops to zero. Ideal anywhere the bench elevation is established by survey and all subsequent shots are referenced above or below that primary bench.
▸Graduated: Feet, Tenths & Hundredths
▸Collapses to 6 feet for transport
▸True elevation / no math required
▸Won’t rust, split, swell, or warp
▸Heavy duty matte textured tape face
▸Tough DuPont nylon parts throughout
▸Oversized heavy duty brass tape lock grommets
▸Safe lock pin — won’t puncture tape
▸Resists tearing under heavy use
▸Laser detector travels full working length
▸No loosening/tightening for each reading
▸Withstands prolonged UV exposure
| Model | LaserLine GR1000T |
| Length | 10 feet |
| Collapsed Length | 6 feet |
| Graduation | Feet, Tenths & Hundredths |
| GR1000 | View |
| Frame Material | High-strength clear anodized aluminum |
| Tape Face | Heavy duty matte textured |
| Tape Lock | Solid lock with internal brake slide |
| Tape Grommets | Oversized heavy duty brass |
| Detector Rail | Black UV-stabilized rail, full working length |
| Parts | DuPont nylon |
| Warranty | 1-year manufacturer’s warranty |
Need color-coded Cut & Fill markings on your direct reading rod? The GR1000 offers the same Feet, Tenths & Hundredths graduation plus Cut & Fill capability in the same 10-foot Lenker-style package.
View GR1000 with Cut & Fill →
| Model | Scale | Cut & Fill | Length |
|---|---|---|---|
| GR1000 | Feet, Tenths & Hundredths | ✓ | View |
| GR1000T ← YOU ARE HERE | Feet, Tenths & Hundredths | — | 10 ft |
| GR1000I | Feet & Inches | — | View |
| GR1000ICF | Feet & Inches | ✓ | View |
| GR1000IT | Inches & Tenths | — | View |
| GR1000M | Metric (3 Meter) | — | View |
| GR1000MCF | Metric (3 Meter) | ✓ | View |
| Model | Scale | Cut & Fill | Length |
|---|---|---|---|
| GR1450 | Feet, Tenths & Hundredths | ✓ | View |
| GR1450T | Feet, Tenths & Hundredths | — | View |
| GR1450M | Metric (5 Meter) | — | 15 ft View |
| GR1450MCF | Metric (5 Meter) | ✓ | View |
