The Locator Alone — For Professionals Who Already Have What They Need

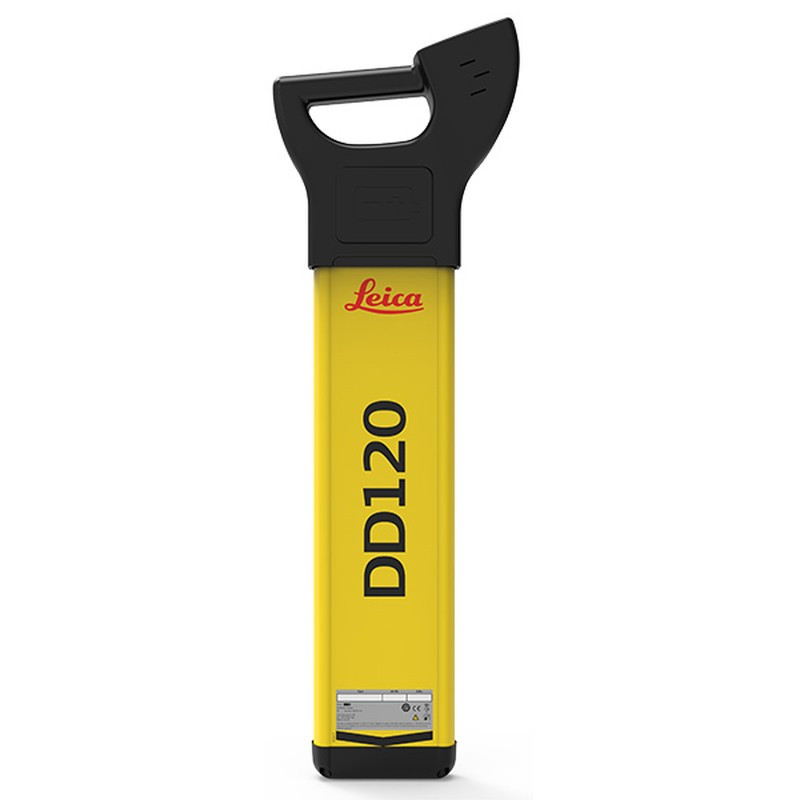

The Leica Detect DD120 Device Only is the locator unit — nothing more, nothing less. If you're a contractor who already owns a DA175 signal transmitter, a Midi Sonde, or other locating accessories, this is the right buy. You get a fresh, professional-grade DD120 without paying for equipment you already have.
Out of the box, the DD120 performs passive detection in Power mode (detecting live 60Hz energized cables) and Radio mode (picking up signals already present on buried services) — no transmitter required for these modes. It's the everyday carry for utility crews who need a reliable CAT before they break ground.
Need full active locating capability? Pair it with a DA175 Signal Transmitter for depth estimation and route tracing, or add a Midi Sonde for non-metallic drain and sewer work. Both are available separately — or consider the Depth Package or Plumbers Package if you need the complete kit.
Active field use — tracing buried utilities before excavation
Precise depth and route detection of buried services
Built for professional performance on demanding job sites
Key Features
Multiple Detection Modes
Auto, Power, Radio, and Transmitter modes detect a wide range of buried utilities without manual frequency selection.
Depth Estimation
Measure line and sonde depth from 0.3m to 3m (1–10 ft) with ±10% accuracy when used with a signal transmitter.
Hazard Zone Indicator
Visual alert warns the operator when the locator detects a buried utility in close proximity — before you dig.
Audio Guidance
85 dBA tone guidance at 30cm helps operators accurately trace buried utilities by sound in noisy site conditions.
15-Hour Battery Life
6× AA alkaline batteries deliver a full day of continuous operation without recharging. Standard batteries available anywhere.
IP54 Weatherproof
Protected against dust ingress and water splashes — designed and tested for demanding construction job site conditions.
Available Configurations
What's In The Box
All packages include the same DD120 locator — the difference is the accessories included.
← Scroll to compare all options →
| Included Item | Device Only Art. 872939 | Plumbers Pkg Art. 6014159 | Depth Pkg Art. 6014155 |
|---|---|---|---|
| DD120 Utility Locator | ✓ | ✓ | ✓ |
| Batteries (6× AA) | ✓ | ✓ | ✓ |
| User Manual | ✓ | ✓ | ✓ |
| 1-Year Warranty | ✓ | ✓ | ✓ |
| Midi Sonde 8/33kHz Non-metallic pipe tracing | — | ✓ | — |
| Locator Bag | — | ✓ | — |
| DA175 Signal Transmitter Depth estimation & tracing | — | — | ✓ |
| System Carry Bag Fits locator, transmitter | — | — | ✓ |
| Price | Add to Cart |
Also available: Plumbers Pkg (Art. 6014159) | Depth Pkg (Art. 6014155)
Device Only What You Need to Know
The DD120 Device Only is the locator unit alone. It works as a standalone tool for passive detection — picking up signals from live, energized power cables and metallic utilities already carrying current (Power mode, 60Hz) or a signal (Radio mode). No additional equipment is required for this use.
However, for full utility locating capability, you will also need:
- DA175 Signal Transmitter (Art. 949370) — Required for depth estimation, tracing dead/de-energized cables, and active route tracing. Included in the Depth Package.
- Midi Sonde (Art. 850289) — Required to locate non-metallic and PVC pipes, drains, and sewers. Included in the Plumbers Package.
- Carry Bag (Art. 850276 or 872942) — Recommended for safe transport and storage on the job site.
Already own a DA175? The Device Only is the right choice — you get a fresh DD120 locator that pairs directly with your existing transmitter and accessories. Not sure which package is right for your application? Call us at 1-877-866-5721 — we'll help you figure it out.
Technical Specifications
| Power Detection | 60Hz mains frequency |
| Radio Frequencies | 15kHz – 60kHz |
| Active Transmitter Modes | 8kHz, 33kHz |
| Auto Mode | Power, Radio, 33kHz |
| Line Depth Range | 0.3m – 3m (1ft – 10ft) |
| Sonde Depth Range | 0.3m – 3m (1ft – 10ft) |
| Depth Accuracy | ±10% (to undistorted signal) |
| Audio Output | 85 dBA at 30cm |
| Environmental Rating | IP54 |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Battery | 6× LR6 (AA) Alkaline |
| Battery Life | 15 hours continuous at 20°C |
| Weight (with batteries) | 2.7 kg / 5.95 lbs |
| Dimensions (H×W×D) | 760 × 250 × 85 mm |
| Compatible Transmitter | DA175 Signal Transmitter (Art. 949370) |
| Certifications | CE, FCC |
| Warranty | 1 Year |
| Article Number | 872939 |
Compare DD Series Models
| Feature | DD120 ← You Are Here | DD130 | DD300 CONNECT |
|---|---|---|---|
| Detection Modes | Auto, Power, Radio, 8kHz, 33kHz | + 512Hz, 640Hz | + 83kHz, 131kHz |
| Max Detection Depth | 10 ft (3m) | 10 ft (3m) | 23 ft (7m) |
| Depth Accuracy | ±10% | ±10% | ±5% |
| Current Measurement | — | ✓ | ✓ |
| GPS / Data Logging | — | — | ✓ |
| Bluetooth | — | — | ✓ |
| Li-Ion Battery Option | — | — | Optional |
| Warranty | 1 Year | 1 Year | 3 Years |
| Starting Price |
