The Leica Transmitter Clamp 100mm (4") is an inductive signal clamp designed for tracing buried conductive utilities — including live power cables, metallic pipes, and conduit — without requiring a direct electrical connection. Simply clamp it around the target cable or pipe above ground, connect to the DA175 or DA300 Signal Transmitter, and the locator can follow the induced 33kHz signal underground. Ideal for situations where direct connection is not possible or unsafe, such as live cable tracing, sealed conduit, or inaccessible junction boxes.
Key Features
No Direct Connection Required
Inductive coupling applies the traceable signal through the clamp jaw — no need to expose, splice, or interrupt the cable or pipe. Safer and faster on live systems.
100mm (4") Jaw Opening
Accommodates standard cable bundles, conduit, and metallic pipes up to 4" diameter. Wide enough for most residential and commercial utility work.
33kHz Single Frequency
Standard utility avoidance frequency compatible with all DD-series locators. Also pairs directly with the DA300 — if you're already running a DD300 setup and only need 33kHz tracing, this clamp works without any additional accessories.
Live Cable Tracing
Safely traces in-service power cables without shutting off the circuit. Designed for use on live electrical utilities with the DA175 or DA300 transmitter.
Lightweight & Portable
Compact inductive clamp that stows easily in a utility bag. Fast to set up — clamp, connect, locate.
EZiTEX Compatible
In addition to the DA175, works with EZiTEX signal transmitters for broader compatibility across utility locating systems.
How It Works
Inductive clamping is the preferred method when direct access to a cable or pipe is not available:
- Open the clamp jaw and position it around the target cable, pipe, or conduit above ground at an accessible access point.
- Connect the clamp to the signal output of the DA175 or DA300 Signal Transmitter (or EZiTEX).
- Energize — the transmitter induces a 33kHz electromagnetic signal onto the utility through the clamp.
- Locate — walk the surface with a DD120 or DD130 locator to track the signal along the cable/pipe route.
- Map and mark the underground path for safe digging or repair work.
Related Items

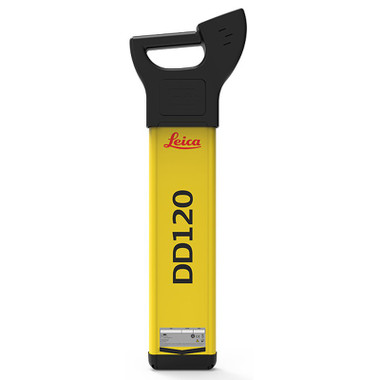

Leica Detect DD120 Utility Locator Base Model (60Hz) 872939
Art. 872939
Entry-level electromagnetic utility locator for detecting buried cables and pipes.
View Product →
Leica Trace Rod 50
Art. 850278
50cm flexible rod for locating non-metallic pipes when used with a signal transmitter.
View Product →
Leica Trace Rod 80
Art. 850279
80cm flexible rod for deeper non-metallic pipe and drain tracing.
View Product →
Leica Property Plug Connector 850284
Art. 850284
US cable set for applying a traceable signal to live electricity power cables.
View Product →
Call for Price
Multi-frequency transmitter that drives the Transmitter Clamp and other DA-series signal accessories.
? Call 1-877-866-5721
Leica Property Plug Connector (US)
Art. 850284
$305
US NEMA socket adapter for the DA175 — safely traces live residential power cables from a wall outlet.
? Call for Availability

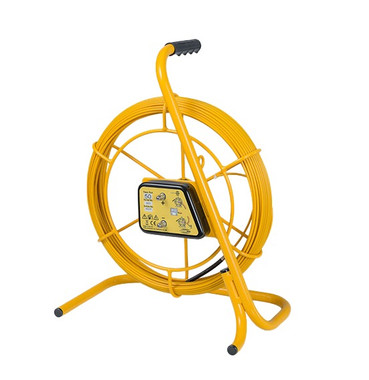

Leica Trace Rod 50
