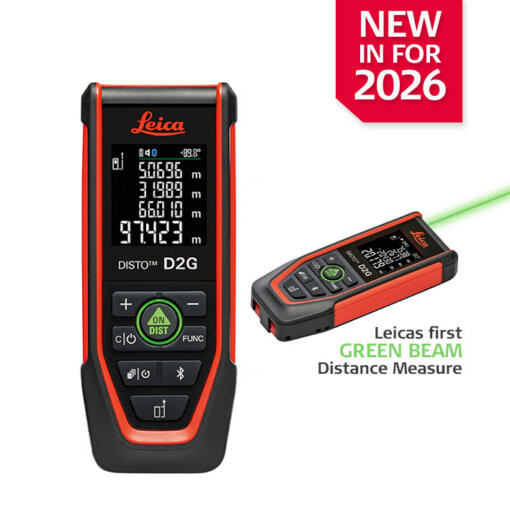

Leica DISTO D2G-2 Green Beam Laser Distance Meter
The World's First Green Beam DISTO — 4x More Visible
Four Smart Features in One Tool
Uses the built-in 360° tilt sensor combined with direct distance measurements to automatically calculate the true horizontal distance — even when the unit is tilted. No math. No errors.
Scan a room by taking diagonal measurements from corner to corner. The D2G-2 sends the measurements wirelessly to the free DISTO Plan app, which automatically generates an accurate floor plan.
Bluetooth® 6.0 and NFC tap-to-transfer give you two ways to send measurements instantly to your smartphone, tablet, or PC — no cables, no manual entry, no risk of transcription errors.
The 518nm green laser is four times more visible to the human eye than a standard red laser, allowing confident measurement up to 120m (400 feet) in typical conditions.
- Green laser 4x more visible than red
- 400ft / 120m range
- ±1.5mm / 0.06in accuracy
- Triangle Area calculation
- Smart Horizontal Mode
- Smart Room floor plan scanning
- 360° tilt / inclination sensor
- Area, volume & Painter functions
- IP54 dust and splash resistant
- 30-result memory storage
- Bluetooth® 6.0 + NFC tap-to-pair
- FREE DISTO Plan app (iOS & Android)

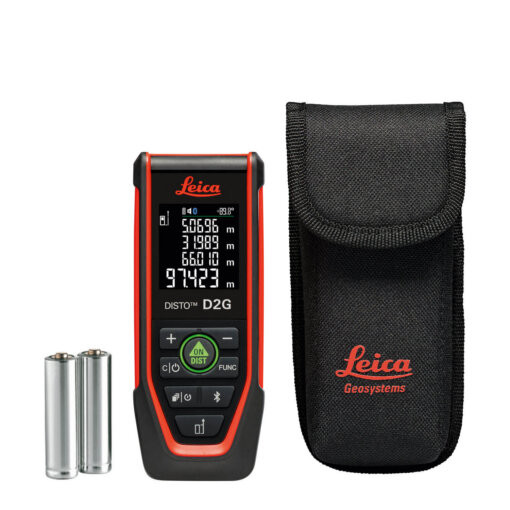

- Leica DISTO D2G-2 Laser Distance Meter
- Soft carry pouch
- Calibration Certificate Silver
- Wrist strap
- 2x AAA batteries (installed)
- 3-year manufacturer warranty

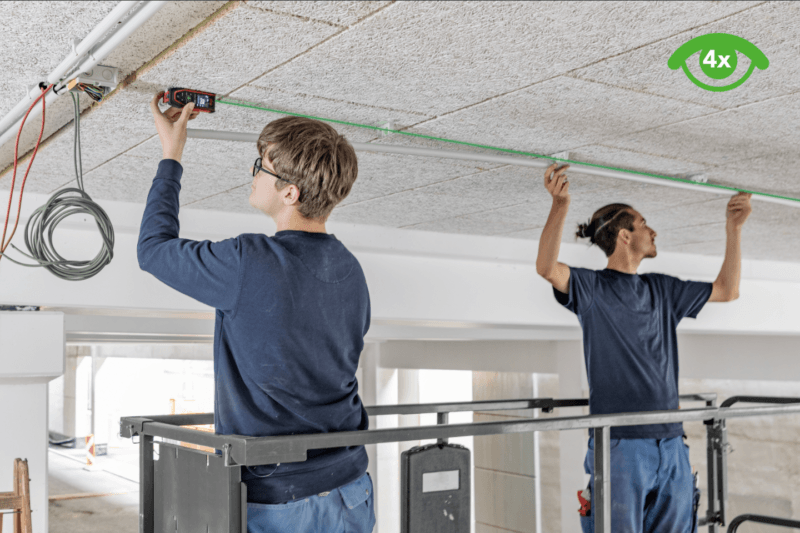

Green Laser — Enhanced Visibility
The green laser dot is four times more visible to the human eye than red laser — especially important in bright environments and outdoors. At 518nm, the green beam sits at the peak of human visual sensitivity, making the dot easy to see across the full measurement range.
Measures up to 120m (400 feet) in favorable conditions, 70m (230 feet) in unfavorable bright conditions. The green laser gives you confidence that you're hitting your target every time.
- 518nm green laser — peak human eye sensitivity
- 4x more visible than standard red 635nm laser
- Class 2 laser, safe for professional use
- Power output: less than 1mW

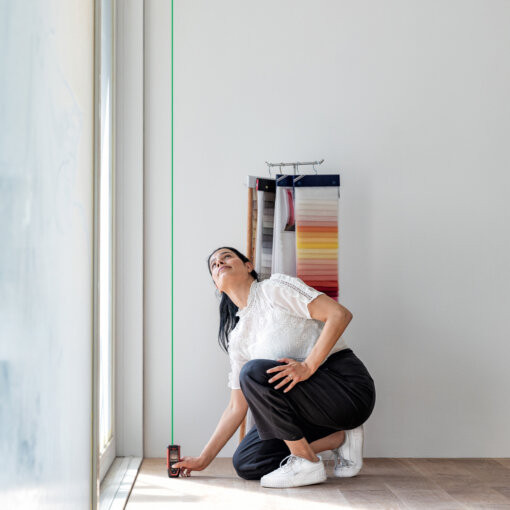

Smart Room — Accurate Floor Plans
With Smart Room, measure a room by taking diagonal measurements from corner to corner. The D2G-2 automatically transfers these measurements to the free DISTO Plan app via Bluetooth or NFC, where the app constructs an accurate floor plan — no sketching required.
DISTO Plan (iOS and Android) lets you export floor plans, add dimensions, and share with clients or contractors. The app is free and requires no subscription.
- Diagonal measurement method for accurate room capture
- Automatic floor plan generation in DISTO Plan app
- Free app — iOS and Android compatible
- Export and share floor plans instantly
Smart Horizontal Mode
Smart Horizontal Mode combines a direct distance measurement with the built-in 360° tilt sensor to automatically calculate the true horizontal distance. This means you can aim at a point on a sloped ceiling, staircase, or uneven surface and get the correct horizontal measurement without any trigonometry or manual calculation.
Part No. 1017809 — a professional-grade feature that saves time on every job where direct line-of-sight horizontal measurement isn't possible.
- 360° inclination sensor built in
- Auto calculates true horizontal from sloped shots
- Ideal for stairwells, sloped ceilings, outdoor grade
- No manual trig or calculation required

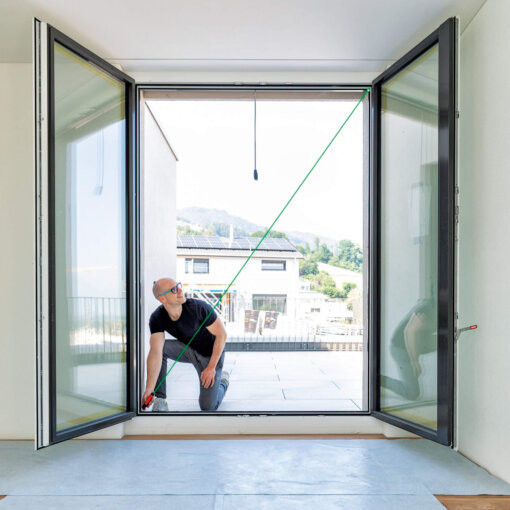

Smart Multifunctional End-Piece
The D2G-2 features a uniquely designed multifunctional end-piece that folds to two positions for versatile measurements. Fold once for measuring from edges and flat surfaces. Fold twice for measuring from inside corners with precision.
The device automatically detects which position the end-piece is in and adjusts the reference point accordingly — zero offset error, zero guesswork. This combined with the 360° inclination sensor means every measurement is reliable regardless of orientation.
- Fold once — edge and flat surface measurements
- Fold twice — inside corner measurements
- Auto-detects end-piece position automatically
- 360° tilt sensor works in any orientation

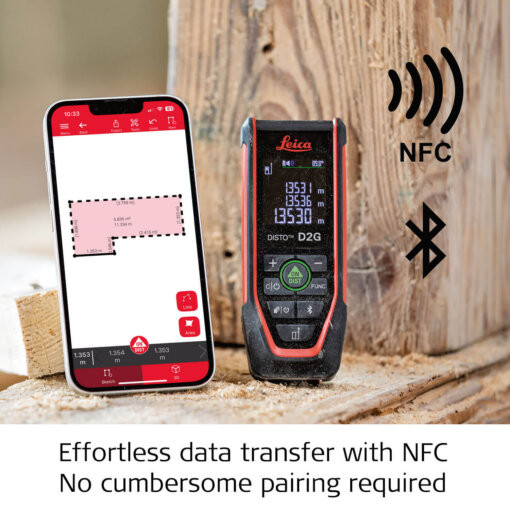

Smart and Easy Data Transfer with NFC
Simply tap your NFC-enabled smartphone to the D2G-2 to instantly pair and transfer the last measurement. No Bluetooth pairing steps, no app launch required — just tap and transfer. It's the fastest way to get measurements into your device.
Bluetooth® 6.0 is also available for continuous wireless connection to the DISTO Plan app and compatible desktop software on Windows.
- NFC tap-to-transfer — no pairing steps needed
- Bluetooth® 6.0 for continuous app connectivity
- Compatible with DISTO Plan app (iOS & Android)
- Windows desktop software compatible
- Transfer measurements directly into spreadsheets
See the D2G-2 in Action
Product Gallery
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 1017809 |
| Weight | 0.184 kg / 6.49 oz |
| Dimensions | 132 × 56 × 29 mm / 5.20 × 2.20 × 1.14 inches |
| Accuracy | ±1.5 mm / 0.06 inches |
| Range (favorable conditions) | 0.05 – 120 m / 0.16 – 400 feet |
| Range (unfavorable / bright) | 0.05 – 70 m / 0.16 – 230 feet |
| Laser Wavelength | 518 nm green |
| Laser Output Power | Less than 1 mW |
| Laser Class | Class 2 |
| Measurement Units | m, ft, in |
| Tilt / Inclination Sensor | Yes — 360° |
| Memory | 30 results |
| Display | 4-line backlit display |
| App (iOS / Android) | Yes — FREE DISTO Plan |
| Windows Desktop Software | Yes |
| Bluetooth | Version 6.0 |
| NFC | Yes — tap-to-transfer |
| Battery Life | 5,000 measurements / approx. 10 hours |
| Batteries | 2 × AAA (included) |
| Protection Rating | IP54 (dust and splash resistant) |
| Warranty | 3 Years |

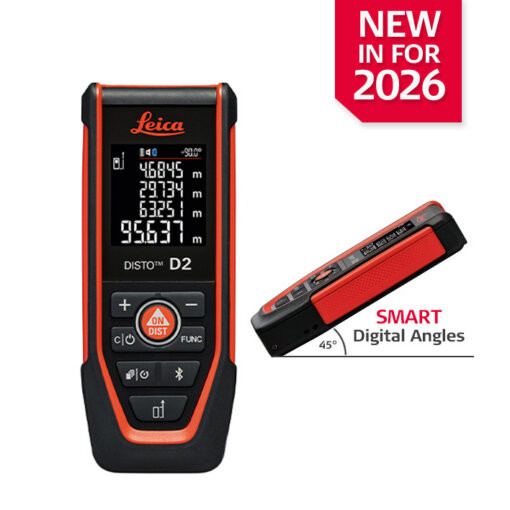

DISTO D2G-2 vs DISTO D2-2
Both the D2G-2 and D2-2 are top-of-the-range DISTO models with Bluetooth 6.0, NFC, Smart Room, and Smart Horizontal. Here's how they differ:
| Feature | D2G-2 (Green) — 1017809 | D2-2 (Red) — 1017800 |
|---|---|---|
| Laser Color | Green 518nm UNIQUE | Red 635nm |
| Green Laser Visibility | 4x more visible to the human eye ADVANTAGE | Standard red visibility |
| Max Range | 400ft / 120m | 500ft / 150m — longer range |
| Accuracy | ±1.5mm | ±1.5mm |
| Battery Life | 5,000 meas. / 10 hrs | 7,000 meas. / 14 hrs — longer battery |
| Bluetooth | 6.0 | 6.0 |
| NFC | Yes | Yes |
| Smart Room | Yes | Yes |
| Smart Horizontal | Yes | Yes |
| 360° Tilt Sensor | Yes | Yes |
| IP Rating | IP54 | IP54 |
| Memory | 30 results | 30 results |
| Warranty | 3 Years | 3 Years |
| Price | $249.95 | $249.95 |
Choose D2G-2 when green laser visibility matters — bright rooms, outdoor use, or when you simply need to see the dot clearly. Choose D2-2 when you need maximum range (500ft) or the longest battery life (7,000 measurements).
