Leica DISTO D2-2 Laser Distance Meter
New Smart Performance for 2026 — Part No. 1017800

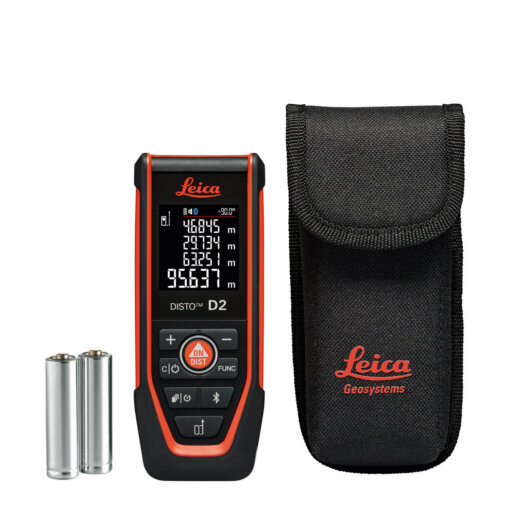

Leica DISTO D2-2 (1017800) — What's Included & Key Features
- Leica DISTO D2-2 unit
- Soft protective pouch
- Calibration Certificate Silver
- Wrist Strap
- 2x AAA batteries (included)
- 3-year manufacturer warranty

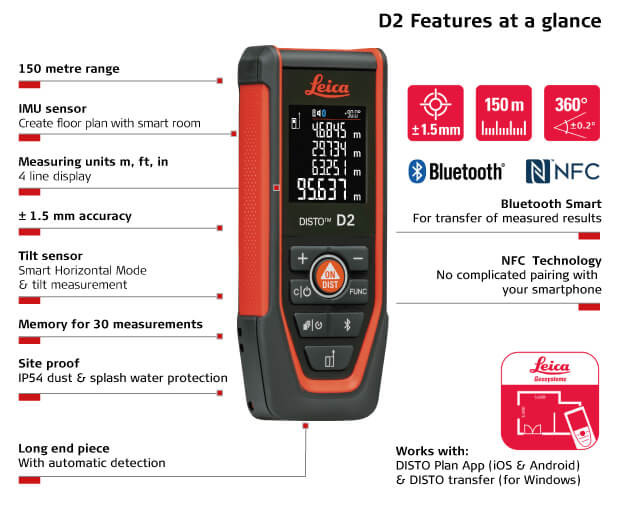

Everything the DISTO D2-2 Delivers
- Range up to 150m (500 feet)
- ±1.5mm accuracy
- Clear 4-line display — easy to read outdoors
- Smart Horizontal Mode — always level measurements
- Smart Room floor plans via DISTO Plan app
- Smart 360° angle tilt sensor
- Area & volume function | Addition/Subtraction
- Painter Function for partial area measurements
- Memory for 30 measurements
- Bluetooth® 6.0 & NFC technology
- Works with FREE DISTO Plan app & DISTO transfer (Windows)

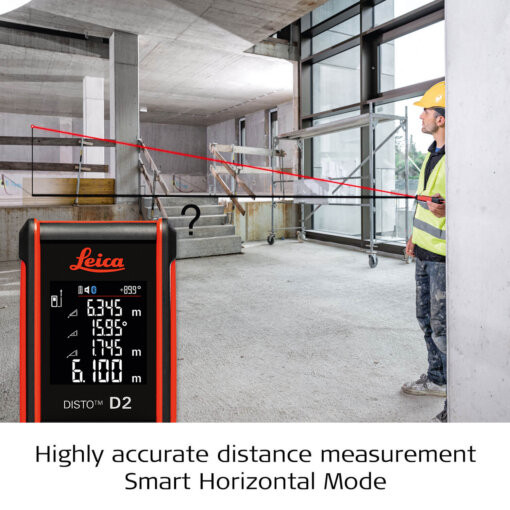

Smart Horizontal Mode
The Leica DISTO D2-2 (Part No. 1017800) combines distance and tilt measurement so you can determine the horizontal distance easily and with absolute precision, even over long distances or obstacles.
Using the built-in 360° tilt sensor, the D2-2 automatically calculates the true horizontal distance from any angle — no trigonometry, no manual conversion. Aim the laser at any point on a slope, staircase, or angled surface and get the correct flat-ground distance instantly.
- Built-in 360° inclination sensor
- Auto-calculates horizontal distance from sloped shots
- Ideal for stairwells, sloped ceilings, outdoor grades
- No math or manual calculation required

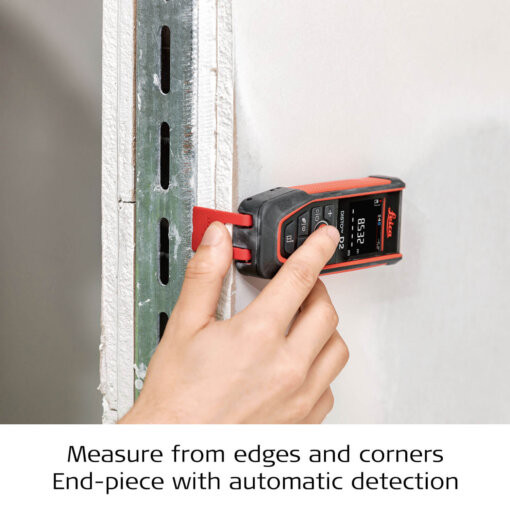

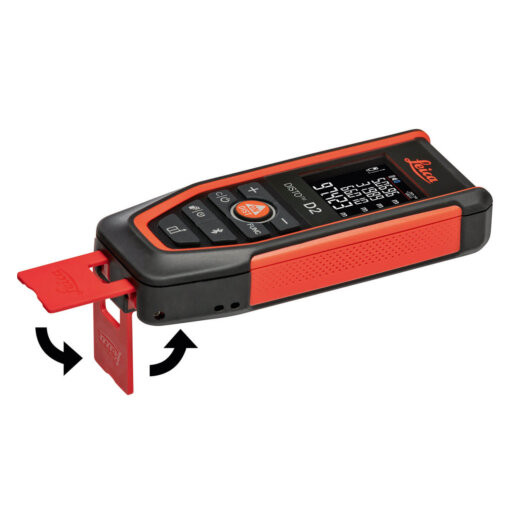

Smart Multifunctional End-Piece
Whether measuring out of corners, slots or from edges, with this end-piece you are prepared for all measuring situations. The instrument detects the end-piece automatically, which helps to avoid expensive errors.
The multifunctional end-piece folds to two positions for maximum versatility. Fold once for edge and flat surface measurements. Fold twice for precise inside corner measurements. No guesswork — the D2-2 always knows which position you're using.
- Fold once — edge and flat surface measurements
- Fold twice — inside corner measurements
- Auto-detects end-piece position — no offset errors
- Works in any orientation with 360° tilt sensor

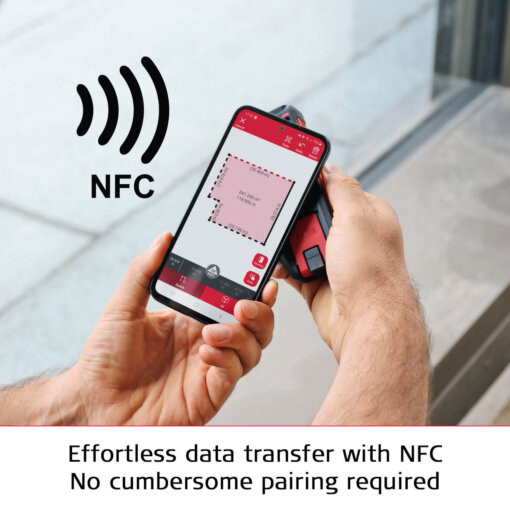

Smart and Easy Data Transfer with NFC
NFC (Near Field Communications) offers seamless connectivity with the DISTO Plan app, eliminating the need for pairing. Simply place your DISTO near the smartphone to transfer measurements. Data can also be transferred using Bluetooth® 6.0.
Whether you're on a job site without time to pair devices, or in the office transferring measurements to Windows desktop software, the D2-2 gives you two fast, reliable wireless options.
- NFC tap-to-transfer — no pairing steps needed
- Bluetooth® 6.0 for continuous app connectivity
- Compatible with DISTO Plan app (iOS & Android)
- Windows desktop software (DISTO transfer) compatible
- Transfer measurements directly into spreadsheets

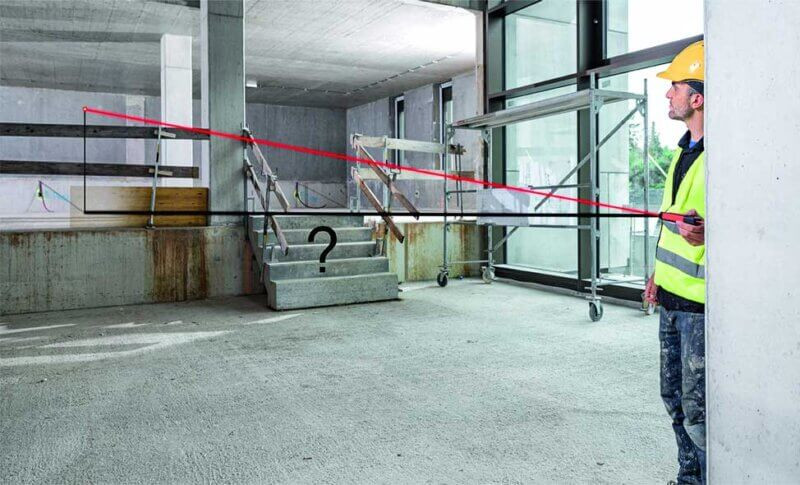

Smart Horizontal Measurements
- 1 Fully extend the DISTO's measuring end piece.
- 2 Place the end piece against the object you're measuring from.
- 3 Select the Smart Horizontal Measuring mode from the menu.
- 4 The DISTO activates the built-in inclination tilt sensor, showing angle percentage on screen.
- 5 Shine the laser at any angle — the DISTO calculates true flat-line horizontal distance, angle of slope, and slope length. All at one button press.

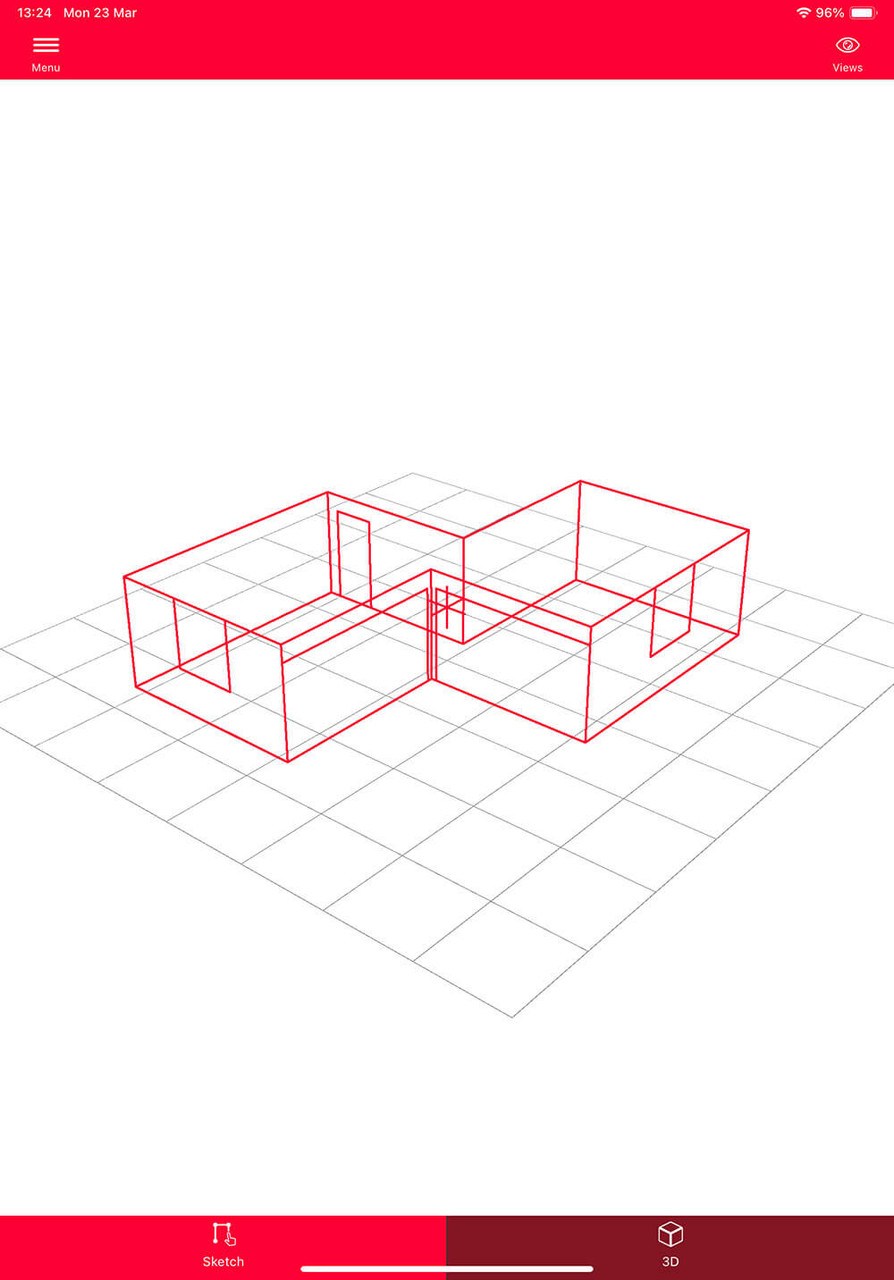

New DISTO Plan App Feature — Works with 1017800

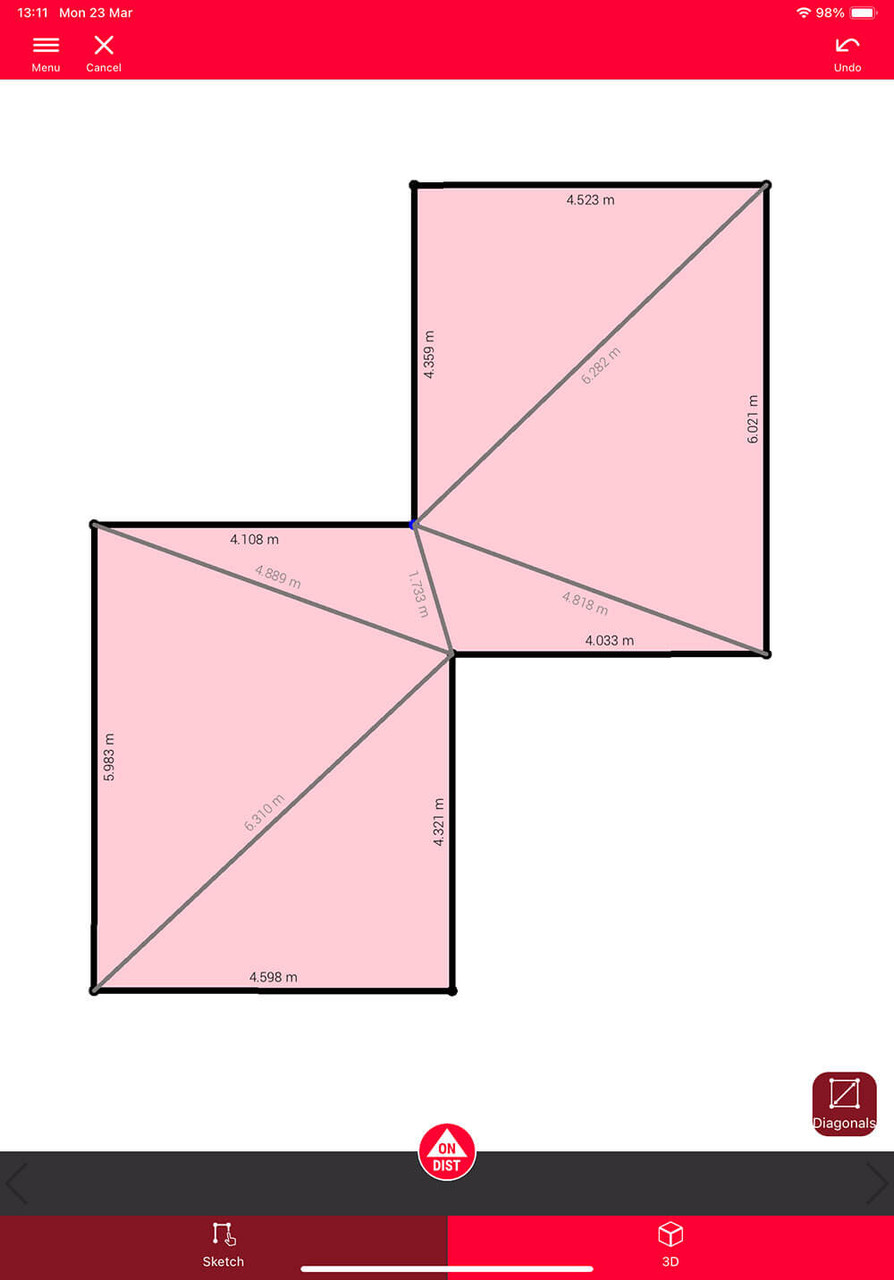

Getting accurate room measurements can be slow, & mistakes are easy to make, especially when walls aren't perfectly square. With Smart Room & the new Diagonals feature, you can walk around the room, measure each wall in order & the app builds the floor plan for you.
The free DISTO Plan app (iOS and Android) receives measurements from the D2-2 wirelessly via Bluetooth or NFC, automatically constructing accurate floor plans you can export and share.
What you get:
- Faster room plans
- Fewer mistakes
- Accurate even when walls aren't square
- Results you can trust
Product Gallery
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 1017800 |
| Weight | 0.184 kg / 6.49 oz |
| Dimensions | 132 × 56 × 29 mm / 5.20 × 2.20 × 1.14 inches |
| Accuracy | ±1.5 mm / 0.06 inches |
| Range (favorable conditions) | 0.05 – 150 m / 0.16 – 500 feet |
| Range (unfavorable / bright) | 0.05 – 80 m / 0.16 – 260 feet |
| Laser Wavelength | 635 nm red |
| Laser Output Power | Less than 1 mW |
| Laser Class | Class 2 |
| Measurement Units | m, ft, in |
| Tilt / Inclination Sensor | Yes — 360° |
| Memory | 30 results |
| Display | 4-line backlit display |
| App (iOS / Android) | Yes — FREE DISTO Plan |
| Windows Desktop Software | Yes |
| Bluetooth | Version 6.0 |
| NFC | Yes — tap-to-transfer |
| Battery Life | 7,000 measurements / approx. 14 hours |
| Batteries | 2 × AAA (included) |
| Protection Rating | IP54 (dust and splash resistant) |
| Warranty | 3 Years |

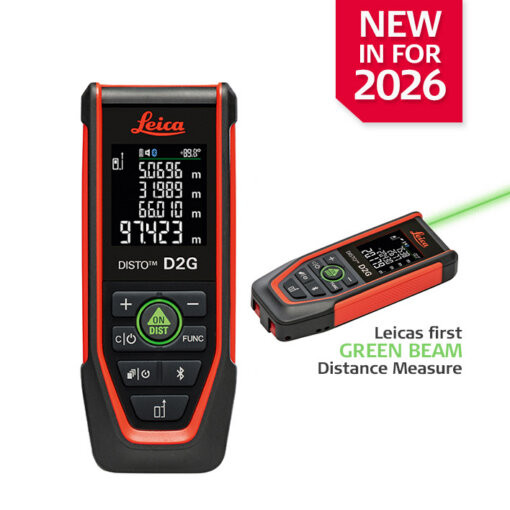

DISTO D2-2 vs DISTO D2G-2
Both the D2-2 and D2G-2 are top-of-the-range DISTO models with Bluetooth 6.0, NFC, Smart Room, and Smart Horizontal. Here's how they differ:
| Feature | DISTO D2-2 — 1017800 RED LASER | DISTO D2G-2 — 1017809 GREEN LASER |
|---|---|---|
| Laser Color | Red 635nm | Green 518nm |
| Laser Visibility | Standard red visibility | 4x more visible to the human eye |
| Max Range | 500ft / 150m ★ Better | 400ft / 120m |
| Unfavorable Range | 260ft / 80m ★ Better | 230ft / 70m |
| Accuracy | ±1.5mm | ±1.5mm |
| Battery Life | 7,000 meas. / 14 hrs ★ Better | 5,000 meas. / 10 hrs |
| Bluetooth | 6.0 | 6.0 |
| NFC | Yes | Yes |
| Smart Room | Yes | Yes |
| Smart Horizontal | Yes | Yes |
| 360° Tilt Sensor | Yes | Yes |
| IP Rating | IP54 | IP54 |
| Memory | 30 results | 30 results |
| Painter Function | Yes | Yes |
| Warranty | 3 Years | 3 Years |
| Price | $210.00 | $249.95 |
Choose D2-2 when you need maximum range (500ft), the longest battery life (7,000 measurements), or the best value price. Choose D2G-2 when green laser visibility matters — bright rooms, outdoor use, or when you simply need to see the dot clearly.
