3X360 Green Beam Line Laser

PLL30-G

Three Planes. One Walk. Every Room Covered.

The Plott PLL30-G fires three simultaneous 360° green laser planes — horizontal and two vertical — marking out an entire space in seconds. Compact enough to carry in your tool bag. Built tough enough to handle the job site.

● 3 Full 360° Green Planes 100 Ft Range Self-Levels in ≤3 Sec IP54 Rated 3-Year Warranty

Add to Cart → View Full Specs

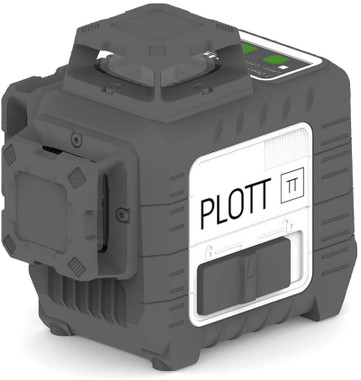

Plott PLL30-G 3X360 green line laser clean studio shot with PLOTT branding on white background

3 × 360° Green Planes ● Self-Leveling ±4° ● 100 Ft Working Range ● Pulse Mode for Outdoor Use ● USB-C Rechargeable ● 8+ Hour Battery ● IP54 Job Site Rated ● 3-Year Warranty ● 3 × 360° Green Planes ● Self-Leveling ±4° ● 100 Ft Working Range ● Pulse Mode for Outdoor Use ● USB-C Rechargeable ● 8+ Hour Battery ● IP54 Job Site Rated ● 3-Year Warranty

100ft

Working Range

±4°

Self-Leveling

≤3sec

Levels In

8+hr

Battery Life

3yr

Warranty

The Overview

Your Entire Room.
Covered in Green.

Traditional line lasers give you one beam. The PLL30-G gives you three — simultaneously. One horizontal plane across the entire room. Two vertical planes crossing it at 90 degrees. Everything plumb and level, wall to wall, the second you turn it on.

That means tile contractors can layout the whole floor in one shot. Framers can snap both walls and ceiling reference lines without moving the unit. Plumbers can run horizontal pipe grades and plumb drops at the same time.

And because it's green beam technology, you can actually see it. Even in well-lit interiors, green is four times more visible to the human eye than red. You'll see the line. So will your crew.

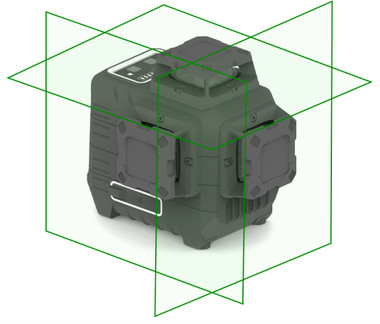

Plott PLL30-G 3X360 diagram showing all three green laser planes: horizontal sweeping every wall and two vertical planes crossing at 90 degrees for complete room coverage

All three planes active simultaneously — one horizontal sweeping every wall, two vertical planes crossing at 90° for complete room coverage in a single setup

What's Included

Everything You Need.
Day One.

The PLL30-G ships with a complete kit — not just the laser. Every accessory is designed to get you on the job site immediately without hunting for extras.

✓
PLL30-G 3X360 Green Line Laser — the unit itself, charged and ready
✓
Adjustable Magnetic Bracket — attaches to steel studs and metal surfaces, adjustable positioning
✓
Grid Target Plate — magnetic, reflective, graduated in inches and cm. Enhances beam visibility in bright or long-range conditions
✓
Laser-Enhancing Glasses — increases green beam visibility in bright environments without a detector
✓
USB-C Charging Cable — standard USB-C, no proprietary connection
✓
Hard-Shell Carrying Case — protects the unit and all accessories during transport and storage

Plott PLL30-G 3X360 line laser three-quarter angle view showing magnetic bracket attached on white studio background

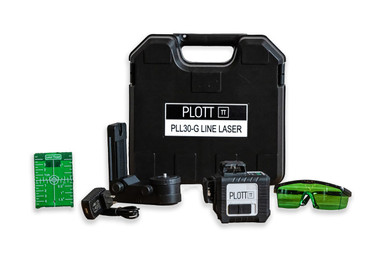

Plott PLL30-G 3X360 hard shell carrying case with all included accessories

Why PLL30-G

Built for the Field.
Priced Like It Belongs There.

Every feature on the PLL30-G exists for one reason: to help contractors work faster, more accurately, and with less hassle.

🌟

Three Full 360° Green Laser Planes

One horizontal plane + two vertical planes fire simultaneously. Mark out an entire room — floor, walls, and ceiling reference — without repositioning. Green beam technology delivers 4× more visibility than red in lit interiors.

⚡

Self-Levels in Under 3 Seconds

Set it down, turn it on, and the PLL30-G is level within ±4° in less than 3 seconds. No manual adjustment, no waiting. The pendulum locks in, the beams stabilize, and you're working. That's the entire startup sequence.

Pulse Mode for Detector Use

In bright environments or beyond 100ft, activate Pulse Mode — the beams flash at high frequency, invisible to the eye but readable by a laser detector (sold separately). Extends your working range and makes outdoor layout possible.

🔒

Pendulum Lock for Safe Transport

The built-in pendulum lock physically secures the self-leveling mechanism during transport and storage. It also enables Manual Mode — lock the pendulum and the laser holds any fixed angle, perfect for projecting reference lines on inclines.

🔋

USB-C Rechargeable — 8+ Hours

Charges with any USB-C cable — the same one on your phone. A full day's work on a single charge. The battery indicator shows you exactly where you stand, so you're never caught mid-job with a dead laser. No proprietary chargers, no AA scrambles.

🌂

IP54 Job Site Rated

IP54 means dust-resistant and splash-proof — rated for real construction environments. Drywall dust, concrete mist, the occasional water splash. The PLL30-G keeps working. It's also one of the smallest 3×360 lasers on the market at just 1.1 lbs.

In the Field

See It Work.
On Real Job Sites.

These aren't studio shots with perfect lighting. This is the PLL30-G doing its job on actual construction sites.

Plott PLL30-G mounted on wall bracket projecting horizontal and vertical green laser beams in framed interior with exposed wood

Interior Framing Layout Both vertical planes and the horizontal beam active simultaneously. Wall bracket keeps it positioned at any height while framing crews work off all three reference lines at once.

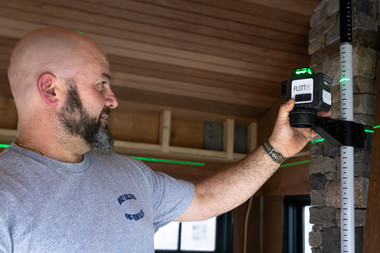

Contractor using Plott PLL30-G on a measuring rod with horizontal and vertical green laser beams across stone and wood interior

Grade Rod & Beam Reference Mounting on a measuring rod gives instant adjustable-height positioning. Here, horizontal and vertical beams mark layout points across a mixed stone-and-wood interior — no tape measure involved.

Plott PLL30-G on construction floor projecting green laser beams with tools and construction materials in background

Floor Layout Set on the floor, both vertical beams shoot straight up through the space, giving you a perfect 90° reference grid for tile layout, partition starts, or column positioning.

Plott PLL30-G on tripod in wooden-floor interior projecting horizontal and vertical green laser beams

Tripod-Mounted Precision Pair it with any 1/4" tripod for stable, height-adjustable positioning. All three planes remain live while the tripod head lets you fine-tune position without touching the laser.

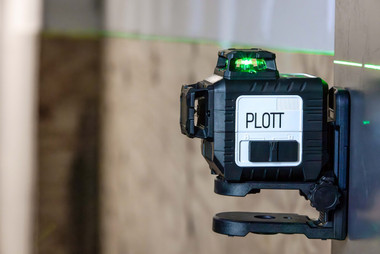

Plott PLL30-G mounted on bracket with green horizontal beam across wall surface in interior construction setting

Horizontal Reference Line A single horizontal plane sweeps across every wall in the room simultaneously. One setup, and every surface has a level reference — no snapping chalk lines, no re-leveling for each wall.

Plott PLL30-G on wall bracket projecting green laser beams across brick construction wall background

Masonry & Brick Layout The magnetic bracket grips steel studs and metal surfaces while the laser holds perfect plumb and level. Horizontal + vertical beams give masons a complete reference grid without helper lines.

How It Works

Three Modes for Every Situation

The PLL30-G adapts to the job — not the other way around. Three operating modes handle everything from standard leveling to angled reference lines to outdoor detection work.

Auto Self-Leveling Mode

The standard working mode. Unlock the pendulum, power on, and the laser automatically levels all three planes within ±4° in under 3 seconds. Power indicator glows green. Press the mode button to cycle through beam combinations.

● Green indicator● Auto-levels instantly● 6 beam combos

Manual Mode

Lock the pendulum, power on, and the laser holds whatever angle you give it. Mount it on a slope, hold it at an angle — the beam stays where you put it. Power indicator glows red. Every 5 seconds the beams flash briefly to conserve battery.

● Red indicator● Any fixed angle● 5-second flash interval

Pulse Mode

Works in either leveling or manual mode. Activates high-frequency beam pulsing — invisible to the eye but detectable by a compatible laser receiver. Expands working range beyond 100ft and enables use in bright outdoor environments where the beam isn't visible.

● Add-on to any mode● Receiver-compatible● Outdoor range extension

Beam Combinations

Auto Mode — 5 Beam Combinations

Press the mode button once per press. Hover any row to highlight it.

Press	Horizontal Beam	Vertical Beam	Side Beam
1	Active	Off	Off
2	Off	Active	Off
3	Off	Active	Active
4	Active	Active	Off
5	Active	Active	Active
6	↵ Cycles back to press 1

Applications

Every Job It Handles

From tile to framing to drop ceilings — three laser planes replace hours of manual layout work with a single setup.

🪟

Tile & Flooring Layout

Set the PLL30-G in the center of the room and both vertical planes give you a perfect 90° starting grid across the entire floor — wall to wall. No chalk lines. No squaring math. Start laying immediately.

🏠

Drywall & Partition Framing

Run the horizontal beam as your height reference across every wall simultaneously while the verticals mark partition lines. One laser position covers what used to take chalk lines on each surface individually.

🏛

Drop Ceiling Grid Installation

Compact and lightweight, drop ceiling grid work becomes fast and simple — no more struggling with bulky rotating lasers overhead. The horizontal plane gives you a level reference line around the entire room perimeter for hanging wall angle.

🔨

Door & Window Alignment

The vertical beams shoot plumb reference lines from floor to ceiling on both axes. Install door frames, window headers, and structural openings that are dead plumb — every time, first try.

🚶

Plumbing Reference Lines

Use the horizontal beam to establish pipe run grades across the space while the verticals mark drain stack locations. Run both reference lines simultaneously without moving the unit between tasks.

📏

General Layout & Squaring

The 3×360 beam pattern provides complete reference geometry for any interior layout task. Set it once in the center of any space and every surface — floor, walls, ceiling — has a level and plumb reference.

Real Job Sites

Works Hard Every Day.

Plott PLL30-G with accessories kit showing horizontal and vertical green beams on dusty job site surface

Full Accessory Kit On Site — Bracket, carrying case, and grid target alongside the laser on an active site

Plott PLL30-G mounted on vertical black surface projecting green laser line across plywood

Vertical Beam Plumb Reference — Mounted on a vertical surface, the laser holds a true plumb line for stud and column layout

Plott PLL30-G on measuring staff showing horizontal green beam across unfinished interior walls

Horizontal Level Check — A horizontal reference beam across unfinished walls establishes height marks for cabinets, fixtures, and framing

How It Stacks Up

More Accurate. Longer Warranty.
Same Price Range.

The PLL30-G delivers tighter accuracy and a longer warranty than competing 3×360 green line lasers in the same category — on the features that matter most on the job site.

Feature	Competing 3×360	Plott PLL30-G
Measuring Accuracy	1/8" at 30 ft	5/64" at 33 ft ▲
Warranty	2 Years	3 Years ▲
Self-Leveling Range	±4°	±4°
Working Range	100 ft	100 ft
Battery Life	8 hours	8+ hours
Charging	USB-C	USB-C
Pulse Mode (Detector)	Yes	Yes
Pendulum Lock	Yes	Yes
IP Rating	IP54	IP54
Magnetic Bracket Included	No	Yes ▲

Accuracy comparison based on published specifications. Competing 3×360 refers to green line lasers in the same category and price range.

Watch It Work

PLL30-G in Action

See the three-plane coverage in a real construction environment — how fast it levels, how visible the beams are, and how contractors use it on an active job site.

Technical Specs

Built
Job-Site Tough

The PLL30-G is engineered for real construction conditions — dust, splash, rough handling, and long days. IP54 rated. 8+ hour battery. Accurate enough to depend on where it counts.

5/64" Accuracy @ 33 ft

IP54 Weather Resistant

3-Year Limited Warranty

8+ Hour Battery Life

100 Ft Working Range

Specification	Value
Measuring Accuracy	5/64" at 33 ft (>1/12")
Self-Leveling Range	±4°
Leveling Duration	≤3 seconds
Working Range	100 ft (30 m) diameter
Laser Type	Green — 520 ± 10 nm
Laser Class	Class 2 (<1 mW)
Beam Configuration	3 × 360° (1 horizontal, 2 vertical)
Beam Modes	6 selectable combinations
Manual Mode	Yes — pendulum lock
Pulse Mode	Yes — detector compatible
Battery Life	>8 hours
Charging	USB-C
Weather Rating	IP54
Tripod Mount	1/4" thread
Weight	0.51 kg / 1.1 lbs
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity (max)	90% relative
Warranty	3-Year Limited

Product Detail

Built Tight. Every Detail.

Top-down view of Plott PLL30-G 3X360 control panel showing mode buttons, battery indicator, and pulse button

Control Panel — Mode button cycles beam combinations. Pulse button activates detector mode. Battery indicator shows charge status. Lock switch controls pendulum.

Close-up side detail of Plott PLL30-G showing adjustment knobs and mode switch on white background

Side Controls & Lock Switch — The pendulum lock switch is accessible and clearly labeled. Switching from Auto to Manual takes one motion.

Compact Form Factor — At just 1.1 lbs and one of the smallest 3×360 line lasers on the market, the PLL30-G fits in any tool bag without adding bulk.

Questions & Answers

Common Questions

The PLL30-G has three operating modes. Auto Self-Leveling (green indicator) is the standard mode — the laser automatically levels itself when placed within ±4° of level. Manual Mode (red indicator) locks the pendulum so the laser holds any fixed angle — useful for projecting lines on inclines or special angles. Pulse Mode overlays a high-frequency pulse on any mode so a compatible detector can read the beam in bright conditions or at longer ranges.

Yes. Pressing the mode button cycles through 6 different beam combinations — horizontal only, front vertical only, both verticals, horizontal + front vertical, all three, and back to start. You have full control over which planes are active, so you're not burning battery on planes you don't need.

Yes. Pulse Mode makes the beam flash at a frequency that's invisible to the human eye — it's specifically designed to be picked up by a laser detector (not included). In normal indoor lighting, the green beam is visible without a detector. Pulse Mode is for bright outdoor conditions or working beyond the 100ft range where the beam becomes hard to see.

The PLL30-G measures to 5/64" accuracy at 33 feet. To put that in context, many competing 3×360 green line lasers in the same price range are rated at 1/8" accuracy at 30 feet. The PLL30-G delivers tighter accuracy at a slightly longer reference distance — which matters on large-format tile and precision framing work where small errors add up over distance.

The PLL30-G has a standard 1/4" thread mount on the bottom — compatible with virtually any camera tripod or survey tripod with a 1/4" stud. It also works with any tripod that has a 1/4" ball head or quick-release plate. We carry compatible tripods at Contractors-Tools.com if you need a recommendation.

The PLL30-G is rated at over 8 hours of continuous use — enough for a full work day. It charges via standard USB-C, the same connector as most modern phones. First charge should run at least 8 hours to condition the battery. The battery indicator on the control panel shows remaining charge so you're never caught off guard mid-job.

The PLL30-G is rated IP54 for dust and splash resistance, so it handles outdoor conditions. However, like all line lasers, direct sunlight can wash out the beam. For outdoor use, Pulse Mode + a compatible laser detector extends effective working range and cuts through ambient light. For fully exposed exterior work at long range, a rotary laser may be a better fit — call us at 1-877-866-5721 and we'll help you pick the right tool.

Plott provides a 3-year limited warranty covering defects in materials and workmanship from the date of purchase. This includes repair or replacement of defective units at Plott's discretion. The warranty requires proof of purchase and that the unit hasn't been modified or repaired by unauthorized parties. Three years is significantly longer than most competing line lasers in this category, which typically offer 2 years.
