Spectra DG813-3 Dialgrade Pipe Laser
Compact, Tough and Smart - Perfection in a Pipe
When speed, improved reliability, robustness and long lasting performance are required for Pipe Laying the Spectra Precision DG813 is the answer. Completely waterproof, with large self-levelled grade range, the DG813 is so fast, so smart and so easy to use that it is an unsurpassed laser tool for pipe laying.
| Spectra Precision DG813-3 Pipe Laser INCLUDES |
|
|
|
|
| Spectra DG813-3 Pipe Laser OVERVIEW |
|
Designed to fit around tighter inverts, the Spectra Precision DG813 delivers the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefitting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. The top of the range model, DG813, comes with a smart Spot Finder, which the laser can align to automatically and can also calculate the grade - great for checking previous work on a second day set-up. The DG813 works over a distance of 500 feet providing a full operation in a single set-up between manholes. The new RC803 remote control provides full funcion control and utilizes infra-red light in a pipe forup to 500 feet control. For "over the top" setups, the remote utilizes radio communications up to a distance of 430 feet. Large graphical user interface can be seen easily when the laser is in a manhole. All funcions are available via graphical menu which makes it simple and easy to use - no secret button pressing and short learning curve means it can be handed to anyone in your crew with little or no training. The sam graphical interface is used at the RC803 remote control. In addition, the DG813 comes with a smart Spot Finder SF803 which increases even further the productivity. This Spectra DG813 has Automatic Functions that can detect the beam and align automatically to the center of the Spot Finder, ideal for first day set-up, and can also calculate the grade – great for checking previous work on a second day set-up! The DG813 has a bright beam moving quickly and accurately for alignment and grade. It can be easily spotted in the pipe and enhanced with the patented target that bends the beam upwards making it easy to see when looking down at the pipe reducing the need to bend down to see the beam when in the trench or standing above the trench. Simple to use, with the new menu driven user interface, the DG813 helps you improve efficiency and provide unprecedented performance and reliability. Working in the trenches just got easier with the new range of pipe lasers from Spectra Precision. |
| Spectra Precision DG813-3 FEATURES and BENEFITS |
|
| Spectra Precision DG813-3 Pipe Laser APPLICATIONS |
|
| SPECTRA PRECISION DG813-3 KEY FEATURES |
| SELF-LEVELING The Spectra DG813 features the largest automatic leveling range in the industry providing quick, easy setups, regardless of grade. Unlike traditional pipe lasers, they eliminate the need for rough leveling and minimize crew training. Simply set up the laser in the pipe, manhole or open cut without the need to swivel or rough level the unit. LINE ALERT This unique feature is ideal for working in high-vibration or wet conditions where the pipe lasers may be disturbed. The beam flashes to notify you that the setup line has been disturbed, eliminating the necessity of rework. Combined with the self-leveling warning, you’ll always complete the job correctly, on time and on budget! LINE SET The Line Set/Check capability of both pipe lasers allows you to raise the beam up to 100% outside of the trench for fast line setup or checking. Raising the laser beam out of the trench to an above-ground stake saves you time—instead of having to move the excavator off line during setup of the pipe laser, you can just get on with your job. In addition, the Line Set-Check feature is ideal for rechecking the line for pipe jacking after each push. SPOT FINDER SF803 This advanced tool detects manual and automatic beams of the Dialgrade DG813 Pipe Laser. Spot Align, Spot Match and SpotLok are unique features that make the DG813 the smartest pipe laser in on the planet. TARGET Our patented Target Lens collects the beam and transfers the spot up to the pipe layer’s angle of view, making it very easy to see the laser beam (inclusive in the standard package). Shorter Length Grade Range -12% to +40% Self Leveling over the entire grade range and full cross axis compensation SPEED Ultra-Fast beam movement Operating Range up to 500-foot with radio / IR remote control BIG and Intuitive Graphic Display at the Laser and Remote Control IP68 protection (dust and waterproof) Flexible power options (NiMH / Alkaline) Batteries Advanced Functions squeezing work time: LINE SET/CHECK (first day set-up), LINE SCAN (second day set-up) and LINE ALERT Automatic Functions for beam alignment, beam detection, and grade calculation - DG813 ONLY |
| Spectra Precision DG813-3 TECHNICAL SPECIFICATIONS |
|
| Remote Control Spectra RC803 TECHNICAL SPECIFICATIONS |
|
| SPOT FINDER Spectra SF803 TECHNICAL SPECIFICATIONS |
|

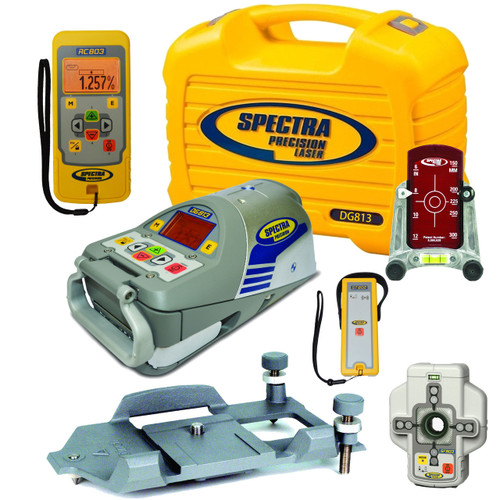

| Spectra Precision DG813-3 Series Pipe Laser Components | ||||
| DG813 | DG813-3 | DG813-5 | DG813-6 | |
| Pipe Laser (DG813) | ✔ | ✔ | ✔ | ✔ |
| Remote (RC803) | ✔ | ✔ | ✔ | ✔ |
| Spot Finder (SF803) | ✔ | ✔ | ✔ | ✔ |
| Centering Plate (1248) | ✔ | |||
| Large Centering Plate (1230) | ✔ | ✔ | ||
| Large Centering Plate Metric (1237) | ✔ | |||
| Adjustable Vertical Pole (1239) | ✔ | ✔ | ||
| Adjustable Pipe Target (956) | ✔ | ✔ | ✔ | ✔ |
| Rechargeable Batteries | ✔ | ✔ | ✔ | ✔ |
|
Charger |
✔ | ✔ | ✔ | ✔ |
| Case | ✔ | ✔ | ✔ | ✔ |
(1) at 21° Celcius(2) Under optimal atmospheric circumstances
(3) Along the axis
(4) Depending on WIFI/WLAN ambient enviornment
| Spectra Precision Pipe Laser Comparison Chart |
|||||
| DG613 | DG813 | ||||
 |
 |
||||
| Grade Range |
-12% to +40% |
||||
| Self-Leveling Range | Complete grade range (no rough leveling required) also automatic compensated in the cross axis |
||||
| Line range |
20° ±1° | ||||
| Line center |
Yes |
||||
| Menu with variable settings |
Yes | ||||
| Line set / check / Line alert | Yes |
||||
| Temperature Compensation | Yes |
||||
| Spot Align, Spot Match, Spot Search with SF803 |
No |
Yes | |||
|
Water Proof |
Continuous submersion at 10 ft |
||||
|
Laser classification / output |
3A/3R / 4.5 mW, optional 2 / <1 mW |
||||
| Weight | 8.78 lbs |
||||
| Length / Diameter |
9.8 inches / 5.3 inches | ||||
| Wireless Remote Specifications | |||||
| Remote Control Type 2-way Communication |
RC803 Radio / IR Remote Control offers all Laserfunctions |
||||
| Through the pipe range |
500 feet | ||||
| Front / Over the pipe range | 425 feet | ||||
| Battery Life |
1 Year | ||||
|
|||||
|
||||||||||||||||||
Spectra Precision DG813 — Straight Answers
Every figure below comes from Spectra Precision's own brochure and user guide for this laser, both of which we host on this site. If your question is not here, call 1-877-866-5721 and ask somebody who sets these up in a trench.
What does the DG813 do that the DG613 does not?
Three automatic functions the DG613 does not have, all working with the SF803 Spot Finder that comes with it: Spot Align drives the beam onto the target by itself, Spot Match measures a grade you do not know in an existing pipe or trench, and SpotLok locks the beam to the target and holds it. The ST802 Transporter, which extends radio range, is also standard here and optional on the DG613. See the auto alignment question below for what each one actually does on site.
What is the SF803 Spot Finder, and how do I use it?
A target the laser can see and talk to, out to 150 m. Pairing takes seconds - both units off, hold Escape/Lock, switch the laser on, then switch the Spot Finder on and it pairs itself. On site you set it at the point you want - the far manhole, the next pipe, the invert you are checking - and tilt it toward the laser. Then pick Spot Align, Spot Match or SpotLok on the laser or the remote. Four LEDs on the Spot Finder go solid red when the beam is centred on it, so you can see it has found the mark from where you are standing. It runs 30 hours on four AA cells and is rated IP67.
How does the DG813 help on a second-day setup?
This is where it earns the difference. Coming back to a run you did not set yourself - or did not set yesterday - you put the Spot Finder at a known invert and use Spot Match. The laser finds it, passes the beam through it and tells you the grade that pipe is actually laid at. No drawing, no calculation, no guessing. Then you carry on from there.
What is auto alignment, and do I need it? (DG613 vs DG813)
This is the question we get asked most about these two, so here it is in full. Auto alignment is the DG813's headline difference and it is really three functions, all of them working with the SF803 Spot Finder - a target the laser can see and talk to.
Spot Align drives the beam onto the target for you. The beam drops to 0%, spreads into a rotating fan and sweeps until it finds the centre of the Spot Finder - up to 45 degrees of search - then settles on it. Your grade value is held the whole time. You set the target at the far manhole and the laser finds it; you do not walk the run.
Spot Match is the one people underrate. It measures a grade you do not know - in an existing pipe or an open trench. The beam fans, aligns to the Spot Finder, passes through it, and the laser displays the grade it just measured. That is how you pick up somebody else's run, or your own from a fortnight ago, without a drawing.
SpotLok aligns and then holds - the same idea as PlaneLok on a grade laser. The beam locks to the Spot Finder's centre and stays there.
Do you need it? If you set up once in the morning and run pipe all day, the DG613 does that job and costs less. If you are in and out of manholes - checking work, picking up runs, resetting after somebody knocks the laser - the DG813 pays for itself in setups, and Spot Match answers a question the DG613 simply cannot.
How accurate is it, and how far will it reach?
Plus or minus 1.5 mm at 30 m - a sixteenth of an inch at 100 feet, which is 10 arc seconds - and it works out to 150 m, 500 feet. That is the laser's range; it does not change with the target you use.
What grade range does it cover?
-12% to +40%, and it self-levels over that entire range with full cross-axis compensation. Set it at the invert, switch it on and the levelling starts straight away. If you have placed it outside the range the beam stays flashing so you know to reposition rather than working to something wrong.
Will it survive being in a wet trench?
It is rated IP68 - the highest dust and water rating on a pipe laser - so standing water in the invert is not a problem. The remote is IP66 and the Spot Finder IP67.
How long does a battery last?
On the 10000 mAh NiMH pack, about 40 hours on a red laser and 30 on the green. The remote runs 130 hours on two AA cells and the Spot Finder 30 hours on four. You can also run the laser on alkalines if a pack goes flat on you.
What is Line Scan, and what is Line Set/Check?
They are the two setup shortcuts, and they save the most time. Line Set/Check is the first-day setup without a Spot Finder - the beam moves to 0% then sweeps vertically up to 45 degrees so you can set your line. Line Scan sweeps the beam left and right to the limits of the horizontal axis and stops centre; when it crosses your target you stop it and fine-tune with the arrow buttons. That is a second-day setup done without climbing in.
What is Line Alert?
A guard against the laser being knocked. After levelling, Line Alert arms itself - 30 seconds or 5 minutes, your choice. If the laser is disturbed the beam and LEDs flash to tell you. You then check the beam against the target at the last pipe you laid rather than finding out later that half a run is off.
How big is it, and will it fit a tight invert?
25 cm long and 13.5 cm in diameter - 9.8 by 5.3 inches - and 3.98 kg with batteries. The short body is the point: it was designed to fit around tighter inverts than the lasers it replaced.
What temperature will it work in?
-20 to +50 C, which is -4 to 122 F. It also carries temperature compensation, so the beam holds its line as the trench warms through the day rather than wandering off it.
What laser class is it?
Class 3A/3R, under 5 mW, to IEC 60825-1:2014. A Class 2 version is also available. Never look into the beam or direct it at anyone's eyes, and keep the warning labels on the unit.
Do I want the red beam or the green one?
Honestly, it depends on the work, and we are not going to push you up to green for the sake of it. Green is easier to see. The human eye is far more sensitive to green than to red at the same power, so the spot is quicker to find and easier to read at the far end of a long run, in daylight, or against a bright trench wall. Red lasts longer and costs less - about 40 hours a charge against 30 on the green. If your runs are short, or you are working deep where it is dark anyway, the red does the same job for less money. If you are regularly at the long end of 500 feet, or fighting daylight, the green earns its difference. Call 1-877-866-5721 and describe the work - we will tell you which one we would buy.
Is it only for sewer and storm drain, or does it do conduit too?
Conduit as well, and that is a bigger share of the work than most people expect. Anything that goes in a trench to a grade or a line - sanitary, storm, water, ducting and conduit banks - is the same job to the laser. We sell a lot of these into electrical and utility work, and increasingly into solar farm and data centre construction, where the conduit runs between arrays, buildings and switchgear have to hold line and grade over long distances. Same laser, same setup, same answer.
Who am I buying from?
Contractors-Tools.com, an authorized Spectra Precision dealer. We set these up and service them. Tell us the work - pipe size, run length, what you are laying - and we will spec the laser, the target and the remote together before you order. Call 1-877-866-5721.
Source: Spectra Precision DG series pipe laser family brochure and the DG613 pipe laser user guide.
