Spectra Precision GL612-1 Single Grade Laser with (2) x HL750 Receivers

Product Description

Spectra Precision GL612-1 Single Slope Grade Laser
with (2) HL750 Laserometer Laser Receivers and RC602 Remote

Versatile Automatic Single Grade Laser for Level, Grade, and Vertical Alignment


Spectra Precision Laser GL612-1 Single Grade Laser Easy-To-Use, Full Featured Automatic Grade Laser The GL612 is a single slope grade laser. This rugged, automatic self-leveling laser has a grade capability of ± 25% and can be used in a wide variety of grading, excavating and alignment applications by general and specialty contractors. An intuitive keypad and graphic display mae all grade and alignment functions easy to use and greatly reduces setup time and increases productivity. The GL612 includes the RC602 full-function radio remote control which offers advanced automatic features like Grade Match, PlaneLok and Automatic Axis Alignment. The remote as well as the transmitters have an intuitive graphic display which is back-lit for ease of viewing. Contractors can do everything with the remote control that they can do at the laser keypad, up to 330 feet away—even from the cab of a machine. The ability to make grade changes remotely can significantly reduce setup time and speed operations. Each laser package also includes the advanced HL750 Laserometer that provides a digital readout of elevation and can be used at an operating diameter of up to 2,600 feet. Wireless communication between the HL750 Laserometer and the transmitters provide automatic Grade Matching which allows measurement of unknown grade values between two points. For applications that require maximum stability and accuracy, PlaneLok is available in both the horizontal and vertical planes. PlaneLok automatically locks the beam on the receiver and keeps it on grade. This reduces typical environmental factors that may induce an error. In addition, the HL750 Laserometer can communicate with another HL750 for long-range wireless remote display and monitoring. The GL612 Grade Lasers self-plumb in the vertical position to allow an even wider range of applications such as such as anchor bolt installation, form, tilt up, and curtain wall plumbing. With its rugged design, the GL612 Grade Lasers can survive a drop of up to 3-feet on concrete. The laser also features IP67 moisture and dust sealing to handle the tough construction environment. The GL612 Grade Lasers retains all well accept functions of the GL500 series lasers with additional advanced features and benefits offering much more versatilities.

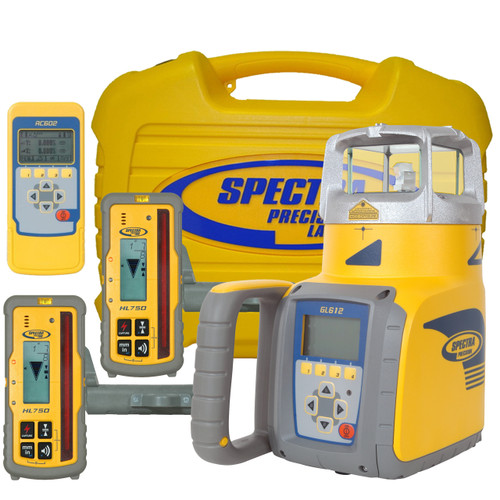

Spectra Precision GL612-1 Laser Package INCLUDES
GL612 Single Grade Laser Transmitter RC602 Remote Control (2) x HL750 Laser Receivers (2) Clamps for Receivers C70 Worldwide Charger NiMH Rechargeable Battery Pack Carrying Case Operating Manual
Spectra Precision GL612-1 Key FEATURES and BENEFITS
GL612 is a single grade laser with a compensated grade range of -25% to +25%. Vertical and horizontal setups are also compensated Quick setups with the 2-way radio remote control Simplifies level, grade and vertical allignment setups Long operating range 2600-foot diameter Intuitive keypad and graphic display Password secured Automatic temperature compensation Electronic Leveling Vibration Filter dampens vibrations typically experienced on tall tripods, in high winds, or on high vibration jobsites Very rugged with low service costs; takes a 3-foot drop on concrete Mask mode eliminates interference with other crews on the jobsite Radio communication between the laser and HL750 Laserometer allow advanced features and remote display capabilities Grade Match displays the existing grade over unknown ground and eliminates time consuming and error prone calculations, time spent searching for grade plans, and over excavating PlaneLok automatically locks on to an existing elevation or vertical alignment point which eliminates all drift or possibility of error due to improper calibration or weather 5 Year “No Cost” Warranty
Spectra GL612-1 Laser General Construction APPLICATIONS
Leveling concrete forms, footers and Pads Precision placement of concrete for critical specification surfaces over long distance and with laser controlled screeds (Automatic PlaneLok) Drift free general construction vertical allignment and plumb for plus form, tilt up and curtain wall plumbing (Automatic PlaneLok) General construction vertical alignment and plumb such as anchor bolt and form alignment “Over the top” sewer and storm drain pipe installations Sports fields, driveways, ramps and drainage General construction grading and excavating Steep slope road embankments and ditch banks
Spectra Precision HL750 Laser Receiver APPLICATIONS
Trenching Remote grade checking with cable free remote display Wireless monitoring of foundations and steel erections Risk free monitoring of tilt up wall position
GL612 Laser Package Component COMPARISION CHART
Model	Receiver	Receiver Accessories	Remote
GL612	HL750	C70 Rod Adapter	RC602
GL612-1	(2) x HL750	(2) x C70 Rod Adapter	RC602
GL612-14	CR600	C50 Rod Adapter and C51 Magnetic Mount	RC602
All part numbers include laser transmitter, case and NiMH rechargeable battery pack and charger

GL612 SPECIFICATIONS
