Spectra Precision LT180G

Spectra Precision LT180G Green Beam Crossline and Point Laser

The Spectra LT180G is a professional-grade green beam crossline and point laser designed for contractors who need dependable layout accuracy on interior jobs. It combines bright horizontal and vertical green lines with precise plumb and layout points, allowing crews to handle leveling, squaring, point transfer, and alignment tasks with a single tool. The green diode provides improved visibility in larger rooms, down long hallways, and in brighter indoor environments where red lasers struggle.

This laser is built for fast setups and repeatable accuracy. Its automatic self-leveling system brings the unit on grade within seconds and alerts the user if it has been disturbed or placed outside of its leveling range. The robust pendulum locking system protects the compensator during transport and allows the LT180G to be used in out-of-level applications when manual mode is needed.

Spectra Precision LT180G Green Beam Laser Package INCLUDES

LT180G Green Laser Transmitter
Green Magnetic Ceiling Target : 1225-1300
1/4"-20 Magnetic Wall Mount : 1225-5200
Ceiling Clamp : 1215-1100
Li-ion Batteries 11.1 Volt (2,000 mAh) : LS3190A
Charger : 1225-5060
USB-C Cable : 1225-5050
Protective Hard Case 1225-1200
User Guide

2 Year Factory Warranty

The LT180G supports a wide variety of trades by offering both crossline coverage and multiple layout points. Contractors can mark floor layout, transfer points to ceilings, align partitions, set track, plumb walls, and establish level benchmarks without switching tools. The bright green lines carry across wide interior spaces, making it a dependable reference for framing, finish carpentry, cabinet installation, tile layout, electrical work, ceiling installation, mechanical alignment, and general interior construction.

A versatile mounting system allows the LT180G to attach to metal track, studs, columns, tripods, and other surfaces common on commercial and residential jobsites. Fine vertical and horizontal adjustments help dial in the line precisely on layout marks without needing to move the entire laser. The included rechargeable battery system keeps operating costs down and supports all-day use, while the compact and durable housing stands up to jobsite handling, vibration, and transportation.

Spectra Precision LT180G Green Laser HIGHLIGHTS

THE BEST VALUE
BRIGHTER GREEN POINTS with LONGEST DISTANCE
BRIGHTER GREEN LINES with LONGEST DISTANCE
210° HORIZONTAL LINE
LINES INTERSECT POINTS
MORE ACCURATE
MORE ROBUST - The Only Brand Warranted for a 3-Foot Drop

Spectra Precision LT180G Green Laser Key Contractor FEATURES and BENEFITS

Green beam lines and points provide enhanced visibility for interior layout work
Horizontal and vertical crosslines allow fast leveling and squaring from one setup
Plumb up and plumb down points support precise point transfer from floor to ceiling
Self-leveling pendulum ensures accuracy and provides out-of-level alerts
Manual mode allows angled lines for specialized applications
Strong, durable housing designed for daily jobsite use
Multiple mounting options support framing, ceilings, interior finish, and mechanical trades
Fine-tune adjustments make it easy to align the beam to layout marks
Rechargeable battery reduces downtime and eliminates constant alkaline replacement
Compact case and small footprint make it easy to carry and store

The Spectra LT180G is a reliable all-in-one layout tool that reduces setup time, improves accuracy, and replaces the need for multiple separate leveling and alignment tools. It is well suited for contractors who want consistent performance, long-range visibility, and dependable accuracy for everyday interior construction and layout work.

Spectra Precision LT180G SPECIFICATIONS

Accuracy

1/8-inch @ 30 feet foot

Visual Distance - Points

115-foot

Visual Distance - Lines

230-foot

Distance with OPTIONAL Laser Receiver

250-foot

Laser Power

Less than 1 mw

Laser Class

Class 2

Mounting

1/4-20

Batteries

Lithium 3000 mAh, 7.2 Volt

Battery Life

Charging Time

8 hours

< 4 Hours (30 minute quick charge provides 2 hours operation)

Out of Level Indication

Double Flashes every 10 sec

Self-Leveling Range

3° ±0.5° all directions

Dust and Water Resistance

IP54

Operating Temperature

14° to 113° Fahrenheit

Storage Temperature

-4° to 140° Fahrenheit

Size (L x W x H)

5.7 x 3.0 x 5.9 inches

Weight

1.4 lbs

Warranty

2-Years / Battery 1 Year

3 Year Warranty includes Free Instant Over-the-Counter Exchange for the first 2 years and supplemental charge for the 3rd year. Warranty Covers 3-foot drop.

SPECS:

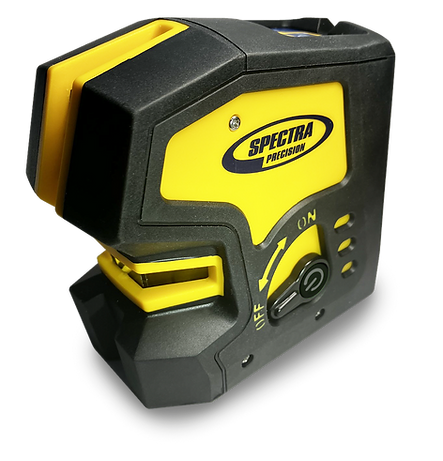

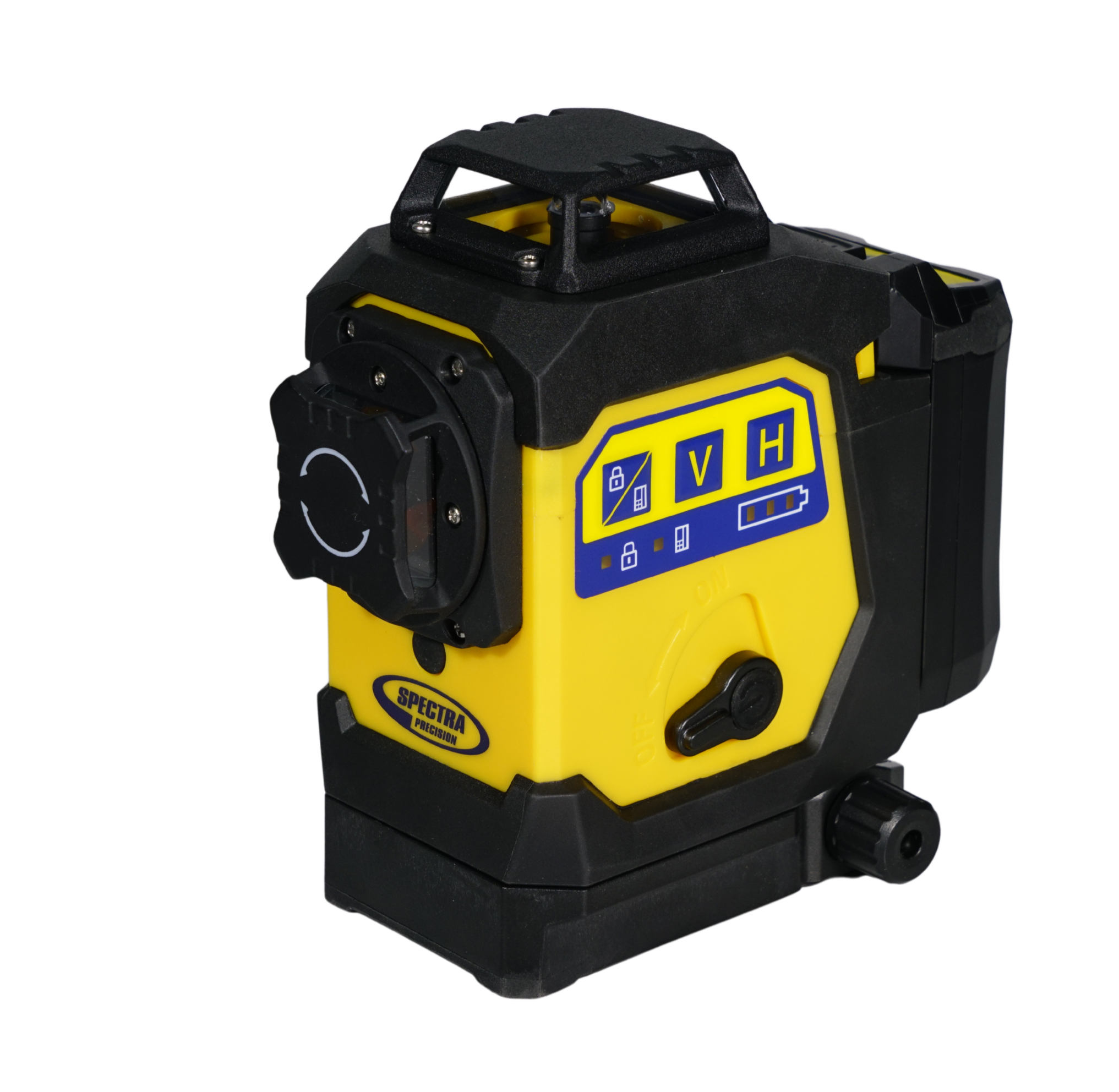

	LT20XG	LT180G	LT360G
Accuracy	±3mm @ 10m 1/8 in at 30 ft	±3mm @ 10m 1/8 in at 30 ft	±3mm @ 10m 1/8 in at 30 ft
Visible Working Range	115 ft line 230 ft points 250 ft with receiver	115 ft line 230 ft points 250 ft with receiver	115 ft line Not applicable for points 250 ft with receiver
Laser Output Class	<1mW Class 2	<1mW Class 2	<1mW Class 2
Laser Color and Wavelength	Green 520nm	Green 520nm	Green 520nm
Power Source	4 x AA batteries	Lithium battery 7.2V	Lithium battery 11.1V
Battery Runtime	Up to 14 hours	Up to 8 hours	Up to 8 hours
Pendulum Lock Alert	Double flash every 10 seconds	Double flash every 10 seconds	Double flash every 10 seconds
Charge Time	Not applicable	Under 4 hours 30 minute quick charge for about 2 hours of operation	Under 4 hours 30 minute quick charge for about 2 hours of operation
Out of Level Warning	Beam flashes continuously	Beam flashes continuously	Beam flashes continuously
Self-Leveling Range	3 degrees ±0.5 degree all directions	3 degrees ±0.5 degree all directions	3 degrees ±0.5 degree all directions
IP Rating	IP54	IP54	IP54
Operating Temperature	14°F to 113°F	14°F to 113°F	14°F to 113°F
Storage Temperature	-4°F to 140°F	-4°F to 140°F	-4°F to 140°F
Tripod Thread	1/4-20	1/4-20	1/4-20 5/8-11
Dimensions L x W x H	120 x 60 x 120mm 4.72 x 2.36 x 4.72 in	121 x 70 x 109mm 4.75 x 2.75 x 4.25 in	145 x 89 x 160mm 5.7 x 3.5 x 6.3 in
Weight	1.2 lbs	1.4 lbs	2.2 lbs
Warranty	2 year product warranty	2 year product warranty 1 year battery warranty	2 year product warranty 1 year battery warranty
