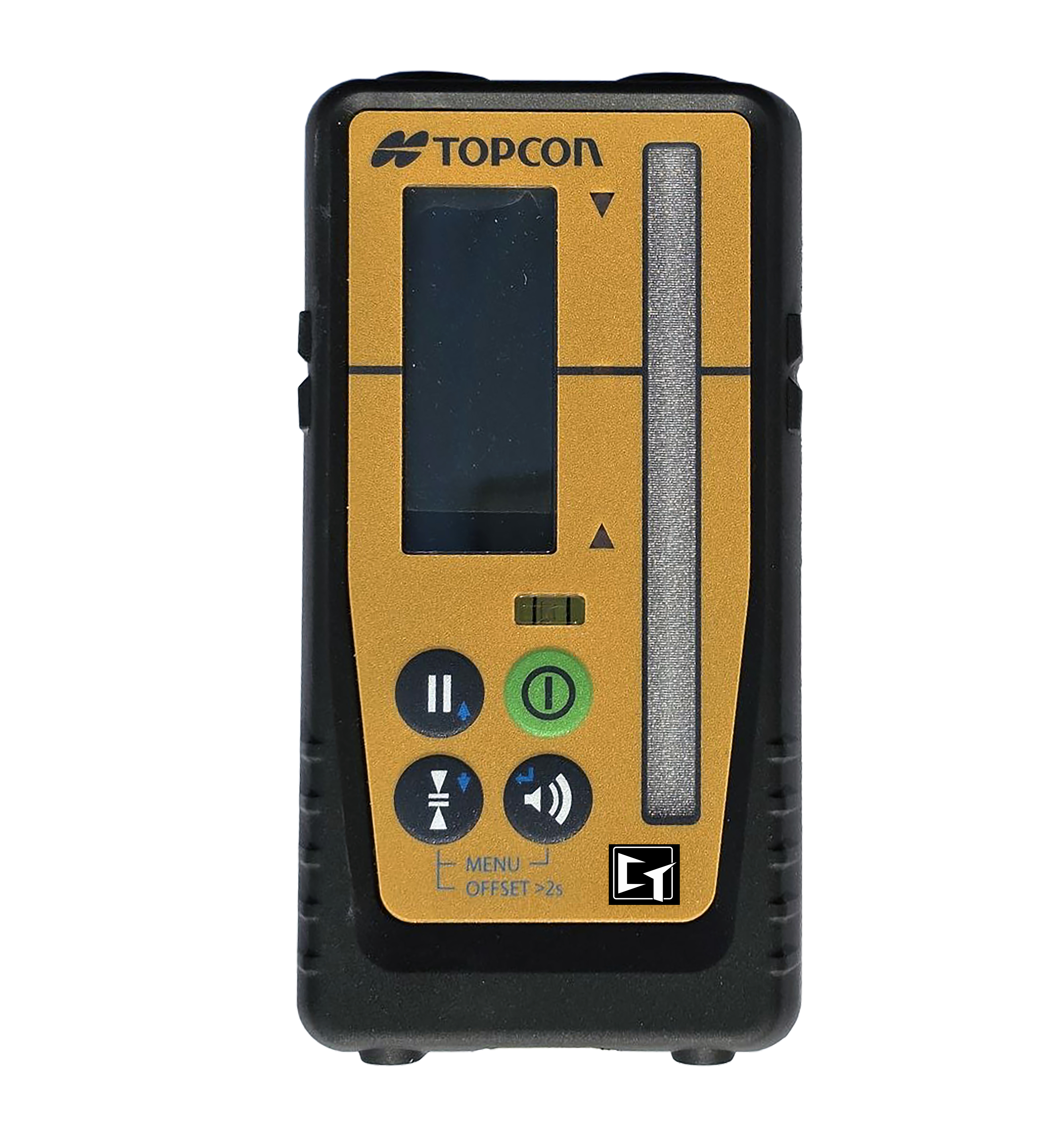

Front View — LCD Display

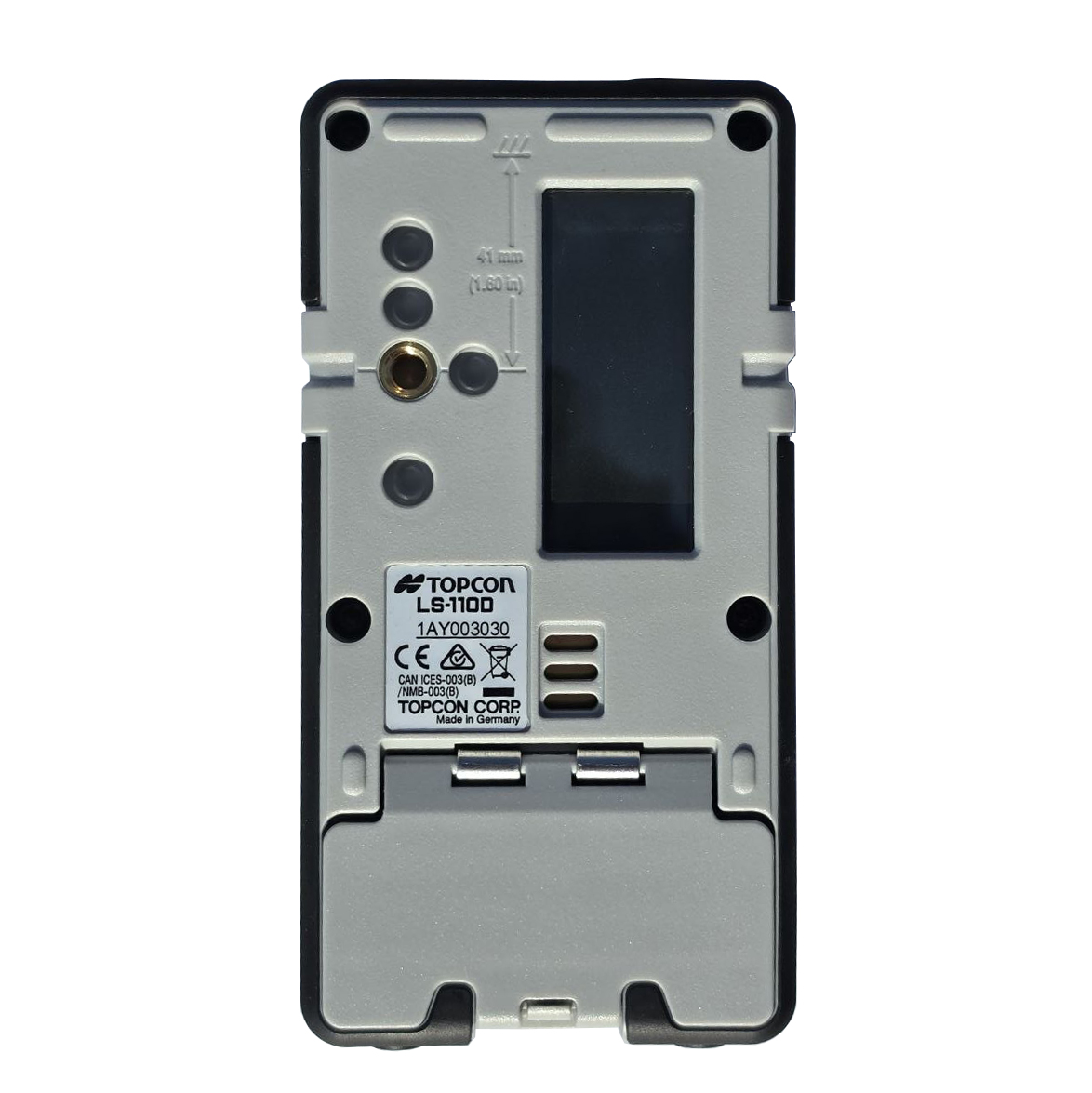

Back View
Topcon LS-110D Digital Laser Receiver — Receiver Only
Part# 1089925-01 | Receiver Only — No Rod Bracket Included
The Topcon LS-110D is Topcon’s advanced digital laser receiver built for grade control on grading, excavation, and foundation work. This listing is for the receiver unit only — ideal if you already own a Sensor Holder 110 or prefer to use your own rod mount. If you need the complete setup out of the box, see the LS-110D Kit (part# 1091205-01) which includes the Sensor Holder 110 bracket.
ⓘ Rod Bracket Not Included: This receiver ships without the Sensor Holder 110 screw-mount rod bracket. The Sensor Holder 110 is available separately — part# 1019505-01. See the LS-110D Kit (1091205-01) if you need bracket + receiver together.
Why the LS-110D Wins on the Job Site
What’s In The Box
| ☑ | Topcon LS-110D Digital Laser Receiver | Part# 1089925-01 |
| ⚠ | 1x AA Battery | Not Included |
📌 Need the rod bracket? Add the Sensor Holder 110 (screw-mount rod clamp) to your order — sold separately as Part# 1019505-01. Or choose the complete LS-110D Kit (1091205-01) which includes both the receiver and the Holder 110 together.
Key Features
A Closer Look
Front Panel — LCD Display & Controls
LCD display, grade readout, bubble level
Back Panel — Mounting & Spec Label
41mm mount socket, serial number, certifications
⚠ Receiver Only vs. Kit — Which Should You Buy?
- You already own a Sensor Holder 110 rod bracket
- You prefer a different mounting solution (magnetic, custom clamp, etc.)
- You are replacing a damaged receiver on an existing setup
- You want to save cost by reusing your current bracket
- You need the complete, ready-to-use package
- You do not own a Sensor Holder 110 bracket
- You want to mount the receiver on a grade rod
- You are setting up a new laser system from scratch
Technical Specifications
Topcon LS-110D — Part# 1089925-01
| Specification | Value |
|---|---|
| Part Number | 1089925-01 |
| Working Range | 400m (approx. 1,312 ft) |
| Capture Height | 3.5" |
| Detecting Range (Upper) | -25mm ~ +55mm |
| Detecting Range (Lower) | -10mm ~ +40mm |
| Compatible Lasers | Topcon RL-H5A, RL-HV Series, RL-SV2S, RL-200 Series, RL-H4C (discontinued) |
| Display | Dual LCD (front and back) + HOLD/lockable display button |
| Digital Readout | 9-channel, 3-color LED (orange / green / red) — on/off selectable |
| Accuracy Modes | Super Fine (±0.5mm), Fine (±1.0mm), Medium (±2.0mm), Coarse (±5.0mm), Super Coarse (±10.0mm) |
| Selectable Units | mm / cm / inch / fractional inch |
| Horizontal Detecting Range | ±45° |
| Buzzer | Loud / Low / Off selectable |
| Bubble Tube | Yes |
| Strobe Light Suppression | Yes |
| Alert Icons | Height Alert + Low Battery Alert on LCD |
| Magnetic Mount | Two round magnets on top (for vertical steel / form work) |
| Rod Bracket | Not included — Sensor Holder 110 sold separately (Part# 1019505-01) |
| Battery | 1x AA dry battery — not included; approx. 65 hrs runtime (alkaline); auto-shutoff ~30 min; LCD low battery icon |
| IP Rating | IP67 (IEC 60529) — dustproof and water immersion rated |
| Housing | Rubber armor |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dimensions | 135 (L) × 69 (W) × 25 (H) mm (5.31” × 2.72” × 0.98”) |
| Weight (with battery) | Approx. 200g (0.44 lbs) with battery |
