Topcon RL-200 Single Grade Laser with LS-100D Receiver (314910782)
Multi-Purpose Horizontal Only Rotating Single Grade Laser
with Rechargeable Batteries
Medium-range Applications
includes: LS-100D Receiver
Free same-day shipping on orders placed by 12 noon Central
Topcon RL-200 series grade lasers
Set your grade once. Stay on it all day.
A self-leveling single slope laser for site work, drainage, parking lots and road grades, built by Topcon and set up by people who sell these every week.
Authorized DealerWe’ll match the kit to your job.
Topcon RL-200 1S Single Grade Laser Package
Works on both horizontal and vertical axes, the Topcon RL-200 1S Single Grade Laser is great for geopositioning, land surveying, geospatial monitoring, construction, surveying, layout, foundation and other exterior construction applications. With an accuracy of horizontal ±7 arc seconds, this offers an operating range up to 3,600 feet with a laser receiver. Also, it is auto-leveling within ±5 degrees and has a wide single grade range of -5 to +25 percent.
When using the beam masking mode, the RL-200 1S allows multiple teams doing measurements from conflicting with other readings. For more accuracy, it comes with adjustable rotation speeds of 300, 600 or 900 rotations per minute. Also, it has a height-of-instrument alert function to prevent errors and mistakes in leveling.
The Topcon RL-200 1S includes a high contrast LCD graphical display that makes it easier to track data. With an IP66 rating, this Topcon grade laser is protected from dust and water splashes. Also, it runs up to 100 hours with alkaline batteries and up to 90 hours with the included rechargeable NiMH batteries. As an extra feature, it includes a 5/8-11 tripod thread that is compatible with most tripod brands.
Configuration Options
The Topcon RL-200 1S Single Grade Laser offers three packages with varying laser receivers and batteries.
314910702: Topcon RL-200 1S Single Grade Laser with LS-80L Laser Receiver and Alkaline Battery
314910782: Topcon RL-200 1S Single Grade Laser with LS-100D Laser Receiver and Rechargeable Battery
314910762: Topcon RL-200 1S Single Grade Laser with LS-80L Laser Receiver with Rechargeable Battery
Topcon RL-200 1S Single Grade Laser Package 314910782 INCLUDES
- RL-200 1S Single Grade Laser Transmitter (314910782 )
- Laser Receiver LS-100D
- Receiver Rod Bracket Holder 6
- Rechargeable Batteries NiMH
- Small Protective Carrying Case
- User Manual
- 5-year Manufacturers Warranty
Topcon RL-200 1S Key FEATURES and BENEFITS
Rugged, Lightweight and Compact
The Topcon RL-200 Series revolutionary encoding system provides the highest grade repeatability, 7 arc seconds, of any other laser! No one even comes close. Setup after setup, time after time, you’re always right on grade!
The RL-200 1S provides single slopes from -5% up to +25%.
Verifiable operation? It couldn’t be clearer…
The Topcon RL-200 features a large, high-contrast, graphical display that clearly shows all functions at a glance.
- Accuracy ±7 Arc second
- Wide Grade Range (up to 25% slope) without Slope Blocks
- Auto Leveling ±5 degrees
- Increased Range - Up to 3,600 feet diameter
- Rotation Speed 300, 600, or 900 RPM
- Height-of-Instrument (h.i.) Notification Alert
- Beam Feature Masking Mode
- Extra-Long Battery Life Up-To 100 Hours
- Environmental Protection Rating IP66 dust-proof and water resistance
- Graphical Display Clear and High Contrast
- Connection Fitting 5/8-11 inch tripod thread
Topcon RL-200 1S Single Grade Laser APPLICATIONS
- Land Surveying
- Civil Engineering & Design
- Construction Survey/Layout
- Site Work
- Foundation and Exterior
Topcon RL-200 1S SINGLE Grade Laser Package COMPARISON CHART
SINGLE GRADE
| Part Number | Series | Receiver | Batteries | Remote |
|---|---|---|---|---|
| 314910702DiscontinuedReplaced by 314910712 | RL-200 1S | YES LS-80L | Alkaline | N/A |
| 314910782 | RL-200 1S | YES LS-100D | Rechargeable NiMH | N/A |
| 314910762DiscontinuedReplaced by 314910722 | RL-200 1S | YES | Rechargeable NiMH | N/A |
| Topcon RL-200 2S DUAL Grade Laser Package COMPARISON CHART | ||||
| DUAL GRADE | ||||
| Part Number | Series | Receiver | Batteries | Remote |
| 313990752DiscontinuedReplaced by 314920712 | RL-200 2S | YES LS-80L | Alkaline | YES LS-80L |
| 313990772DiscontinuedReplaced by 1090041-01 | RL-200 2S | YES LS-100D | Rechargeable NiMH | YES LS-100D |
| All include RL-200 laser transmitter, Receiver Bracket, and Small Protective Case. | ||||
Topcon RL-200 1S Single Slope Laser SPECIFICATIONS
| Specification | |
|---|---|
| LASER | |
| Color | Red |
| Wavelength | 685 Nm |
| Classification | Class 3R |
| Direction | Horizontal Only |
| Visibility | Visible |
| TOPCON RL-200 1S LASER RANGE | |
| Exterior | Up to 3,600 feet |
| Self-Leveling | ± 5 degrees |
| BATTERY / POWER | |
| Power Source | RL-200S 1S (314910702) Alkaline RL-200S 1S (314910782) Rechargeable NiMH RL-200S 1S (314910762) Rechargeable NiMH |
| Battery Life w/ Alkaline Batteries | Up to 100 hours |
| Battery Life w/ Included Rechargeable NiMH Batteries | Up to 90 hours |
| Battery Life Alert | Yes |
| TOPCON RL-200 1S LASER FEATURES | |
| Display | Back-lit graphical LCD |
| Bump Sensor (H.I. Out of Position Alert) | Yes |
| Protection Class | IP66 (dust-proof and water jet protection) |
| Tripod Connection (Center Screw Thread) | 5/8-11 Horizontal |
| Adjustable Rotating Speed | 300. 600, and 900 rpm |
| GENERAL | |
| Dimensions | 6.9 x 8.6 x 10.0 inches |
| Warranty | 5-year |
| TEMPERATURE | |
| Operating | -4°F to +122°F |
| FUNCTIONS | |
| Grade Operation | Automatic |
| Automatic Leveling | Yes |
| Beam Operating Modes | Beam Masking |
| APPLICATIONS | |
| Elevations Checking / Setting | Yes |
| Transferring Points from floor to ceiling | Yes |
| Machine Control of Excavators, Graders, Dozers or Similar Equipment | Yes |
| Installation of Interior Fittings Cabinets, Lighting, Windows, Counter-tops, ect. | Yes |
| Short-Range Leveling for Decks, Patios and Swimming Pools | Yes |
| Installation Leveling Interior / Walls | Yes |
| Installation Leveling Ceiling Grids | Yes |
| Squaring and Layout of Partitions, Walls and Tile Floors | Yes |
| Concrete Forms, Footings and Foundations | Yes |
| Checking Elevations for Sub-Base and Sub-Grade | Yes |
| Estimating Cut and Fill | Yes |
| Matching Existing Slope and Grade | Yes |
| Locating Finished Floor Levels | Yes |
| GRADE SPECIFICATIONS | |
| Type | Single |
| Percentage | -5% to +25% |
| Accuracy | Horizontal ±7 arc seconds |
Topcon LS100-D Laser Receiver
- Works with the Topcon
- RL-H4C, RL-SV2S or RL-200
- 2625-feet working range with laser
- Bright front and back LCD display
- Three colored LEDs
- Extra-wide beam sensor with strobe light suppression
- 9 channels of grade information
- Five stages of on-grade resolution
- from ±0.5mm to ±10.0mm
- 70mm digital readout range from
- -20mm to +50mm
- Hold button locks in sensor information
- IP67 dustproof and immersion resistant
- 45 hour battery life with one AA battery
- Dimensions:
- 5.3-inches Length
- 2.7-inches Width
- 1-inch Thickness
- Weight: 0.43 lbs
- Has 2 round magnets on top
- Comes with Sensor Holder 100 screw mount
The Topcon LS-100D Receiver sensor digitally displays the offset value to on-grade, which is designed to help make elevation and vertical alignment control easier and faster for any application.
The LS-100D features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures. “The large and bright LCD displays (front and back) feature 9-channels of grade information and digitally display the distance to on-grade. By pressing the hold button, the display is locked so the user can conveniently read the results.”
The sensor offers three colored LED’s and a magnet mount for vertical operation, which is designed to be useful for steel erection or operator grade-checking while excavating. Alert icons appear on the LCD if the accompanying Topcon rotating laser instrument is disturbed (HI alert) or when the laser battery is low.
Questions buyers ask
Topcon RL-200 1S — Straight Answers
From the Topcon RL-200 1S instruction manual, and from setting these up for customers.
How accurate is the Topcon RL-200 1S?
Topcon rates it at ±7 arc seconds. In plain terms that is about 3/64 inch at 100 feet (1 mm at 30 m), and about 5/64 inch at 200 feet. It self-levels when it is set up within ±5° of level.
What grade can it set?
Single slope, entered on the control panel.
How far does it reach?
About 6 to 3,600 ft (2 to 1,100 m) in diameter with the LS-80X receiver. Topcon rates that range with the LS-80L, and the LS-80X is its direct replacement with the same specifications. With the LS-110D digital receiver it is about 2,620 ft (800 m) or more, per Topcon’s LS-110D specifications.
Which rotation speed should I use?
It runs at 300, 600 or 900 rpm. Use 600 rpm or faster with a machine receiver, so the display updates quickly enough to follow on a moving machine.
How long do the batteries last?
About 90 hours on the Ni-MH BT-67Q pack, or about 100 hours on four D-cell alkalines, at 68°F. A full charge takes about seven hours.
What if I forget to charge it?
You keep working. Per the Topcon manual the BT-67Q pack can be charged while the laser is running, and the pack can be lifted out of the DB-75C holder and replaced with four D-cell alkaline batteries.
Can I use it in the rain?
Yes. It is rated IP66 for dust and water, and works from -4°F to 122°F.
What happens if the tripod gets bumped?
With the safety lock, also called height alert, switched on, the laser stops auto-leveling when its setup is disturbed. The head either stops or turns slowly to warn you, so you never shoot grade from a moved setup. Turn it off and on to re-level.
Can I block the beam in one direction?
Yes. Beam masking shuts the laser off in the directions you choose, so it will not disturb another laser or a crew working nearby.
What does it weigh, and what tripod does it fit?
About 7.9 lb with the BT-67Q pack, or 7.5 lb with dry cells. It fits a standard 5/8 x 11 tripod, flat or dome head.
Is it a Class 3R laser?
Yes. Topcon classifies the RL-200 as a Class 3R visible red laser product.
Who am I buying from?
Contractors-Tools.com, an authorized Topcon dealer. Family owned, free shipping, and real people who set these up every week. Call 1-877-866-5721.
Source: Topcon RL-200 1S instruction manual.
Downloads — Topcon RL-200 1S
Topcon’s own documents, free to download. Authorized Topcon dealer — Contractors-Tools.com.

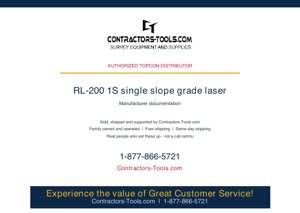

Topcon RL-200 1S Instruction ManualSetup, grade entry, masking, height alert, batteries, calibration and specificationsDownload PDF →
Topcon RL-200 Series BrochureRL-200 1S and 2S compared: accuracy, slope range, RC-400 remote, display and kit options · Topcon 7010-2128Download PDF →Topcon RL-200 How-To Videos
Short how-to videos from Contractors-Tools.com: power on and self-level, set and reset the slope, change the rotation speed, mask the beam, and how the Topcon receivers sound on the job.
How to power on the Topcon RL-200 1S single slope laser and let it self-level. Watch the startup sequence, the auto-leveling indicator (flashing while it levels, solid when it is ready), and when the laser is ready to shoot grade.
Step-by-step: entering a grade on the X axis of the Topcon RL-200 1S single slope laser. The 1S sets single slopes from -5% to +25% with no slope blocks, for driveways, drainage, pads and parking lots.

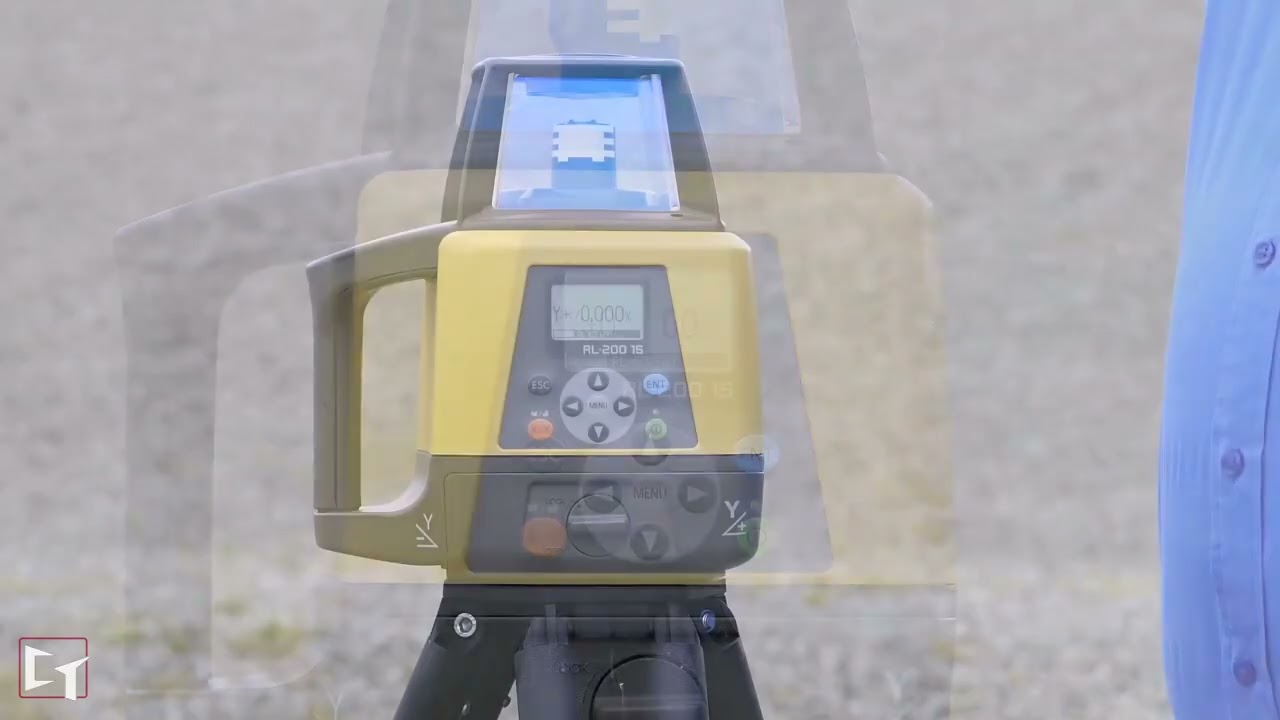

How to reset the grade back to 0.000% on the Topcon RL-200 1S single slope laser, so you can go from a sloped job back to dead level without power-cycling the laser.
How to change the rotation speed on the Topcon RL-200 1S and 2S: 300, 600 or 900 rpm. Run 600 rpm or faster with a machine receiver so the display updates fast enough to follow a moving machine.
How to turn on window masking on the Topcon RL-200 1S and 2S, which shuts the beam off in the directions you choose so it will not interfere with another laser or a crew working nearby.
Three laser receivers, all set to max volume, tone-tested one after another so you can hear the difference before you buy. Chapters: 0:00 Intro 0:03 Topcon LS-80X — 2 in.
Pair it with machine control
One man. One laser.
Nobody in the hole.
The RL-200 is a self-levelling laser. This is what it can do next.
You are already buying the grade reference. Point it at an iDig 2D system and the same laser runs the machine — depth, slope and distance to target on a screen in the cab, read straight off the cutting edge.
- No rod man
- No grade checker in the trench
- No climbing out of the seat to check
Grade faster and more accurately, on your own, with 2D, 2D+ and full 3D machine control for an excavator or a skid steer — at a fraction of what that capability costs anywhere else.
See iDig machine control → Wireless solar sensors, nothing welded, nothing wired. Installs in an afternoon in your own yard. Contractors-Tools.com is an authorized iDig dealer — call 1-877-866-5721 and we will spec it against your machine.
What the operator sees — excavator and skid steer
Call 1-877-866-5721
Family owned and operated. We set these systems up every week — tell us the machine and the laser you are running and we will spec it before you order.
