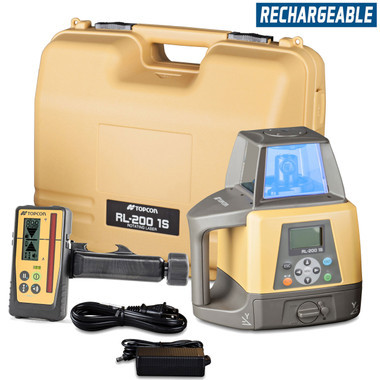

Topcon RL-200 1S Single Slope Grade Laser Package, w/ LS-110D Receiver (1090037-01) Rechargeable Batteries

includes: LS-110D Receiver

Topcon RL-200 1S Single Grade Laser Package
Works on both horizontal and vertical axes, the Topcon RL-200 1S Single Grade Laser is great for geopositioning, land surveying, geospatial monitoring, construction, surveying, layout, foundation and other exterior construction applications. With an accuracy of horizontal ±7 arc seconds, this offers an operating range up to 3,600 feet with a laser receiver. Also, it is auto-leveling within ±5 degrees and has a wide single grade range of -5 to +25 percent.

When using the beam masking mode, the RL-200 1S allows multiple teams doing measurements from conflicting with other readings. For more accuracy, it comes with adjustable rotation speeds of 300, 600 or 900 rotations per minute. Also, it has a height-of-instrument alert function to prevent errors and mistakes in leveling.

The Topcon RL-200 1S includes a high contrast LCD graphical display that makes it easier to track data. With an IP66 rating, this Topcon grade laser is protected from dust and water splashes. Also, it runs up to 100 hours with alkaline batteries and up to 90 hours with the included rechargeable NiMH batteries. As an extra feature, it includes a 5/8-11 tripod thread that is compatible with most tripod brands.

Configuration Options
The Topcon RL-200 1S Single Grade Laser offers three packages with varying laser receivers and batteries.

314910702: Topcon RL-200 1S Single Grade Laser with LS-80L Laser Receiver and Alkaline Battery
1090037-01: Topcon RL-200 1S Single Grade Laser with LS-110D Laser Receiver and Rechargeable Battery
314910762: Topcon RL-200 1S Single Grade Laser with LS-80L Laser Receiver with Rechargeable Battery

• RL-200 1S Single Grade Laser Transmitter (1090037-01 )

• Laser Receiver LS-110D
• Receiver Rod Bracket Holder 6

• Rechargeable Batteries NiMH

• Small Protective Carrying Case
• User Manual
• 5-year Manufacturers Warranty

Rugged, Lightweight and Compact
The Topcon RL-200 Series revolutionary encoding system provides the highest grade repeatability, 7 arc seconds, of any other laser! No one even comes close. Setup after setup, time after time, you’re always right on grade!

The RL-200 1S provides single slopes from -5% up to +25%.

Verifiable operation? It couldn’t be clearer…
The Topcon RL-200 features a large, high-contrast, graphical display that clearly shows all functions at a glance.

• Accuracy ±7 Arc second
• Wide Grade Range (up to 25% slope) without Slope Blocks
• Auto Leveling ±5 degrees
• Increased Range - Up to 3,600 feet diameter
• Rotation Speed 300, 600, or 900 RPM
• Height-of-Instrument (h.i.) Notification Alert
• Beam Feature Masking Mode
• Extra-Long Battery Life Up-To 100 Hours
• Environmental Protection Rating IP66 dust-proof and water resistance
• Graphical Display Clear and High Contrast
• Connection Fitting 5/8-11 inch tripod thread

• Land Surveying
• Civil Engineering & Design
• Construction Survey/Layout
• Site Work
• Foundation and Exterior
