TOPCON RL-H5A - PS.DB2 1021200-15

Self-Leveling Rotary Laser Level Alkaline Batteries Package

This Topcon 1021200-50 is a direct replacement for discontinued part number 1021200-15 and 1021200-07

Topcon RL-H5A PS.DB2 kit 1021200-50 with LS-80X receiver

NOW REPLACED BY

Topcon RL-H5A PS.DB2 1021200-50

Same laser and price, now built in Japan, with the upgraded LS-80X receiver.

View the 1021200-50 kit →

Next Generation Self-Leveling Construction Laser

⚠ Important Product Update — read before ordering ↓

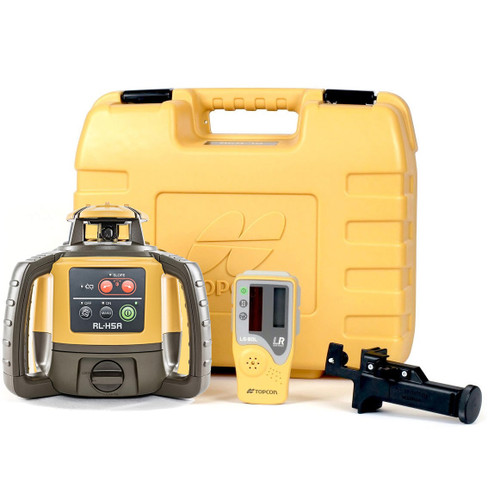

Topcon RL-H5A (1021200-15) Laser Kit INCLUDES

RL-H5A Horizontal Laser
LS-80L Long Range Laser Receiver Sensor 313540702
Receiver Rod Clamp Holder 6 312890112
uses (4) D-Cell Alkaline Batteries (NOT INCLUDED)
Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee

The laser

Topcon RL-H5A TOP FEATURES

The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A self-leveling rotary laser

Self-Leveling Horizontal Beam
Long Range Operation 2,600 ft diameter
High Horizontal Accuracy 1/16-inch @ 100-feet
Simple, intuitive manual slope capability
Tough IP66 Rating - Dust and Water Rating
Self-Leveling Range ± 5 degrees
Long Alkaline battery life - 100 hours
Out of Level Notification

Why the RL-H5A

Built for the jobsite

MULTI-PURPOSE LASER Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE

The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon RL-H5A Laser SPECIFICATIONS

Accuracy	1/16-inch @ 100-feet
Self-Leveling Range	± 5 degrees
Working Range diameter	2,600 feet
Rotation Speed	600 RPM
Light Source	Visible Red Laser 635NM
Laser Class	CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating	IP66
Operation Time	Alkaline: 100 hours
Operational Temp	-4ºF to 122ºF
Size	7.0 x 7.7 x 8.5 in
Maximum Power Output	2.4mW
Tripod Screw Thread	5/8-11

Topcon RL-H5A Laser Series COMPARISON
		DISCONTINUED	NEW
New Series	RL-H5B DB	RL-H5A DB	RL-H5A DB2	RL-H5A DB	RL-H5A RB
LASER - TOP COMPONENT OVERVIEW	GOOD	YOU ARE HERE	BETTER	BEST	BEST
New Model	1021200-73	1021200-15	1021200-50	1021200-17	1021200-16
Discontinued Model	1021200-33	1021200-07	1021200-15		1021200-08
Receiver	LS-80X	LS-80L	LS-80X	LS-100D	LS-100D
Batteries	Dry / Alkaline	Dry / Alkaline	Dry / Alkaline	Dry / Alkaline	Rechargeable
Remote Control	NO	NO	NO	NO	NO
Measuring Rod 15'	NO	NO	NO	NO	NO
Aluminum Tripod	NO	NO	NO	NO	NO
LASER SPECIFICATIONS
Source	635nm Class 2	635nm Class 3R	635nm Class 3R	635 nm Class 3R	635 nm Class 3R
Range (Diameter)	1,300-feet	2,600-feet	2,600-feet	2,600-feet	2,600-feet
Accuracy @ 100 feet	1/8-inch	1/16-inch	1/16-inch	1/16-inch	1/16-inch
Rotation Speed	600 RPM	600 RPM	600 RPM	600 RPM	600 RPM
Slope	NO	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis
Manual Slope Range		± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Self-Leveling	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Rechargeable Battery					60 hours
Dry/Alkaline Battery	100 hours	100 hours	100 hours	100 hours	100 hours
Battery Run Charge					NO
Enviornment	IP66	IP66	IP66	IP66	IP66
Warranty	5 YEARS	5 YEARS	5 YEARS	5 YEARS	5 YEARS
DISCONTINUED VERSION - OLD LASER INFORMATION
Old Series	RL-H5B DB	RL-H5A DB	RL-H5A DB		RL-4HC RB
Old Model	1021200-33	1021200-07	1021200-15		313980772
All laser prices are discounted in shopping cart

INCLUDED Topcon LS-80L Receiver Sensor OVERVIEW

Topcon LS-80L LONG RANGE LASER SENSOR
New laser sensor LS-80L offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD's on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.

The Topcon LS-80L Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.

With a rating of IP-66, the Topcon LS-80L Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.

The Topcon LS-80L Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life.

Topcon LS-80L Receiver FEATURES

Increase range of rotary lasers
Fine or course sensitivity
Height alert
IP-66 rating against dust and water
Uses AA batteries
Low battery alert
30 minute shut down
Protective case
LCD display
2-inch capture window

*Approximately 20 percent increase.

Topcon LS-80L receiver feature diagram: on-grade precision, 9-channel grade indication, HI alert and low battery warning

TOPCON LS-80L Laser Receiver SPECIFICATIONS

Working Range (diameter)	2,500 feet with the RLHC, RL-SV2S, and RL-200 Series Lasers
Vertical Detecting Range	3.5 inch
LCD Digital Readout Range	2.7 inch
Horizontal Detecting Range	±45º
Strobe Light Suppression	Yes
Units / Measurements	mm / cm / inch / fractional inch
Grade Resolution Settings	±0.02 inch ±0.05 inch ±0.10 inch ±0.20 inch ±0.50 inch
LCD Grade Indicators	9 Channels
LED Grade Indicators	Orange, Green, Red (On/Off selectable)
Display	LCD on each side
Buzzer	Loud / Low / Off selectable
Bubble Tube	Yes
Warning Icons	HI Alert, Low Battery (for the RL-4HC, RL-SV2S, and RL-200 Series)
Battery	One AA/LR6 dry-cell battery
Operation Time	Up to 45 hours with alkaline batteries
Battery Level indicator	LCD Icon
Auto Shut-off	Approximately 30 minutes
Dust/Water Rating	IP67
Operating Temperature	-4ºF to 122ºF
Magnetic Mount	Two Round Magnets on Top
Receiver Sensor Bracket	Screw mount

Important Product Update - Read Before Ordering

WHAT CHANGED

Topcon RL-H5A PS.DB2 Model 1021200-15 has been officially discontinued by the manufacturer. This version was previously made in China, but due to global supply chain issues and a push for higher-grade materials, Topcon has permanently moved production to Japan.

As part of this move, Topcon upgraded several internal components that were previously sourced from lower-cost Chinese suppliers. While the laser still looks and performs exactly the same, the build quality has been improved, and the part number has changed to Model 1021200-50 to reflect these enhancements.

WHAT STAYS THE SAME

Same name – RL-H5A PS.DB2
Same specs and performance
Now built in Japan using higher-quality components

YOUR ORDER IS UPGRADED FREE

If you place an order for the older model (1021200-15), we will automatically upgrade your order — at no additional cost — to the current Japan-manufactured version 1021200-50, ensuring you get the best available quality at the same low price.

View the 1021200-50 kit →

RECEIVER UPGRADE: LS-80X REPLACES LS-80L

Topcon also upgraded the receiver from LS-80L to the LS-80X. The new LS-80X is:

Made in Germany
Uses the same HOLDER 6 rod clamp
Has identical specs and size
Now features a rear-facing speaker so you can hear grade signals more clearly while standing behind the rod — just like real-world use demands.

This updated kit is fully compatible with your existing accessories and workflow, and gives you the durability and reliability contractors expect from Topcon's jobsite-proven tools.

If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721

* Under normal circumstances we stock this item and are able to ship orders placed before 12 NOON Central Standard Time. We also attempt to ship all orders that are placed before 5 P.M. Certain circumstances outside of our control can sometimes affect this standard that we set.

Straight answers

Topcon RL-H5A — Straight Answers.

What comes in the Topcon RL-H5A 1021200-15 kit?

This kit includes: RL-H5A Horizontal Laser; LS-80L Long Range Laser Receiver Sensor 313540702; Receiver Rod Clamp Holder 6 312890112; Rugged Hard Shell Carrying Case; 5-year factory warranty.

Are batteries included?

No. This package uses (4) D-cell alkaline batteries in the laser, which are not included. Run time is up to 100 hours on alkaline.

How long do the batteries last?

The laser runs up to 100 hours on alkaline batteries.

What does the LS-80L show?

The beam position on an LCD on both sides of the receiver, with an adjustable audible tone, fine or coarse sensitivity and a height alert.

Can I use the RL-H5A with a machine-mounted receiver?

Yes. At 600 RPM it is a good match for machine-mounted laser receivers on dozers, excavators and skid steers.

How does the RL-H5A level itself?

Press the power button and the electronic self-leveling motors level the beam to ±10 arc seconds. If the laser is bumped it re-levels automatically.

Is the RL-H5A waterproof?

It carries an IP66 dust and water rating, so it can handle dust, a sudden shower and heavy rain.

What is the difference between the RL-H5A RB and DB?

RB packages include rechargeable batteries and a charger. DB packages run on dry alkaline batteries. See the series comparison on this page.

Who sells this kit?

Contractors-Tools.com is an authorized Topcon distributor. Call 1-877-866-5721 and we will help you pick the right package.

Questions about this kit? Call 1.877.866.5721 and we will help you set it up right.

Topcon RL-H5A How-To Videos

Five short tutorials from Contractors-Tools.com: set slope, power on and self-level, check calibration, elevation alert and Grade Match.
