TOPCON RL-H5A - PS.DB2 Complete Package 1021200-15-K1
Self-Leveling Rotary Laser Level Package - uses Alkaline Batteries
Includes: LS-80L Receiver, Measuring Rod 10ths and Aluminum Tripod (uses Alkaline Batteries)
CURRENT REPLACEMENT
Topcon RL-H5A 1021200-50-K1
1021200-15-K1 is discontinued. This is the current Topcon part number in its place.
View the 1021200-50-K1 →Next Generaton Self-Leveling Construction Laser

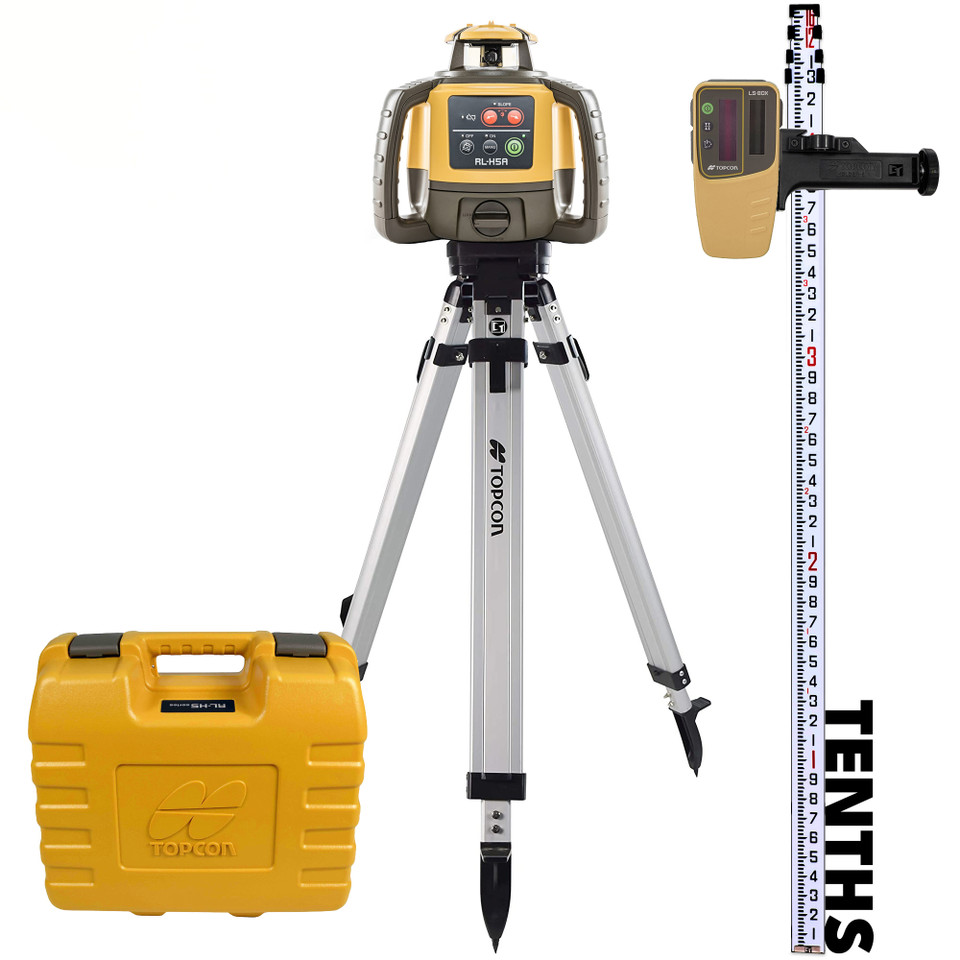

Topcon RL-H5A (1021200-15-K1) Laser Kit INCLUDES
- RL-H5A Horizontal Laser 1021200-15
- LS-80L Long Range Laser Receiver Sensor 313540702
- Receiver Rod Clamp Holder 6 312890112
- uses (4) D-Cell Alkaline Batteries (NOT INCLUDED)
- Aluminum 15-Foot Grade Rod - Measurements in TENTHS
- Aluminum Heavy-Duty Tripod
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
The laser
Topcon RL-H5A TOP FEATURES
The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.
- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating - Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Long Alkaline battery life - 100 hours
- Out of Level Notification
Why the RL-H5A
Built for the jobsite
MULTI-PURPOSE LASER Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.
EASY TO USE With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
Topcon RL-H5A Laser SPECIFICATIONS
| Accuracy | 1/16-inch @ 100-feet |
| Self-Leveling Range | ± 5 degrees |
| Working Range diameter | 2,600 feet |
| Rotation Speed | 600 RPM |
| Light Source | Visible Red Laser 635NM |
| Laser Class | CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating | IP66 |
| Operation Time | Alkaline: 100 hours |
| Operational Temp | -4ºF to 122ºF |
| Size | 7.0 x 7.7 x 8.5 in |
| Maximum Power Output | 2.4mW |
| Tripod Screw Thread | 5/8-11 |
| Topcon RL-H5A Laser Series COMPARISON | |||||
| DISCONTINUED | NEW | ||||
| New Series | RL-H5A DB2 | RL-H5A DB2 | RL-H5A RB | RL-H5A DB | RL-H5A RB |
| New Model | 1021200-15-K1 | 1021200-50-K1 | 1021200-49-K1 | 1021200-17-K1 | 1021200-16-K1 |
| Discontinued Model | 1021200-15 | 1021200-06 1021200-14 | 1021200-08 | ||
| Receiver | LS-80L | LS-80X | LS-80X | LS-100D | LS-100D |
| Batteries | Dry / Alkaline | Dry / Alkaline | Rechargeable | Dry / Alkaline | Rechargeable |
| Remote Control | NO | NO | NO | NO | NO |
| Measuring Rod 15' | YES - 10ths | YES - 10ths | YES - 10ths | YES - 10ths | YES - 10ths |
| Aluminum Tripod | YES | YES | YES | YES | YES |
| LASER - TOP COMPONENT OVERVIEW | YOU ARE HERE | BETTER | BETTER | BEST | BEST |
| Source | 635nm Class 3R | 635nm Class 3R | 635nm Class 3R | 635nm Class 3R | 635nm Class 3R |
| Range (Diameter) | 2,600-feet | 2,600-feet | 2,600-feet | 2,600-feet | 2,600-feet |
| Accuracy @ 100 feet | 1/16-inch | 1/16-inch | 1/16-inch | 1/16-inch | 1/16-inch |
| Rotation Speed | 600 RPM | 600 RPM | 600 RPM | 600 RPM | 600 RPM |
| Slope | Manual 1 Axis | Manual 1 Axis | Manual 1 Axis | Manual 1 Axis | Manual 1 Axis |
| Manual Slope Range | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees |
| Self-Leveling | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees |
| Rechargeable Battery | 60 hours | 60 hours | |||
| Dry/Alkaline Battery | 100 hours | 100 hours | 100 hours | 100 hours | 100 hours |
| Battery Run Charge | NO | NO | |||
| Environment | IP66 | IP66 | IP66 | IP66 | IP66 |
| Warranty | 5 YEARS | 5 YEARS | 5 YEARS | 5 YEARS | 5 YEARS |
| DISCONTINUED VERSION - OLD LASER INFORMATION | |||||
| Old Series | RL-H5A DB | RL-H5A RB | RL-4HC RB | ||
| Old Model | 1021200-15 | 1021200-14 | 313980772 | ||
| All laser prices are discounted in shopping cart | |||||

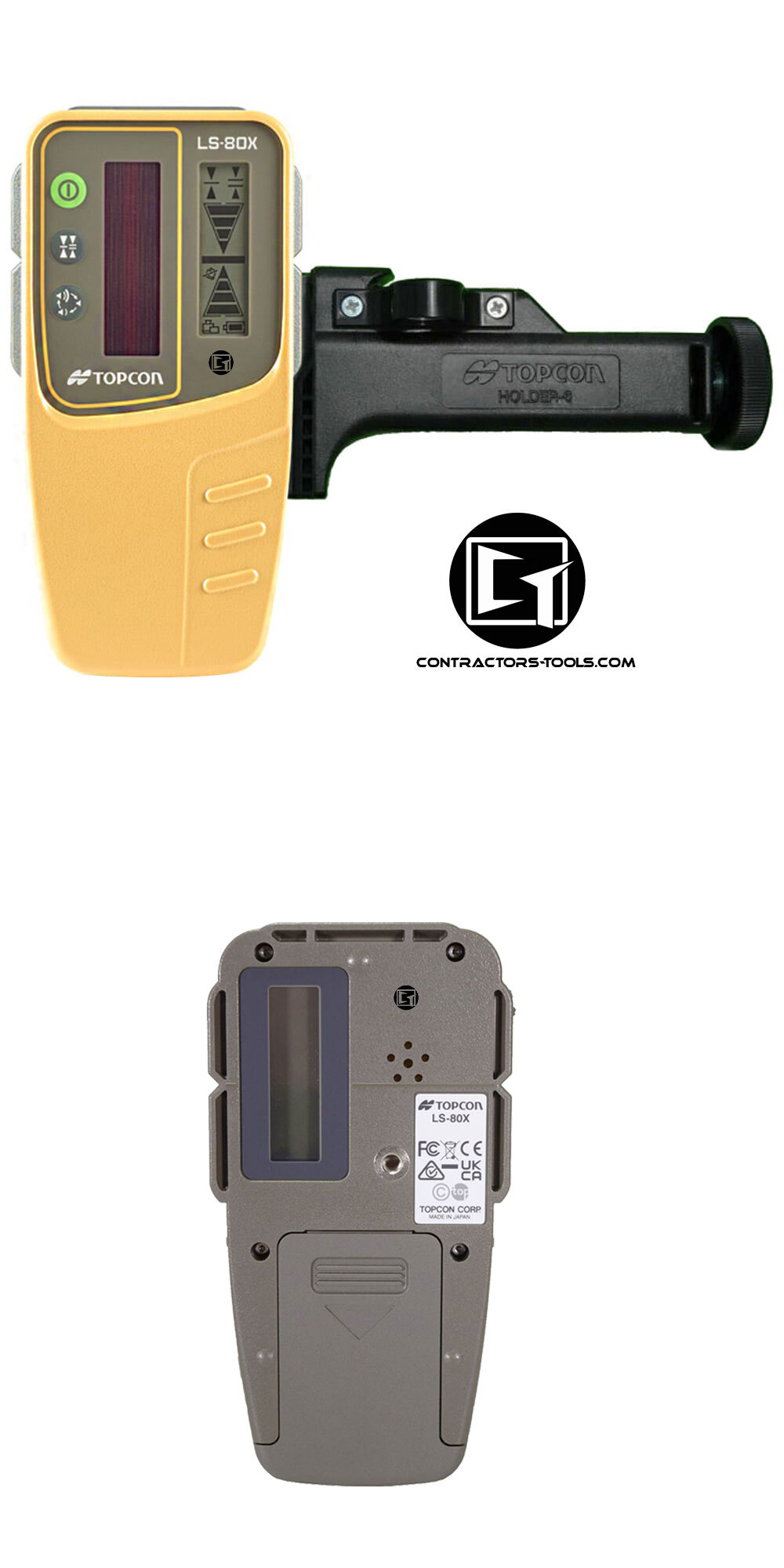

INCLUDED Topcon LS-80X Receiver Sensor OVERVIEW
 | Topcon Laser Sensor Receiver
| ||
INCLUDED TOPCON LS-80X LASER RECEIVER with this KIT | |||
| |||

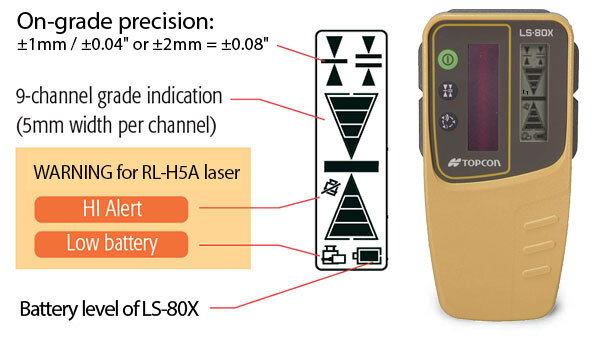

 | Topcon LS-80X Receiver FEATURES
*Approximately 20 percent increase. |
SitePRO Contractor Grade Aluminum Tripod INCLUDED in this 1021200-15-K1 KIT
|
| SitePro ALQR20 Aluminum Heavy Duty Quick Release Tripod Built for the demands of the jobsite, the SitePro ALQR20 delivers rugged stability and fast setup in one dependable package. Constructed from heavy-gauge square aluminum, this tripod features double-banded legs for enhanced strength and reduced flex — ideal for high-precision applications in tough conditions. The quick-release clamps make setup and adjustments fast and secure, while powder-coated black hardware resists wear, corrosion, and jobsite grime. The replaceable steel shoe points anchor confidently into dirt, gravel, or concrete for solid footing. With a flat head style and standard 5/8-11 thread, the ALQR20 is compatible with most construction lasers and optical instruments. It extends up to 64 inches for versatility in uneven terrain, and collapses down to 40 inches for easy transport and storage. Key Features:
Ideal for: contractors, surveyors, and construction pros who demand durability, fast setup, and long-term reliability in the field.
|
Aluminum 15-Foot Grade Rod - Inch Measurements INCLUDED in this KIT
|
| SitePro 11-815-T 15-ft Aluminum Telescoping Leveling Rod (CR) — Feet & Tenths Graduations Engineered for performance and built to last, the SitePro 11-815-T is a professional-grade 15-ft aluminum leveling rod that delivers pinpoint accuracy, ultra-clear visibility, and rugged reliability for serious layout work. Whether you're grading, staking, or checking elevations with a laser, this rod is your jobsite measuring stick — built for the long haul. ✔️ Lightweight Yet Built ToughConstructed from high-strength aluminum alloy, this rod resists flexing and denting while remaining light enough for all-day field use. Sections glide smoothly and extend quietly — no rattling, no hassle. ✔️ Feet & Tenths — Precision in Every MarkGraduated in Feet and Tenths, the 11-815-T delivers fast, field-friendly reading that’s perfect for civil, site, and construction work. ✔️ Weather-Resistant and Easy to ReadEach telescoping section is anodized for corrosion resistance and printed with high-contrast, weather-resistant inks that stay readable in sunlight, dirt, and rain. ✔️ Backside Scale for Quick Eye-Level ReadsIn addition to front-facing measurements, the rod includes a backside measuring scale, making it easy to determine the exact rod height when viewed at eye level — no need to bend down or guess. ✔️ Built for Jobsite Abuse• Five-section telescoping design with impact-resistant joints |
|
Important Note: Discontinued Kit – You’ll Receive the Newer Version AutomaticallyStraight answers
Topcon RL-H5A — Straight Answers.
What comes in the Topcon RL-H5A 1021200-15-K1 kit?
This kit includes: RL-H5A Horizontal Laser 1021200-15; LS-80L Long Range Laser Receiver Sensor 313540702; Receiver Rod Clamp Holder 6 312890112; Aluminum 15-Foot Grade Rod - Measurements in TENTHS; Aluminum Heavy-Duty Tripod; Rugged Hard Shell Carrying Case; 5-year factory warranty.
Will I receive exactly this model?
Note: if you order this model we will automatically substitute the current Topcon RL-H5A model 1021200-50-K1 that has the same specs, features, functions, range and accuracy. Now made in Japan / previously made in China
Are batteries included?
No. This package uses (4) D-cell alkaline batteries in the laser, which are not included. Run time is up to 100 hours on alkaline.
How long do the batteries last?
The laser runs up to 100 hours on alkaline batteries.
What does the LS-80L show?
The beam position on an LCD on both sides of the receiver, with an adjustable audible tone, fine or coarse sensitivity and a height alert.
Can I use the RL-H5A with a machine-mounted receiver?
Yes. At 600 RPM it is a good match for machine-mounted laser receivers on dozers, excavators and skid steers.
How does the RL-H5A level itself?
Press the power button and the electronic self-leveling motors level the beam to ±10 arc seconds. If the laser is bumped it re-levels automatically.
Is the RL-H5A waterproof?
It carries an IP66 dust and water rating, so it can handle dust, a sudden shower and heavy rain.
What is the difference between the RL-H5A RB and DB?
RB packages include rechargeable batteries and a charger. DB packages run on dry alkaline batteries. See the series comparison on this page.
Who sells this kit?
Contractors-Tools.com is an authorized Topcon distributor. Call 1-877-866-5721 and we will help you pick the right package.
Topcon RL-H5A How-To Videos
Five short tutorials from Contractors-Tools.com: set slope, power on and self-level, check calibration, elevation alert and Grade Match.
Step-by-step guide to manually setting slope on the Topcon RL-H5A rotary laser level, from entering the slope value to confirming it.
How to power on and self-level the Topcon RL-H5A: startup sequence, the automatic leveling process, and how to confirm the laser is ready.
How to field-check the calibration of your Topcon RL-H5A rotary laser level without sending it to a service center.
Explains the elevation alert on the Topcon RL-H5A, which warns you when the laser has been bumped or its height has changed.
How to use Grade Match on the Topcon RL-H5A to set slope by matching an existing grade, one of its most useful time-saving functions.
Downloads — Topcon RL-H5A Manual
Topcon's own document, free to download. Authorized Topcon distributor — Contractors-Tools.com.
RL-H5A Instruction ManualNomenclature, setup, slope, receiver use and specifications · Topcon documentation with Contractors-Tools.com coverDownload PDF →Put your RL-H5A to work on the machine
Grade from the seat. No rod man.
The RL-H5A throws a 2,600 ft diameter working range (with a detector), which makes it a great reference for machine-mounted receivers. Add one receiver to the bucket or boom, set the laser, and the operator reads grade without leaving the cab.
Compare the machine receivers
| Spectra CR700 | Topcon LS-B20 | Topcon LS-B20W | |
|---|---|---|---|
| Price | $559.20 | $612.95 | $1,149.95 |
| Mounting | Machine mount and rod clamp included | Integrated magnetic mount | Integrated magnetic mount |
| Detection | 200°, 5 in. height | 270° detection range | 270° detection range |
| In-cab display | — | — | Yes, via app |
| Weather | IP67 | IP66 | IP66 |
| Weight / battery | — | About 1 lb, 100 hr battery | About 1 lb, 100 hr battery |
Wireless in-cab display? See the Topcon LS-B20W and its price →
Pick yours
Spectra Precision
CR700: one receiver, machine or rod
Mounts on the machine for digging and on the grade rod for checks. Both mounts are in the box.
- C71 magnetic machine mount and C70 rod clamp both included
- 5 in. laser detection height, 200° reception angle
- Rod-mount it for grade checks, machine-mount it for digging
- IP67 waterproof and dustproof
Topcon
LS-B20: the lightweight machine receiver
A Topcon machine receiver built for machine control and grade checking.
- About 1 lb, the lightest in its class
- Integrated magnetic mount goes on almost any machine
- 270° detection range, 11 LCD grade channels, bright LEDs
- IP66 rated, up to 100 hours of battery life
Not sure which fits your machine? Call 1-877-866-5721 and we will tell you.
