LaserLine GR1000M Lenker Rod - Metric

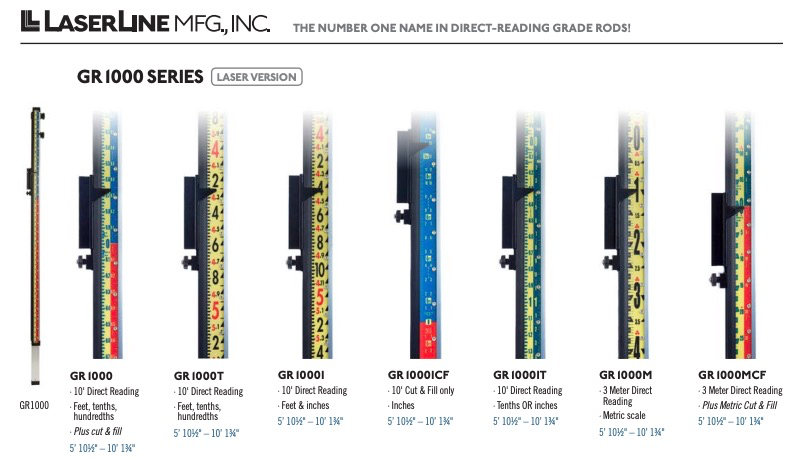

LaserLine GR1000 Measuring Rod 10-foot Length
Measurements in Feet and Tenths and Hundredths
+ PLUS Cut and Fill

How they Work:
Direct Reading/True Elevation Grade Rod
Direct Reading, or True Elevation (also known as Lenker style) is a Grade Rod with a moveable tape face allowing you to set the actual benchmark elevation, or any elevation, above or below the bench into the rod. The actual true elevation above sea level is read on these rods, thus eliminating errors caused by adding or subtracting. Since no math is involved, grade shots are much faster than conventional style rods. On most jobsites, the bench elevation is typically established by survey, and all elevations on that project are above that or below primary bench elevation.

Ideal for all construction and surveying applications, the LaserLine Direct Reading Laser Grade Rod is a lightweight and versatile tool that allows setting and measuring of actual elevation—no computation required. It features high-strength, clear anodized aluminum front and rear rods that will not rust, split, swell, or warp ensuring long-lasting performance. Its moveable tape comes with a heavy-duty, matte-textured face that resists wearing or fading and permits easy visibility even under bright sunlight.

This LaserLine direct reading grade rod guarantees smooth and hassle-free operation with its solid tape lock and internal brake slide. Its tape lock grommets made of brass are oversized to prevent the tape from tearing. The tape lock pin is safe and will not puncture or rip the tape when pushed against it. With its tough DuPont nylon parts, it is highly durable to endure heavy use at job sites. For maximum functionality and versatility, it is available with different graduations and color-coded cut and fill markings.

The LaserLine Direct Reading Laser Grade Rod is specifically designed for use with laser detectors. It is equipped with a special rail for laser detector that lets it slide through the full working length of the rod offering faster and easier readings. This black, UV-stabilized detector rail withstands long exposure to UV rays without becoming brittle.

10 foot rod measured in feet and inches

For use with a laser detector. There is a special rail slide and optional detector bracket that lets the laser detector travel the full working length of the rod. This allows faster and easier readings because it takes the awkwardness out of having to loosen the detector, move the detector, then tighten the detector for each reading.

Grade Rod Applications: Laser Grade Checking • Leveling • Sitework • Landscaping • Foundations

Optional but necessary for operation with Spectra or Topcon Laser Receivers:
Optional — Spectra CTO-C62 DE Rod Bracket for HL Laserometers
Optional — Spectra 5079-070 DE Rod Bracket for HR detectors
Optional — Sokkia 1030678-01 bracket fits Topcon LS-80L Receiver
Optional — Sokkia 1030679-01 bracket fits Topcon LS-100D Receiver
