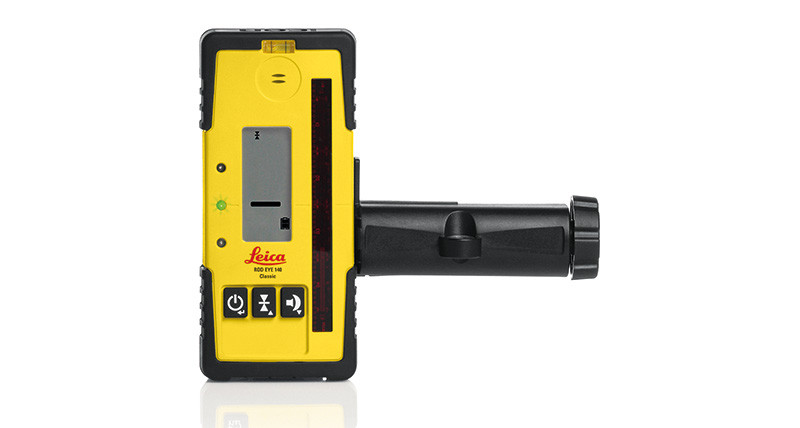

Leica Rod Eye 140 Classic Laser Receiver
120 mm Detection Window · IP67 · 50-Hour Battery · Anti-Strobe · Dual LCD
Why Choose the Rod Eye 140 Classic
High-performance reception, rugged protection, and all-day battery life
Built-in 120 mm (4.7 inch) reception window with unique technology for accurate digital input. Easy beam detection over the entire distance so you find grade faster.
Two large graphic displays on both the front and back of the receiver. Three bright LED indicators provide an instant, at-a-glance reference for receiver position from either side of the rod.
Detects only the red laser beam and ignores flash interference from strong strobes on the job. Safety lights and emergency equipment won't interfere with your receiver function.
Three audio settings — high, low and off — cut through jobsite noise. The receiver beeps twice when passing through the laser beam. An arrow display guides you back when out of range.
Rated IP67 — completely dustproof and waterproof. Protective overmold resists drops and hard knocks in tough jobsite conditions. Built to survive a real day's work.
Runs 50+ hours on 2 standard AA batteries. Built-in low battery alert and a 10-minute auto shutoff protect your charge so you're never caught off guard on the job.
What's in the Box
Everything you need to get on grade immediately
-
✓Leica Rod Eye 140 Classic Laser Receiver
-
✓Rod Bracket / Clamp (versatile rugged bracket for grade rod mounting)
-
✓2x AA Alkaline Batteries (ready to use out of the box)
-
✓Quick Start Guide
-
✓3-Year Leica Geosystems Warranty Card
Technical Specifications
Rod Eye 140 Classic vs. Rod Eye 160 Digital — full spec breakdown
| Specification | Rod Eye 120 BASIC | Rod Eye 140 CLASSIC | Rod Eye 160 DIGITAL |
|---|---|---|---|
| Detection | |||
| Detection Window | 2.76" / 70mm | 4.7" / 120mm | 4.7" / 120mm |
| Accuracies | 3 (Fine / Med / Coarse) | 3 (Fine / Medium / Coarse) | 5 |
| Arrow Display Channels | 9 channels | 9 channels | 15 channels |
| Display & Indicators | |||
| LCD Displays | Dual (Front + Back) | Dual (Front + Back) | Dual (Front + Back) |
| LED Indicators | 3 bright LEDs | 3 bright LEDs | 3 bright LEDs |
| Out-of-Beam Display | Arrow direction indicator | Arrow direction indicator | Arrow direction indicator |
| Digital Readout | — | — | ✓ in., fractions, mm, cm |
| Capture / Memory | — | — | ✓ Store & recall |
| Audio | |||
| Maximum Audio Level | High / Low / Off | High / Low / Off | High / Med / Low / Off |
| Audio Settings | 3 settings | 3 settings | 3 settings |
| Beam Finding Beep | ✓ Yes | ✓ Yes (2 beeps) | ✓ Yes (2 beeps) |
| Protection | |||
| IP Rating | IP67 | IP67 | IP67 |
| Overmold Protection | ✓ Yes | ✓ Yes | ✓ Yes |
| Power | |||
| Battery Life | 50+ hours | 50+ hours | 50+ hours |
| Battery Type | 2x AA Alkaline | 2x AA | 2x Alkaline |
| Auto Shutoff | 10 minutes | 10 minutes | 10 minutes |
| Low Battery Alert | ✓ Yes | ✓ Yes | ✓ Yes |
| Mechanical | |||
| Level Vial | ✓ Yes (circular) | ✓ Yes (circular) | ✓ Yes (circular) |
| Rod Bracket | ✓ Included | ✓ Included | ✓ Included |
| Rod Master Feature | — | ✓ Yes | ✓ Yes |
| Additional | |||
| Anti-Strobe Protection | — | ✓ Yes | ✓ Yes |
| Function Menu | — | ✓ Yes | ✓ Yes |
| Warranty & Identity | |||
| Warranty | 3 Years | 3 Years | 3 Years |
| Part Number | 789922 | 789923 | 789924 |
| UPC | 7640110693315 | 7640110693353 | — |
| Price | $275.00 | $354.95 | $395.00 |
How It Works
Three simple steps from setup to perfect grade
Attach the Rod Eye 140 to your grade rod using the included rugged rod bracket. Level using the built-in circular vial to keep the rod plumb and ensure accurate grade readings.
The extra-long 120 mm (4.7") detection window picks up your Leica Rugby laser beam instantly. The dual LCD displays and 3 bright LED indicators confirm your grade position from both sides of the rod.
Audio beeps and the 11-channel arrow display guide you precisely to exact grade. Anti-strobe protection ensures a clean signal even in bright conditions. The receiver beeps twice the moment you're on beam.
Works With All Leica Rugby Rotary Lasers
The Rod Eye 140 is fully compatible with the entire Leica Rugby series
600 Series
800 Series
Rotary Laser
Built for Real Jobsite Applications
Wherever construction grade matters, the Rod Eye 140 delivers
Compare every Leica receiver
The five Leica receivers we sell for the rod, side by side. Pick the one that matches your laser and how you work. Our price, MSRP and savings are live from the store.
| Rod Eye 120 Basic | Rod Eye 120G | Rod Eye 140 ClassicYOU ARE HERE | Rod Eye 160 Digital | CLC Combo+RECEIVER + REMOTE | |
|---|---|---|---|---|---|
| Our price | $275.00 | $325.00 | $354.95 | $395.00 | $525.00 |
| MSRP | $335.00 | $495.00 | $415.00 | $470.00 | $730.00 |
| You save | $60.00 (18%) | $170.00 (34%) | $60.05 (14%) | $75.00 (16%) | $205.00 (28%) |
| Leica article no. | 789922 | 844745 | 789923 | 789924 | 986299 |
| Receives (works with) | Red rotary lasers (Rugby 610, 620, 640, 680) | Green rotary laser (Rugby 640G) | Red rotary lasers (Rugby 610, 620, 640, 680) | Red rotary lasers (Rugby 610, 620, 640, 680) | Leica Rugby CLH, CLA and CLI lasers |
| Remote control of the laser | No | No | No | No | YES: grade entry, sleep, Slope Catch, Slope Lock, Axis Alignment, Scan Catch (by laser package) |
| Remote works with | Not a remote | Not a remote | Not a remote | Not a remote | Leica Rugby CLH, CLA and CLI lasers only (Leica manual) |
| Remote range (diameter) | n/a | n/a | n/a | n/a | 600 m (about 2,000 ft) |
| Detection window | 70 mm | 70 mm | 120 mm | 120 mm | See product page |
| Digital readout | No | Yes, 70 mm | No | Yes, 90 mm | Yes, front and rear LCD |
| Arrow display channels | 9 | 11 | 9 | 15 | See product page |
| Working diameter (laser dependent) | 900 m | 400 m | 1,350 m | 1,350 m | About 1,300 m (Leica manual) |
| Accuracy settings | 3 | 3 | 3 | 5 | See product page |
| Anti-strobe protection | No | No | Yes | Yes | See product page |
| Memory of the last beam strike | No | No | Yes | Yes | See product page |
| Protection rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Battery | 2 x AA, 50+ hours | 2 x AA, 50+ hours | 2 x AA, 50+ hours | 2 x AA, 50+ hours | See product page |
| Best for | Basic red-beam receiving on a budget | Reading green beams indoors, where you can see them | Longer reach and a bigger window than the 120 | Digital readout, capture and five accuracy levels | Rugby CLH, CLA or CLI owners: receive and run the laser from the rod |
Only the CLC Combo+ also works as a remote, and only for Leica Rugby CLH, CLA and CLI lasers. Need a receiver for an excavator or dozer instead? See the machine receivers: LMR240 · LMR360R. Range figures depend on the laser you use.
