Spectra Precision — Dual Grade Laser Excavator Package
GL1425C-EXCAVATORMAXX-22
Spectra GL1425C-EXCAVATORMAXX-22 Excavator Laser Package with LR50 Machine Receiver/div>
The rugged GL1425C laser can withstand drops of up to 3 feet onto concrete and tripod tip overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.

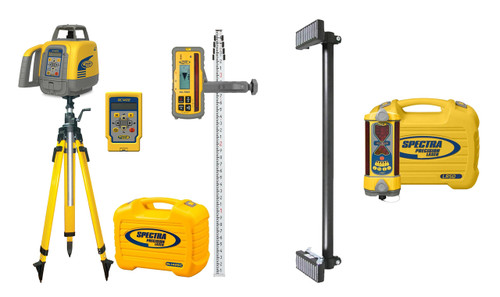

The GL1425C-EXCAVATORMAXX-22 pairs the GL1425C dual grade laser with the Spectra LR50 Machine Receiver/a> — a dedicated excavator receiver with 360° reception and a bright LED bar display built right into the unit. Grade status is visible directly on the receiver boom-mounted on the machine.
View Grade Rod Details →
GL1425C Dual Grade Laser with LR50 Machine Receiver (LED Bar Display), FGC20 Heavy-Duty Fiberglass Elevator Tripod and 15’ Grade Rod — INCHES
Retail Value: $6,923.00
$4,765.00
You Save: $2,158.00
Dual Grade Laser
LR50 Machine Receiver/div>
Rechargeable Batteries
Excavator Package
5-Year Laser Warranty
FGC20 Elevator Tripod
15 Ft Grade Rod — Inches
► A complete one-man excavation system — set grade, follow grade, and run your excavator without a rod man or ever leaving the seat. Everything you need to put your machine on grade from the moment you arrive on the jobsite.
The automatic self-leveling Spectra Precision® GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs—level, grade, and vertical alignment. Even in harsh jobsite conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The GL1425C has Bluetooth built in so it can work with the Spectra Precision Laser Remote App and eliminate the cost of the remote control. The laser can be controlled with your smartphone.The rugged GL1425C laser can withstand drops of up to 3 feet onto concrete and tripod tip overs up to 5 feet. This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product.
The GL1425C-EXCAVATORMAXX-22 pairs the GL1425C dual grade laser with the Spectra LR50 Machine Receiver/a> — a dedicated excavator receiver with 360° reception and a bright LED bar display built right into the unit. Grade status is visible directly on the receiver boom-mounted on the machine.
► How It Works — GL1425C-EXCAVATORMAXX-22
Step 1 — Set up the laser
Mount the GL1425C on the ALQR20 tripod. Dial in your grade on both axes. The laser self-levels and begins rotating, projecting a 360° grade plane across the entire jobsite.
Step 2 — Mount the LR50
Attach the LR50 machine receiver to the excavator boom using the magnetic mount. The 360° reception window catches the laser beam from any direction as the boom swings.
Step 3 — Dig to grade
Operate the excavator normally. The LR50 continuously reads the laser plane as the boom moves. The LED bar display on the receiver shows your grade status continuously.
Step 4 — Read grade from the receiver LEDs
The LR50 displays your grade status directly on the receiver with bright LED bars. You can see it on the boom from the cab. No separate display needed.
► Why This Package Wins on the Excavator
◆
LED Bar Display on Receiver
Bright LED bars show grade status right on the LR50 unit. Visible from the cab without a separate display. Fast read, no guesswork.
◆
360° Reception
The LR50 catches the laser beam from any angle as the boom swings. No dead zones, no losing the signal as the excavator rotates.
◆
Boom Plumb Indicator
Know when the boom is plumb. Helps operators stay consistent and accurate on trenching and vertical cut applications.
◆
Magnetic Mount Included
The LR50 includes a magnetic mount for fast, tool-free attachment to the boom. Stays put under vibration and movement.
◆
GL1425C Dual Grade Laser
Same proven GL1425C — 2,600 ft diameter range, ±10% grade capacity, IP66 weatherproof, 5-year warranty. The workhorse of the jobsite.
2,600’ Diameter Range
Accuracy 1/8" @ 100’
Slope Capacity ±10%
LR50 Machine Receiver/span>
360° Reception
FGC20 Heavy-Duty Fiberglass Elevator Tripod
15’ Grade Rod (Inches)
LED Bar Display on Receiver
Boom Plumb Indicator
2,600’ Diameter Range
Accuracy 1/8" @ 100’
Slope Capacity ±10%
LR50 Machine Receiver/span>
360° Reception
FGC20 Heavy-Duty Fiberglass Elevator Tripod
15’ Grade Rod (Inches)
LED Bar Display on Receiver
Boom Plumb Indicator
► Spectra Precision GL1425C-EXCAVATORMAXX-22 Excavator Laser Package INCLUDES
- Component 1: GL1425C Dual Grade Laser Transmitter (GL1425C-19)
- Component 2: Spectra LR50 Machine Receiver/a>
- 360° reception — catches beam from any direction
- Component 3: FGC20 Heavy-Duty Fiberglass Elevator Tripod
- Elevator center column adjusts from 40" to 90" extended — 50" of vertical reach without moving the legs
- Component 4: 15 ft. Contractor-Grade Aluminum Rod — Ft. & Inches
- Smartphone Bluetooth Remote Control / Free App
- RC1402N Handheld Remote Control
- Rechargeable NiMH Battery Pack
- Charger 120412-00
- Small Carrying Case
- Multilanguage CD, Quick user guide and Safety Instructions
- 5-Year Laser Warranty
►
GL1425C Dual Grade Laser — Key Specs
▴ Grade & Range
- ✓ Dual grade range: -10% to +15%
- ✓ 2,600 ft working diameter
- ✓ Grade accuracy: 1/8" @ 100’
▴ Control & Receiver
- ✓ Bluetooth + RC app control
- ✓ HL760 5" capture receiver (std kit)
- ✓ Smartphone remote via free app
▴ Durability
- ✓ Self-leveling (both grade axes)
- ✓ IP66 weatherproof & dustproof
- ✓ 3-ft drop rated onto concrete
▴ Warranty & Power
- ★ 5-Year Warranty
- ✓ NiMH rechargeable battery — 45 hrs
- ✓ 300 / 600 / 900 RPM rotation
The LR50 is a rugged machine receiver designed for excavator boom-mount applications. Unlike receivers that require a separate LED display, the LR50 shows grade status directly on the receiver itself via bright LED bars — visible right on the boom from the operator’s seat. 360° reception means you never lose the signal as the boom swings.
LR50 Machine Receiver KEY FEATURES
- 360° reception — catches the laser beam from any direction as the boom swings
- LED bar display on the receiver — bright LEDs show grade status directly on the unit
- Grade status visible from cab without a separate display
- Boom plumb indicator — know when the boom is vertical
- Magnetic mount included for fast, tool-free boom attachment
- Compatible with GL1425C — works directly with the laser’s rotating beam
Why LR50 (no separate display)?
- Fewer components to install, maintain, and lose
- No wiring or wireless pairing with an in-cab unit
- LED bars on the boom are readable from the cab
- Lower overall system cost vs. LR50W with separate wireless display
LR50 vs. LR50W — What’s the Difference?
LR50 (this kit): Grade status displayed via bright LED bars ON THE RECEIVER ITSELF. No separate in-cab display. Simpler, leaner, lower cost — ideal when the operator can see the boom.
LR50W: Adds a wireless in-cab LED bar display that shows grade status inside the cab. Audible tones: Fast beep = High / Slow beep = Low / Constant tone = On grade. Best when the boom is not visible from the seat or the operator prefers an in-cab readout.
LR50 (this kit): Grade status displayed via bright LED bars ON THE RECEIVER ITSELF. No separate in-cab display. Simpler, leaner, lower cost — ideal when the operator can see the boom.
LR50W: Adds a wireless in-cab LED bar display that shows grade status inside the cab. Audible tones: Fast beep = High / Slow beep = Low / Constant tone = On grade. Best when the boom is not visible from the seat or the operator prefers an in-cab readout.
★ Want wireless in-cab display?
Upgrade to the GL1425C-ExcavatorMAXX-1 — same proven package with the LR50W wireless machine receiver and integrated in-cab LED bar display. See grade from inside the cab without looking at the boom.
► Spectra GL1425C Key Features and Benefits
- GL1425C is dual grade plus horizontal and vertical.
- Simple, accurate dial in grade from -10% to +15%
- Up to 2,600 ft working diameter which increases productivity by reducing need for multiple set-ups on a large job site
- Fully automatic self-leveling in both grade axis, horizontal, and vertical which provides fast, accurate setup in all applications
- Fast setup, minimal training time and automatic self-leveling minimize operating costs and boost productivity
- Highly rugged design and patented lighthouse seal protects the rotor head and glass and offers superior drop and weather protection for reduced downtime
- 2-way full function remote control allows grade changes to be made from anywhere on the jobsite
- Temperature calibrated for high accuracy over wide temperature changes
- IP66 dust and water-proof to withstand harsh jobsite conditions
- Mask mode eliminates interference from other crews on the jobsite
- Automatic Grade Match and PlaneLok
► Spectra GL1425C Applications
- Excavating to grade — trenches, footings, basements
- Leveling concrete forms and footers
- General construction vertical alignment and plumb such as anchor bolt and form alignment
- Over the top sewer and storm drain pipe installations
- Sports fields, tennis courts and driveways
- Grading and excavating
- Steep slope road embankments and ditch banks
- Ramps and drainage
► Spectra Precision GL1425C Dual Grade Laser SPECIFICATIONS
| Leveling Accuracy | 1.5 mm/30 m | 1/16" @ 100 feet | 10 arc seconds |
| Grade Accuracy | 1/8" @ 100 feet |
| Grade Temperature Drift, typical | 1/16" @ 310 feet @ 1°F |
| Grade range no tilt adjustment | Typical 9% |
| Grade range w/ tilt adjustment | 15% |
| Rotation Speed | 300, 600, 900 RPM |
| Operational Diameter | 2,600 feet diameter |
| Laser Type | 630 - 643 nm |
| Laser Class | Class 2 |
| Self Leveling Range | Typical 5 / 8% |
| Operating Temperature | -4°F to +122°F |
| Storage Temperature | -13°F to +158°F |
| Power Source | 10,000 mAh NiMH battery pack included — or — 4 each 1.5 Volt D Alkaline Batteries (Not Included) |
| Battery Life Time NiMH | Typical 45 hours |
| Battery Charging Time | 10 hours |
| Battery Charging Temperature | +41°F to 104°F |
| Tripod Attachment | 5/8 x 11 horizontal and vertical |
| Warranty | 5 Years Laser |
| Dust and Waterproof | IP66 |
| Weight | 7.7 lbs including battery |
| Product Dimensions | 11.0 x 7.1 x 9.5 inch |
■ FGC20 ELEVATOR TRIPOD — INCLUDED IN THIS KIT
SitePro FGC20ELAZ-B Heavy-Duty Fiberglass Elevator Tripod
The FGC20 is a heavy-duty fiberglass elevator tripod designed specifically for excavator grade laser applications. The crank-up elevator center column adjusts from 40" to a fully extended 90" — giving you an additional 50" of vertical reach without touching the legs. That extra height is what gets the GL1425C laser up to the level needed to align with the machine receiver mounted on your excavator boom. Without an elevator tripod, the laser sits too low to maintain a proper signal path to the boom-mounted receiver, causing unreliable grade readings or no signal at all. Quick-clamp leg locks and 5/8×11 thread mount for direct GL1425C compatibility.
▴ BUILD
- ✓ Heavy-duty composite legs
- ✓ Elevator center column — cranks from 40" to 90" extended
- ✓ Quick-clamp leg locks
- ✓ 5/8 × 11 thread — fits GL1425C
▴ JOBSITE READY
- ✓ Adjusts height without moving legs
- ✓ Fast setup and breakdown
- ✓ Stable on uneven ground
- ✓ Built for daily contractor use
▣
SitePro 11-816-C Aluminum 15-Foot Grade Rod — Feet & Inches — Included in This Kit
Model: 11-816-C
The SitePro 11-816-C is a professional-grade aluminum telescoping leveling rod built for accurate elevation readings and rugged daily use. Clearly marked Feet & Inches graduations are easy to read from a distance. Pairs perfectly with the GL1425C and LR50 receiver.
▴ Construction
- • High-strength aluminum alloy
- • 15-foot telescoping sections
- • Feet & Inches graduations
- • Smooth, quiet section extension
▴ On the Job
- • Compatible with LR50 receiver
- • Easy-read graduations at distance
- • Lightweight for all-day carry
- • Built for daily jobsite use
►
Mounting Options — Included & Available Add-Ons
✓ INCLUDED IN THIS KIT
Standard mag mount — works on any steel surface
Included — $425.00 value
✓ Included in this kit
► ADD-ON — For Dozer Use
For use with dozer / blade applications
MSRP: $707.00
$515.95
► ADD-ON — For Skid Steer Use
For use with skid steer applications
$295.00
► GL1425C Series Package COMPARISON
GL1425C DUAL GRADE — STANDARD PACKAGES
| Part # | Components | Remote |
|---|---|---|
| GL1425C-BCC | No Receiver with Case | NO REMOTE |
| GL1425C | HL760 Deluxe Receiver with C70 Receiver Adapter Carrying Case | RC1402 + BT App |
| GL1425C-14 | CR700 Multi Use Receiver with C70 Receiver Adapter and C71 Magnetic Mount | RC1402 + BT App |
| GL1425C-BL | LASER ONLY — No Receiver — No Case | NO REMOTE |
| GL1425C-NR | HL760 Deluxe Receiver with C70 Receiver Adapter | NO REMOTE |
GL1425C DUAL GRADE — COMPLETE PACKAGES
| Part # | Includes | Remote |
|---|---|---|
| GL1425C-1 | CR700 Multi-Use Receiver • C70 Rod Adapter • C71 Magnetic Mount • Aluminum Tripod • 15’ Rod (10ths) • Large Case | RC1402 + BT App |
| GL1425C-2 | CR700 Multi-Use Receiver • C70 Rod Adapter • C71 Magnetic Mount • Aluminum Tripod • 15’ Rod (TENTHS) • Large Case | RC1402 + BT App |
| GL1425C-16 | CR700 Multi-Use Receiver • C70 Rod Adapter • C71 Magnetic Mount • Standard Aluminum Tripod • 16’ Rod (10ths) • Small Case | RC1402 + BT App |
| GL1425C-17 | HL760 Premium Receiver • C70 Rod Adapter • Standard Aluminum Tripod • 16’ Rod (10ths) • Small Case | RC1402 + BT App |
| GL1425C-18 | CR700 Multi-Use Receiver • C70 Rod Adapter • C71 Magnetic Mount • Elevator Fiberglass Tripod • 16’ Rod (10ths) • Small Case | RC1402 + BT App |
| GL1425C-19 | HL760 Premium Receiver • C70 Rod Adapter • Elevator Fiberglass Tripod • 16’ Rod (10ths) • Small Case | RC1402 + BT App |
| GL1425C-26 | CR700 Multi-Use Receiver • C70 Rod Adapter • C71 Magnetic Mount • Standard Aluminum Tripod • 16’ Rod (TENTHS) • Large Case | RC1402 + BT App |
| GL1425C-27 | HL760 Premium Receiver • C70 Rod Adapter • Standard Aluminum Tripod • 16’ Rod (TENTHS) • Small Case | RC1402 + BT App |
| ► Dedicated Machine Receiver Packages ◄ | ||
| GL1425C-ExcavatorMAXX-1 | GL1425C+ LR50W-MM Machine Receiver (w/ wireless in-cab display, mag mount) • FGC20 Heavy-Duty Fiberglass Elevator Tripod • 15’ Rod (INCHES) | BT App |
| GL1425C-ExcavatorMAXX-2 | GL1425C+ LR50W-MM Machine Receiver (w/ wireless in-cab display, mag mount) • FGC20 Heavy-Duty Fiberglass Elevator Tripod • 15’ Rod (INCHES) | BT App |
| GL1425C-EXCAVATORMAXX-21 | GL1425C+ LR50 Machine Receiver (LED bar on receiver) • FGC20 Heavy-Duty Fiberglass Elevator Tripod • 15’ Rod (INCHES) | BT App |
| GL1425C-EXCAVATORMAXX-22 ← THIS PAGE | GL1425C+ LR50 Machine Receiver (LED bar on receiver) • FGC20 Heavy-Duty Fiberglass Elevator Tripod • 15’ Rod (INCHES) | BT App |
All part numbers include laser transmitter, NiMH rechargeable battery pack and charger.
► GRADE LASER COMPARISON CHART
| Specification | GL412N | GL422N | GL1425C | GL612N | GL622N | UL633 |
|---|---|---|---|---|---|---|
| Accuracy | 1/16-inch @ 100-ft | 10 arc seconds | |||||
| Operating Diameter | 2,600-feet | 2,600-feet | 4,000-feet | 2,600-feet | ||
| Self-Leveling Range | 5 degrees electronic servo self-leveling | 14 degrees electronic servo self-leveling | ||||
| Grade Range | -10 to +15% | -25% to +25% | ||||
| Slope Type | Single | Dual | Dual | Single | Dual | — |
| Power Source | 4 x D-Cell | NiMH Rechargeable Battery Pack | — | |||
| Battery Life | 35 Hrs NiMH | 50 Hrs Alkaline | Typical 45 Hours | 35 Hrs NiMH | 40 Hrs Alkaline | — | ||
| Rotation Speed | 300, 600 rpm | 300, 600, 900 rpm | 300, 600, 750 rpm | 0 to 750 rpm | ||
| Water Resistance | Yes — IP66 | |||||
| Size L x W x H (inches) | 10.7 x 7.7 x 7.9 | 11 x 7.1 x 9.5 | 9.4 x 5.9 x 11 | |||
| Warranty | 5-Year | |||||
► Spectra Precision GL1425C Dual Grade Laser DOWNLOADS
► See the LR50 Machine Receiver in Action
