Want the display in the cab? Decide before you order.
This is the LR50 — the standard version. The operator reads grade from the receiver itself, out on the mast.
If you want the RD20 wireless in-cab display, you need the LR50W instead. You cannot add it later in any sensible way — fitting the radio means sending the receiver back to the factory, working without it while you wait, and paying enough that you would have been better off buying the wireless model on day one. This catches people out often enough that we would rather say it here than on the phone afterwards.
If you are happy reading grade at the mast, the LR50 is the right buy and costs less. Plenty of our customers run exactly this.
See the LR50W with the RD20 — see price →
Not sure which way to go? Call 1-877-866-5721 and we will talk it through against the machine you are running.
Spectra Precision LR50 Receiver with Rechargeable Batteries
Built-in blade tilt and excavation plumb indicator
Not compatible with the RD20 wireless in-cab display
Free same-day shipping on orders placed by 12 noon Central
Spectra Precision LR machine receivers
Turn a two-person job into a one-man operation.
Add this to the laser you already have. Simple technology that helps you solve problems, dig faster, for less money, and gets you on grade sooner.
Authorized DealerWe'll match the receiver to your machine and laser.
The Spectra Precision® LR50 & LR50W Laser Machine Display Receivers are designed to be used as a stand-alone display receiver on grading and excavating equipment including: dozers, excavators, backhoes, scrapers, and box blades.

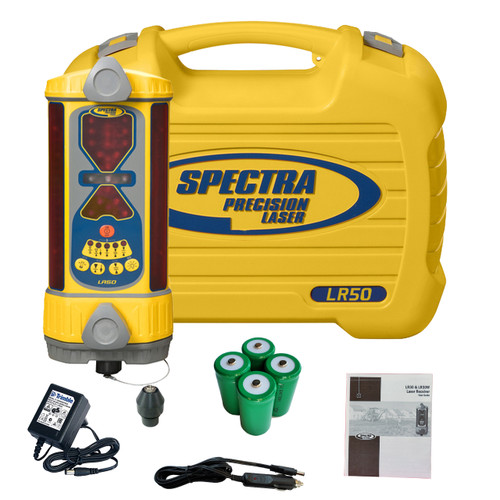

Spectra Precision LR50 Receiver INCLUDES
- LR50 Receiver with Holding clamps
- 4 x C-Cell NiMH Rechargeable Batteries
- Charger 120 Volt AC & Adapter
- Case
- Manual
Spectra LR50 Featured Highlights
- Built-in blade tilt indicator helps the operators keep the blade level for increased accuracy and productivity
- Center On-grade provides an equal amount of grade information above and below on-grade.
- Use on dozers, graders, scrapers and box blades
- Offset on-grade for productive excavation provides additional above grade information for less undercuts
Spectra Precision LR50 Machine Receiver OVERVIEW
Rugged 360-degree Laser Machine Display Receiver with Built-in Blade Tilt and Excavator Boom Plumb Indicator
The Spectra Precision® Laser LR50 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including: dozers, excavators, backhoes, scrapers, and box blades.
The easy-to-use LR50 features versatile 360-degree laser reception and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup.
Rugged and waterproof, the LR50 receiver withstands all weather environments.
Internal isolating shock mounts protect the electronics.
The LR50W is designed to be used with the RD20 Wireless Remote Display.
Spectra Precision LR50 Receiver KEY FEATURES and BENEFITS
- Built-in blade tilt indicator helps the operator keep the blade level for increased accuracy and productivity
- Center on-grade provides an equal amount of grade information above and below on-grade.
Use on dozers, graders, scrapers and box blades - Built-in plumb indicator for fast, accurate grade checking in excavation applications
- Offset on-grade gives you more range above grade using the entire receiver for more productive excavation
- Up to six channels of grade information plus directional out-of-beam indictors
- LR50W links wirelessly to the RD20 in-cab display
- Two-Year Warranty - Reliability you can count on
Spectra Precision LR50 Receiver APPLICATIONS
- Machine mounted grade checking
- Grading and leveling
- Excavation and trenching
How to read these part numbers
- LR50 vs LR50W The W means wireless. A LR50W pairs with the RD20 display so the operator reads grade in the cab. A plain LR50 has no radio. Both look the same, and adding wireless to a plain LR50 later means an expensive factory service, so buy the W up front if you might want the cab display.
- -MM Includes the MM-1 magnetic mount, for excavators and backhoes.
- -DM Includes the DM-20 bolt-on mount, for dozers.
- -1 Runs on alkaline batteries instead of the NiMH rechargeable pack.
- LR50W-2 The wireless LR50W receiver without the RD20 display, for when you already have one or will add it later.
Spectra Precision LR50 Receiver CHART
Spectra Precision LR50W Wireless Receiver CHART
Spectra Precision Laser Receiver Product Application
Machine Laser Receiver Comparison Chart
| Specifications | LR20 | LR30 / LR30W | LR50 / LR50W | LR60 LR60W |
|---|---|---|---|---|
| Number of Display Channels | 5-Channel | 5-Channel | 5-Channel 6-Channel in Excavating Mode | 9-Channel |
| ACCURACY: Center on grade mode (grading) | Fine: 0.20" Standard: 0.40" Wide: 0.80" | Fine: 0.20" Standard: 0.45" Wide: 1.25" | Fine: 0.20" Standard: 0.40" Wide: 0.80" | Setup 0.25" Fine: 0.40" Standard: 0.80" Wide: 1.60" |
| ACCURACY: Offset on grade mode (grading) | Fine: 0.50" Standard: 1.0" Wide: 2.0" | NA | Fine: 0.50" Standard: 1.0" Wide: 2.0" | Setup 0.25" Fine: 0.50" Standard: 1.0" Wide: 2.0" |
| ACE Angle Compensation Mode | NA | NA | NA | Fine: 0.50" Standard: 1.0" |
| Blade-Tilt Accuracy | NA | NA | ±0.5°, ±1.5°, ±2.5° | NA |
| Plumb-Swing Accuracy | ±0.5°, ±1.5°, ±2.5° | NA | ±0.5°, ±1.5°, ±2.5° | Standard: .05" Angle Compensated Mode: 1.0 in |
| Beam Reception | 360 | 360 | 360 | 360 |
| Vertical Reception | 8 | 6.75 | 6.75 | 8.75 |
| LED Battery Life Alkaline Bright / Dim NiMH Bright / Dim | 35 hours | 50 - 75 hours 40 - 50 hours | 45 - 60 hours 30 - 45 hours | 45 - 75 hours 40 - 50 hours |
| Battery Recharge Time | 3-4 | 3-4 | 3-4 | 3-4 |
| Size | 9.5 x 4.38 x 1.85 | 13.5 x 5.6 x 5.9 | 13.5 x 5.6 x 5.9 | 15.5 x 5.6 x 5.9 |
| Weight | 2.5 | 5.5 | 5.5 | 6.0 |
| Receiver Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
Machine Receiver - FEATURE COMPARISONS
LR20
Compact Laser Receiver- 8-inch Receiving Height
- 360-degree laser reception provides large working area and range
- Super bright grade display with Green on-grade LED-s provides superior depth/elivation indication
- Center and offset on-grades are ideal for both grading and excavation applications
LR30 / LR30W
Used on Grading and Excavating equipment including:Dozers, Graders, Scrapers, Skid Steers, Box Blades and Levelers
- 6.75-inch Receiving Height
- 360-degree laser reception picks up the laser from all directions
- Five channels of grade information plus directional out-of-beam indicators
- Three selectable accuracies meet job tolerances from rough grading to final finishing.
- Ultra-bright LED's with Green on-grade provides easy-to-see display to match ambient lighting conditions
LR50 / LR50W
Features Built-in Blade Tilt and Excavation Plumb Indicator- 6.75-inch Receiving Height
- 360-degree laser reception provides large working area and range
- Built-in blade tilt indicator help the operator keep the blade level for increased accuracy and productivity
- Center on-grade provides an equal amount of grade information above and below on-grade. Use on dozers, graders, scrapers and box blades.
- Built-in plumb indicator for fast, accurate grade checking in excavation applications
- Offset On-Grade gives you more range above grade using the entire receiver for more productive excavation
- Up to six channels of grade information
- Directional out of beam indicators
LR60 / LR60W
Features Excavation Plumb Indicator and Angle Compensation Indication
- 8.75-inch Receiving Height
- 360-degree laser reception provides large working area and range
- Patented Angle Compensation Indication automatically calculates and corrects the grade display for the angle of the dipper arm
- Check Grade with the dipper arm extender or retracted up to 30-degrees
- Built-in plumb indicator for fast, accurate grade checking
- Center on-grade provides an equal amount of grade information above the below on-grade. Use on dozers graders, scrapers and box blades.
- Extended reception height stays in the beam longer providing addional grade information.
- Offset on-grade for productive excavation
- Up to eight channels of grade information plus directional out-of-beam indicators.
- Four selectable accuracies for eac on-grade location.
The Spectra Precision LR Machine Receiver Range
Every LR machine receiver we carry, by family. Prices are live from our store. Tap any one to see it.
Spectra Precision LR50 — Straight Answers
Everything below comes from Spectra Precision's own documentation for these receivers, which we host on this site. If your question is not here, call 1-877-866-5721 and ask a person who sets these up.
What is the LR50 best suited to?
The LR50 is the crossover receiver in the range - the one tool that suits both a dozer and an excavator, which is why contractors running mixed equipment tend to land on it. It gives a 6-channel display in excavating mode and a 5-channel display for centre on-grade, on a 6.75-inch photocell, so there is a large window for the laser to strike.
Does the LR50 show blade tilt?
Yes. The LR50 has a tilt display with three accuracy settings for bulldozer work, and plumb indication with offset on-grade for excavator work. That combination is what makes it the crossover tool rather than a dozer receiver or an excavator receiver.
What does a machine display receiver actually do?
It mounts on the machine - on a mast, a blade or a dipper arm - and reads the plane from a rotating laser you have already set up. The receiver tells the operator whether the cutting edge is above grade, below grade or on grade, so nobody has to stand in the trench with a grade rod and the operator does not have to stop and check.
What is deadband, and which setting should I use?
Deadband is the size of the on-grade zone. A wider band is quieter and steadier, which suits a first pass or rough grading; a narrower band is tighter and suits a finish pass. Measured from the centre on-grade position the settings are 5 mm (0.20 in) fine, 10 mm (0.40 in) standard and 20 mm (0.80 in) wide. Working from an offset on-grade position they are 12 mm (0.50 in), 25 mm (1.0 in) and 50 mm (2.0 in).
What is on-grade offset?
Offset moves the on-grade zone away from the centre of the receiver to wherever the laser is striking it. That means you do not have to physically move the receiver when the grade changes, and if most of your work sits above or below the reference you can shift the zone so the laser is in the window more of the time. On an excavator, setting on-grade high gives the operator earlier warning that the bucket is approaching depth.
What rotation speed should I set my laser to?
The receiver will read a laser from 105 to 1200 RPM, but that is what it tolerates, not what works well. In practice you want 600 RPM as a minimum, and faster is better. The reason is strikes: the faster the laser spins, the more times the beam crosses the receiver every minute, and the more often the display updates. At a slow rotation the reading lags behind what the machine is actually doing. That matters most on a skid steer or a dozer, where the operator is making quick changes in elevation or travelling at speed - a slow laser leaves the display chasing the blade. On an excavator working one spot at a time it matters less. If your laser has a variable speed setting, turn it up.
Is it weatherproof?
Yes. These receivers are rated IP67 - sealed against dust and against temporary immersion in water - which is what keeps repair costs down on a machine that works in mud and gets washed.
How does it mount to the machine?
Built-in clamps fasten the receiver to a square or oval mast and hold it even if the machine is slammed or shaken. Three mounts cover the rest: the CTO-MMM mini mount for backhoes, skid steers and mini excavators, the DM-20 bolt-on dozer mount, and the MM-1 magnetic mount for dozers and excavators. Call us and we will tell you which one suits your machine.
Can I move it between machines?
Yes, and it is one of the reasons contractors buy these rather than a full control system. The receiver comes off one machine and onto the next with the right mount. One receiver can cover a small fleet instead of sitting idle on one machine.
Will this one work with the RD20 wireless in-cab display?
No. The RD20 pairs only with the wireless-capable W models - the LR30W, LR50W and LR60W. This is the non-wireless version, and the operator reads grade from the receiver itself. If you want the display in the cab, ask us about the W model before you order; it is the same receiver with the radio fitted.
How do I tell a W model from a non-W?
Not from the front - they are identical. The W model carries a radio compliance label on the back and the case is marked. If you are unsure what you already own, call us with the part number and we will tell you.
What mast sizes do the receiver clamps fit?
Spectra's user guide lists the built-in stainless steel clamps as fitting round tube 42–50 mm (1.66–2.00 in) or square tube 38 mm (1.5 in). Do not clamp to a painted pole: paint can build up on the clamps and wear them out.
How do I charge the NiMH batteries, and can I run the receiver while it charges?
Per Spectra’s user guide the charger is for the rechargeable NiMH batteries only; do not charge alkaline or other disposable batteries. The receiver will not operate while it is charging, so plan to charge it between shifts. A charge-status LED on the back of the housing shows progress.
Does the receiver shut itself off?
Yes. Per Spectra’s user guide the receiver turns itself off after 75 minutes with no laser beam, which helps save the batteries.
What replacement parts are available for the LR50?
Genuine Spectra parts for the receiver: Spectra 010536-99 (carrying case), Spectra 010542-99 (charger adapter), Spectra 010897-99S (replacement mounting knobs), Spectra 010459-99S (replacement clamps), Spectra 002102-99S (battery door thumb screws).
Who am I buying from?
Contractors-Tools.com, an authorized Spectra Precision dealer. We set these receivers up every week. Tell us the machine and the laser you are running and we will spec it before you order. Call 1-877-866-5721.
Source: Spectra Precision LR20 / LR30W / LR50W / LR60W / RD20 machine display receiver manual, and the LR50 / LR50W user guide.
Watch before you dig
Spectra LR50 & LR60 Plumb Indicator Setup on an Excavator
Dipper arm not plumb? Then your grade reading is off. See how to set plumb on Spectra LR50 and LR60 machine receivers.
Spectra LR50 How-To Videos
Short videos from Contractors-Tools.com on setting up and running Spectra LR machine receivers.
Center or offset on-grade? Set your Spectra LR machine receiver up the right way for grading or digging.
Six reasons why adding a Spectra Precision laser machine receiver to your grade laser setup changes everything on the job site. Covers performance advantages, accuracy benefits, and workflow improvements from using a Spe
Downloads — Spectra Precision LR50 / LR50W User Guide
Spectra Precision’s own document, free to download. Authorized Spectra Precision dealer — Contractors-Tools.com.
LR Series Comparison SheetSpectra Precision LR20, LR30, LR50 and LR60 side by side · imageOpen full size →
LR50 / LR50W User GuideControls, deadband settings, blade-tilt and plumb, batteries and charging, wireless/wired switch, mounting and specifications · Spectra documentation with Contractors-Tools.com coverDownload PDF →
LR50 / LR50W Set-Up on an ExcavatorTouch-panel buttons, controls and display, secondary functions · 2 pagesDownload PDF →
LR Series DatasheetLR20, LR30, LR50 and LR60 compared · 4 pagesDownload PDF →
