Spectra Precision · Laser Receiver · HL450-BR
HL450-BR
The Bare Receiver.
Same HL450, No Clamp.
Same HL450, No Clamp.
Everything the HL450 Laserometer does — 4 inch detection, a 3 inch numeric readout, LCDs front and back, IP67, 70+ hours on two AA batteries — supplied without the C45 rod clamp, for the many crews who already have one.
Questions? Talk to a laser specialist: 1-877-866-5721
Bare Receiver
BR means
4 inches
Total reception
3 inches
Smart readings
3
Precision levels
650 feet
Working radius
IP67
Rating
5 feet
Drop
70+ hrs
Battery
What BR Means
Bare Receiver.
That Is the Whole Story.
That Is the Whole Story.

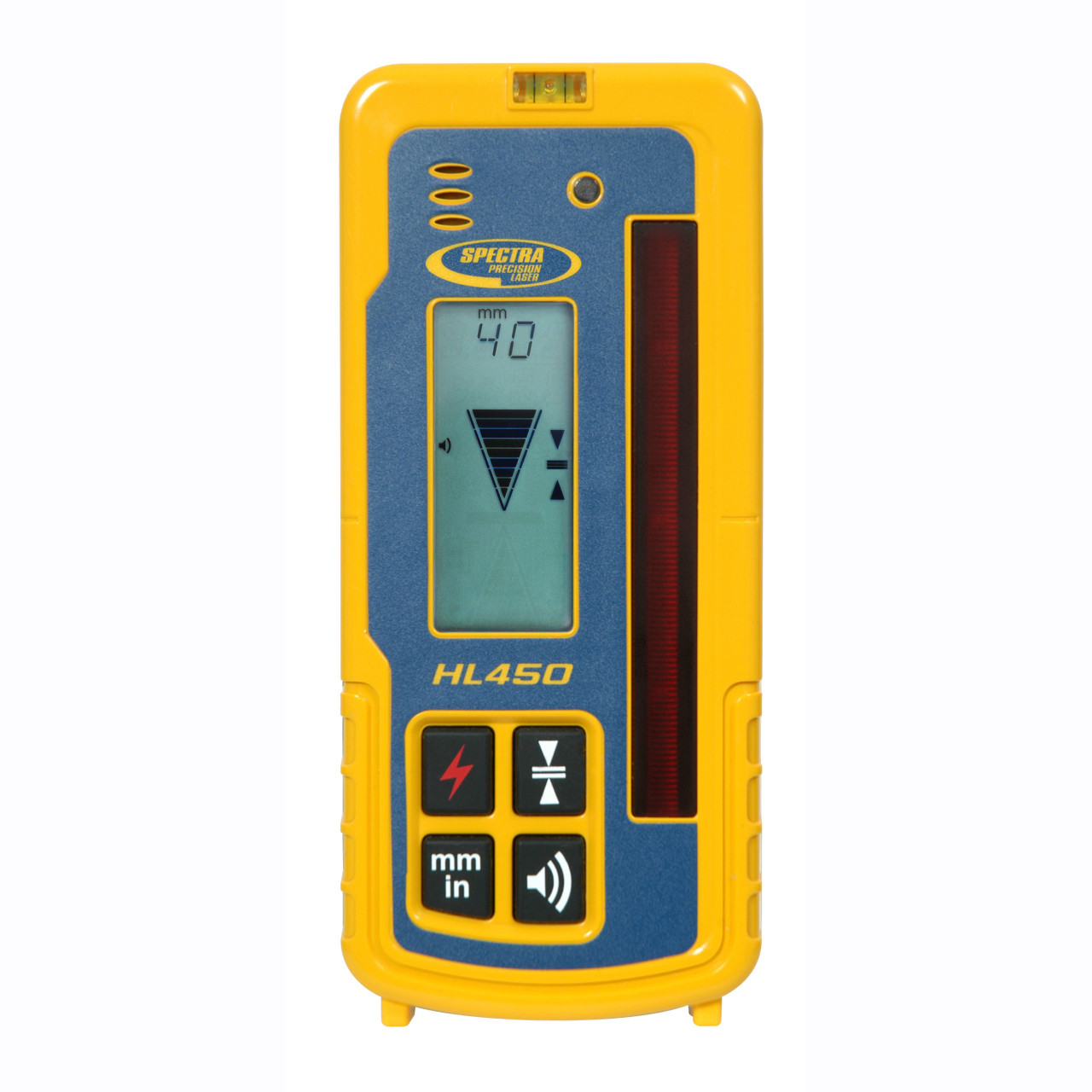

The HL450-BR — the receiver on its own, no rod clamp.
BR = Bare Receiver
Not a lesser receiver. The same one, supplied on its own.
The BR in HL450-BR stands for Bare Receiver. It is the HL450 Laserometer in the box with its batteries and manual, and without the C45 rod clamp.
Nothing is removed from the receiver and nothing is downgraded. Every specification on this page is identical to the standard HL450: the same 4 inch detection height, the same 3 inch numeric readout, the same three precision levels, the same IP67 housing, the same warranty.
Spectra list it as its own part number for a simple reason — a clamp outlasts several receivers, and plenty of buyers already have one.
What’s in the Box
Three Things.
No Clamp.
No Clamp.
Included in the box
- HL450-BR Laserometer receiver — the bare receiver
- 2 × AA batteries
- Operating manual
Not included: the C45 rod clamp. If you need one, we stock it separately — Spectra C45 rod clamp. If you want the receiver and clamp together in one box, that is the standard HL450.
Who Buys the BR
If You Already Have
a Clamp.
a Clamp.
You already own a C45 clamp
Replacing a receiver and keeping the bracket you have? The clamp does not wear out at the same rate as the electronics, so there is no reason to buy a second one.
You need a second receiver
Two people working off one laser both need a receiver, but they do not both need a new clamp if you already have spares in the truck.
You run a fleet
Yards that buy receivers by the handful accumulate clamps. The bare receiver is the sensible reorder.
You mount it another way
If the receiver lives on a bracket, a fixture or a jig rather than a grade rod, the rod clamp was never going to be used.
Smart Readings
Two Heights,
Two Different Jobs.
Two Different Jobs.
Receiver listings quote one height. This one has two, and the gap between them is what a digital readout receiver is for.
| Measurement | HL450-BR | What it means on the rod |
|---|---|---|
| Total laser detection height | 102 mm (4 inches) | The full window the receiver can see the beam in. Anywhere in these 4 inches you get proportional arrows telling you which way to move. |

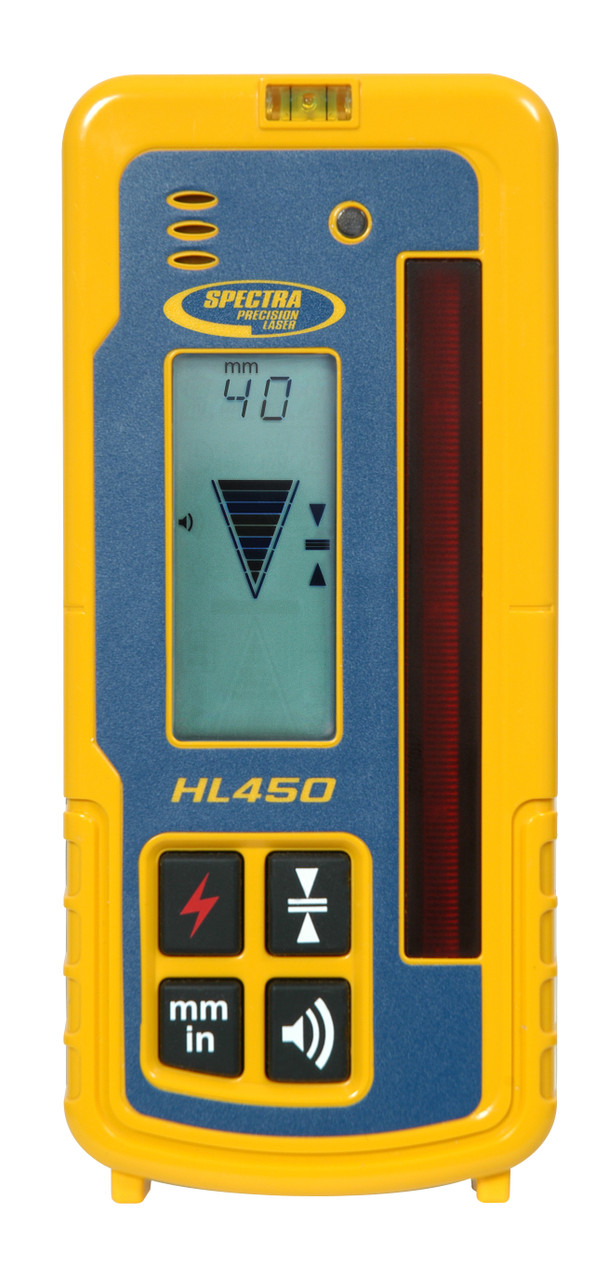

| Numeric readout height (smart readings) | 76 mm (3 inches) | The middle band where it shows an actual number — how far above or below grade you are, to ±40 mm (±1.5 inches), in millimetres, feet and inches or fractional inches. |
Swipe the table sideways to read it all →
Specifications
Full Specification.
| Detection and readout | |
| Total laser detection height | 102 mm (4 inches) |
| Numeric readout height — smart readings | 76 mm (3 inches) |
| Numeric display range | ±40 mm / ±1.5 inches from on-grade |
| Display | Large LCD front and back — the rear repeats the front |
| Units of measure | Millimetres, centimetres, feet and inches, fractional inches |
| Reception angle | ±45° minimum |
| On-grade positions | 1 |
| Accuracy | |
| Precision levels | 3 selectable dead-bands |
| Fine | 1.0 mm / 0.05 inches / 1/16 inch |
| Medium | 5.0 mm / 0.20 inches / 1/4 inch |
| Calibration | 0.1 mm / 0.01 inches / 1/64 inch |
| Self-calibrating | Yes |
| Anti-strobe sensor | Yes — reduces false indication from strobe lights |
| Bubble vial | Built in, helps keep the receiver level |
| Marking notch | 3.15 inches / 80.0 mm from the top |
| Range and compatibility | |
| Working radius | 1–200 m (3–650 feet), laser dependent |
| Detectable spectrum | 610 nm – 900 nm — red beam |
| Laser compatibility | Any rotating laser in the red spectrum |
| Rod clamp | Not included — fits the Spectra C45 clamp |
| Power, sound and environment | |
| Power supply | 2 × 1.5 volt AA batteries |
| Battery life | 70+ hours |
| Automatic shut-off | 30 minutes |
| Volume settings | 3 — Loud 100+ dBA, Low 65 dBA |
| Environmental rating | IP67 — waterproof and dust-proof |
| Drop rating | 5 feet (1.5 m) onto concrete |
| Operating temperature | −20 °C to +60 °C (−4 °F to +140 °F) |
| Storage temperature | −40 °F to +158 °F |
| Dimensions without clamp | 168.0 × 76.0 × 36.0 mm (6.6 × 3.0 × 1.4 inches) |
| Weight without clamp | 371 g (13.1 ounces) |
| Warranty | 3 years limited — 2 years free exchange, a fee applies in the 3rd year |
Specifications from Spectra Precision, taken from the HL450 user guide and the laser receiver brochure. The drop rating is the one in Spectra’s model-specific comparison table, which lists the HL450 at 5 feet (1.5 m); the 10 foot figure in the range brochure carries the footnote “based upon models” and applies to the HL700 and HL760.
HL450 vs HL450-BR
One Row Is Different.
Set side by side so there is no doubt about what you are and are not getting.
| HL450 | HL450-BR | |
|---|---|---|
| Leica-style model code | HL450 | HL450-BR |
| Receiver | HL450 Laserometer | Identical HL450 Laserometer |
| C45 rod clamp | ✓ Included | ✕ Not included |
| Total detection height | 4 inches | 4 inches |
| Smart reading height | 3 inches | 3 inches |
| Precision levels | 3 | 3 |
| Working radius | 650 feet | 650 feet |
| Front and back LCD | ✓ | ✓ |
| Anti-strobe sensor | ✓ | ✓ |
| Battery life | 70+ hours | 70+ hours |
| Environmental rating | IP67 | IP67 |
| Drop rating | 5 feet | 5 feet |
| Warranty | 3 year limited | 3 year limited |
Swipe the table sideways →
Add a C45 rod clamp →Or buy the HL450 with the clamp →
Need a spare battery door? The ATI991605-16 battery cover fits this receiver.
Receiver Comparison
Against the Rest
of the Range.
of the Range.
Every Spectra receiver we stock as a standalone unit. The HL450-BR is the entry point to digital readout — the cheapest one here that gives you a number rather than only a beep.
| HR320 | HL450-BR | HL700 | HL760 | HL760U | CR700 | |
|---|---|---|---|---|---|---|
| Reception height | 2 inches | 4 inches | 5 inches | 5 inches | 5 inches | 5 inches |
| Numeric readout | ✕ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Readout height — smart readings | — | 3 inches | 4 inches | 4 inches | 4 inches | 4 inches |
| Precision levels | 2 | 3 | 6 | 6 | 6 | 6 |
| Working radius | 500 feet | 650 feet | 1,500 feet | 1,500 feet | 1,500 feet | 1,500 feet |
| Beam colour | Red | Red | Red | Red | Red + green | Red |
| Anti-strobe sensor | ✕ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Machine mountable | ✕ | ✕ | ✕ | ✕ | ✕ | ✓ |
| Radio communication | ✕ | ✕ | ✕ | ✓ | ✓ | ✓ |
| Drop rating | 5 feet | 5 feet | 10 feet | 10 feet | 10 feet | 10 feet |
| Rod clamp included | ✓ | ✕ | ✓ | ✓ | ✓ | ✓ |
Swipe the chart sideways to compare all six →
Source: Spectra Precision laser receiver brochure and model specifications. Precision levels count all selectable dead-bands, one of which is a calibration setting. For current pricing, follow the link on any model above. Working with a green beam laser? You want the HL760U. Mounting on a machine rather than a rod? That is the CR700.
Downloads
Manuals and Literature.
Questions & Answers
HL450-BR Questions
We Actually Get.
We Actually Get.
What does BR stand for on the Spectra HL450-BR?
Bare Receiver. It is the HL450 Laserometer supplied on its own — the receiver, batteries and manual, without the C45 rod clamp. Nothing is removed from the receiver itself and nothing is downgraded. Spectra list it as a separate part number because plenty of buyers already own a clamp and have no use for another.
What is the difference between the HL450 and the HL450-BR?
One thing only: the C45 rod clamp. The standard HL450 ships with it, the HL450-BR does not. The receiver is identical in both — same 4 inch detection height, same 3 inch numeric readout, same three precision levels, same IP67 housing, same 70+ hour battery, same warranty. If you already have a clamp, the BR is the one to order.
Do I need a rod clamp to use the HL450-BR?
You need some way to mount it. If it is going on a grade rod then yes, you need a clamp — the Spectra C45 is the one made for this receiver and we stock it separately. If the receiver is going onto a fixture, a jig or a bracket you already have, you may not need one at all. Ring us on 1-877-866-5721 if you are unsure what fits.
Is the HL450-BR a refurbished or older unit?
No. It is a new, current-production HL450 receiver with the full Spectra warranty. The only difference is what is in the box.
What is the difference between reception height and smart reading height?
They are two separate numbers. Total laser detection height is 102 mm (4 inches) — the whole window in which the receiver sees the beam and shows you proportional arrows. The numeric readout band, the smart reading, is 76 mm (3 inches) — the middle portion where it displays an actual figure for how far off grade you are, to ±40 mm (±1.5 inches). So across 4 inches you know which way to move, and across the middle 3 inches you know exactly how far.
How accurate is it?
Three selectable dead-bands: Fine at 1.0 mm (0.05 inches, 1/16 inch), Medium at 5.0 mm (0.20 inches, 1/4 inch) and a Calibration setting at 0.1 mm (0.01 inches, 1/64 inch). Pick the tolerance the work needs rather than living with one setting.
Which lasers does the HL450-BR work with?
Any rotating laser in the red spectrum — it detects 610 to 900 nm, so it is not tied to Spectra transmitters. Working radius is 1 to 200 m (3 to 650 feet) depending on the laser. For a green beam you need a green-capable receiver such as the HL760U; the HL450-BR is red only.
How tough is it?
Waterproof and dust-proof to IP67, so a concrete splash or a puddle is a hose-down rather than a repair, and rated to survive a direct 5 foot (1.5 m) drop onto concrete. Backed by a 3 year limited warranty with 2 years of free over-the-counter exchange. The 10 foot drop figure you may see in Spectra’s range brochure carries the footnote “based upon models” and belongs to the HL700 and HL760 — this receiver is rated to 5 feet.
How long do the batteries last?
Over 70 hours on two ordinary AA batteries, with a 30 minute automatic shut-off for the days it gets left switched on. No proprietary pack to charge.
Can I read it from both sides of the rod?
Yes. There is a large LCD on the front and another on the back that repeats it, so you can read grade from either side without walking round. An adjustable tone calls high, low and on grade, with three volume settings.
Does it have anti-strobe protection?
Yes. The HL450 has an anti-strobe sensor that reduces false indication from strobe lights — the hazard beacons on plant and vehicles that a plain receiver can mistake for a laser strike. A false strike means a false grade, so it matters more than it sounds.
