TOPCON RL-H5A - PS.DB2 Complete Package 1021200-15-K2
Self-Leveling Rotary Laser Level Package - (uses Alkaline Batteries)
Includes: LS-80L Receiver, Measuring Rod INCHES and Aluminum Tripod
CURRENT REPLACEMENT
Topcon RL-H5A 1021200-50-K2
1021200-15-K2 is discontinued. This is the current Topcon part number in its place.
View the 1021200-50-K2 →Next Generation Self-Leveling Construction Laser

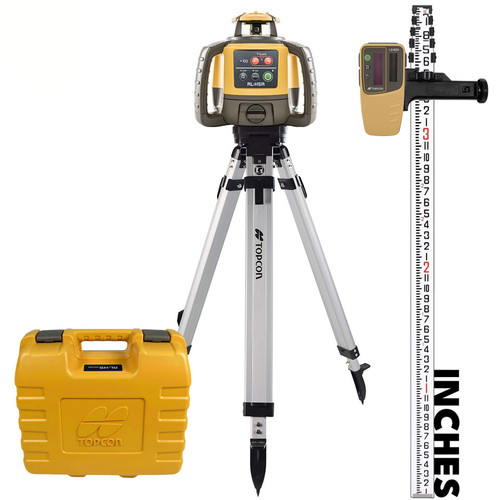

Topcon RL-H5A (1021200-15-K2) Laser Kit INCLUDES
- RL-H5A Horizontal Laser 1021200-15
- LS-80L Long Range Laser Receiver Sensor 313540702
- Receiver Rod Clamp Holder 6 312890112
- uses (4) D-Cell Alkaline Batteries (NOT INCLUDED)
- Aluminum 15-Foot Grade Rod - Measurements in INCHES
- Aluminum Heavy-Duty Tripod
- Rugged Hard Shell Carrying Case
- 5-Year Warranty Guarantee
The laser
Topcon RL-H5A TOP FEATURES
The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.
- Self-Leveling Horizontal Beam
- Long Range Operation 2,600 ft diameter
- High Horizontal Accuracy 1/16-inch @ 100-feet
- Simple, intuitive manual slope capability
- Tough IP66 Rating - Dust and Water Rating
- Self-Leveling Range ± 5 degrees
- Long Alkaline battery life - 100 hours
- Out of Level Notification
Why the RL-H5A
Built for the jobsite
MULTI-PURPOSE LASER Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.
EASY TO USE With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.
LONG RANGE OPERATION Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.
ALL WEATHER DEPENDABILITY With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.
The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.
Topcon RL-H5A Laser SPECIFICATIONS
| Accuracy | 1/16-inch @ 100-feet |
| Self-Leveling Range | ± 5 degrees |
| Working Range diameter | 2,600 feet |
| Rotation Speed | 600 RPM |
| Light Source | Visible Red Laser 635NM |
| Laser Class | CDRH(FDA) IIIa JIS/IEC 3R |
| Dust / Water Rating | IP66 |
| Operation Time | Alkaline: 100 hours |
| Operational Temp | -4ºF to 122ºF |
| Size | 7.0 x 7.7 x 8.5 in |
| Maximum Power Output | 2.4mW |
| Tripod Screw Thread | 5/8-11 |
| Topcon RL-H5A Laser Series COMPARISON | |||||
| DISCONTINUED | NEW | ||||
| New Series | RL-H5A DB2 | RL-H5A DB2 | RL-H5A RB | RL-H5A DB | RL-H5A RB |
| New Model | 1021200-15-K2 | 1021200-50-K2 | 1021200-49-K2 | 1021200-17-K2 | 1021200-16-K2 |
| Discontinued Model | 1021200-15 | 1021200-06 1021200-14 | 1021200-08 | ||
| Receiver | LS-80L | LS-80X | LS-80X | LS-100D | LS-100D |
| Batteries | Dry / Alkaline | Dry / Alkaline | Rechargeable | Dry / Alkaline | Rechargeable |
| Remote Control | NO | NO | NO | NO | NO |
| Measuring Rod 15' | YES - Inches | YES - Inches | YES - Inches | YES - Inches | YES - Inches |
| Aluminum Tripod | YES | YES | YES | YES | YES |
| LASER - TOP COMPONENT OVERVIEW | YOU ARE HERE | BETTER | BETTER | BEST | BEST |
| Source | 635nm Class 3R | 635nm Class 3R | 635nm Class 3R | 635nm Class 3R | 635nm Class 3R |
| Range (Diameter) | 2,600-feet | 2,600-feet | 2,600-feet | 2,600-feet | 2,600-feet |
| Accuracy @ 100 feet | 1/16-inch | 1/16-inch | 1/16-inch | 1/16-inch | 1/16-inch |
| Rotation Speed | 600 RPM | 600 RPM | 600 RPM | 600 RPM | 600 RPM |
| Slope | Manual 1 Axis | Manual 1 Axis | Manual 1 Axis | Manual 1 Axis | Manual 1 Axis |
| Manual Slope Range | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees |
| Self-Leveling | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees | ± 5 degrees |
| Rechargeable Battery | 60 hours | 60 hours | |||
| Dry/Alkaline Battery | 100 hours | 100 hours | 100 hours | 100 hours | 100 hours |
| Battery Run Charge | NO | NO | |||
| Environment | IP66 | IP66 | IP66 | IP66 | IP66 |
| Warranty | 5 YEARS | 5 YEARS | 5 YEARS | 5 YEARS | 5 YEARS |
| DISCONTINUED VERSION - OLD LASER INFORMATION | |||||
| Old Series | RL-H5A DB | RL-H5A RB | RL-4HC RB | ||
| Old Model | 1021200-15 | 1021200-14 | 313980772 | ||
| All laser prices are discounted in shopping cart | |||||
INCLUDED Topcon LS-80L Receiver Sensor OVERVIEW
Topcon LS-80L LONG RANGE LASER SENSOR
New laser sensor LS-80L offers increased working range* even with other Topcon rotating lasers. It indicates the laser beam position with two LCD's on both sides plus audible tone. The LCD icons also notify the HI Alert and Low Battery warnings of the RL-H4RC laser.
The Topcon LS-80L Laser Receiver Sensor Detector is able to allow you to have a longer range when using a red beam rotary laser. The unit can be adjusted for either a fine or course band, which will help improve the accuracy. It has an audible notice for the height, to make sure it is adjusted properly. You can select from 11 different channels to display the data on the LCD display.
With a rating of IP-66, the Topcon LS-80L Laser Receiver Sensor Detector is protected against dust and water. The unit is in a rubber case, so it is also protected against dropping it. It will stand up to a variety of job conditions. It can also be mounted with a Holder 6 bracket, so it will be more stable.
The Topcon LS-80L Laser Receiver Sensor Detector runs on two AA batteries. It will run for up to 120 hours, allowing for plenty of work time on the job site. It will also shut down after 30 minutes if it hasn't been used, to help save the battery life.
Topcon LS-80L Receiver FEATURES
- Increase range of rotary lasers
- Fine or course sensitivity
- Height alert
- IP-66 rating against dust and water
- Uses AA batteries
- Low battery alert
- 30 minute shut down
- Protective case
- LCD display
- 2-inch capture window
*Approximately 20 percent increase.
SitePRO Contractor Grade Aluminum Tripod INCLUDED in this 1021200-15-K1 KIT | |||
| |||
Aluminum 15-Foot Grade Rod - Inch Measurements INCLUDED in this KIT | |||
|
Important Note: Discontinued Kit – You’ll Receive the Newer Version Automatically
This kit has been discontinued by Topcon and replaced by the updated model: Topcon 1021200-50-K2.
You’ll still receive the same trusted RL-H5A laser, now made in Japan (previously made in China), with identical specifications, control panel, range, accuracy, and features.
What’s new in the upgraded kit:
-
Receiver Upgrade: Now includes the LS-80X Long Range Receiver, replacing the older LS-80L
-
The LS-80X is also made in Japan, improving overall build quality
-
Improved Speaker Placement: The speaker has been moved to the back of the receiver so the rod man can hear tones more clearly from behind
If you order this discontinued kit, we will automatically upgrade you to the new version at no extra cost. This substitution is seamless and will not delay shipping.
Orders placed by noon (CST) ship same-day Monday–Friday.
- With this policy in place we also strive to ship all orders the same day they are placed during the week.
- Orders placed over the weekend ship on Monday.
Have questions? Call or Text us anytime — we’re here to help. Text (903) 282-4546 — Call (903) 282-4546
Straight answers
Topcon RL-H5A — Straight Answers.
What comes in the Topcon RL-H5A 1021200-15-K2 kit?
This kit includes: RL-H5A Horizontal Laser 1021200-15; LS-80L Long Range Laser Receiver Sensor 313540702; Receiver Rod Clamp Holder 6 312890112; Aluminum 15-Foot Grade Rod - Measurements in INCHES; Aluminum Heavy-Duty Tripod; Rugged Hard Shell Carrying Case; 5-year factory warranty.
Will I receive exactly this model?
Note: if you order this model we will automatically substitute the current Topcon RL-H5A model 1021200-50-K2 that has the same specs, features, functions, range and accuracy. Now made in Japan / previously made in China
Are batteries included?
No. This package uses (4) D-cell alkaline batteries in the laser, which are not included. Run time is up to 100 hours on alkaline.
How long do the batteries last?
The laser runs up to 100 hours on alkaline batteries.
What does the LS-80L show?
The beam position on an LCD on both sides of the receiver, with an adjustable audible tone, fine or coarse sensitivity and a height alert.
Can I use the RL-H5A with a machine-mounted receiver?
Yes. At 600 RPM it is a good match for machine-mounted laser receivers on dozers, excavators and skid steers.
How does the RL-H5A level itself?
Press the power button and the electronic self-leveling motors level the beam to ±10 arc seconds. If the laser is bumped it re-levels automatically.
Is the RL-H5A waterproof?
It carries an IP66 dust and water rating, so it can handle dust, a sudden shower and heavy rain.
What is the difference between the RL-H5A RB and DB?
RB packages include rechargeable batteries and a charger. DB packages run on dry alkaline batteries. See the series comparison on this page.
Who sells this kit?
Contractors-Tools.com is an authorized Topcon distributor. Call 1-877-866-5721 and we will help you pick the right package.
Topcon RL-H5A How-To Videos
Five short tutorials from Contractors-Tools.com: set slope, power on and self-level, check calibration, elevation alert and Grade Match.
Step-by-step guide to manually setting slope on the Topcon RL-H5A rotary laser level, from entering the slope value to confirming it.
How to power on and self-level the Topcon RL-H5A: startup sequence, the automatic leveling process, and how to confirm the laser is ready.
How to field-check the calibration of your Topcon RL-H5A rotary laser level without sending it to a service center.
Explains the elevation alert on the Topcon RL-H5A, which warns you when the laser has been bumped or its height has changed.
How to use Grade Match on the Topcon RL-H5A to set slope by matching an existing grade, one of its most useful time-saving functions.
Downloads — Topcon RL-H5A Manual
Topcon's own document, free to download. Authorized Topcon distributor — Contractors-Tools.com.
RL-H5A Instruction ManualNomenclature, setup, slope, receiver use and specifications · Topcon documentation with Contractors-Tools.com coverDownload PDF →Put your RL-H5A to work on the machine
Grade from the seat. No rod man.
The RL-H5A throws a 2,600 ft diameter working range (with a detector), which makes it a great reference for machine-mounted receivers. Add one receiver to the bucket or boom, set the laser, and the operator reads grade without leaving the cab.
Compare the machine receivers
| Spectra CR700 | Topcon LS-B20 | Topcon LS-B20W | |
|---|---|---|---|
| Price | $559.20 | $612.95 | $1,149.95 |
| Mounting | Machine mount and rod clamp included | Integrated magnetic mount | Integrated magnetic mount |
| Detection | 200°, 5 in. height | 270° detection range | 270° detection range |
| In-cab display | — | — | Yes, via app |
| Weather | IP67 | IP66 | IP66 |
| Weight / battery | — | About 1 lb, 100 hr battery | About 1 lb, 100 hr battery |
Wireless in-cab display? See the Topcon LS-B20W and its price →
Pick yours
Spectra Precision
CR700: one receiver, machine or rod
Mounts on the machine for digging and on the grade rod for checks. Both mounts are in the box.
- C71 magnetic machine mount and C70 rod clamp both included
- 5 in. laser detection height, 200° reception angle
- Rod-mount it for grade checks, machine-mount it for digging
- IP67 waterproof and dustproof
Topcon
LS-B20: the lightweight machine receiver
A Topcon machine receiver built for machine control and grade checking.
- About 1 lb, the lightest in its class
- Integrated magnetic mount goes on almost any machine
- 270° detection range, 11 LCD grade channels, bright LEDs
- IP66 rated, up to 100 hours of battery life
Not sure which fits your machine? Call 1-877-866-5721 and we will tell you.
Call 1-877-866-5721
Family owned and operated. We set these systems up every week — tell us the machine and the laser you are running and we will spec it before you order.
Experience the value of Great Customer Service!
-
5 Works great
Posted by Claud on 11th Aug 2025
Good construction, seems to be pretty accurate.
-
4 Topcon RL-H5A
Posted by Steve H on 27th Aug 2020
Product was easy to set up and use. I have been happy with performance of unit and quality of products build.
