TOPCON RL-H5A - PS.DB 1021200-17-K2 COMPLETE PACKAGE

Self-Leveling Rotary Laser Level Deluxe Receiver Complete Package

Includes: Deluxe LS-100D Receiver, Alkaline Batteries, Grade Rod INCHES and Aluminum Tripod

Next Generation Self-Leveling Construction Laser

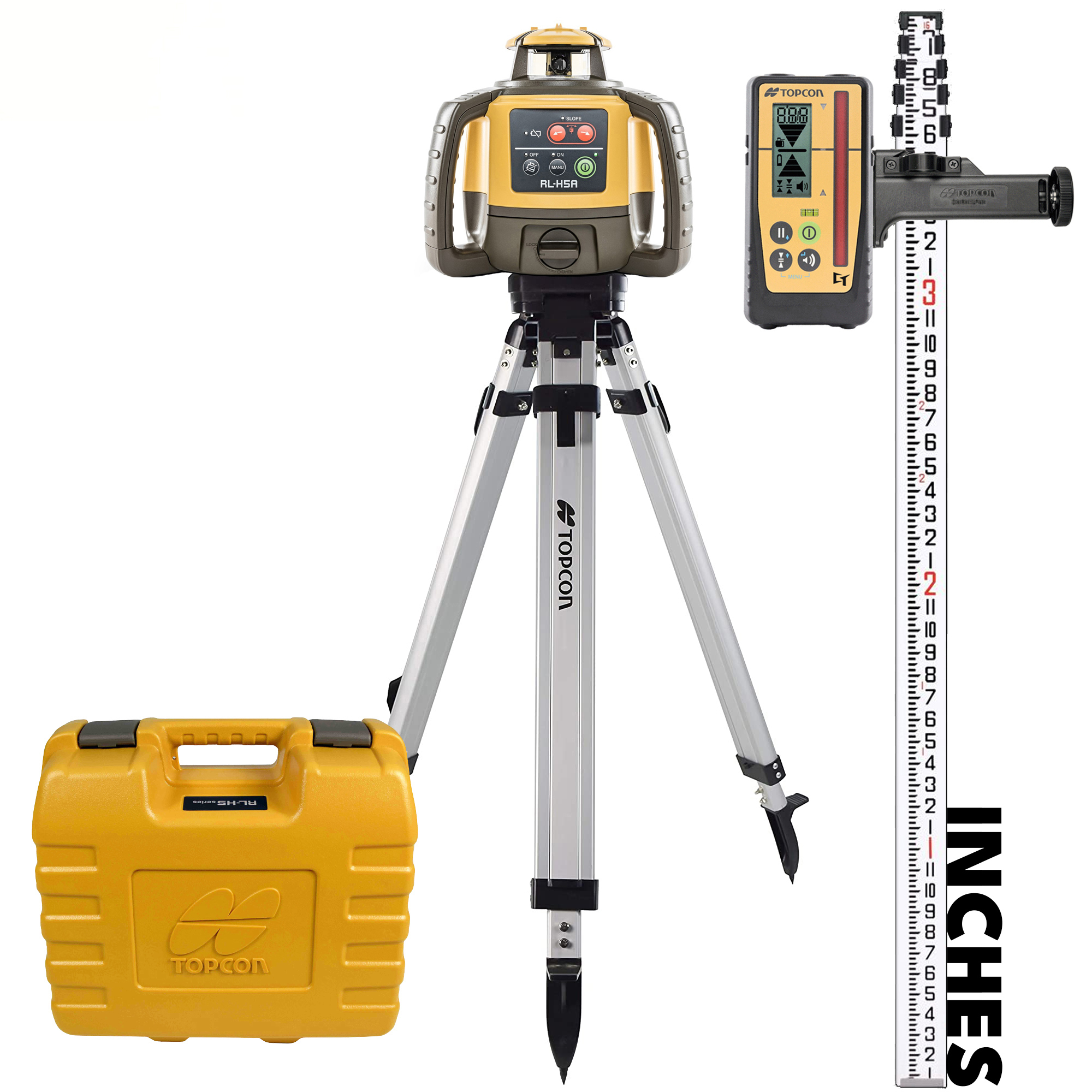

Topcon RL-H5A (1021200-17-K2) Laser Kit INCLUDES

Topcon RL-H5A kit 1021200-17-K2 contents: LS-100D receiver, aluminum tripod and 15-foot inches grade rod

RL-H5A Horizontal Laser Transmitter 1021200-50 (Made in Japan)
Deluxe LS-100D Laser Receiver Sensor 1011989-01
Receiver Rod Clamp Holder 100 (1011990-01)
(4) D-Cell NiMH AlkalineBatteries (((Batteries NOT Included)))
Adjustable 15-foot Aluminum Grade Rod with Measurements in INCHES
Aluminum Heavy-Duty Tripod
Rugged Hard Shell Carrying Case
5-Year Warranty Guarantee

The laser

Topcon RL-H5A TOP FEATURES

The Topcon RL-H5A auto-leveling laser level combines precision, versatility and value in one job site tough package. Its super-fast self-leveling motors are accurate to +/-10 arc seconds meaning whether you're checking grade or setting batter boards you are going to be accurate the first time. Its high-power 2.4mW diode means you have a 2,600' diameter working range (with detector use) making it a great reference for machine mounted receivers. The 635nm visible beam means it can even be used for interior alignment applications from setting piers and decking, to wall and even cabinet alignment. All of these features makes the Topcon RL-H5A Laser more than twice the laser offered by anyone else.

Topcon RL-H5A self-leveling rotary laser

Self-Leveling Horizontal Beam
Long Range Operation 2,600 ft diameter
High Horizontal Accuracy 1/16-inch @ 100-feet
Simple, intuitive manual slope capability
Tough IP66 Rating - Dust and Water Rating
Self-Leveling Range ± 5 degrees
Powered by 4-D Cell Alkaline Batteries / NOT INCLUDED
Alkaline battery life - 100 hours
Out of Level Notification

Why the RL-H5A

Built for the jobsite

MULTI-PURPOSE LASER Grading, excavating and general construction projects are perfect applications for the RL-H5A. With the added "Slope Matching" feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the Topcon RL-H5A a great match with any machine mounted laser sensor.

EASY TO USE With electronic self-leveling you press the power button and go right to work in seconds. If the TOPCON RL-H5A gets disturbed on the job it re-levels itself automatically. The Self-Leveling motors are accurate to ± 10 arc seconds.

LONG RANGE OPERATION Need to shoot elevations up to 1,300 feet from your laser? No problem, this TOPCON RL-H5A has a workable power and range of 2,600 feet diameter on the jobsite.

ALL WEATHER DEPENDABILITY With the IP66 rating, the TOPCON RL-H5A is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE

The TOPCON RL-H5A Laser comes with a FIVE YEAR GUARANTEE. Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon RL-H5A laser feature callout diagram

Specifications

Topcon RL-H5A Laser SPECIFICATIONS

Accuracy	1/16-inch @ 100-feet
Self-Leveling Range	± 5 degrees
Working Range diameter	2,600 feet
Rotation Speed	600 RPM
Light Source	Visible Red Laser 635NM
Laser Class	CDRH(FDA) IIIa JIS/IEC 3R
Dust / Water Rating	IP66
Operation Time	Rechargeable : 60 hours Alkaline: 100 hours
Operational Temp	-4ºF to 122ºF
Size	7.0 x 7.7 x 8.5 in
Maximum Power Output	2.4mW
Tripod Screw Thread	5/8-11

INCLUDED Topcon LS-100D Receiver Sensor OVERVIEW

Meet the Topcon LS-100D — the deluxe laser receiver that takes digital grade reading to the next level. Built for speed, accuracy, and rugged site conditions, the LS-100D delivers reliable on-grade feedback with digital precision, front-and-back LCDs, and insane battery life — all wrapped in a compact, field-ready unit.

✅ 4-inch laser capture height — grab the beam faster and stay on grade
✅ Smart LCD screens front and back — because walking around is overrated
✅ Digital readout tells you how far off-grade you really are
✅ Includes screw-style Sensor Holder 110 — mounts tight, stays tight
✅ Works with Topcon lasers including RL-H5A, RL-SV2S, and RL-200 Series
✅ 45 hours of runtime on a single AA battery

Topcon LS-100D laser receiver features and display diagram

This RL-H5A Kit INCLUDES This TOPCON LS-100D Laser Receiver

Topcon LS-100D

Topcon LS-100D Back

WHAT'S IN THE BOX...

Topcon LS-100D Deluxe Laser Receiver
- Receiver Model Topcon 1026030-01 / Topcon 1011989-04
- Large 4-Inch Laser Capture Height
- Rubber Armor Protective Jacket
- Smart Digital Readout
- Adjustable Accuracy Settings
- Adjustable Volume Control
- 1-Year Warranty

Sensor Holder 110 Rod Bracket (screw-style clamp for secure mounting)
- Rod Bracket Model Topcon 1019505-01
- Compatible with Topcon LS-100D laser receiver
- Secure clamp design for quick attachment to grade rods
- Durable construction for jobsite performance
- Adjustable grip for various rod sizes
- Quick-release mechanism for easy repositioning
- Built-in circular bubble vial helps keep rod vertical for accurate readings

If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721

SitePRO Contractor Grade Aluminum Tripod INCLUDED in this 1021200-17-K2 KIT

SITEPRO Contractor Grade Aluminum Tripod Included in this 1021200-17-K2 Kit

SitePro heavy-duty aluminum tripod for the Topcon RL-H5A

SitePro heavy-duty tripod folded, showing quick-clamp legs and carry strap

SitePro ALQR20 Aluminum Heavy Duty Quick Release Tripod

Built for the demands of the jobsite, the SitePro ALQR20 delivers rugged stability and fast setup in one dependable package. Constructed from heavy-gauge square aluminum, this tripod features double-banded legs for enhanced strength and reduced flex — ideal for high-precision applications in tough conditions.

The quick-release clamps make setup and adjustments fast and secure, while powder-coated black hardware resists wear, corrosion, and jobsite grime. The replaceable steel shoe points anchor confidently into dirt, gravel, or concrete for solid footing.

With a flat head style and standard 5/8-11 thread, the ALQR20 is compatible with most construction lasers and optical instruments. It extends up to 64 inches for versatility in uneven terrain, and collapses down to 40 inches for easy transport and storage.

Key Features:

Heavy-duty square aluminum construction with reinforced double-band leg design
Quick-release clamps for fast, reliable height adjustments
Durable black powder-coated metal hardware resists jobsite wear
Replaceable steel shoe points for solid traction in any surface
Flat head with 5/8-11 threaded mounting bellhousing
Extended height: 64 inches (163 cm)
Collapsed height: 40 inches (102 cm)

Ideal for: contractors, surveyors, and construction pros who demand durability, fast setup, and long-term reliability in the field.

Note on Included SitePRO ALQR20 Tripod:
This kit includes a contractor-grade tripod built for strength, stability, and long-term durability. Unlike many online kits that cut corners by including low-cost tripods with no available replacement parts, we’ve made sure to pair this high-end laser with a tripod that matches its quality.

We understand that when you're investing in a precision instrument, the last thing you want is to set it on a flimsy tripod that sways in the wind or fails under tough jobsite conditions. That’s why we include a heavy-duty, professional-grade tripod, carefully selected to meet the demands of jobsite use — and fully backed by us.

You won’t find this level of detail or commitment to quality spelled out like this at other distributors — but it’s what sets us apart. We guarantee you’ll appreciate the difference.

Aluminum 15-Foot Grade Rod - Inch Measurements INCLUDED in this KIT

Topcon LS-100D receiver and rod clamp mounted on a 15-foot inches grade rod

SitePro 11-815-C 15-ft Aluminum Telescoping Leveling Rod (CR) — Feet & Inches Graduations

Engineered for performance and built to last, the SitePro 11-815-C is a professional-grade 15-ft aluminum leveling rod designed for ultra-precise elevation reading and rugged, day-in-day-out use on active jobsites. Whether you're grading, staking, or checking elevations with a rotary laser, this rod keeps your measurements accurate and your crew efficient.

✔️ Lightweight Yet Built Tough

Made from high-strength aluminum alloy, this rod resists bending and denting while staying light enough for long workdays. The sections telescope smoothly and quietly — no rattling or binding like lower-end rods.

✔️ Feet & Inches — Down to the Details

Graduated in Feet, Inches, and fractional sub-divisions, the 11-815-C makes it easy to read precise elevation changes at a glance. It doesn’t stop at whole inches — the detailed fractional markings let you confidently measure changes as small as ¹⁄₈", ¹⁄₁₆", and even ¹⁄₃₂" — perfect for tasks that demand absolute accuracy like pad finishing, form setting, and slab layout.

✔️ Built for All Conditions

Each section is anodized for corrosion resistance and printed with high-visibility, weatherproof ink that won’t fade or scratch, even in rough field conditions.

✔️ Backside Measuring Scale

The reverse side includes a convenient height scale, so you can easily read the rod’s extended height at eye level — no bending, no second guessing.

✔️ Rugged Jobsite-Ready Design

• Five-section telescoping design with impact-resistant joints
• Heavy-duty polycarbonate locking buttons keep each section securely in place
• Fully collapses to just 48 inches — fits easily in a truck, laser case, or storage tube

If you need assistance or have questions regarding laser products, or applications give us a call at 1.877.866.5721

Compare the kits

TOPCON LASER PACKAGE - Kit Component Comparison

Swipe the chart sideways to see every column.


Models Current	Laser	Receiver	Powered by:	Rod	Tripod	COO	NOTES
1021200-16	RL-H5A	LS-100D	(R)			JPN
1021200-16-K1	RL-H5A	LS-100D	(R)	Feet/10ths	HD Tripod	JPN
1021200-16-K2	RL-H5A	LS-100D	(R)	Feet/Inches	HD Tripod	JPN
1021200-17	RL-H5A	LS-100D	(ALK)			JPN
1021200-17-K1	RL-H5A	LS-100D	(ALK)	Feet/10ths	HD Tripod	JPN
1021200-17-K2	RL-H5A	LS-100D	(ALK)	Feet/Inches	HD Tripod	JPN
1021200-49	RL-H5A	LS-80X	(R)			JPN
1021200-49-K1	RL-H5A	LS-80X	(R)	Feet/10ths	HD Tripod	JPN
1021200-49-K2	RL-H5A	LS-80X	(R)	Feet/Inches	HD Tripod	JPN
1021200-50-BCA	RL-H5A	LS-80X	(ALK)				NO CASE
1021200-50-BL	RL-H5A		(ALK)			JPN	LASER ONLY
1021200-50	RL-H5A	LS-80X	(ALK)			JPN
1021200-50-K1	RL-H5A	LS-80X	(ALK)	Feet/10ths	HD Tripod	JPN
1021200-50-K2	RL-H5A	LS-80X	(ALK)	Feet/Inches	HD Tripod	JPN
1035258-01	RL-H5A	LS-80X	(ALK)	Feet/10ths		JPN	AKA 1021200-50-K1
1035259-01	RL-H5A	LS-80X	(ALK)	Feet/Inches		JPN	AKA 1021200-50-K2
1035260-01	RL-H5A	LS-80X	(R)	Feet/10ths		JPN	AKA 1021200-49-K1
1035261-01	RL-H5A	LS-80X	(R)	Feet/Inches		JPN	AKA 1021200-49-K2
Models Obsolete -DISCONTINUED - Direct Substitution - Last Column
Models	Laser	Receiver	Powered by:	Rod	Tripod	COO	NOTES
1021200-06	RL-H5A	LS-80L	(R)			CHN	DR 1021200-49
1021200-06-K1	RL-H5A	LS-80L	(R)	Feet/10ths	HD Tripod	CHN	DR 1021200-49-K1
1021200-06-K2	RL-H5A	LS-80L	(R)	Feet/Inches	HD Tripod	CHN	DR 1021200-49-K2
1021200-07	RL-H5A	LS-80L	(ALK)			CHN	DR 1021200-50
1021200-08	RL-H5A	LS-100D	(R)			CHN	DR 1021200-16
1021200-14	RL-H5A	LS-80L	(R)			CHN	DR 1021200-49
1021200-15	RL-H5A	LS-80L	(ALK)			CHN	DR 1021200-50
1021200-15-K1	RL-H5A	LS-80L	(ALK)	Feet/10ths	HD Tripod	CHN	DR 1021200-50-K1
1021200-15-K2	RL-H5A	LS-80L	(ALK)	Feet/Inches	HD Tripod	CHN	DR 1021200-50-K2
313980752	RL-H4C	LS-80L	(ALK)			CHN	DR 1021200-50
313980782-1	RL-H4C	LS-80L	(ALK)	Feet/10ths	HD Tripod	CHN	DR 1021200-50-K1
313980752-2	RL-H4C	LS-80L	(ALK)	Feet/Inches	HD Tripod	CHN	DR 1021200-50-K2
313980772	RL-H4C	LS-100D	(R)			CHN	DR 1021200-16
DR = Direct Replacement
			(R) / (ALK)	Rechargeable / Alkaline	CHN / JPN	Made in China / Japan

Compare the series

Topcon RL-H5A Laser Series COMPARISON

Swipe the chart sideways to see every column.

New Series	RL-H5A RB	RL-H5A DB	RL-H5A RB	RL-H5A DB	RL-H5B DB
LASER - TOP COMPONENT OVERVIEW
New Model	1021200-49	1021200-50	1021200-16	1021200-17	1021200-73
Discontinued Model	1021200-06 1021200-14	1021200-07	1021200-08		1021200-31 1021200-33
Receiver	LS-80X	LS-80X	LS-100D	LS-100D	LS-80X
Batteries	Rechargeable	Dry / Alkaline	Rechargeable	Dry / Alkaline	Dry / Alkaline
Remote Control	NO	NO	NO	NO	NO
Measuring Rod 15'	NO	NO	NO	NO	NO
Aluminum Tripod	NO	NO	NO	NO	NO
LASER SPECIFICATIONS
Source	635nm Class 3R	635nm Class 3R	635 nm Class 3R	635 nm Class 3R	635 nm Class 3R
Range (Diameter)	2,600-feet	2,600-feet	2,600-feet	2,600-feet	1,300-feet
Accuracy @ 100 feet	1/16-inch	1/16-inch	1/16-inch	1/16-inch	1/8-inch
Rotation Speed	600 RPM	600 RPM	600 RPM	600 RPM	600 RPM
Slope	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	Manual 1 Axis	NO
Manual Slope Range	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Self-Leveling	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees	± 5 degrees
Rechargeable Battery	60 hours		60 hours
Dry/Alkaline Battery	100 hours	100 hours	100 hours	100 hours	100 hours
Battery Run Charge	NO		NO	NO
Environment	IP66	IP66	IP66	IP66	IP66
Warranty	5 YEARS	5 YEARS	5 YEARS	5 YEARS	5 YEARS
DISCONTINUED VERSION - OLD LASER INFORMATION
Old Series	New	RL-H5A DB	RL-4HC RB		RL-H5B
Old Model	New	1021200-07	313980772		1021200-31

* Under normal circumstances we stock this item and are able to ship orders placed before 12 NOON Central Standard Time. We also attempt to ship all orders that are placed before 5 P.M. Certain circumstances outside of our control can sometimes affect this standard that we set.

Straight answers

Topcon RL-H5A — Straight Answers.

What comes in the Topcon RL-H5A 1021200-17-K2 kit?

This kit includes: RL-H5A Horizontal Laser Transmitter 1021200-50; Deluxe LS-100D Laser Receiver Sensor 1011989-01; Receiver Rod Clamp Holder 100 1011990-01; (4) D-Cell NiMH AlkalineBatteries (((Batteries NOT Included))); Adjustable 15-foot Aluminum Grade Rod with Measurements in INCHES; Aluminum Heavy-Duty Tripod; Rugged Hard Shell Carrying Case; 5-year factory warranty.

Are batteries included?

No. This package uses (4) D-cell alkaline batteries in the laser, which are not included. Run time is up to 100 hours on alkaline.

How long do the batteries last?

The laser runs up to 100 hours on alkaline batteries.

What does the LS-100D show?

A digital readout of elevation on bright LCDs front and rear, 9 channels of grade information and the distance to on-grade, with a Hold button to lock the reading. Three colored LEDs and a magnet mount are built in.

Can I use the RL-H5A with a machine-mounted receiver?

Yes. At 600 RPM it is a good match for machine-mounted laser receivers on dozers, excavators and skid steers.

How does the RL-H5A level itself?

Press the power button and the electronic self-leveling motors level the beam to ±10 arc seconds. If the laser is bumped it re-levels automatically.

Is the RL-H5A waterproof?

It carries an IP66 dust and water rating, so it can handle dust, a sudden shower and heavy rain.

What is the difference between the RL-H5A RB and DB?

RB packages include rechargeable batteries and a charger. DB packages run on dry alkaline batteries. See the series comparison on this page.

Who sells this kit?

Contractors-Tools.com is an authorized Topcon distributor. Call 1-877-866-5721 and we will help you pick the right package.

Questions about this kit? Call 1.877.866.5721 and we will help you set it up right.

Downloads — Topcon RL-H5A Manual

Topcon's own document, free to download. Authorized Topcon distributor — Contractors-Tools.com.

RL-H5A Instruction ManualNomenclature, setup, slope, receiver use and specifications · Topcon documentation with Contractors-Tools.com coverDownload PDF →

Put your RL-H5A to work on the machine

Grade from the seat. No rod man.

The RL-H5A throws a 2,600 ft diameter working range (with a detector), which makes it a great reference for machine-mounted receivers. Add one receiver to the bucket or boom, set the laser, and the operator reads grade without leaving the cab.

Compare the machine receivers

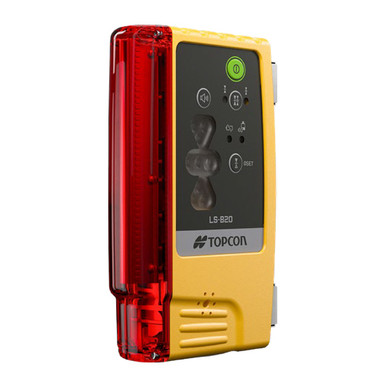

	Spectra CR700	Topcon LS-B20	Topcon LS-B20W
Price	$559.20	$612.95	$1,149.95
Mounting	Machine mount and rod clamp included	Integrated magnetic mount	Integrated magnetic mount
Detection	200°, 5 in. height	270° detection range	270° detection range
In-cab display	—	—	Yes, via app
Weather	IP67	IP66	IP66
Weight / battery	—	About 1 lb, 100 hr battery	About 1 lb, 100 hr battery

Pick yours

Spectra Precision

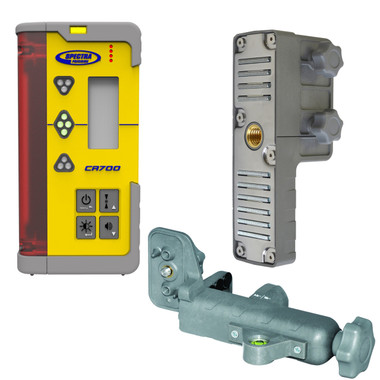

CR700: one receiver, machine or rod

Mounts on the machine for digging and on the grade rod for checks. Both mounts are in the box.

C71 magnetic machine mount and C70 rod clamp both included
5 in. laser detection height, 200° reception angle
Rod-mount it for grade checks, machine-mount it for digging
IP67 waterproof and dustproof

$559.20 See the Spectra CR700

Topcon

LS-B20: the lightweight machine receiver

A Topcon machine receiver built for machine control and grade checking.

About 1 lb, the lightest in its class
Integrated magnetic mount goes on almost any machine
270° detection range, 11 LCD grade channels, bright LEDs
IP66 rated, up to 100 hours of battery life

$612.95 See the Topcon LS-B20 Want the wireless in-cab display? See the LS-B20W

Not sure which fits your machine? Call 1-877-866-5721 and we will tell you.

Call 1-877-866-5721

Family owned and operated. We set these systems up every week — tell us the machine and the laser you are running and we will spec it before you order.

Contractors-Tools.com

Experience the value of Great Customer Service!

Laser Orientation:

Horizontal

Application:

Exterior

Laser Color:

Red

Laser Range (diameter):

2,600 feet

Laser Accuracy:

1/16-inch

Grade Type / Range:

Manual Grade

Battery Type:

Alkaline

Receiver:

LS-100D (4-inch Capture Height)

Remote Control:

Tripod:

Heavy Duty Standard

Measuring Rod:

15' Inches

NOW ON SALE:

Lowest Price GUARANTEED!

How To Set Up Your Topcon RL H4C (Video Tutorial)

Find out how to set up your Topcon RL-H4C laser in this simple...

5
Awesome

Posted by Jimroy atchison on 14th May 2025

Easy to set up easy to use and Allways on the mark
5
Topcon Laser

Posted by Mike Popp on 6th Oct 2024

Everything works as it should.
Seems to be a high quality unit that should last a long time.
I had an issue with the level rod getting damaged during the shipping process. I contacted the seller and they sent me a replacement part in a prompt manner.
I would purchase items from this seller again.

Categories

Brands

Navigate

RL-H5A Self-Leveling Laser PS.DB Kit with LS-100D Receiver, Grade Rod INCHES and Tripod - 1021200-17-K2

Brand : Topcon Laser

TOPCON RL-H5A - PS.DB 1021200-17-K2 COMPLETE PACKAGE

Topcon RL-H5A (1021200-17-K2) Laser Kit INCLUDES

Topcon RL-H5A TOP FEATURES

Built for the jobsite

Topcon RL-H5A Laser SPECIFICATIONS

INCLUDED Topcon LS-100D Receiver Sensor OVERVIEW

SitePRO Contractor Grade Aluminum Tripod INCLUDED in this 1021200-17-K2 KIT

Aluminum 15-Foot Grade Rod - Inch Measurements INCLUDED in this KIT

✔️ Lightweight Yet Built Tough

✔️ Feet & Inches — Down to the Details

✔️ Built for All Conditions

✔️ Backside Measuring Scale

✔️ Rugged Jobsite-Ready Design

TOPCON LASER PACKAGE - Kit Component Comparison

Topcon RL-H5A Laser Series COMPARISON

Topcon RL-H5A — Straight Answers.

Downloads — Topcon RL-H5A Manual

Grade from the seat. No rod man.

CR700: one receiver, machine or rod

LS-B20: the lightweight machine receiver

How To Set Up Your Topcon RL H4C (Video Tutorial)

Awesome

Topcon Laser

SUPPORT - Got Questions?

Secure payment

Free shipping

Amazing selection

Categories

Brands

Navigate

RL-H5A Self-Leveling Laser PS.DB Kit with LS-100D Receiver, Grade Rod INCHES and Tripod - 1021200-17-K2

Brand : Topcon Laser

Write a Review

Topcon Laser

RL-H5A Self-Leveling Laser PS.DB Kit with LS-100D Receiver, Grade Rod INCHES and Tripod - 1021200-17-K2

How To Set Up Your Topcon RL H4C (Video Tutorial)

Related Products

Spectra Precision Q104025 Medium Duty Aluminum Tripod

Spectra Precision 2161 Heavy Duty Aluminum Tripod

Spectra Precision GR152 Aluminum Grade Rod - Measurement Inches

Spectra Precision GR151 Aluminum Grade Rod - Measurement TENTHS
