Topcon TP-L6G Pipe Laser Package - GREEN Beam with LED Plumb 1034437-06 SmartLine

TOPCON DUAL BATTERY SYSTEM
One fully charged battery can last for the whole week.  Plus the same battery can be used in other Topcon equipment on the jobsite

TOPCON GREEN - WHY GREEN?
Simple. You can see our Green Beam anywhere and under any conditions.  It's the most visible construction laser ever!  In fact, the TP-L6G Green Beam is four times easier to find in bright sunlight than conventional beams. So Setup, Grading and Pipe Installation is Fast and Easy.

Automatic Alignment Mode (TP-L6GV / TPL6AV / TPL6G)
Accelerate production by making setup and alignment automatic.  Patented scanning technology allows the industry's only fast, accurate one-person automatic alignment feature : the Automatic Alignment Mode

Most accurate line of pipe lasers available
The Topcon TP-L6G series of alignment pipe lasers offers a unique combination of features and technology that are prove to meet the demands of contractors more than any other alignment pipe lasers on the market.

Brightest beam available
The patented Topcon Green Beam technology provides the brightest, most visible laser beam available.  It's easily viewable in the brightest outside conditions.

Updated LCD display
Even easier to read menu, with a bright, LCD display.

Make adjustments from afar
The RC-500 remote puts all of the features at your fingertips whether you're near the laser or more than 600-feet away.

• 45 HOUR BATTERY LIFE
• COMPACT DESIGN ADDS FLEXIBILITY TO SETUP IN A TIGHTER INVERT
• MOBILE APP REMOTE DISPLAY MAKES SEEING AND CONFIGURING SETTINGS EASIER
• LESS TIME CLIMBING DOWN INTO HOLES
• 2 BATTERY SYSTEM FOR OVER 90 HOURS - 45 CONTINUOUS HOURS PER BATTERY

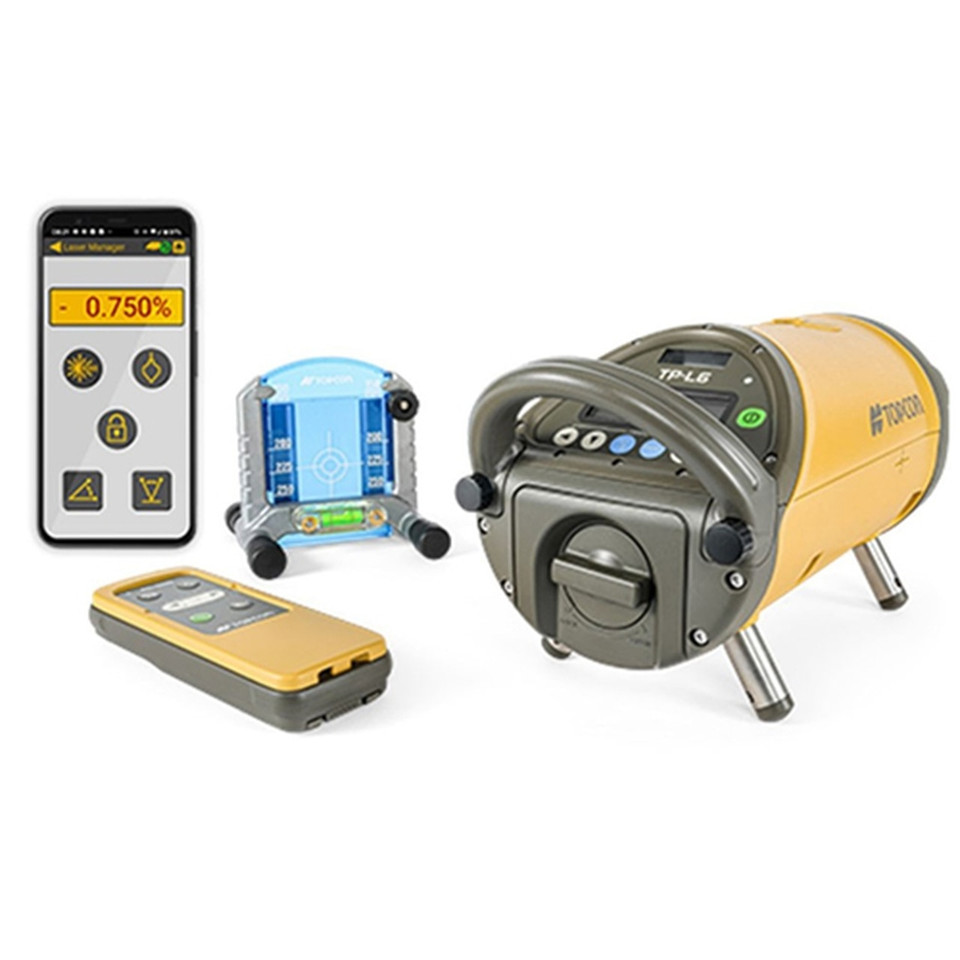

Topcon TP-L6G (1034437-06) Laser Kit INCLUDES

• Green Beam TP-L6G Pipe Laser with LED Plumb
• RC-500 Remote Control
• Adjustable Targets (6-inch to 18-inch)

  • Leg set 6”

  • Leg set 8”

  • Leg set 10”

  • Leg set 12”

• (2 each ) Rechargeable Batteries 1038706-01 (BDC72) 7.2V / 5,986 mAh

• Charger 1038707-01 (CDC77)
• Hard Carrying Case

• User Manual
• 5-Year Warranty
• APP for Android phones



• TP-L6G Series Green Beam Pipe Laser
• Brightest GREEN Beam Available
• Patented Topcon Green Beam technology provides the Brightest, Most Visible Laser Beam Available.
• Easily view-able in the brightest outdoor conditions.
• Updated LCD Display
• Even easier to read menu, with a bright, LCD Display
• World's most accurate leveling system
• Survey accurate electronic encoder
• Reduces rework
• Simplifies and shortens setup time
• Instant visible LED plumb reference
• Also includes a rear-facing Centerline LED to help quickly center the beam from behind during setup — ideal for open trench alignment. Only on TP-L6G
• Rechargeable Li-ion battery pack (7.2-Volt / 5,986mAh
• Convenient six-hour quick charge
• 60-Percent battery life increase
• Rechargeable Lithium Ion Batteries Standard
• (2) each Rechargeable Lithium Ion batteries INCLUDED

• Rechargeable Battery Charge Time - Up to 8 Hours
• Tough and Reliable
• As with all Topcon products, we manufacture with the highest quality in mind.
• Make Adjustments from afar with the RC500 Remote Control
• RC-500 Remote Control puts all of the features at your fingertips whether your near the laser or more than 600-feet away

• Auto-Alignment Mode - When the alignment is placed on centerline so it is in the alignment path of the beam, the laser will search the horizontal center of the target and automatically align the beam to it
• Note this function is helpful for second day set ups.
• Laser "standby" to save battery power
• Beam Mode to manage brightness
• Auto-Centering
• Grade Match for quick grade reference and elevation matching

Topcon RC-500 REMOTE CONTROL FEATURES

• Smart-Line Auto-alignment
• Laser "standby" to save battery power
• Beam Mode manage of brightness
• Auto-Centering Grade Match for quick grade reference and elevation matching

What’s the Real-World Difference?

Both models are functionally identical in slope range, red beam visibility, app control, and waterproofing. The difference comes down to one thing:

➤ Plumb Light System (Bottom vs. Top/Bottom)

✅ TP-L6G (1034437-06): LED Plumb Only (Bottom)

• Has a bright Orange LED dot straight down from the base of the laser.

• Helps align the laser with a reference point (like a spike or manhole mark) before you start the job.

• Only shines downward — no overhead reference.

• Centerline LED shows you if the beam is exactly centered when sighting from behind — super handy in open trench setups.

• Great for: Sanitary lines, straight-line setups, or anytime you’re setting grade from the bottom and working forward.

✅ TP-L6GV (1034437-09): Red Laser Plumb (Top and Bottom)

• Shoots a precision green laser dot upward AND downward.

• Gives you both a floor mark and a ceiling/overhead mark.

• Perfect when working with drop manholes, vertical pipe jacks, or when you need to line up your laser from overhead reference points.

• Great for: Utility contractors, municipal crews, or jobs with overhead benchmarks.

Centerline LED — What It Is and Why It Matters (Only on TP-L6G)

The Centerline LED is a small light on the back of the laser that tells you when the laser beam is exactly aligned with the mechanical center of the pipe laser.

• It’s especially useful when you're lining up from behind the laser in open trench work.

• Saves time and reduces guesswork when nudging the laser side to side before starting slope.

The TP-L6GV doesn’t include this Centerline LED, but it does offer the top plumb laser, which is more helpful in vertical setups.

✅ Which One Should You Choose?

• If you’re always working from the ground and don’t need to align with an overhead point:
  → Go with the TP-L6G (1034437-06). The Centerline LED is actually more useful for most trench crews.

• If you ever need to align vertically (like top-down setups, manhole drops, or vertical control):
  → The TP-L6GV (1034437-09) gives you both top and bottom plumb lasers, which can make or break the job.
