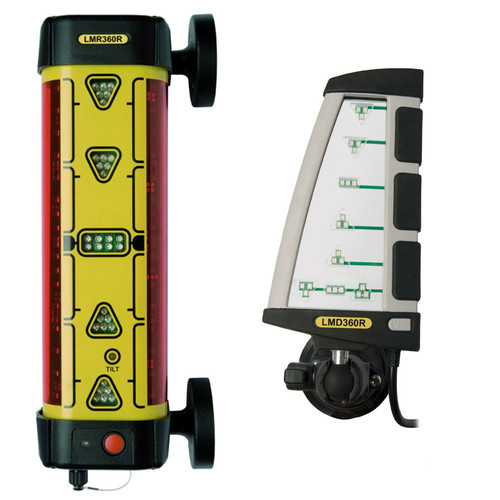

LEICA LMR360R Wireless Receiver w/ LMD360R In-Cab Remote Display - 6009893
PRO Kit includes Mounting CLAMPS + MAGNETIC Mounts + Remote Display + Rechargeable Batteries |
Offers highly accurate grade information for all visual machine control applications |
|
360 DEGREE
MACHINE MOUNTED RECEIVER
with LMD360R In-CAB WIRELESS DISPLAY
LEICA LMR360R Machine Receiver OVERVIEW
Large 360° Detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it's plumb or under or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over and under cutting. Large magnets allow quick mount and easy movement from machine to machine. Mounting clamp kit also included with this package.
LEICA LMR360R Machine Receiver FEATURES
- Accurate Grade Control
- Large 9-3/4 inch capture height
- Built-In Vertical Indicator
- Remote In-Cab Wireless Display panel mounts to the windshield with a heavy-duty suction cup. Won’t block operator’s view.
- Compatible with any Rotary Laser
- Waterproof
- Rechargeable Battery Included
- LED indicators show position of cutting edge in relation to the laser reference beam. Seven display channels (indicators) in coarse mode; nine channels in fine mode.
- Memory stores the last signal received. Arrows indicate which way to move the cutting edge to reach the reference plane.
- Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. If used on a dozer or grader, these LEDs can be turned off for a simpler display and longer battery life.
- Rugged, waterproof construction. Built-in shock mounts minimize machine vibrations.
CALL Contractors-Tools.com with questions and we can help you select the laser-referenced system to fit your needs and budget. Call 1-877-866-5721
|
|
LEICA LMR360R Machine Receiver (6009893) INCLUDES
|
 |
- LMR360R Machine Receiver
- includes Magnetic Brackets
- for use with Excavator / Backhoe
- includes Mounting Clamps
- for use with Bulldozer / Skid Steer
- LMD360R Wireless remote In-Cab Display
- NiMH Rechargeable Batteries
- Charger 120 Volt AC
- Charger
- 2-Year Warranty
|
|
|
LEICA LMR360R Machine Receiver SPECIFICATIONS
|
|
| Operating radius* |
650 feet |
| Reception |
360° |
| Capture window |
9-3/4 inches |
| Accuracy* |
Fine 1/4 inch
Coarse 1/2 inch |
| Vertical indicator |
±5° |
| Waterproof |
IP67 |
| Power |
Rechargeable NiMh |
| Battery Life |
30 hours |
| Charging Time |
12 hours |
| Frequency Range |
100 feet betweek LMR360R and LMD360R |
| Size (inches) |
14.75 x 3 x 4.25 |
| Weight |
4 lbs without magnet or clamps |
|
|
| |
|
LEICA LMR360R Wireless Remote In-Cab Display OVERVIEW
|
|
LEICA LMD360R Wireless Remote Display...
Puts grade information in the cab |
 |
LEICA LMD360R Remote Wireless In-CAB Display FEATURES
- Clear remote display panel mounts to the windshield with a heavy-duty suction cup. Won’t block operator’s view
- Displays the 9 channels of the receiver, plus the vertical indicator arrows. It receives the information via wireless RF link (no cable needed).
- Both the receiver and remote have menus, enabling you to scroll through menu choices to change settings. All settings can be done through the remote display, without getting out of the cab. You can even turn off the receiver display from the remote, saving battery life.
- Choice of receiver channels: switch to the 2nd frequency if there are two systems on a job site.
|
|
|
|
|
|
|
|
|
| LMR360R Set-Up |
| |
 |
Got Question? Give us a call to discuss which Machine Receiver is right for you...
CALL 1-877-866-5721 |
Machine-mounted receiversCompare the Leica machine receivers
The Leica receivers that ride on the machine, side by side. The LMR360R is sold in four packages, listed below. Our price, MSRP and savings are live from the store.
LMR360R: which package?
Prefer a hand receiver on the rod? See Rod Eye 120 Basic · Rod Eye 120G · Rod Eye 140 Classic · Rod Eye 160 Digital. Range and accuracy vary with the laser used.
Leica LMR360R 6009893: your questions answered
What comes in the Leica LMR360R 6009893 PRO kit?
The kit includes the LMR360R machine receiver with magnetic brackets for excavators and backhoes, mounting clamps for bulldozers and skid steers, the LMD360R wireless in-cab display, NiMH rechargeable batteries, a 120 volt AC charger and a 2 year warranty.
How does the LMD360R in-cab display work?
It shows the receiver's nine channels plus the vertical indicator arrows, and gets its information over a wireless RF link, so no cable is needed. It mounts to the windshield with a heavy-duty suction cup and does not block the operator's view. Range between the receiver and the display is 100 feet.
Can I change settings from inside the cab?
Yes. Both the receiver and the display have menus, and every setting can be changed from the remote display without leaving the cab. You can also turn the receiver display off from the display to save battery life, and switch to the second receiver channel.
What lasers does the Leica LMR360R work with?
It detects any rotating laser. Its 360 degree reception picks up the beam from the front, back or sides, so you do not have to aim the receiver at the laser.
How big is the capture window and how accurate is it?
The capture window is 9-3/4 inches. Accuracy is 1/4 inch in fine mode and 1/2 inch in coarse mode, with seven display channels in coarse mode and nine in fine mode. Range and accuracy vary with the laser you use.
Is the LMR360R waterproof, and how long does the battery last?
It is rated IP67 (dustproof and waterproof) with built-in shock mounts for machine vibration. The rechargeable NiMH battery lasts about 30 hours and takes about 12 hours to charge.
What does the built-in vertical indicator do?
It watches the angle of the stick, showing you if it is plumb or under or over extended, within plus or minus 5 degrees. A plumb stick keeps grade readings accurate and cuts over and under digging.
Also see: LMR360R 6003354 with clamps · LMR360R 6003355 with magnetic mounts · LMR360R 6009892 receiver only
NEED HELP or HAVE QUESTIONS?
✆ 1-877-866-5721
Authorized Leica Geosystems Dealer · Family Owned & Operated
Free Shipping · Same-Day Shipping Available
contractors-tools.com
Experience the value of Great Customer Service!
Beam Reception:
360 Degree
Reception Height:
9.75 inches
Plumb Tilt Indicator:
Yes - for Excavation Applications
