Spectra Precision Universal Laser
Level, Grade, Vertical and Plumb. One Laser.
The Most Versatile Construction Laser, Ever.
The UL633N is the first construction laser to enable the total control of all three axes (X/Y/Z). This is accomplished via unique simultaneous Radio and Infrared communication and also completely new “fan beam” technology for the Z axis. Benefiting from Spectra Precision’s know-how, the UL633N is appropriate for all applications delivering an easy, fast and accurate job.
Dig slopes by dialing in the required grade value
Applications include form placement, tilt-up walls, anchor bolts, footers and as-built checks
Use the remote control to align the laser in vertical between two known reference points using automatic vertical PlaneLok
Check for level or slope across the pad

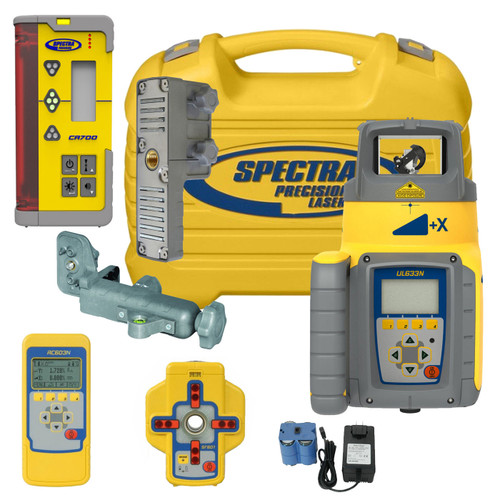

What You Receive.
UL633N Universal Laser
X / Y / Z control: ±25% on every axis, 1/16 in at 100 ft, 0-750 rpm, IP67.
RC603N Remote Control
Radio up to 490 ft, infrared up to 260 ft. Mirrors the laser keypad. IP66, 130 hours on 2 AA.
CR700 Multi-Use Receiver
Rod or machine receiver: 5 in capture height, numeric readout, blue / green / red grade LEDs, IP67, 3-year warranty.
C70 Rod Clamp
Holds the receiver on a grade rod.
C71 Magnetic Mount
Holds the CR700 on the machine.
Spot Finder SF601 with Sun Shield
Finds and locks the plumb beam; Spot Align, SpotLok, Spot Match. 260 ft, IP67.
Spot Finder adapter with Rubber Strap
Comes with the SF601.
956 Pipe Target with 2 Plates
A pipe target for short specialty pipe runs.
CH10 Worldwide Charger
Charges the Q104667 pack in about 10 hours from empty. Replaces the Q104781.
Q104667 Rechargeable NiMH Battery Pack
10 Ah NiMH: about 35 hours. Four alkaline D cells also run it (about 40 hours).
Carrying Case
The 5289-0670 hard case.
Operating Manual
The user guide is also below under Downloads, in English and Spanish.
5-Year Warranty
Spectra warranty on the UL633N laser, materials and workmanship. Calibration is the owner’s job. The CR700 carries a 3-year Spectra warranty.



- A second receiver: the HL760 stays on the rod while the CR700 rides the machine: two receivers, one per axis, for dual-axis alignment and dual PlaneLok.
- The same UL633N, RC603N remote, CR700, SF601, NiMH pack, charger and case. (No 956 pipe target in the HXC.)
The laser sets the plane. The CR700 reads it.

- Goes on a grade rod with the C70 clamp or on a machine with the C71 magnetic mount, both included.
- Radio to the UL633N for Axis Alignment, Grade Match and PlaneLok, like the HL760; 5″ capture height with a numeric readout and bright blue / green / red LEDs.
- Waterproof and dustproof to IP67, warranted for a 10 ft drop; 3-year Spectra warranty.

- Spot Search: four red LEDs guide you to the center of the plumb (fan) beam.
- Spot Align, SpotLok, Spot Match: the laser moves the plumb beam to the SF601 by infrared.
- Works up to 260 ft; mounts on a grade rod or the optional pipe laser target base.

Call 1-877-866-5721 for express and next-day options. · Five-year Spectra laser warranty


Total Control of X, Y and Z.
- Unlimited Automatic Dual Axis Features
- High Precision Axis Alignments
- Simplified Grade Match: measures and displays the existing grade over unknown ground
- Complete PlaneLok: automatically locks on the laser beam to an existing elevation
- All functions flexible from 10° to 170°
- Horizontal Angle Measurement capability
- Automatic Detection of plumb beam
- Spot Align: aligns the plumb beam to a desired position
- Spot Match: displays the measured Z-axis grade value
- SpotLok: automatically locks the plumb beam to the SF601 center point
- Manual Detection of plumb beam - Spot Search
- Radio (2 radio channels)
- IR
- Fully automatic up to +/-25% grade on X/Y/Z axes
- Withstands a 3 ft (1 m) drop onto concrete
- Long operating range - 2,600 ft (800 m) diameter
- Intuitive keypad
- Mask mode
- Various power options
- Automatic temperature compensation
- Electronic leveling vibration filter
- Versatility to fit any construction application
- Quickly adapts to site requirements
- Simplifies 90° layout applications
- Reduces time on slope work and short pipe runs

Features from the Spectra Precision UL633N datasheet and our UL633N listing.
Where This Laser Earns Its Keep.
Vertical alignment such as anchor bolts and form alignment
Dual slope grading and steep slope excavating
Slope work for sports fields, tennis courts, driveways, parking garages, ramps
Measuring the existing slope between two points (Spot Match)
Installation of drop ceilings
General Contractors, Mechanical Contractors and Ag Contractors doing small and medium commercial projects
Leveling and grade contractors
Parking garage contractors
Excavating and Pipe laying contractors
Interior contractors


Applications from the Spectra Precision UL633N datasheet and our UL633N listing.
Watch Every Function Work.

Spectra Precision’s own videos, filmed on the UL633. The UL633N runs the same functions with a longer radio range.
Power On, Dial the Grade, Let It Find the Point.
The UL633N keypad runs every function from the menu; the RC603N remote mirrors it.
Manual mode
Press manual to stop self-leveling: the arrow keys slope Y and X by hand, or Z and left/right when vertical. Press it again to go back to automatic.
Mask mode
Turn the beam off in the sectors you choose, to stop reflections off glass or interference with another laser. It resets at power-off.
Temperature checks
With a grade entered, it re-checks after a 9°F change, after 20 minutes and then every 60 minutes, so the grade holds as the day warms up.


Steps from the Spectra Precision UL633N user guide and our UL633N hands-on training. Both are under Downloads.
Grade in Vertical, and a Plumb Beam That Finds Its Target.
Stand the UL633N on its side and the Z axis takes the grade, up to ±25%. The plumb beam becomes a rotating fan beam with a 10° cone, and the SF601 spot finder reads it by infrared.
Spot Search
Manual. The four red LEDs point you toward the center of the plumb beam; all four solid means centered.
Spot Align
The SF601 at a direction hub guides the plumb beam to it while the Z-axis grade is held. The fan beam turns off when it is done.
SpotLok
Like PlaneLok, in vertical: the plumb beam locks to the SF601 center and keeps checking it until you exit.
Spot Match
Like Grade Match: the laser aligns to the SF601 at the far end and displays the measured Z-axis grade.
| SF601 | Included in this package |
| Operating range | Up to 260 ft (80 m) |
| Power / battery life | 4 x AA, 30 hours |
| Dust and water | IP67 |
| Weight | 0.95 lb (0.43 kg) |
| Modes | Spot Search (manual), Spot Align, SpotLok, Spot Match |
| Mounting | Grade rod with a standard receiver clamp, or the optional pipe laser target base |
From the UL633N user guide (SF601 section) and the UL633N datasheet.


Hover any photo to enlarge it.


What Reads the Beam, and What Runs the Laser.
The CR700 is a combination receiver: a machine display and a grade-rod receiver in one. It ships with the C70 rod clamp and the C71 magnetic mount, so it goes on the rod or the excavator stick or dozer, and it runs Axis Alignment, Grade Match and PlaneLok with the UL633N by radio, the same as the HL760.
| CR700 | Included |
| Laser detection height | 5 inch (127 mm) |
| Numeric readout height | 4 inch (102 mm) |
| Accuracy settings | 6: Ultra Fine 1/32″, Super Fine 1/16″, Fine 1/8″, Medium 1/4″, Coarse 1/2″, plus calibration |
| Reception angle | 200° minimum (laser and distance dependent) |
| LED grade indicators | Green on-grade, blue high, red low; off, bright or super-bright |
| Beeper | Loud 110 dBA, Medium 95 dBA, Low 65 dBA |
| Mounting | Grade rod (C70 rod clamp) or machine (C71 magnetic mount), both included |
| Power / battery life | 3 x AA, 60+ hours |
| Automatic shut off | 30 minutes |
| Environmental | Waterproof, dustproof to IP67; warranted for a 10 ft (3 m) drop |
| Operating temperature | -4°F to 140°F |
| Weight (no clamp) | 16.6 oz (471 g) |
| Warranty | 3 years, Spectra Precision |
| Working radius | Up to 1,500 ft (laser dependent); the UL633N covers 1,300 ft |
The RC603N mirrors the laser’s keypad: grade entry, menu, manual, rotation and every automatic function. When radio is blocked, for example down a pipe, it switches to infrared.
| RC603N | Included |
| Radio range | Up to 490 ft (150 m) |
| Infrared range | Up to 260 ft (80 m) |
| Power / battery life | 2 x AA, 130 hours |
| Dust and water | IP66 |
| Weight | 0.57 lb (0.26 kg) |
From the UL633N datasheet and user guide and the Spectra CR700 datasheet and user guide.


Hover any photo to enlarge it.
Spectra Precision UL633N SPECIFICATIONS.
| UL633N | Spectra Precision |
| Leveling accuracy | ±1/16″ @ 100 ft · ±0.5 mm / 10 m · 10 arc seconds |
| Grade accuracy | ±1/8″ @ 100 ft · ±1.0 mm / 10 m · 20 arc seconds |
| Grade temperature drift | 1/16″ @ 310 ft per 1°F · ±0.3 mm / 10 m / 1°C |
| Operating area | 1,300 ft (400 m) radius with a receiver: 2,600 ft (800 m) diameter |
| Grade range, Y and X | ±25% each axis (Spectra: “not simultaneously”) |
| Grade range, Z (vertical) | ±25% |
| Self-leveling range | About ±14° |
| Rotation | 0 to 750 rpm (presets 0, 80, 200, 600, 750) |
| Scan mode | 5 preset sizes (5, 15, 45, 90, 180°) plus variable adjustment |
| Laser | Red diode, 650 nm, Class 3 |
| Radio range (HL760 and RC603N) | Up to 490 ft (150 m) |
| Infrared range (RC603N) | Up to 260 ft (80 m) |
| Power | Q104667 NiMH battery pack, or 4 x D alkaline batteries |
| Battery life | 35 hours NiMH; 40 hours alkaline |
| Charge time | About 10 hours from empty |
| Leveling indicators | LCD indications and LED flashes |
| Operating temperature | -4°F to 122°F (-20°C to 50°C) |
| Storage temperature | -4°F to 158°F (-20°C to 70°C) |
| Tripod mounts | 5/8 x 11, horizontal and vertical |
| Dust and water | IP67 |
| Drop | Survives a 3 ft (1 m) drop onto concrete |
| Weight | 6.8 lb (3.1 kg) |
| Warranty | 5 years, Spectra Precision (calibration not covered) |
From the Spectra Precision UL633N datasheet (05/23) and user guide technical data, measured at 70°F.

Two Things Worth Knowing.
Charge it before the first job
The Q104667 NiMH pack takes about 10 hours to charge from empty, and reaches full performance after five charge cycles. Charge between 50°F and 104°F. Four alkaline D cells run the laser as a backup (about 40 hours), and the CH10 charger doubles as a power supply indoors.
Check calibration at 100 ft
Set up 100 ft from a wall at 0.000%, mark +Y, turn the laser 180° and mark –Y. More than 1/8″ apart means it needs calibrating; repeat for X. For Z, use a plumb bob on a 30 ft string: more than 1/16″ off needs calibrating. The 5-year warranty does not cover calibration.
Which UL633N Do You Need?
Every kit uses the same UL633N laser. The difference is what comes with it: HL760 receivers for the rod and the radio functions, the CR700 for a rod or a machine, the SF601 for the plumb beam, and the RC603N remote. The BCC and BL are the laser on its own.
Swipe the chart sideways to see every column →
| Kit | Receivers | SF601 | RC603N | Also includes | Price |
| UL633N | (2) HL760 | Yes | Yes | 2 C70 CLAMPS2 105516 ADAPTERSNIMH + CH10CASE | $4,216.00 |
| UL633N-HXC | HL760 + CR700 | Yes | Yes | C70 CLAMPSC71 MAG MOUNTNIMH + CH10CASE | $4,295.00 |
| UL633N-2C | (2) CR700 | Yes | Yes | C70 CLAMPSC71 MAG MOUNTSNIMH + CH10CASE | $4,480.00 |
| UL633N-14 YOU ARE HERE | CR700 | Yes | Yes | C70 CLAMPC71 MAG MOUNT956 PIPE TARGETNIMH + CH10CASE | $4,195.00 |
| UL633N-1 | (1) HL760 | Yes | Yes | C70 CLAMPNIMH + CH10CASE | $3,850.00 |
| UL633N-BCC | None | No | No | NIMH + CH10CASE | $2,816.00 |
| UL633N-BL | None | No | No | LASER ONLY | $2,575.00 |
Prices are live from our store. Every UL633N carries the 5-year Spectra laser warranty. Need a combination you do not see? Call 1-877-866-5721.
What the Display Is Telling You.
Clear any error message with a short press of button 4 (OK). If a code that is not on this list appears, contact a Spectra service center.
Error 21
Temporary EEPROM problem. Repeat the pairing and re-enter your settings.
Error 120
HI alert: the laser height changed. Clear the alert, then check the beam elevation.
Error 130
Mechanical limit during Axis Alignment, Grade Match or Spot Match. Re-aim the laser closer to the alignment point; check the existing slope is not over ±25%.
Error 131
Rake angle limit. Re-aim the laser closer to the alignment point.
Error 140
Laser beam blocked. Clear anything between the laser and the HL760 or SF601.
Error 141
Time out: the function did not finish in time. Check the radio range and connection, and that the setup is stable.
Error 150
No receiver for a single-axis automatic function. Make sure the receiver is on and paired.
Error 151
No receivers for the automatic alignment. Make sure both receivers are on and paired.
Error 152
The laser searched but could not find the receiver. Check the operating range for the auto function and restart it.
Error 153
The laser found the receiver, then lost it. Check the operating range for the auto function and restart it.
Error 160
X, Y or Z level sensor defect. Contact a Spectra service center. Call us at 1-877-866-5721.
From the Spectra Precision UL633N user guide, section 10.

UL633N-14 Questions We Actually Get.
Buying questions first, then how to work it, then the error codes one by one. Answers from Spectra’s UL633N documents.
What is the Spectra UL633N-14?
How is it different from a dual grade laser?
What is the grade range?
How accurate is it?
How far does it reach?
Can I use it as a pipe laser?
Is the SF601 spot finder included?
Does it come with a remote?
Can the CR700 go on a machine?
Does the CR700 run Axis Alignment, Grade Match and PlaneLok with the UL633N?
How long does the battery last?
What laser class is it?
What is the warranty?
Which UL633N kit should I buy?
Where can I buy it?
What rotation speed should I use?
What is Grade Match?
What is PlaneLok?
What is Automatic Axis Alignment?
Do I need a bracket to set it up vertical?
How do I check calibration?
How do I change the HI alert?
How do I clear an error message?
Error 21 on the UL633N display?
Error 120 on the UL633N display?
Error 130 on the UL633N display?
Error 131 on the UL633N display?
Error 140 on the UL633N display?
Error 141 on the UL633N display?
Error 150 on the UL633N display?
Error 151 on the UL633N display?
Error 152 on the UL633N display?
Error 153 on the UL633N display?
Error 160 on the UL633N display?
Buy the Piece, Not Another Kit.
Every part of the UL633N-14 we sell on its own, plus the add-ons that fit the UL633N.
Manuals and Documentation.

Authorized Spectra DealerCall 1-877-866-5721
Questions about the UL633N? Family owned and operated. We set these systems up every week — tell us the job and the laser you are running and we will spec it before you order.
Experience the value of Great Customer Service!
-
Spectra Precision UL633 Universal Laser
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Spot match
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Auto Spot Align Day 1
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Auto Spot Align Day 2
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Combined Vertical Plane Lok and Spot Search
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Dual Auto Plane Lok
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Dual Axis Alignment
The Spectra Precision UL633 Universal Laser is the first const...
-
UL633 Application Dual Axis Grade Match
The Spectra Precision UL633 Universal Laser is the first const...
-
5 I just got to say its one of the best laser
Posted by Jesus Salcedo on 2nd Apr 2022
Fast shipping, I recommended it
