Spectra Precision UL633N-BCC UNIVERSAL LASER Package

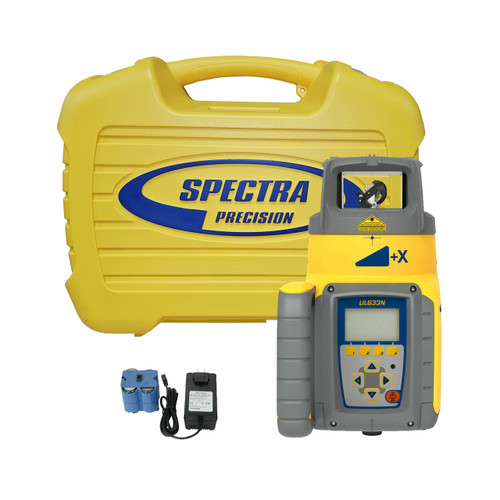

Laser, Rechargeable Batteries, Charger and Carrying Case Only
- with NO Receivers - NO REMOTE - NO Spot Finder.
The Most Versatile Construction Laser, Ever
 |
| Spectra Precision UL633N-BCC Universal Laser Key Features |
| Total Control of X/Y Axes |
- Unlimited Automatic Dual Axis Features
- High Precision Axis Alignments
- Simplified Grade Match: measures and displays the existing grade over unknown ground (Optional Remote Control Required)
- Complete PlaneLok: automatically locks on the laser beam to an existing elevation (Optional Remote Control Required)
- All functions flexible from 10° to 170°
- Horizontal Angle Measurement capability
|
| Total Control of Z Axes |
- Automatic Detection of plumb beam
- Spot Align: aligns the plumb beam to adesired position
- Spot Match: displays the measured Z-axis grade value
- SpotLok: locks automatically the plumb beam to the SF601 center point
- Manual Detection of plumb beam - Spot Search
- Complete Cross Axis Compensation
|
| Versatile Communications Links |
- Radio (2 radio channels)
- IR
|
Built for Today's Jobs
|
- Fully automatic up to +/-25% grade on X/Y/Z axes
- Withstands a 3 ft (1 m) drop onto concrete
- Long operating range - 2.600 ft (800 m) diameter
- Intuitive keypad
- Mask mode
- Various power options
- Automatic temperature compensation
- Electronic leveling vibration filter
|
| This UL633N-BCC Package INCLUDES |
- UL633N Universal Laser
- Worldwide Charger
- Rechargeable NiMH Battery Pack - Q104667
- Carrying Case
- Operating Manual
|
| User Benefits |
- Versatility to fit any construction application
- Quickly adapts to site requirements
- Simplifies 90° layout applications
- Reduces time to do slope work and pipe installation
|
| Applications |
General Construction
- Leveling concrete forms and footers
- Vertical alignment such as anchor bolts and form alignment
|
Machine Guidance Compatible
- Dual slope grading and steep slope excavating
- Slope work for sports fields, tennis courts, driveways, parking garages, ramps
|
Interior
- Layout of walls
- Installation of drop ceilings
|
| Comarison of UL633N Universal Laser Packages |
| Part Number |
Receiver |
Spot Finder SF601 |
Rod Clamp w/
Bubble Vial
|
Remote |
| UL633N |
2 each HL760 |
Yes |
Yes
|
RC603N |
| UL633N-1 |
1 HL760 |
Yes |
Yes |
RC603N |
| UL633N-1-NSF |
1 HL760 |
No |
Yes |
RC603N |
| UL633N-1-NR-NSF |
1 HL760 |
No |
Yes |
No |
All part numbers include laser transmitter, case and
NiMH rechargeable battery pack and charger |
Shipping:
Free Shipping
Laser Orientation::
Horizontal / Vertical
Application::
Interior / Exterior
Laser Color::
Red
Laser Range (diameter)::
2,600 feet
Laser Accuracy::
1/16-inch
Grade Type / Range::
Dual / ±25% X, Y and Z Axis
Plumb Point::
Yes
Battery Type::
Rechargeable
Receiver::
No
Remote Control::
No
